Pink aluminium power supply, compact rectangular block with terminal connections

myVolts

myVolts S-150-24 24V 6.25A 150W pink power supply

SKU CH-ZB56-EJMWJ

A 150 W 24 V 6.25 A aluminium-cased switch-mode unit with overload, over-voltage and short-circuit protection, CCC, FCC and CE compliance, and a 0 – 40 °C operating range

  • TypeAT
  • High efficiency with low DC ripple for stable power
  • Operates from 0 to 40 °C for long service life
  • CCC FCC CE certified for safety compliance
  • Short circuit overload and overvoltage protection built in
  • 100 % full-load burn-in test before shipment

24 V 150 W industrial power supply

This myVolts S-150-24 unit delivers 24 V at 6.25 A for a total of 150 W, accepting 110 V or 220 V AC input with a ±15 % tolerance. It is built for engineers and technicians who need a reliable DC source for automation, LED lighting, CCTV, 3D printers or similar bench projects.

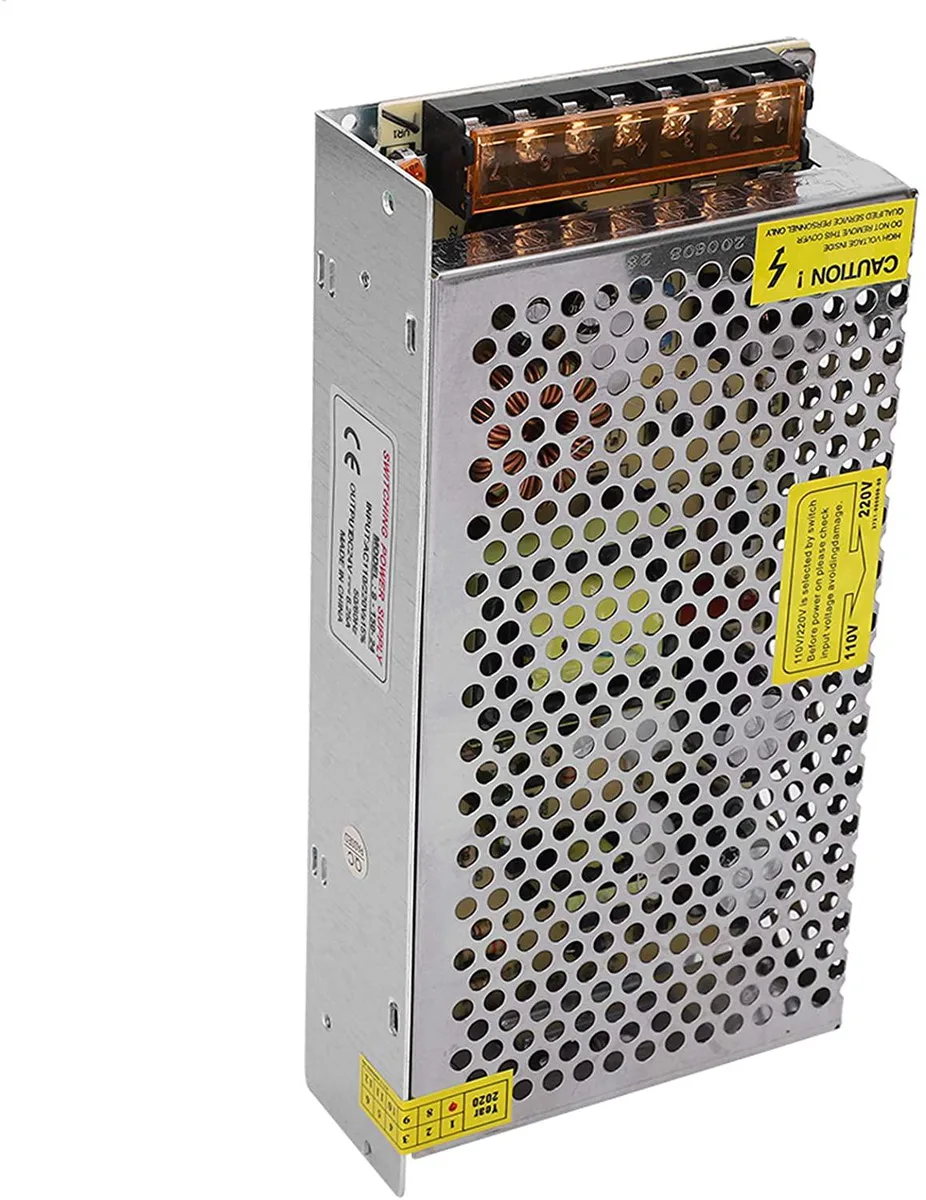

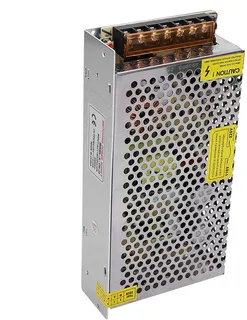

Aluminium alloy case with screw terminals

The housing uses aluminium alloy for durability and natural convection cooling without a fan. Connections are made through clearly labelled screw terminals for live, neutral, ground, V+ and V- plus an adjustable voltage tap, so wiring is secure and serviceable in permanent installations.

Passive cooling with full protection suite

Overload, overvoltage and short-circuit protection are built in, and every unit passes a 100 % full-load burn-in test. The supply operates from 0 to 40 °C ambient with up to 95 % non-condensing humidity, and its low ripple output keeps sensitive loads stable during continuous operation.

Highlights

  • High efficiency with low DC ripple for stable power
  • Operates from 0 to 40 °C for long service life
  • CCC FCC CE certified for safety compliance
  • Short circuit overload and overvoltage protection built in
  • 100 % full-load burn-in test before shipment

Specifications

TypeAT

Questions about this item

What input voltage range does the S-150-24 accept, and what output voltage does it deliver?

The unit accepts AC 110 V or 220 V with a ±15 % tolerance and provides a regulated DC 24 V output.

What are the mounting dimensions and material of the aluminium alloy chassis?

The chassis measures approximately 85 × 58 × 33 mm and is constructed from aluminium alloy for natural convection cooling.

How are the AC and DC terminals labelled, and which step is commonly missed during wiring?

Terminals are marked L and N for AC input, GND for DC negative and V for DC positive; the step often missed is verifying the ADJ potentiometer is set to 24 V before applying load.
