Rectangular pink aluminium power supply unit with screw terminals and adjustment knob

myVolts

myVolts S-1500-24 Radio 24V 62.5A 1500W power supply pink

SKU CH-JZKX-5PZG2

A 24 V, 62.5 A, 1500 W switch-mode supply with overload, over-voltage and short-circuit protection for radio and industrial equipment

  • TypeAT
  • Delivers 1500 W at 24 V 62.5 A for demanding radio and industrial loads
  • Accepts AC 170-250 V input for stable operation on varied mains supplies
  • Built-in short-circuit overload and overvoltage protection safeguards connected equipment
  • 100 % full-load burn-in test confirms reliability before shipment
  • Operates from 0 to 40 °C with aluminium-alloy construction for long service life

24 V 1500 W Radio Power Supply

This myVolts switch-mode unit delivers 24 V at 62.5 A for a continuous 1500 W output. It is built for radio equipment, industrial automation, LED displays, CCTV systems and 3D printers that require a stable DC source. The supply accepts AC input between 170 V and 250 V, making it suitable for standard mains environments.

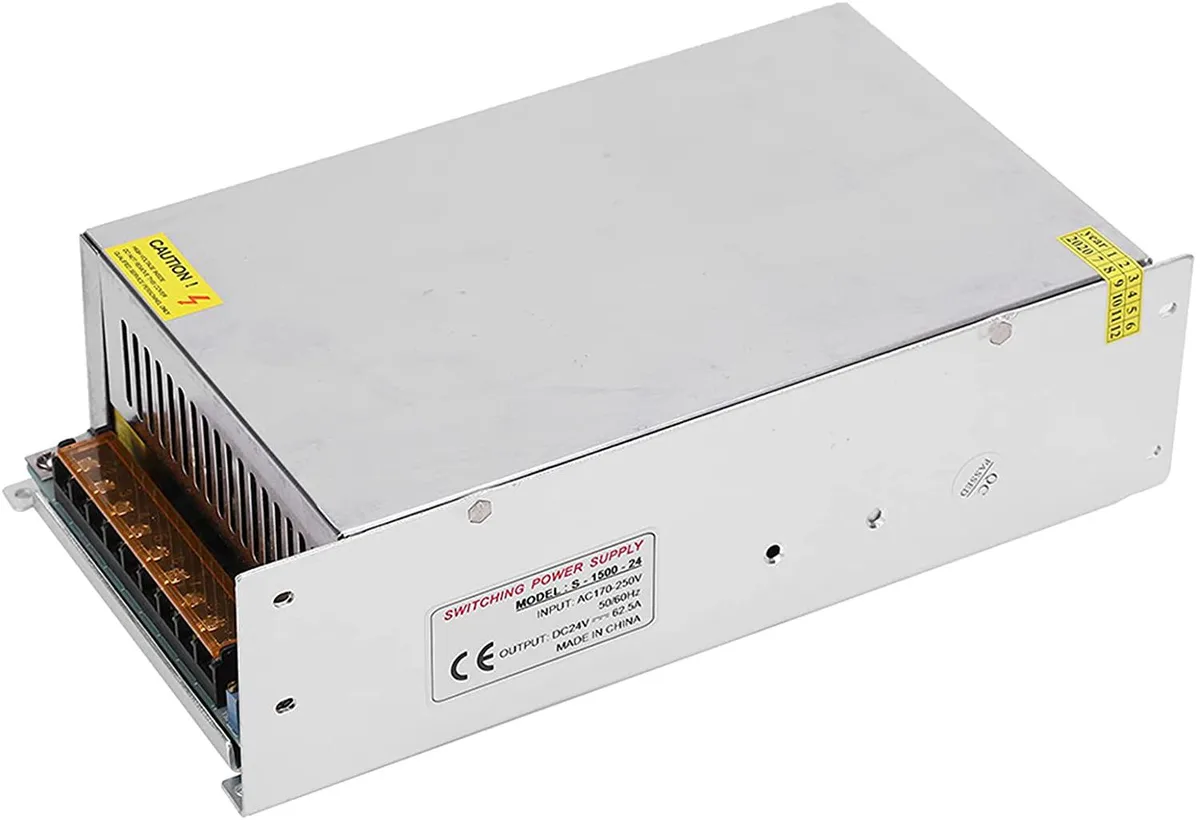

Aluminium Alloy Build with Screw Terminals

The housing uses aluminium alloy for durability and heat dissipation without a fan. Connections are made via screw terminals labelled L and N for AC input, GND and V for DC output, plus an ADJ point for voltage trimming. Protection circuits cover short circuit, overload and overvoltage events, and every unit passes a 100 % full-load burn-in test. Certified to CCC, FCC and CE standards, it operates from 0 °C to 40 °C in up to 95 % non-condensing humidity.

Verify Mains Range and Load Requirements

Confirm your local mains voltage falls within the 170 V to 250 V window before installation. Ensure the connected equipment does not exceed 62.5 A at 24 V and that wiring gauge suits the current. The unit has no ATX connector or PCIe leads, so it cannot power a standard PC motherboard or graphics card. Buyers needing an ATX-form-factor supply or lower-wattage unit should look elsewhere.

Highlights

  • Delivers 1500 W at 24 V 62.5 A for demanding radio and industrial loads
  • Accepts AC 170-250 V input for stable operation on varied mains supplies
  • Built-in short-circuit overload and overvoltage protection safeguards connected equipment
  • 100 % full-load burn-in test confirms reliability before shipment
  • Operates from 0 to 40 °C with aluminium-alloy construction for long service life

Specifications

TypeAT

Questions about this item

What AC input range does the S-1500-24 accept, and what DC output does it cap at?

The unit takes AC 170–250 V and delivers a regulated 24 V DC output at up to 62.5 A for 1500 W continuous power.

What are the mounting dimensions and material of the chassis?

The aluminium-alloy case measures approximately 85 × 58 × 33 mm with standard mounting holes for DIN-rail or panel installation.

How do I wire the input and output terminals, and which step is often missed?

Connect L and N to mains, GND to the negative load, V+ to the positive load; the step many miss is adjusting the +V/ADJ trimmer to set the exact 24 V before powering the load.
