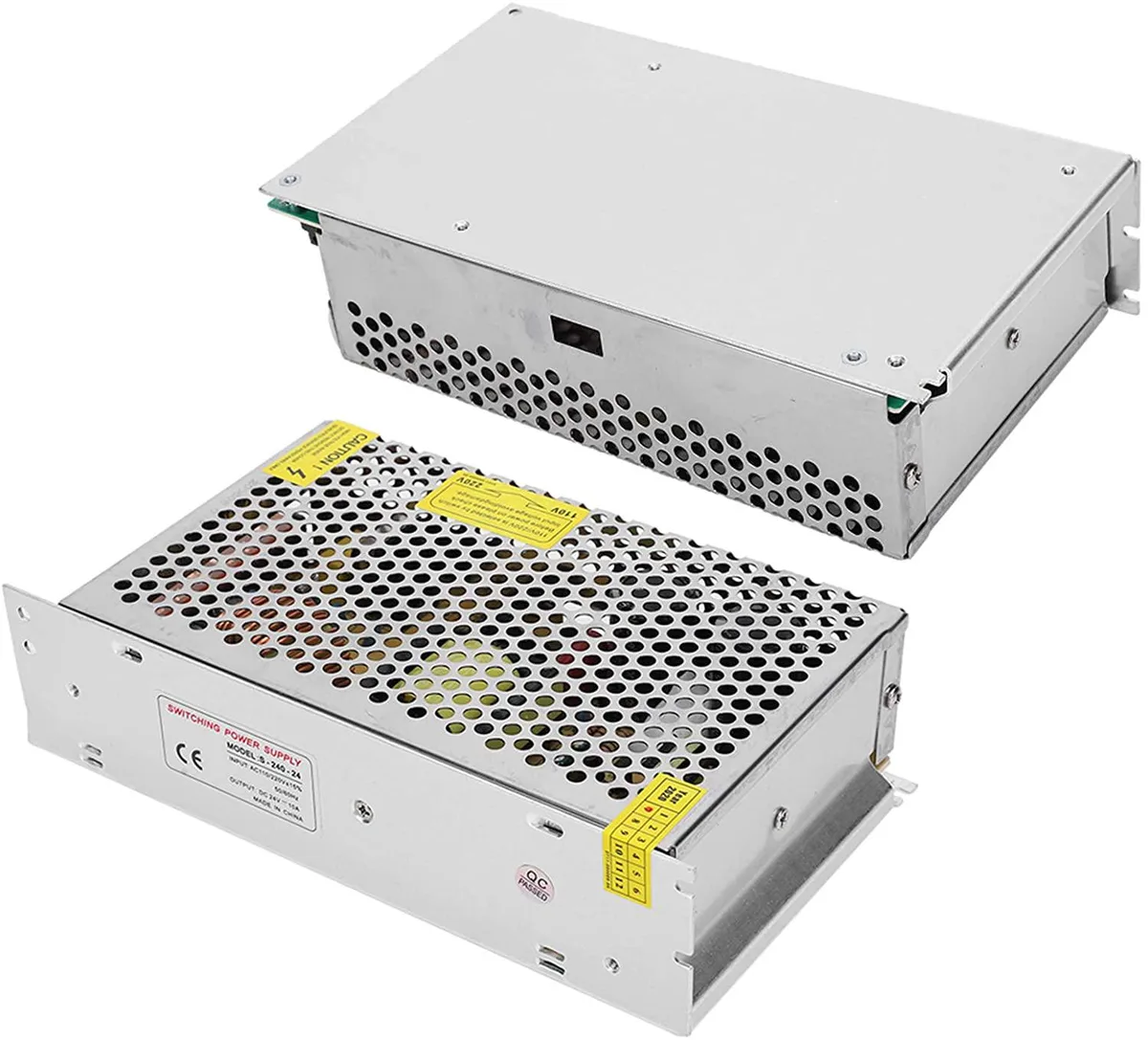

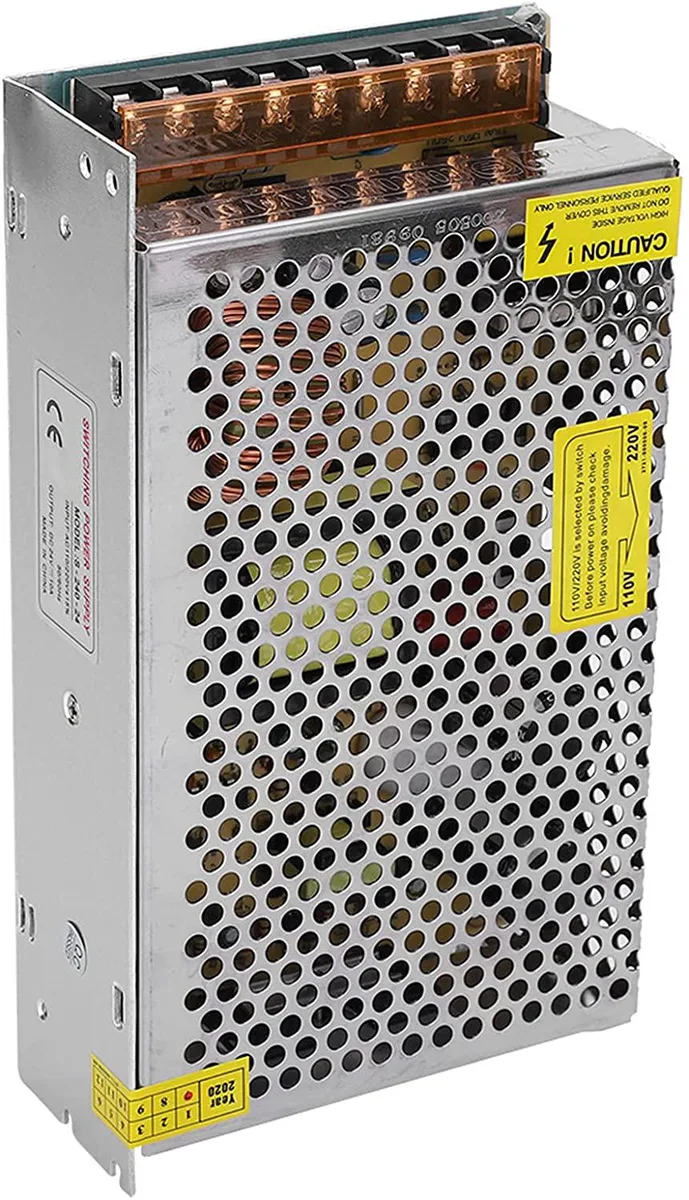

Rectangular aluminium power supply, silver finish, screw terminals visible

myVolts

myVolts S-240-24 24V 10A 240W Power Supply

SKU CH-PSND-RS42M

Delivers 24 V at 10 A with overload, over-voltage and short-circuit protection for industrial and radio use

  • TypeAT
  • Delivers 240 W continuous power at 24 V 10 A
  • Operates reliably from 0 °C to 40 °C
  • Built-in short-circuit, overload and overvoltage protection
  • Passes 100 % full-load burn-in test before shipping
  • Certified to CCC, FCC and CE safety standards

Industrial 240 W Power Supply

This 24 V 10 A switch-mode unit delivers 240 W for industrial automation, LED displays, CCTV, radio equipment, 3D printers and similar DC loads. It accepts 110 V or 220 V AC input with a ±15 % tolerance. The aluminium-alloy enclosure relies on natural convection cooling.

Installation and Common Issues

Wire the AC side to L, N and the DC side to V+ and GND; the ADJ terminal allows output-voltage trimming. Ensure the enclosure has free airflow because the unit has no fan. The most frequent mistake is reversing the DC polarity or exceeding the 0 °C to 40 °C operating temperature range.

240 W Continuous Rating

The 240 W continuous rating is the single figure that determines whether the supply can sustain your load without triggering overload protection. If your application draws more than 10 A at 24 V you will need a higher-capacity unit.

Highlights

  • Delivers 240 W continuous power at 24 V 10 A
  • Operates reliably from 0 °C to 40 °C
  • Built-in short-circuit, overload and overvoltage protection
  • Passes 100 % full-load burn-in test before shipping
  • Certified to CCC, FCC and CE safety standards

Specifications

TypeAT

Questions about this item

How can I confirm the S-240-24 is delivering a stable 24 V output after wiring it up?

Measure the DC output at the V+ and GND terminals with a multimeter; a reading close to 24 V under load shows the unit is regulating correctly.

What comes in the box and which items such as an AC cable or mounting hardware must be sourced separately?

The supply itself is included; an AC mains lead for the L, N and earth terminals and any DIN-rail or panel brackets are not supplied.

Which model should I choose if my equipment needs 240 W at 10 A versus a lower-power option?

Select the S-240-24 for 240 W at 10 A; the table also lists an S-48-24 at 48 W and an S-60-24 at 60 W for lighter loads.
