Pink aluminum alloy switch-mode power supply unit, rectangular open-frame design

myVolts

myVolts S-360-24 24V 15A 360W power supply pink

SKU CH-YTD9-J4ABG

A 24 V, 15 A aluminium alloy switch-mode supply delivering 360 W with short-circuit, overload and overvoltage protection for industrial, LED and 3D-printer use

  • TypeAT
  • High efficiency and low DC ripple for stable power delivery
  • Operates at low temperatures from 0 to 40 degrees Celsius for long service life
  • Short circuit, overload and overvoltage protection safeguards connected equipment
  • 100 percent full-load burn-in test ensures reliable operation
  • CCC, FCC and CE safety compliance with high insulation strength

Industrial 360 W 24 V supply

This aluminium-alloy switch-mode unit delivers 24 V at 15 A for a total of 360 W. It accepts 110 V or 220 V AC input with a ±15 % tolerance, making it suitable for industrial automation, LED displays, CCTV, 3D printers and similar engineering projects.

Thermals and protection

The supply operates from 0 °C to 40 °C and is cooled by natural convection, so it runs silently without a fan. Built-in protection covers short circuit, overload and overvoltage, and every unit passes a 100 % full-load burn-in test.

Build and connections

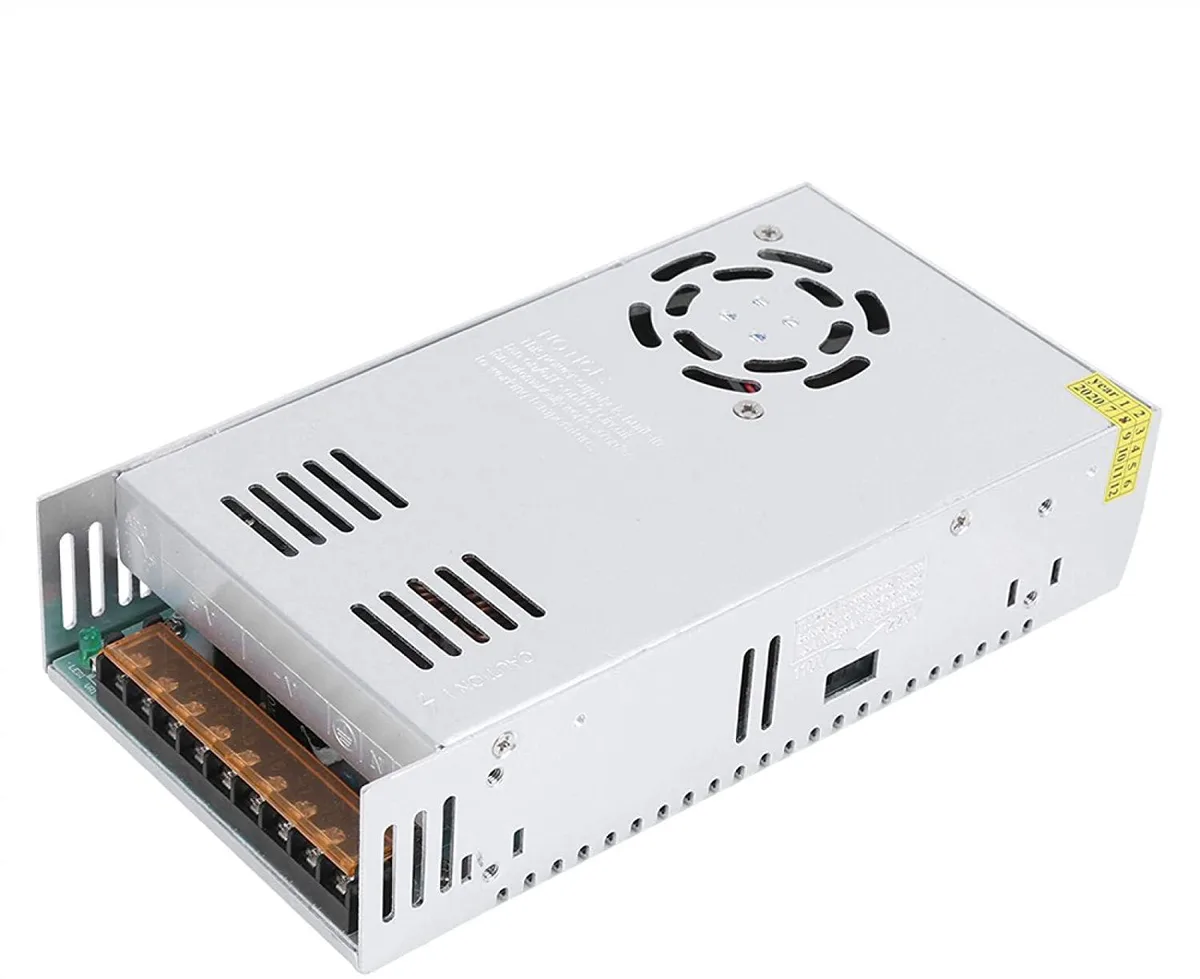

The rugged aluminium chassis provides high insulation strength and long service life. Screw terminals are provided for AC live, neutral and ground on the input side, and for DC negative, positive and an adjustable voltage tap on the output side. CCC, FCC and CE compliance is confirmed.

Highlights

  • High efficiency and low DC ripple for stable power delivery
  • Operates at low temperatures from 0 to 40 degrees Celsius for long service life
  • Short circuit, overload and overvoltage protection safeguards connected equipment
  • 100 percent full-load burn-in test ensures reliable operation
  • CCC, FCC and CE safety compliance with high insulation strength

Specifications

TypeAT

Questions about this item

How do I wire the AC input and DC output terminals on this S-360-24 supply, and which step is most often missed?

Connect live and neutral to the L and N terminals for 110/220 V AC input; link the load to V+ and GND for 24 V DC output. The step most often missed is setting the +V/ADJ trimmer to exactly 24 V before applying full 15 A load.

What maintenance or replacement will this 360 W unit need over its service life?

The aluminum-alloy chassis relies on natural convection up to 40 °C ambient. Keep ventilation slots clear of dust; if the internal electrolytic capacitors degrade after years of continuous 15 A operation, the entire supply must be replaced as no user-serviceable parts are inside.

What limit appears first when running this pink 24 V supply at full 15 A continuously?

The 40 °C maximum working temperature is the first constraint. At 360 W output the unit depends on free-air cooling; sustained 15 A loads in enclosures above 40 °C will trigger thermal protection or shorten capacitor life.
