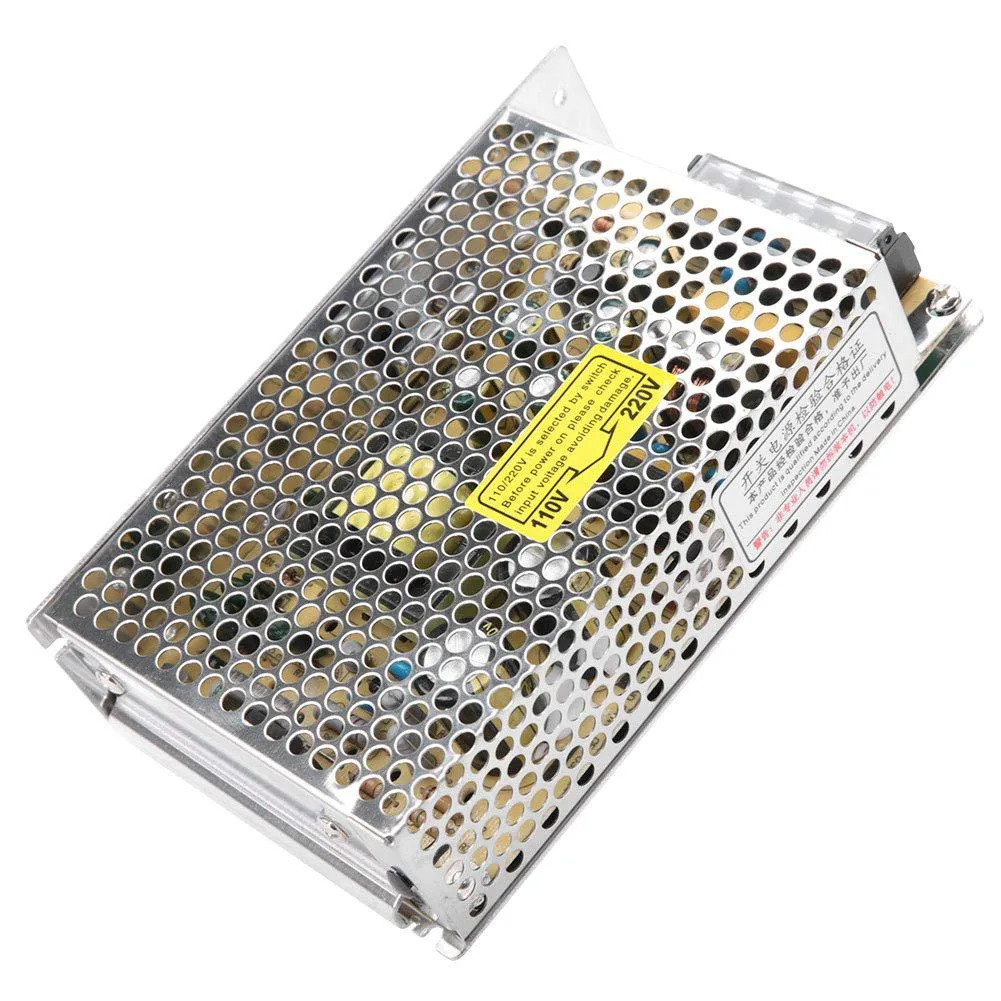

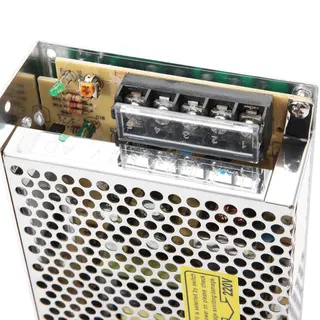

Compact enclosed metal power supply unit with terminal block outputs and input voltage selector switch

myVolts

myVolts S-50-24 24 V 2.1 A 50.4 W power supply

SKU CH-4ZC4-J6MGZ MPN S-50-24

Delivers 24 V at 2.1 A with 50.4 W output, 86 % efficiency, and selectable 85-132 VAC or 170-264 VAC input for industrial use

  • TypeAT
  • Delivers stable 24 V output with ±1 % regulation
  • Supplies up to 2.1 A continuous current for 50.4 W loads
  • Operates at 86 % efficiency to reduce heat
  • Accepts 85-132 VAC or 170-264 VAC via selector switch
  • Copper coil transformer ensures reliable, safe operation

Industrial 24 V DC power supply

The myVolts S-50-24 is a switching power supply that delivers a regulated 24 V output at up to 2.1 A for 50.4 W of continuous power. It is built for industrial control systems, PLC equipment and transportation facilities where a compact, copper-coil unit with simple wiring is required.

AC input range and voltage adjustment

The unit accepts 85-132 VAC or 170-264 VAC selected by a manual switch, plus 240-370 VDC, all at 47-63 Hz. Output voltage can be trimmed by ±10 % to compensate for cable drops, while ripple and noise stay at 200 mVp-p and regulation holds within ±0.5 % for line and load changes.

50.4 W rated output power

The 50.4 W rating sets the hard limit for the connected load; exceeding 2.1 A will trigger protection or cause voltage sag. Buyers needing more current or higher total wattage must select a larger supply, as this model cannot be paralleled or uprated.

Highlights

  • Delivers stable 24 V output with ±1 % regulation
  • Supplies up to 2.1 A continuous current for 50.4 W loads
  • Operates at 86 % efficiency to reduce heat
  • Accepts 85-132 VAC or 170-264 VAC via selector switch
  • Copper coil transformer ensures reliable, safe operation

Specifications

TypeAT

Questions about this item

Should I pick the fixed 24 V model or the adjustable ±10 % version?

The S-50-24 delivers a fixed 24 V output; the ±10 % range is a factory trim for calibration, not a user-selectable voltage.

What does the 50.4 W rating mean for my 24 V load?

At 24 V the unit supplies up to 2.1 A continuously, so any device drawing 50.4 W or less at 24 V will run within spec.

How does the AC input selector affect the 230 V mains I have?

Set the switch to the 170-264 VAC position; the supply will draw 0.65 A at 230 V and tolerate 47-63 Hz mains frequency.
