Rectangular metal power supply unit, matte finish, screw terminals visible, 24V 2.1A label

myVolts

myVolts S-50-24 24V 2.1A 50.4W power supply

SKU CH-A2EF-8Q49W MPN S-50-24

Delivers 24V at 2.1A with selectable 85–264VAC input and ±10% voltage adjustment

  • TypeAT
  • Stable 24 V output with ±1 % regulation
  • 4 W continuous power at 86 % efficiency
  • Wide AC input 85–264 V selectable by switch
  • Low 200 mV ripple for clean DC supply
  • Compact lightweight design suits industrial control panels

Industrial DC Power Supply

The myVolts S-50-24 is a 24V switching power supply built for industrial environments such as PLC control systems and transportation facilities. It delivers a regulated DC output with ±1% voltage accuracy and 86% efficiency. Simple wiring and a compact, lightweight design allow quick integration into control cabinets or machinery frames.

50.4W capacity with 2.1A continuous output

Rated output current reaches 2.1A across a 0-2.1A range, providing 50.4W of DC power for sensors, actuators and logic modules. Load and line regulation are each held within ±0.5%, while ripple and noise stay at 200mVp-p. The adjustable voltage range of ±10% adds headroom for fine-tuning, though the unit cannot supply current beyond the 2.1A limit.

Selectable AC input range 85-264VAC

A built-in switch selects between 85-132VAC and 170-264VAC inputs at 47-63Hz, with a 240-370VDC option also supported. Input current draws 1.1A at 115VAC or 0.65A at 230VAC, and cold-start inrush reaches 45A at 230V. Leakage current remains below 2mA at 240VAC, meeting basic safety requirements for industrial installations.

Highlights

  • Stable 24 V output with ±1 % regulation
  • 4 W continuous power at 86 % efficiency
  • Wide AC input 85–264 V selectable by switch
  • Low 200 mV ripple for clean DC supply
  • Compact lightweight design suits industrial control panels

Specifications

TypeAT

Questions about this item

Can I run this 24 V, 2.1 A supply alongside my older 24 V gear on the same bench?

Yes, the unit delivers 24 V at up to 2.1 A with ±1 % voltage accuracy and 200 mVp-p ripple, matching typical 24 V industrial equipment requirements.

How can I verify the S-50-24 is working correctly after wiring it up?

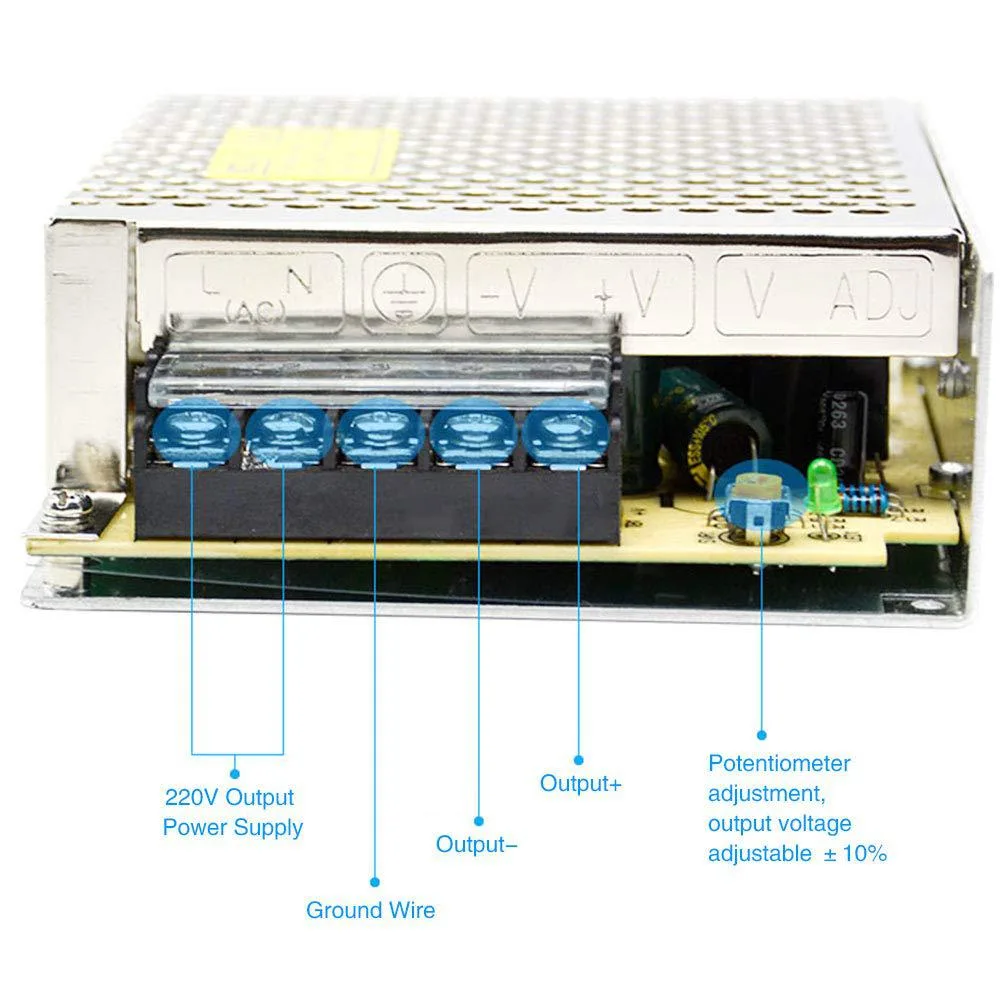

Measure the output with a multimeter; you should see 24 V ±1 % under load, and the built-in voltage-adjust potentiometer lets you trim within ±10 % if needed.

What comes in the box and what must I source separately?

The supply itself is included; you will need to provide an AC mains cable suited to your local plug and the DC output wiring or connectors for your load.
