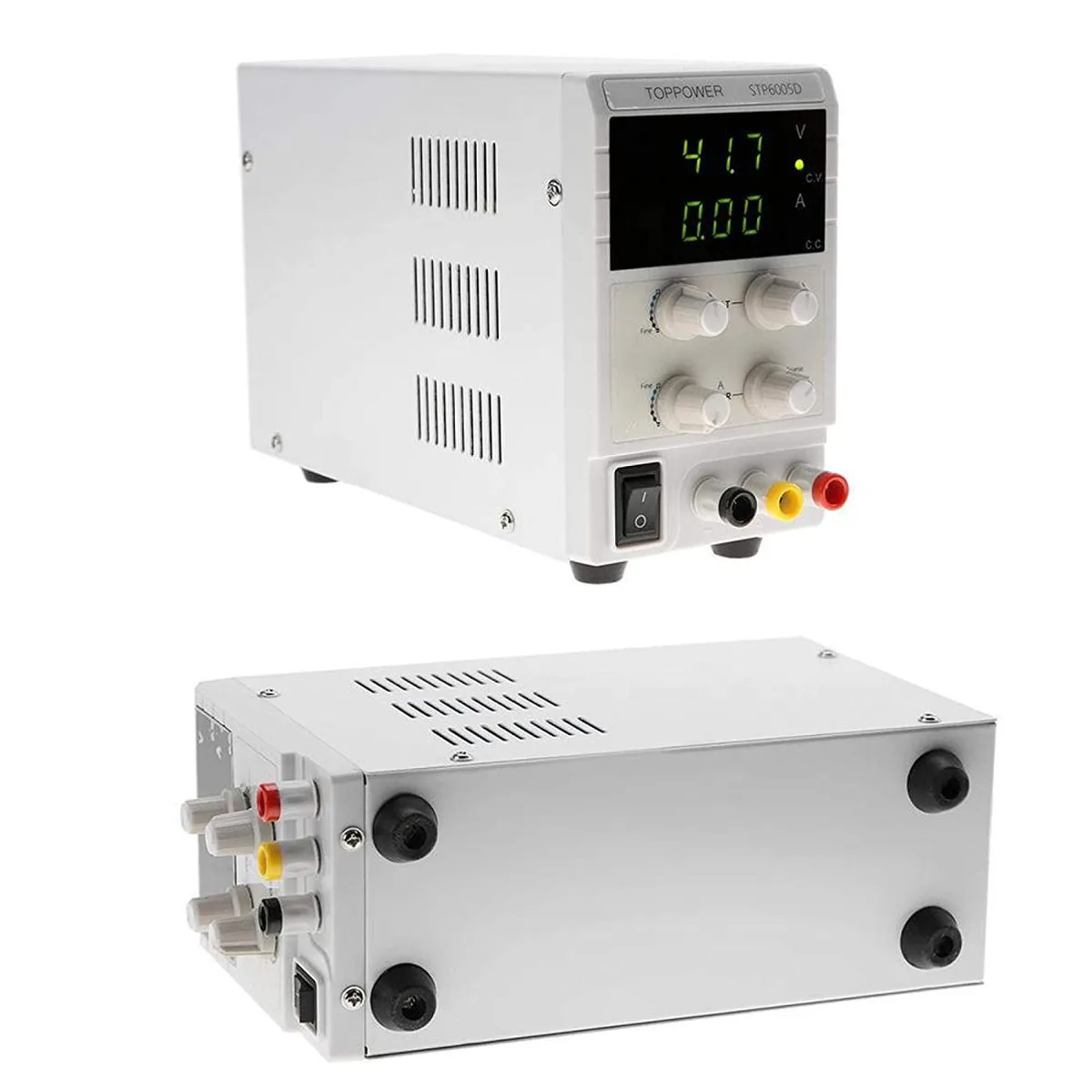

Rectangular bench power supply unit, grey metal case, dual LED displays showing volts and amps, front panel knobs and binding posts

myVolts

myVolts STP6005D 0-60V 0-5A power supply

SKU CH-8HB6-5TY1H MPN STP6005D

Adjustable 0-60V, 0-5A DC power supply with dual display, CV/CC auto-switching, and 80% efficiency for bench use

  • TypeAT
  • Precise 0-60 V output for sensitive circuits
  • Stable 0-5 A delivery with CV/CC auto-switch
  • Independent dual display shows volts and amps simultaneously
  • Built-in short-circuit, over-temperature and current-limiting protection
  • Up to 80 % efficiency reduces heat in test cabinets

Adjustable 0-60V 0-5A Bench Supply

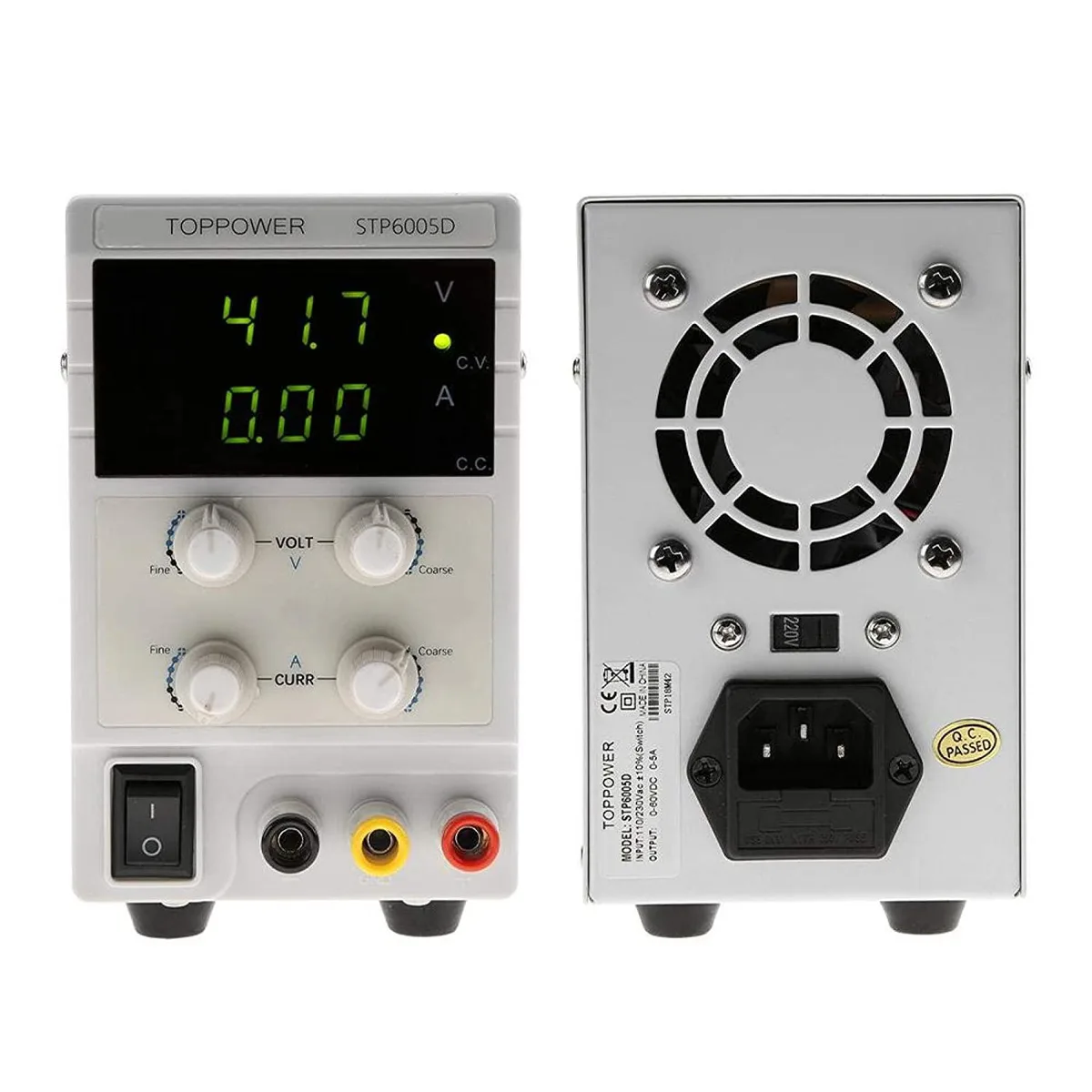

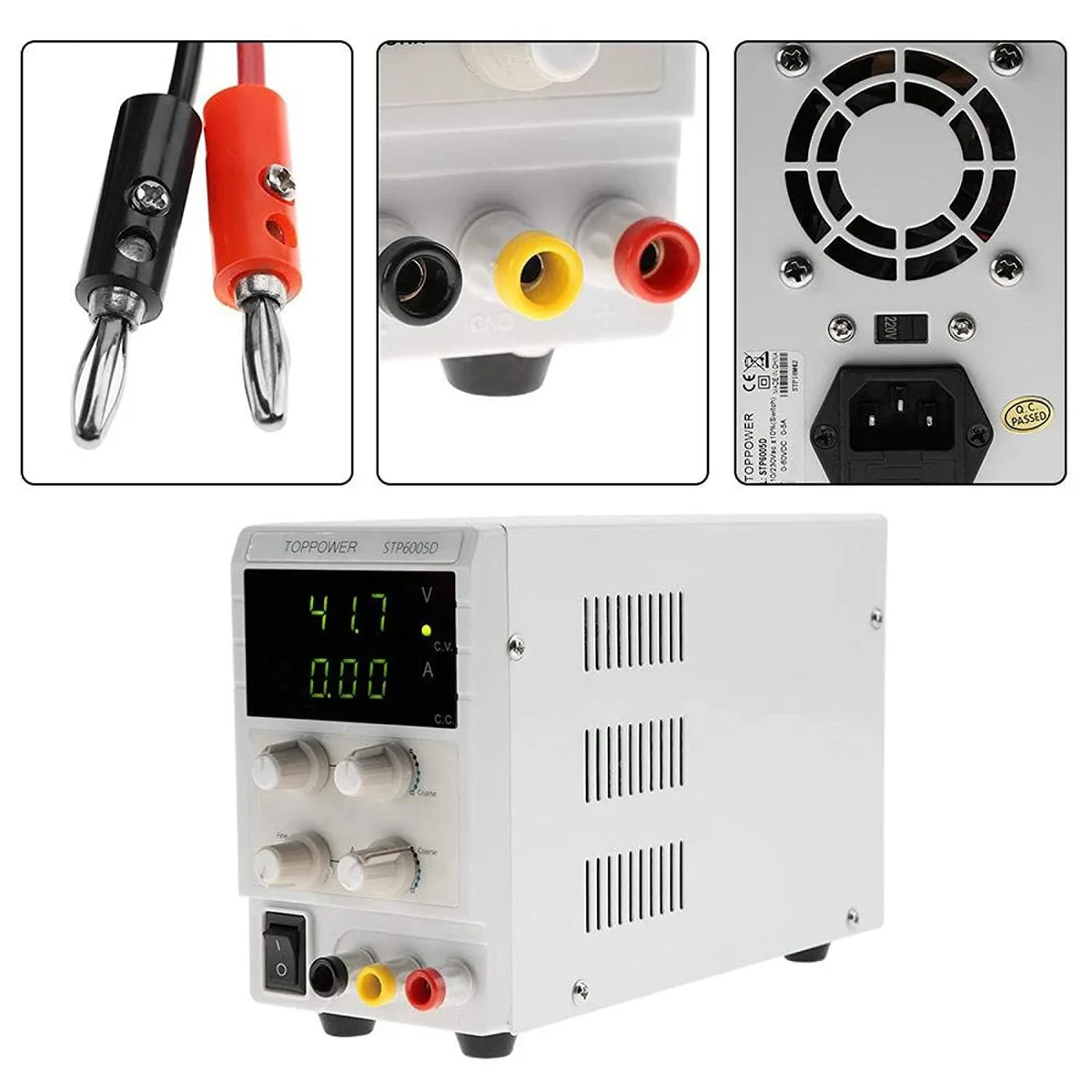

The myVolts STP6005D is a regulated DC bench power supply with continuously adjustable output from 0 to 60 volts and 0 to 5 amps. It operates in automatic constant-voltage and constant-current crossover mode for stable delivery. Dual independent displays show voltage and current simultaneously. The unit is suited for factory maintenance, calibration tasks and integration into test cabinets.

Check Mains Fuse and Ventilation Space

Verify that your bench mains circuit can accommodate the fitted F5AL 250VAC fuse before connecting the unit. Ensure the operating environment stays within 0 to 40 degrees Celsius and below 80 percent relative humidity. Confirm adequate airflow around the chassis as the supply relies on passive cooling. The efficiency reaches 80 percent so waste heat must dissipate freely.

Replaces Fixed Single-Rail Units

This supply upgrades from fixed-output or single-range bench units by adding full CV/CC auto-crossover and dual metering. The jump is worthwhile when test routines demand both voltage and current limits set independently across a wide 0-60V range. It also supersedes supplies lacking integrated short-circuit, over-temperature and current-limiting buck protections.

Highlights

  • Precise 0-60 V output for sensitive circuits
  • Stable 0-5 A delivery with CV/CC auto-switch
  • Independent dual display shows volts and amps simultaneously
  • Built-in short-circuit, over-temperature and current-limiting protection
  • Up to 80 % efficiency reduces heat in test cabinets

Specifications

TypeAT

Questions about this item

What comes included with the STP6005D unit?

The STP6005D is supplied as a 100% brand new unit with a built-in F5AL 250VAC fuse, dual-display head for voltage and current, and CV/CC automatic conversion. No separate cables or accessories are mentioned.

How do I choose between the three available styles of the STP6005D?

The STP6005D is offered in three styles; all share 0-60V, 0-5A output, 80% efficiency, and the same protection set. Select the style that matches your cabinet integration or bench layout needs.

What does the 0-60V 0-5A rating mean for actual bench use?

You can set any voltage from 0 to 60V and any current from 0 to 5A continuously. The unit auto-switches between constant voltage and constant current modes, with ripple below 50mVrms and 50mArms.
