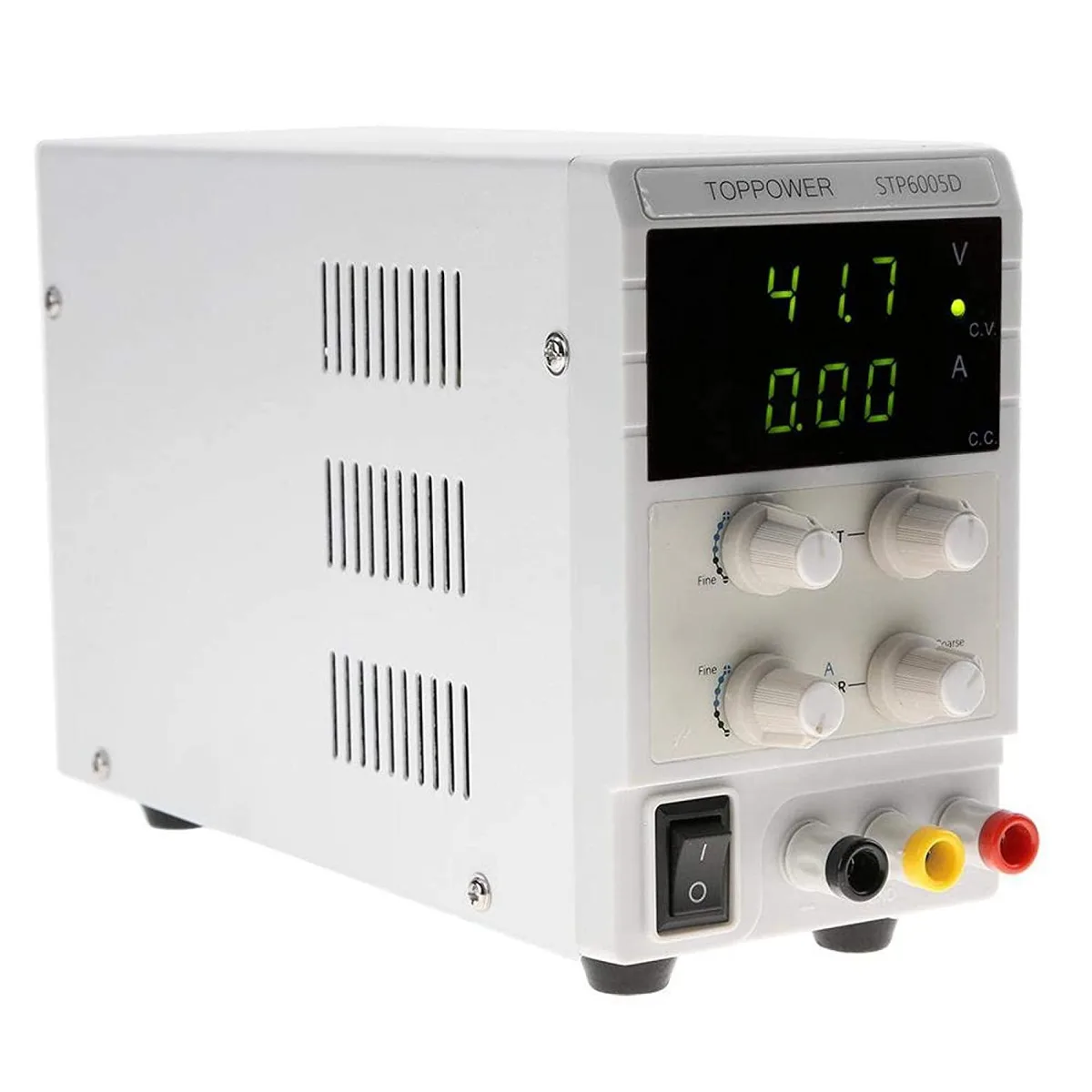

Grey bench power supply unit with dual digital displays and front panel controls

myVolts

myVolts STP6005D 300W 0-60V 0-5A power supply

SKU CH-B8M3-P6RKH MPN STP6005D

Adjustable 0-60V, 0-5A DC bench supply with CV/CC auto-switching, dual readouts and 80% efficiency for lab and factory maintenance

  • TypeAT
  • Continuous 0-60V and 0-5A adjustment for flexible test setups
  • CV/CC automatic crossover keeps output stable under changing loads
  • Dual independent displays show voltage and current at a glance
  • 80% power efficiency reduces heat during extended use
  • circuit, over-temperature and current-limiting protections safeguard connected gear

Bench power supply for lab and maintenance

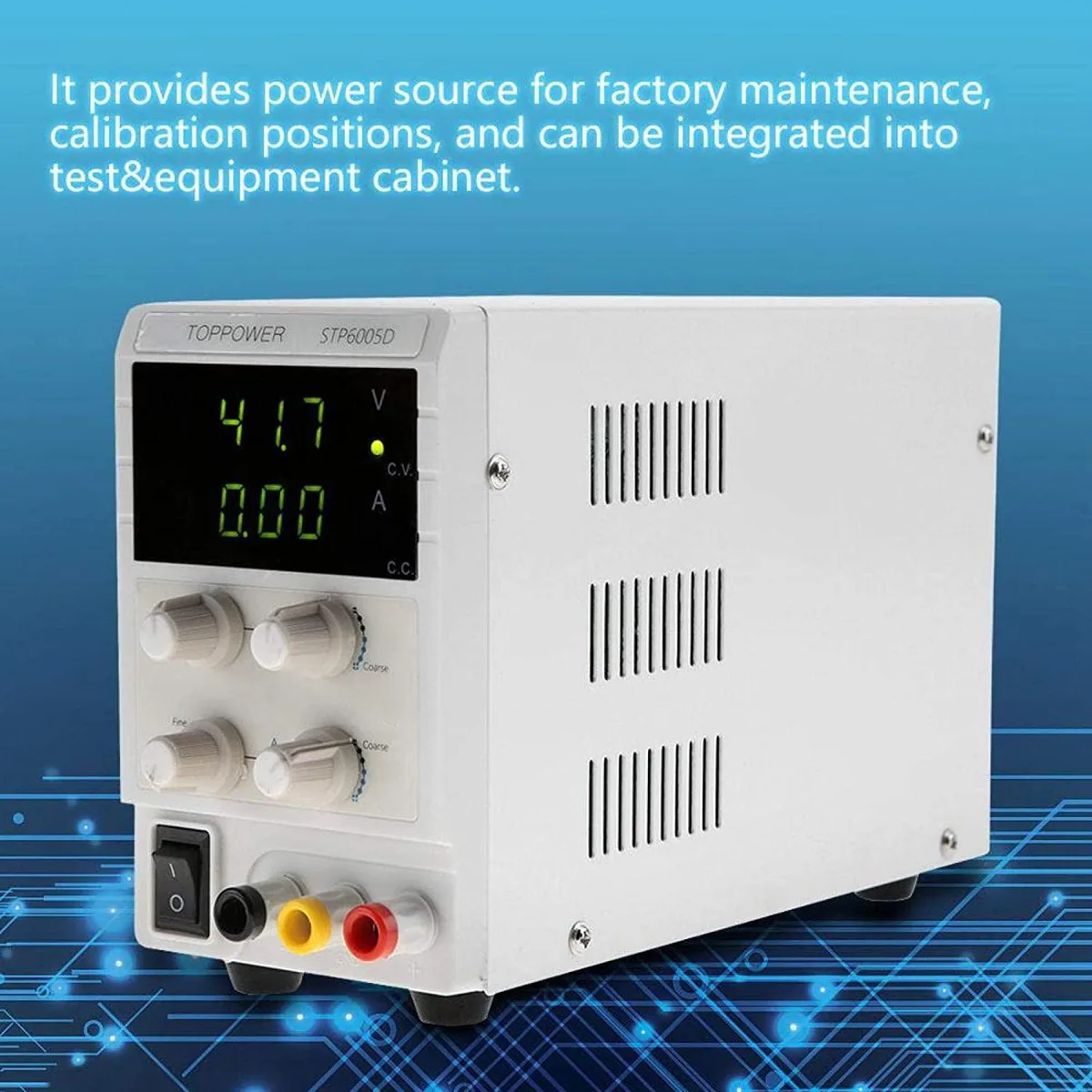

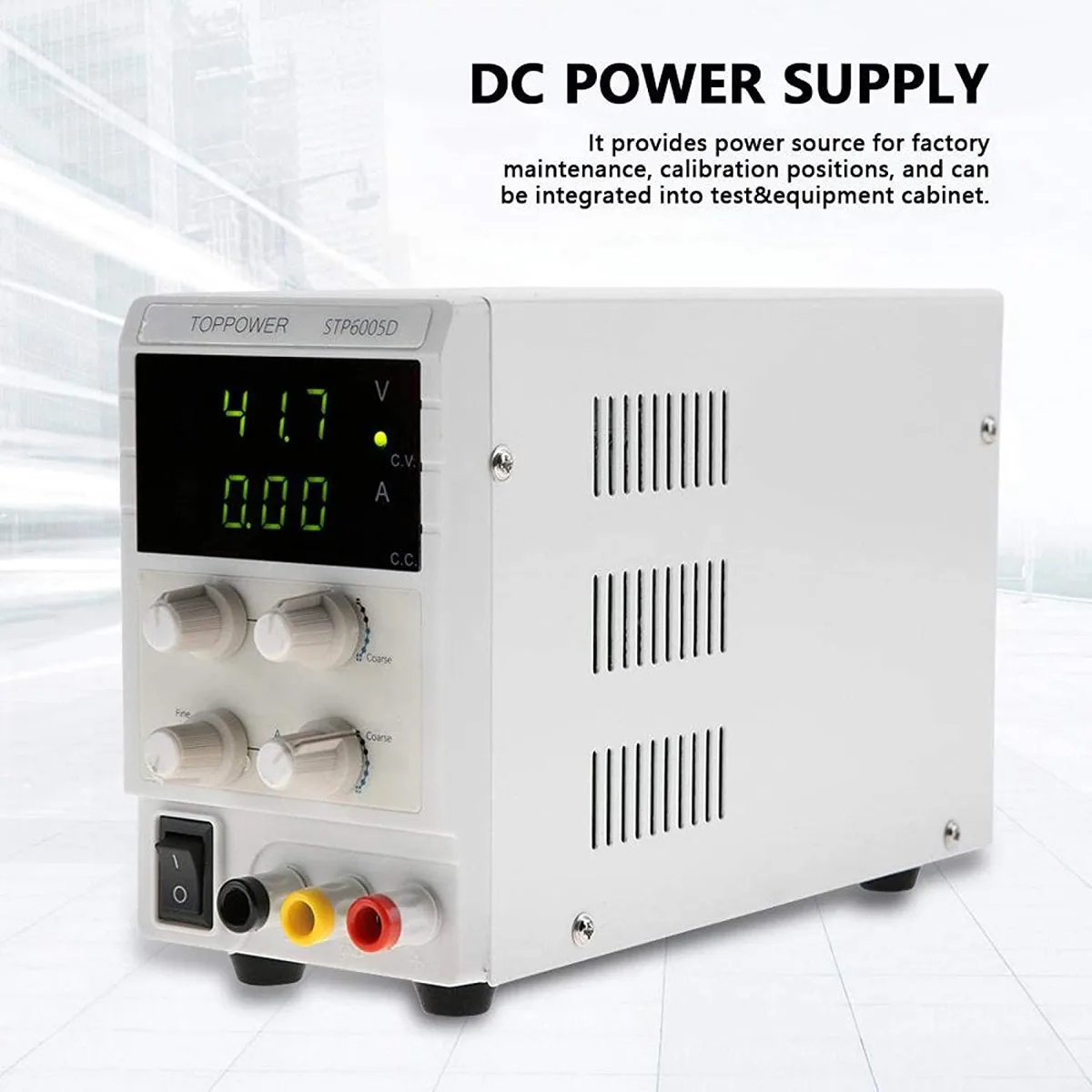

The myVolts STP6005D is a bench-top DC power supply rated at 300 W with a 0-60 V and 0-5 A output range. It is designed for factory maintenance, calibration work and integration into test equipment cabinets. The unit operates from 110 V or 220 V mains and includes a dual display for independent voltage and current readouts.

Adjustable CV/CC operation with 80 % efficiency

The supply delivers continuously adjustable output with automatic constant-voltage and constant-current crossover. Voltage regulation is specified at 0.5 % plus 3 mV line regulation and 0.1 % plus 3 mV load regulation up to 3 A, rising to 0.2 % plus 5 mV above 3 A. Current regulation is 0.2 % plus 3 mA line and 0.2 % plus 6 mA load with 50 mArms ripple. Overall efficiency reaches 80 %.

Protection suite and rack integration

Built-in protections include current-limiting buck, short-circuit and over-temperature shutdown. The unit fits a standard test rack or cabinet and requires only a mains connection and a F5AL 250 VAC fuse. It frees the bench from separate meters by showing both output values simultaneously. Operating temperature range is 0 to 40 °C at up to 80 % humidity.

Highlights

  • Continuous 0-60V and 0-5A adjustment for flexible test setups
  • CV/CC automatic crossover keeps output stable under changing loads
  • Dual independent displays show voltage and current at a glance
  • 80% power efficiency reduces heat during extended use
  • circuit, over-temperature and current-limiting protections safeguard connected gear

Specifications

TypeAT

Questions about this item

What does the 300 W rating mean for the actual DC output?

The unit can deliver up to 300 W of DC power with a maximum of 60 V at 5 A, and the supply achieves up to 80 % efficiency.

What input voltage standard does the supply use and what does it limit?

It accepts 110 V or 220 V AC and is protected by a 5 A, 250 V fuse.

What mounting style does the STP6005D need to fit a bench or cabinet?

The supply is an AT-type desktop unit designed for bench use or integration into a test-and-equipment cabinet.
