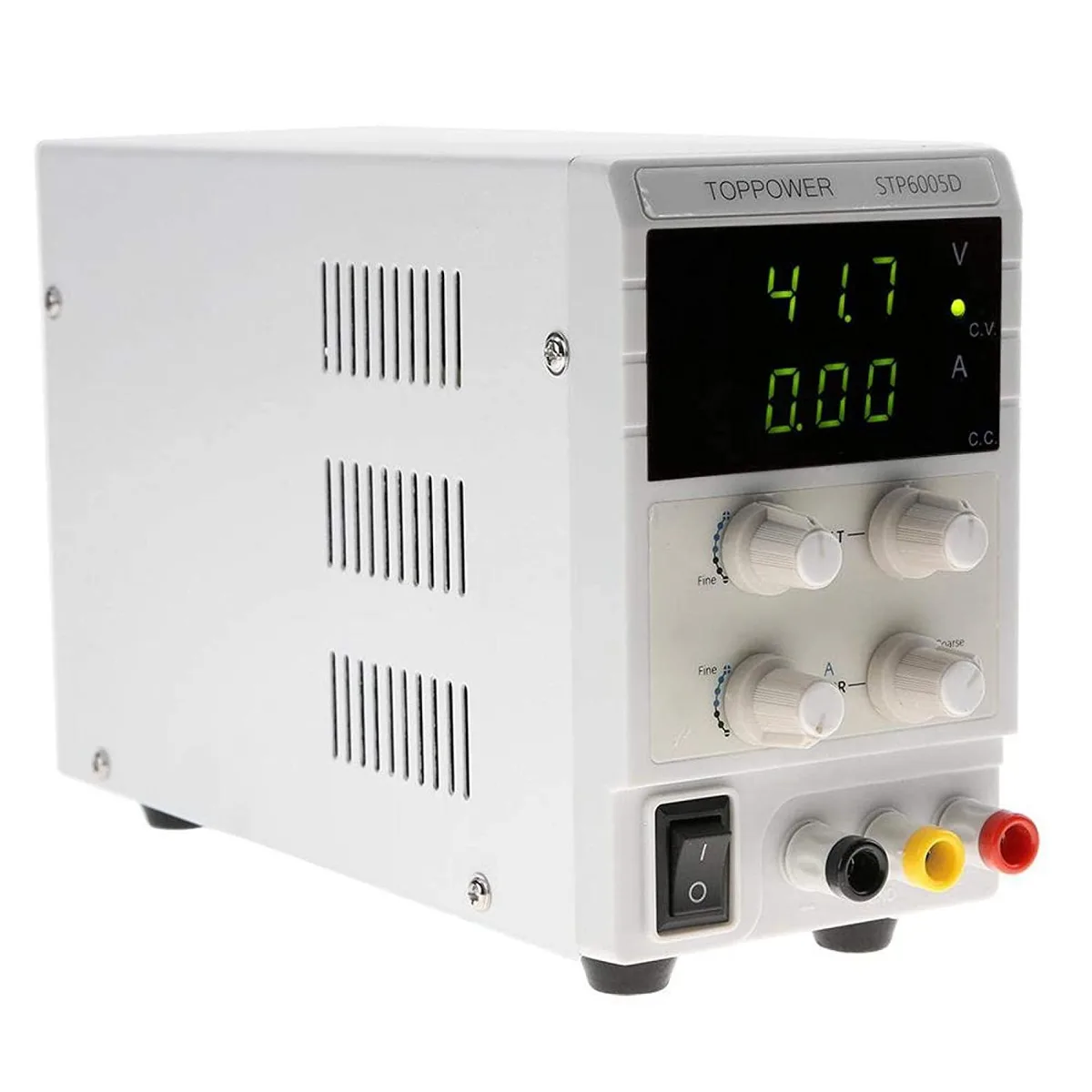

Rectangular bench power supply with dual digital displays and front panel controls

myVolts

myVolts STP6005D adjustable power supply 300W 0-60V 0-5A

SKU CH-AMBW-PNG2F MPN STP6005D

Adjustable DC power supply delivers 0-60 V and 0-5 A with CV/CC auto-switching, dual readouts and 80 % efficiency

  • TypeAT
  • Precise voltage control with 0-60V adjustable output
  • Accurate current delivery across 0-5A continuous range
  • Efficient operation reaching 80% power conversion
  • Clear monitoring via dual independent voltage and current displays
  • Reliable protection including short-circuit and over-temperature safeguards

Adjustable DC Power Source

The myVolts STP6005D is a bench-top adjustable power supply designed for factory maintenance, calibration work and integration into test equipment cabinets. It delivers a continuously variable DC output from 0 to 60 volts and 0 to 5 amps with automatic constant-voltage or constant-current crossover. Dual independent displays show voltage and current simultaneously.

300 Watt Rated Output

The unit provides a full indicated power rating of 300 watts with a stated efficiency as high as 80 percent. Voltage regulation is specified at 0.5 percent plus 3 millivolts line regulation and 0.1 percent plus 3 millivolts load regulation up to 3 amps, rising to 0.2 percent plus 5 millivolts above that. Current regulation is 0.2 percent plus 3 milliamps line and 0.2 percent plus 6 milliamps load. Ripple and noise are rated at 50 millivolts RMS for voltage and 50 milliamps RMS for current.

Suited for Lab and Service Use

This supply suits technicians who need a single-output bench source with built-in current-limiting, short-circuit and over-temperature protection for repair or calibration tasks. It is not for buyers who require multiple isolated outputs, programmable sequencing or remote computer control. The 110/220 V AC input selector covers standard mains voltages but the unit lacks rack-mount brackets or GPIB interfaces.

Highlights

  • Precise voltage control with 0-60V adjustable output
  • Accurate current delivery across 0-5A continuous range
  • Efficient operation reaching 80% power conversion
  • Clear monitoring via dual independent voltage and current displays
  • Reliable protection including short-circuit and over-temperature safeguards

Specifications

TypeAT

Questions about this item

What does the 300 W rating mean when the supply is running at its maximum 60 V and 5 A output?

The unit can deliver up to 60 V at 5 A simultaneously, giving a maximum DC output of 300 W with an efficiency as high as 80 %.

What AC input standard does the supply use and how does it limit the usable output?

It accepts 110 V or 220 V mains via a selectable switch and is fused at 5 A 250 VAC, so the AC side caps the maximum continuous draw.

What physical mounting or clearance does the STP6005D need inside a test cabinet?

The supply is designed for integration into equipment cabinets and operates from 0 to 40 °C with up to 80 % relative humidity.
