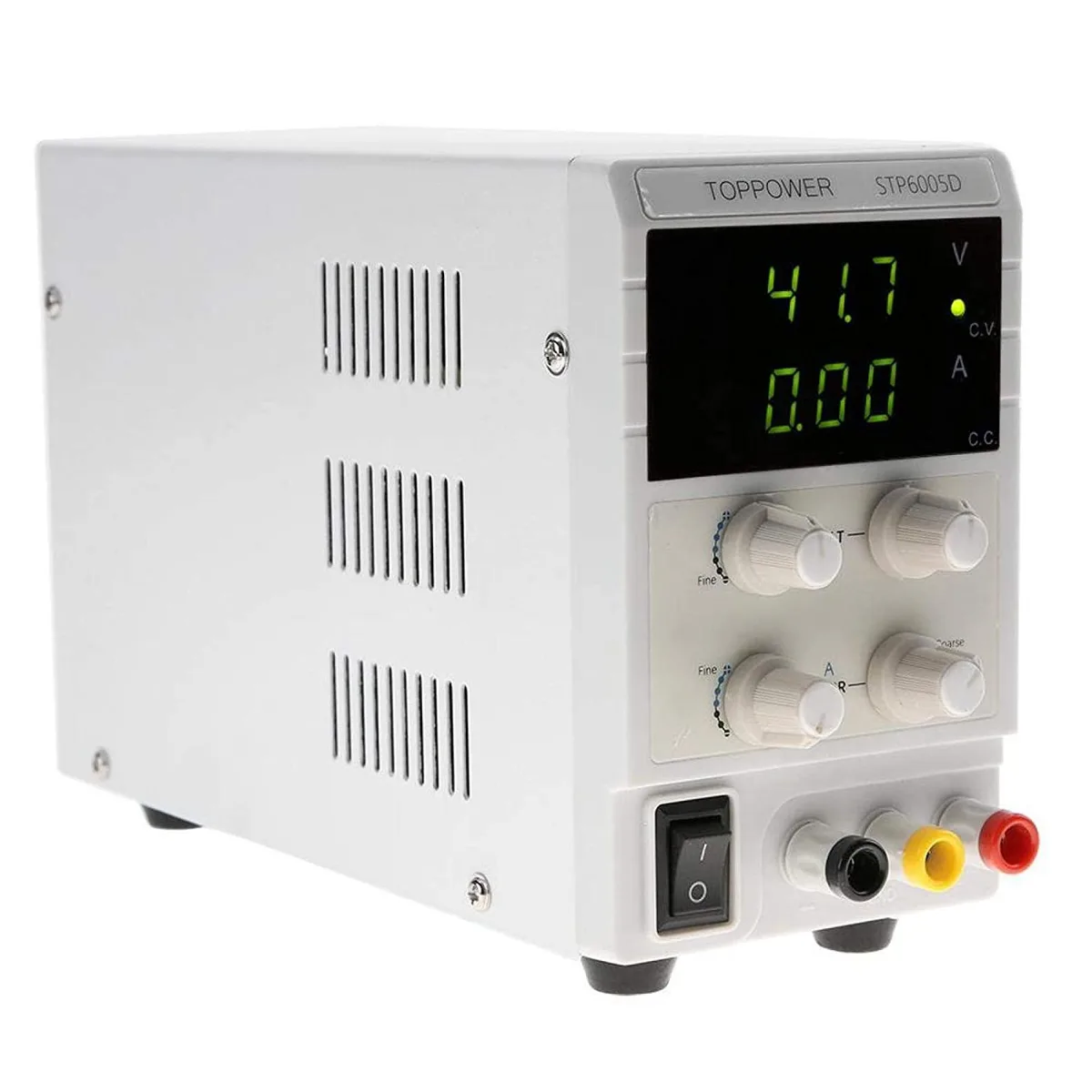

Rectangular bench power supply unit with dual LED displays, grey metal casing, front panel knobs and output terminals

myVolts

myVolts STP6005D DC 0-60V 0-5A power supply

SKU CH-AR78-0PKS4 MPN STP6005D

An adjustable DC power source delivers 0-60 V and 0-5 A with dual independent displays, CV/CC auto-switching, short-circuit and over-temperature protection, and up to 80 % efficiency

  • TypeAT
  • Adjustable 0-60 V output covers wide test needs
  • 0-5 A continuous current suits diverse loads
  • Dual independent displays show voltage and current simultaneously
  • CV/CC auto-switching maintains stable operation under varying conditions
  • 80 % efficiency reduces heat during extended use

Bench power supply for lab use

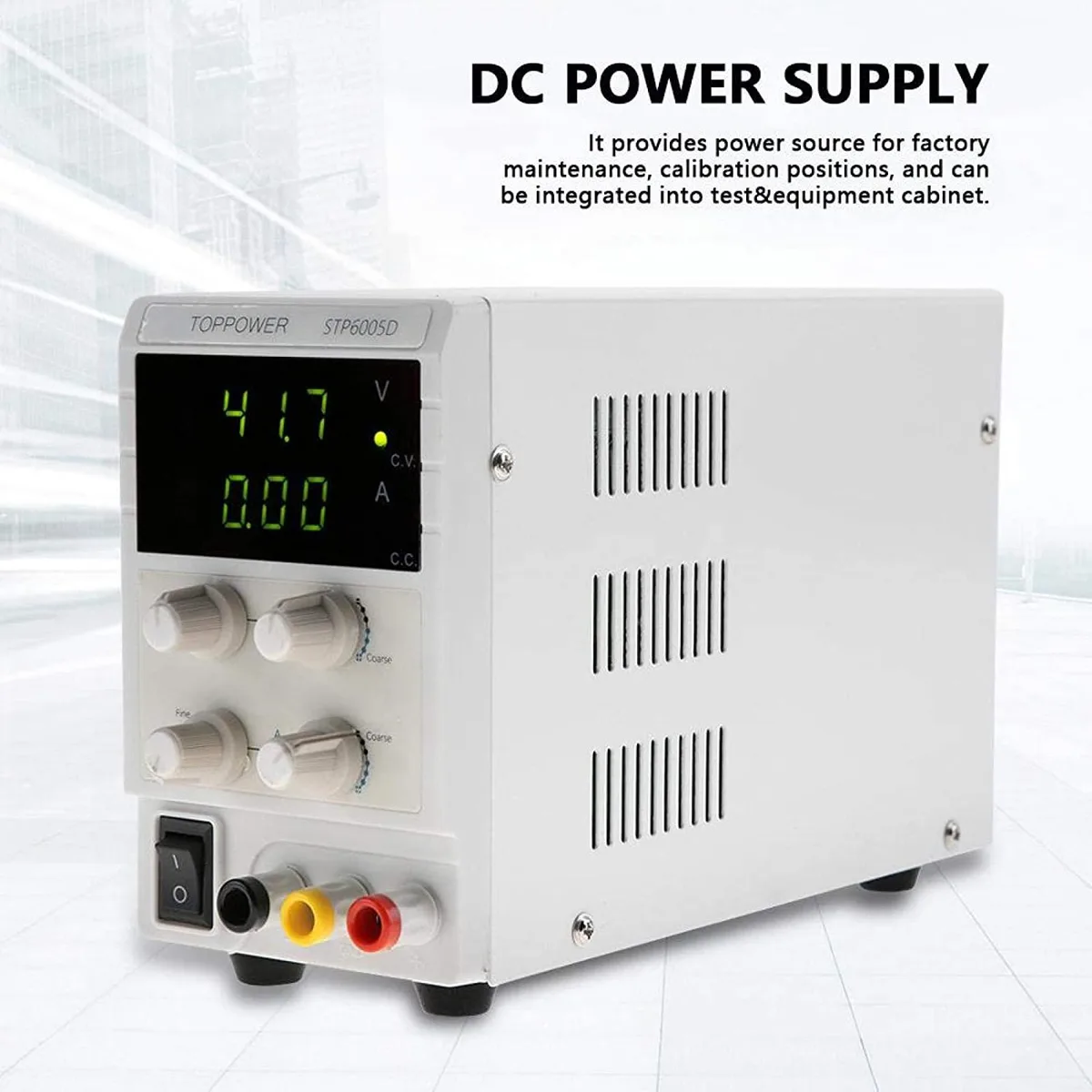

The myVolts STP6005D is a bench-top DC power supply built for factory maintenance, calibration work and integration into test cabinets. It delivers a continuously adjustable output from 0-60V and 0-5A with automatic CV/CC crossover. Dual independent displays show voltage and current simultaneously. Protection includes current-limiting buck, short-circuit and over-temperature safeguards.

Sustained load behaviour

Efficiency reaches 80% at full indicated power, limiting heat during extended runs. Load regulation holds to 0.1% + 3mV at currents up to 3A and 0.2% + 5mV above that. Ripple and noise stay at 50mVrms across the 5Hz to 1MHz band. Current regulation maintains 0.2% + 3mA line regulation and 0.2% + 6mA load regulation with 50mArms ripple. The unit operates continuously in 0-40°C ambient at up to 80% relative humidity.

60V 5A adjustable range

The single specification that decides suitability is the 0-60V, 0-5A continuous adjustment range with automatic constant-voltage/constant-current changeover. Buyers who need higher voltage, higher current or multi-channel output cannot use this unit. The F5AL 250VAC fuse and 300ps recovery time complete the critical electrical envelope.

Highlights

  • Adjustable 0-60 V output covers wide test needs
  • 0-5 A continuous current suits diverse loads
  • Dual independent displays show voltage and current simultaneously
  • CV/CC auto-switching maintains stable operation under varying conditions
  • 80 % efficiency reduces heat during extended use

Specifications

TypeAT
