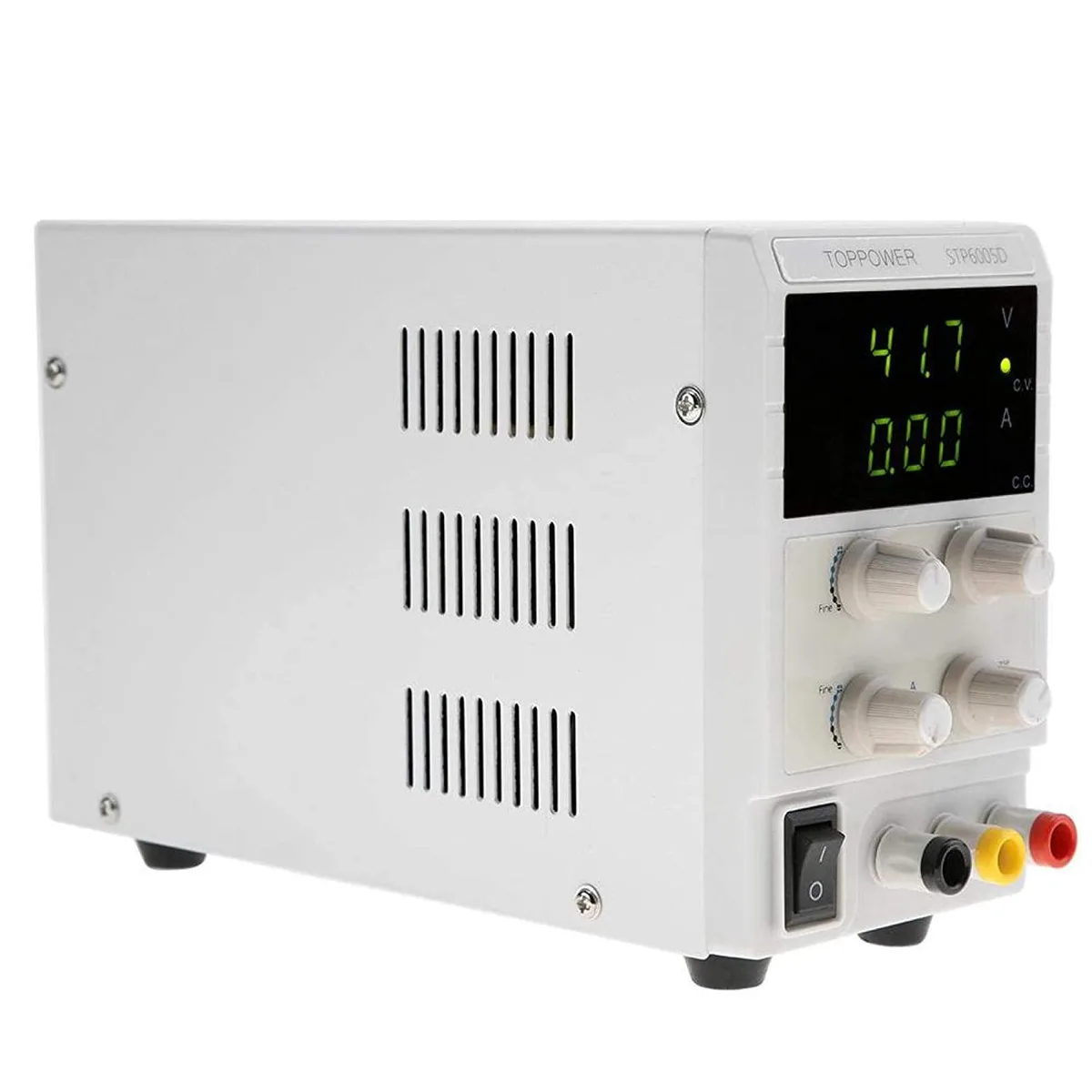

Rectangular bench power supply unit with dual LED displays and front panel controls

myVolts

myVolts STP6005D power supply

SKU CH-VJW2-TMTAG MPN STP6005D

Adjustable 0-60 V, 0-5 A DC supply with dual read-out, CV/CC auto-switching and short-circuit, over-temperature protection for bench or cabinet use

  • TypeAT
  • Adjustable 0-60 V output covers diverse test needs
  • Continuous 0-5 A current suits bench and repair work
  • Automatic CV/CC switching simplifies constant-voltage or constant-current tasks

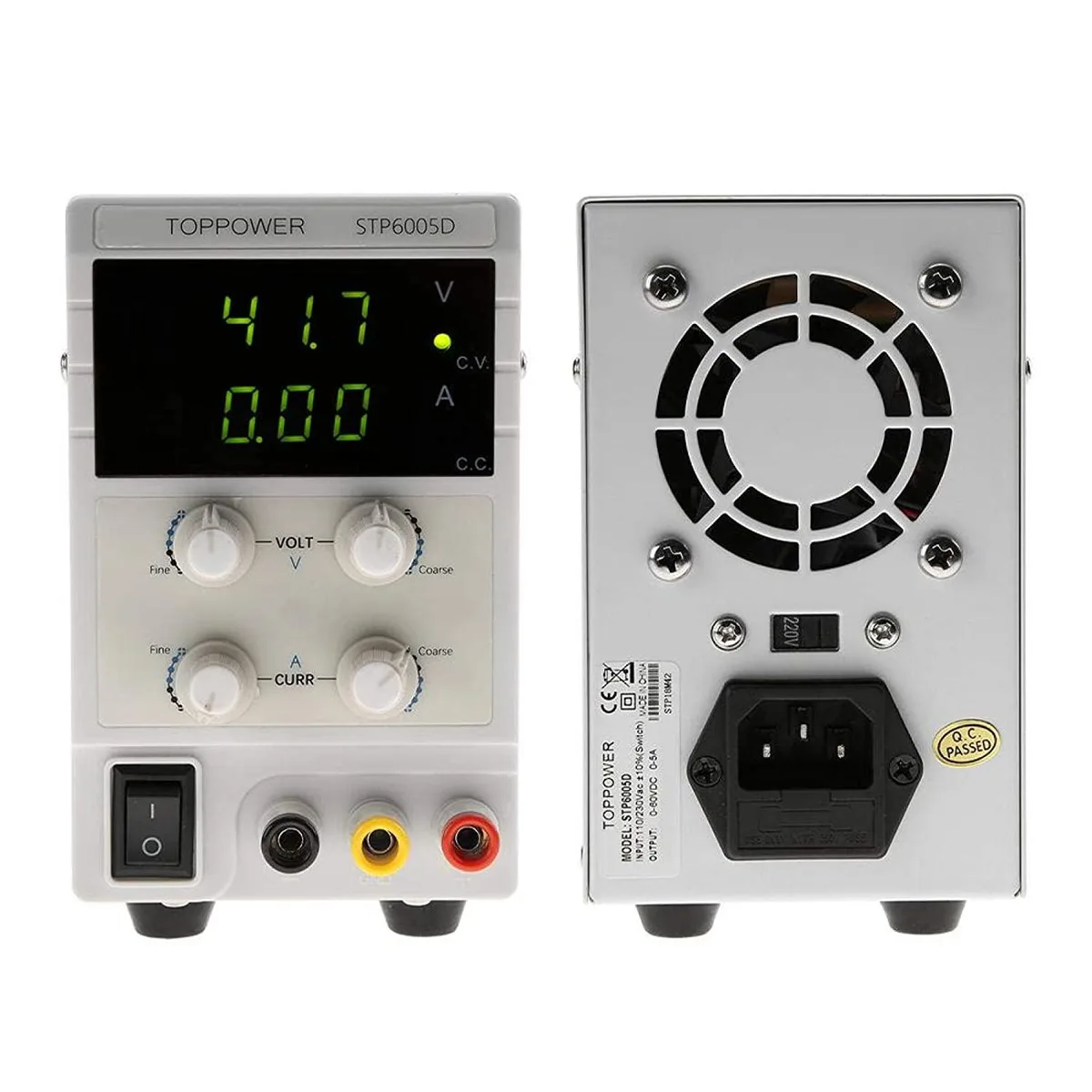

  • Dual independent displays show voltage and current at a glance
  • Multiple protections include current-limiting, short-circuit and over-temperature safeguards

Bench power supply for labs and test rigs

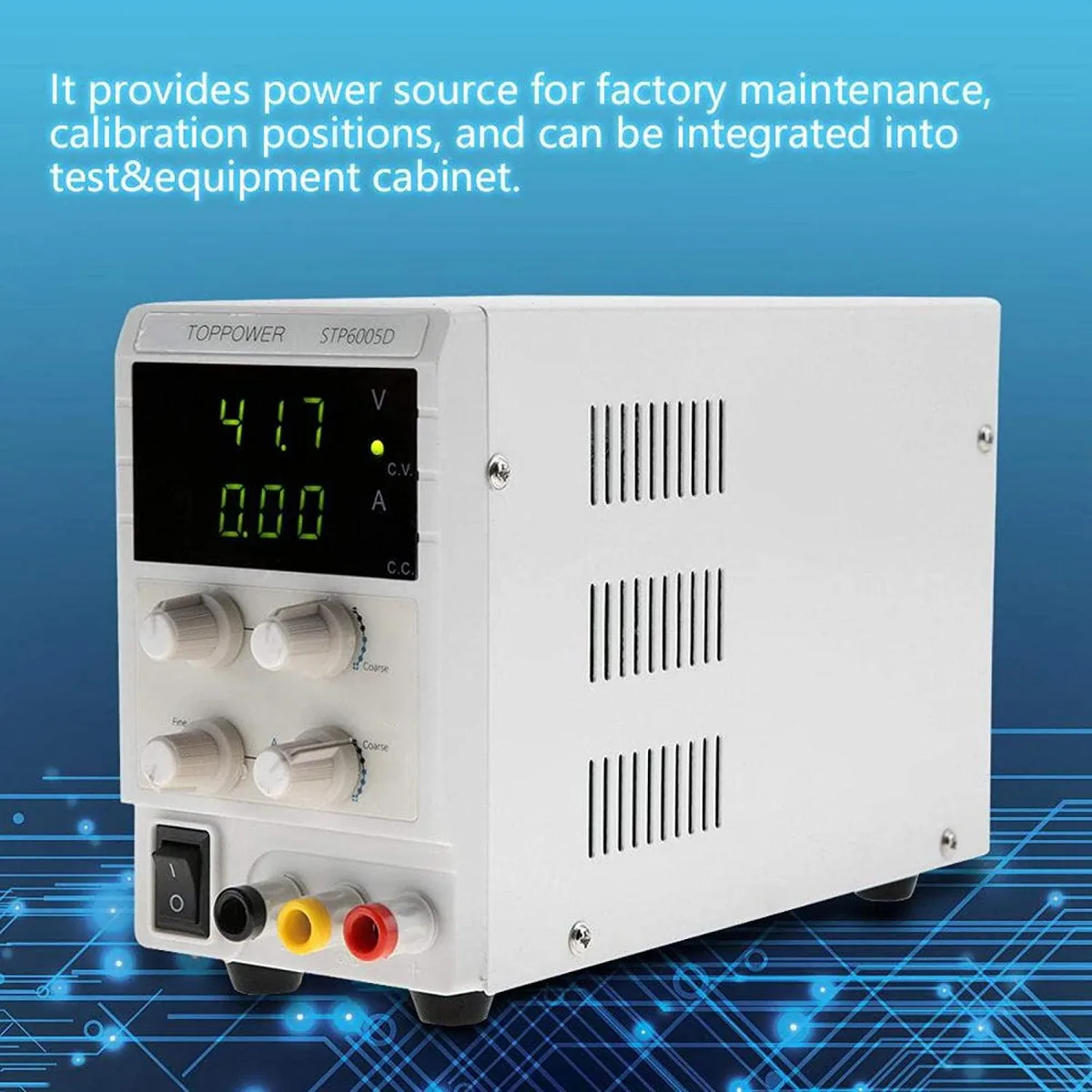

The myVolts STP6005D is a bench-top DC power supply built for factory maintenance, calibration stations and equipment-cabinet integration. It delivers a continuously adjustable 0-60V output with 0-5A current capability and automatic CV/CC crossover. Dual independent displays show voltage and current in real time, while efficiency reaches 80 percent.

Mains fuse and environmental limits

Verify that the unit’s 250VAC F5AL fuse matches your local mains protection and that the operating environment stays within 0 to 40 degrees Celsius at up to 80 percent relative humidity. The AT-type input requires a compatible mains lead and adequate ventilation for the 80 percent efficiency rating. No rack-mount brackets are mentioned, so confirm cabinet spacing before integration.

Replaces fixed-voltage bench units

This supply upgrades from single-output fixed-voltage sources when you need continuous 0-60V adjustment and automatic constant-voltage or constant-current regulation. The jump is worth it for test benches that demand 0.5 percent line regulation, 0.1 percent load regulation below 3A and 50mVrms ripple across 5Hz to 1MHz. It does not suit applications requiring programmable sequencing or remote digital control.

Highlights

  • Adjustable 0-60 V output covers diverse test needs
  • Continuous 0-5 A current suits bench and repair work
  • Automatic CV/CC switching simplifies constant-voltage or constant-current tasks
  • Dual independent displays show voltage and current at a glance
  • Multiple protections include current-limiting, short-circuit and over-temperature safeguards

Specifications

TypeAT

Questions about this item

What comes in the box and what must I source separately?

The unit ships as a complete bench-top supply with dual displays, CV/CC auto-switching and built-in protection; no external modules are required for operation.

Which of the three available styles should I choose?

All styles share the same 0-60 V, 0-5 A specification and protection set; pick the style that best fits your bench layout or cabinet integration plan.

What does the 80 % efficiency figure mean when the supply is under load?

At full rated output the converter draws about 25 % more power from the mains than it delivers to the load, keeping heat and electricity cost lower than less efficient designs.
