Rectangular bench power supply, dark metal case, dual digital displays, front knobs and terminals

myVolts

myVolts STP6005D power supply 0-60V 0-5A

SKU CH-VQMK-0XAPW MPN STP6005D

A continuously adjustable 0-60V, 0-5A DC power supply with CV/CC auto-switching, dual voltage and current displays, and short-circuit, over-temperature, and current-limiting protection

  • TypeAT
  • Continuous 0-60 V and 0-5 A adjustment for flexible bench work
  • CV/CC automatic crossover keeps output stable when load changes
  • Dual independent displays show voltage and current at a glance
  • 80 % efficiency reduces heat during extended use
  • circuit, over-temperature and current-limit protections guard connected gear

Bench power supply for lab and test use

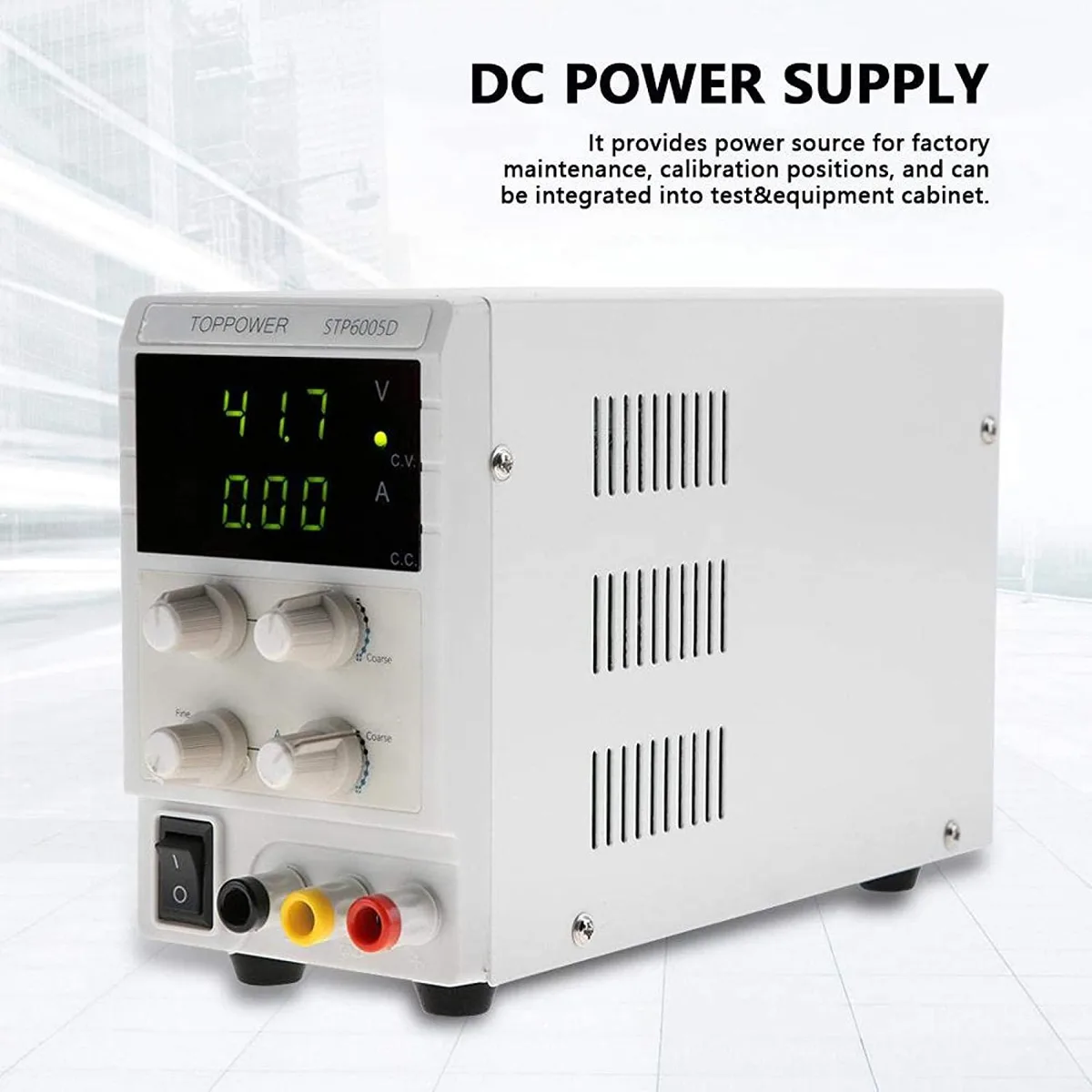

The myVolts STP6005D is a bench-top unit that delivers continuously adjustable DC output from 0 to 60 volts and 0 to 5 amps. It operates in automatic constant-voltage or constant-current modes, making it suited for factory maintenance, calibration stations and integration into test equipment cabinets. Dual independent displays show voltage and current at a glance.

Thermals noise and power draw

The supply runs from 0 to 40 degrees Celsius with up to 80 percent relative humidity and achieves up to 80 percent efficiency. Protection includes current-limiting buck, short-circuit and over-temperature safeguards. A 5 A 250 VAC fuse protects the input side while ripple and noise stay at 50 mVrms and 50 mArms across the specified bandwidth.

Build integration and flexibility

The AT-type form factor fits standard equipment racks and cabinets without requiring proprietary mounting hardware. Continuous CV/CC adjustment frees the user from swapping fixed-voltage modules during prototyping or repair work. Regulation holds at 0.5 percent plus 3 mV for voltage and 0.2 percent plus 3 mA for current, with a 300 ps recovery time for transient loads.

Highlights

  • Continuous 0-60 V and 0-5 A adjustment for flexible bench work
  • CV/CC automatic crossover keeps output stable when load changes
  • Dual independent displays show voltage and current at a glance
  • 80 % efficiency reduces heat during extended use
  • circuit, over-temperature and current-limit protections guard connected gear

Specifications

TypeAT

Questions about this item

How do I install the STP6005D power supply and what step do people get wrong?

Mount the unit in a test cabinet, connect to a 250VAC source with the F5AL fuse fitted, then set the 0-60V and 0-5A limits before enabling output. The step often missed is verifying the CV/CC automatic changeover works at the 3A boundary.

What maintenance or replacement will the STP6005D need later?

Replace the F5AL 250VAC fuse if it blows. Keep ventilation clear so the 0-40°C operating range and 80% efficiency are maintained; no other user-serviceable parts are indicated.

What limit appears first on the STP6005D during sustained use?

The 40°C working-temperature ceiling is reached before the 60V or 5A electrical limits, triggering over-temperature protection and shutting the output down.
