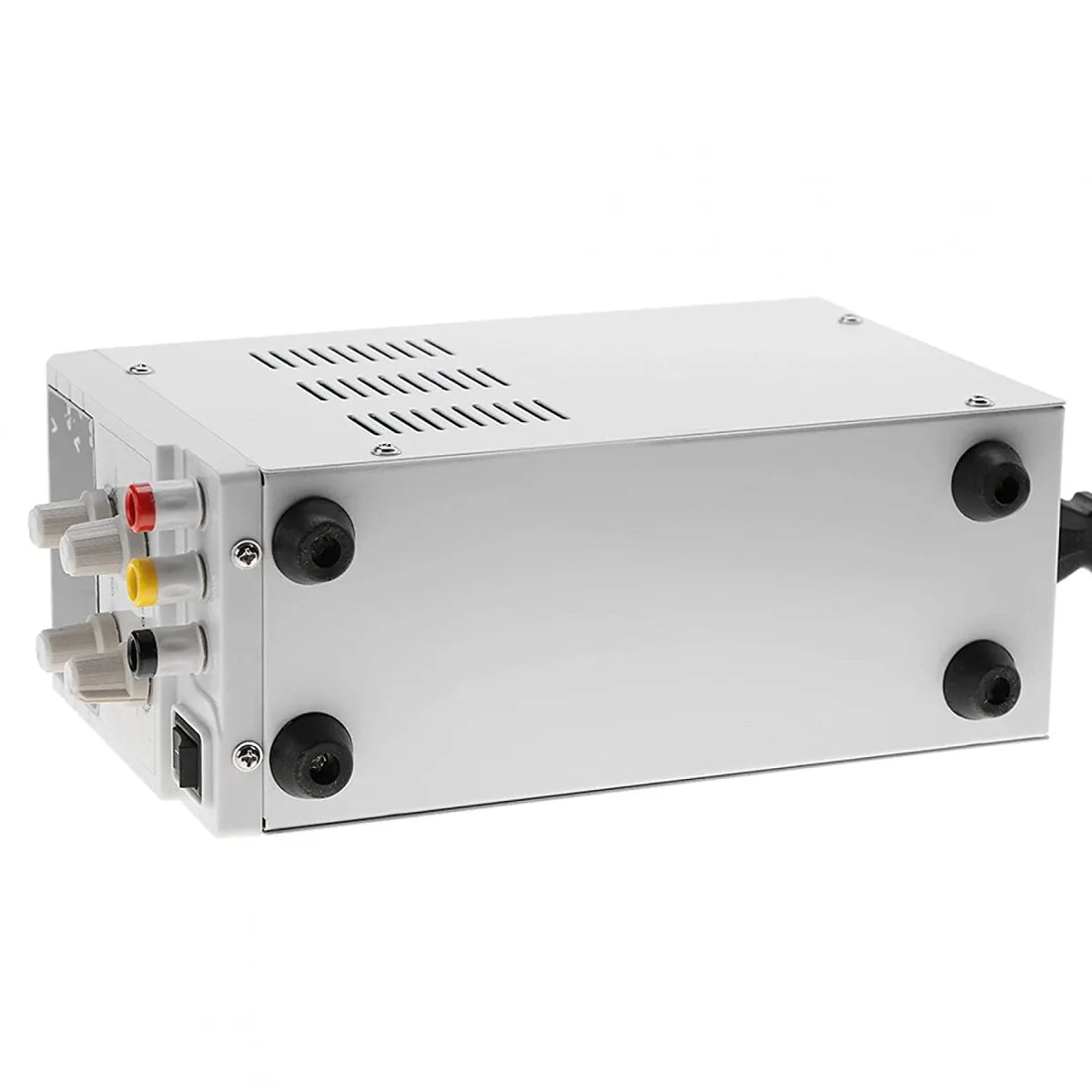

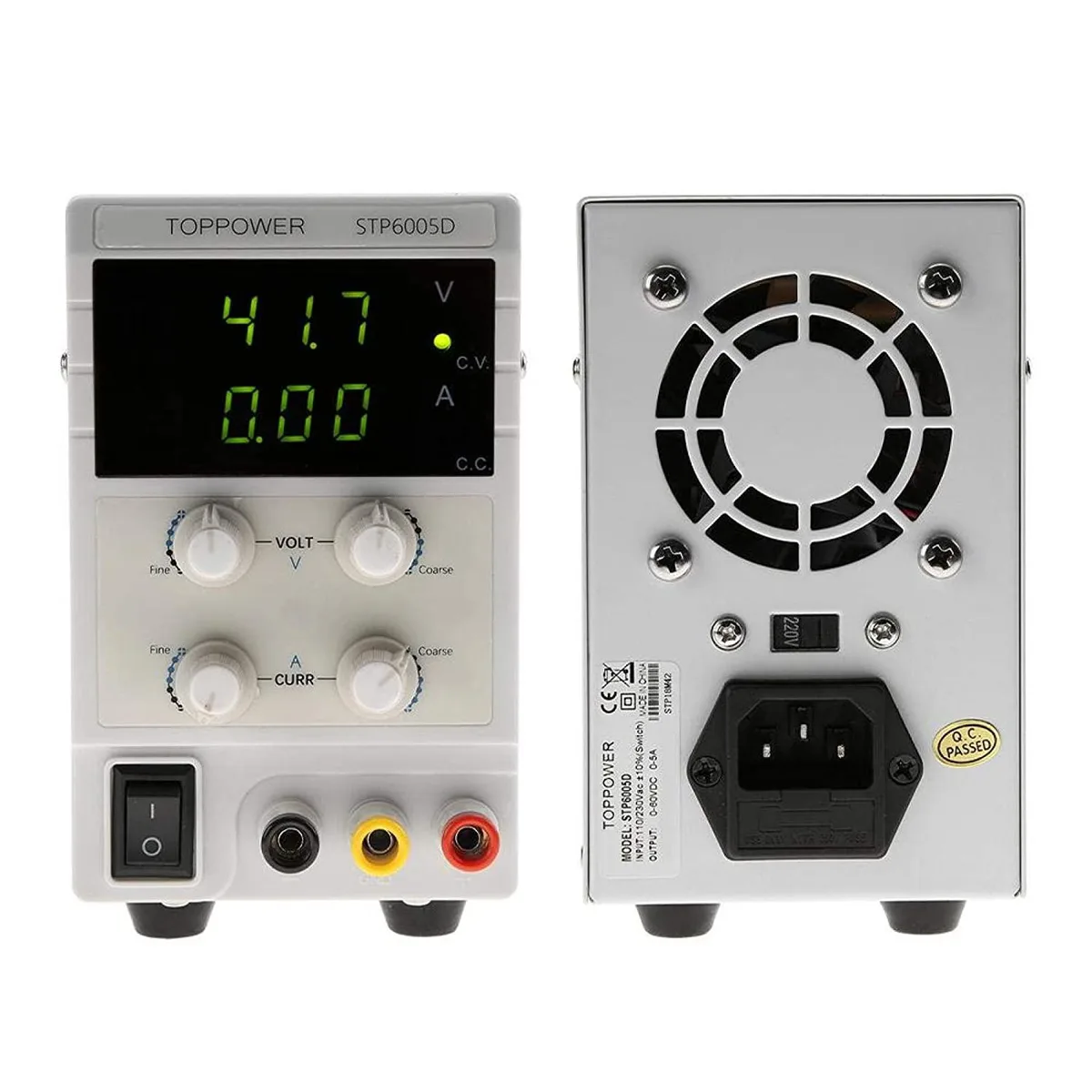

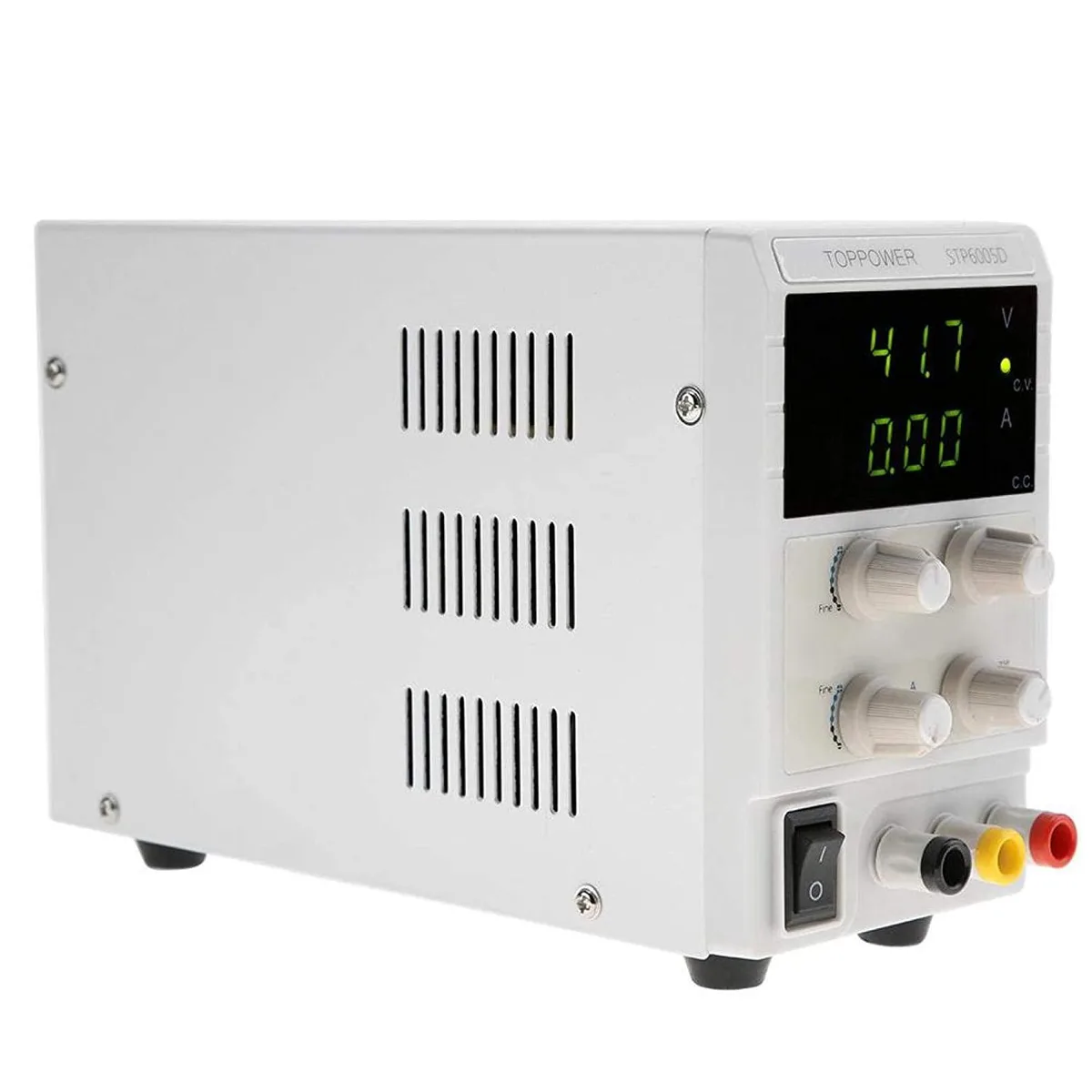

Rectangular bench power supply with dual LED displays and front panel controls

myVolts

myVolts STP6005D power supply 0-60V 0-5A 300W

SKU CH-YZRR-X6440 MPN STP6005D

Adjustable 0-60V, 0-5A DC supply delivers 300W with CV/CC auto-switching, dual displays and short-circuit, over-temperature and current-limiting protection

  • TypeAT
  • Continuously adjustable 0-60 V and 0-5 A output covers wide test ranges
  • Automatic CV/CC changeover keeps load stable without manual switching
  • Dual independent displays show voltage and current simultaneously for quick reading
  • Built-in short-circuit, over-temperature and current-limiting protection safeguards connected gear
  • Up to 80 % efficiency reduces heat during extended bench sessions

Adjustable 0-60V 0-5A bench supply

The myVolts STP6005D is a regulated DC power supply delivering continuously adjustable output from 0-60V and 0-5A with a 300W power rating. It operates in constant voltage and constant current modes with automatic crossover, suited for factory maintenance, calibration tasks and integration into test equipment cabinets. Dual independent displays show voltage and current simultaneously.

Sustained-load behaviour at 80% efficiency

At full indicated power the unit achieves 80% efficiency while maintaining regulation rates of 0.5% + 3mV for voltage and 0.2% + 3mA for current. Load regulation holds at 0.1% + 3mV up to 3A and 0.2% + 5mV above that, with ripple and noise limited to 50mVrms and 50mArms respectively. Protections include current-limiting buck, short-circuit and over-temperature shutdown for continuous operation.

Replaces fixed-output bench units

The STP6005D upgrades from single-rail supplies that lack CV/CC auto-switching or independent metering. The step is worthwhile when a workflow demands both variable voltage and precise current limiting across the full 0-60V range, especially in calibration or cabinet-mount scenarios where dual-display monitoring and 110/220V input flexibility are required.

Highlights

  • Continuously adjustable 0-60 V and 0-5 A output covers wide test ranges
  • Automatic CV/CC changeover keeps load stable without manual switching
  • Dual independent displays show voltage and current simultaneously for quick reading
  • Built-in short-circuit, over-temperature and current-limiting protection safeguards connected gear
  • Up to 80 % efficiency reduces heat during extended bench sessions

Specifications

TypeAT

Questions about this item

How loud and hot does the STP6005D get when running at 300W all day?

The unit is rated for 80% efficiency at up to 300W output with an operating temperature range of 0 to 40°C and includes over-temperature protection.

What mains lead and fuse does the STP6005D need to start up?

It requires a mains cable suited to your local 110 or 220VAC supply and is protected by an internal F5AL 250VAC fuse.

Will the STP6005D's 0-60V 0-5A CV/CC output work safely with older 5V TTL logic boards?

Yes, the continuously adjustable voltage and current with automatic CV/CC switching lets you set precise low-voltage limits and current limits for sensitive legacy circuits.
