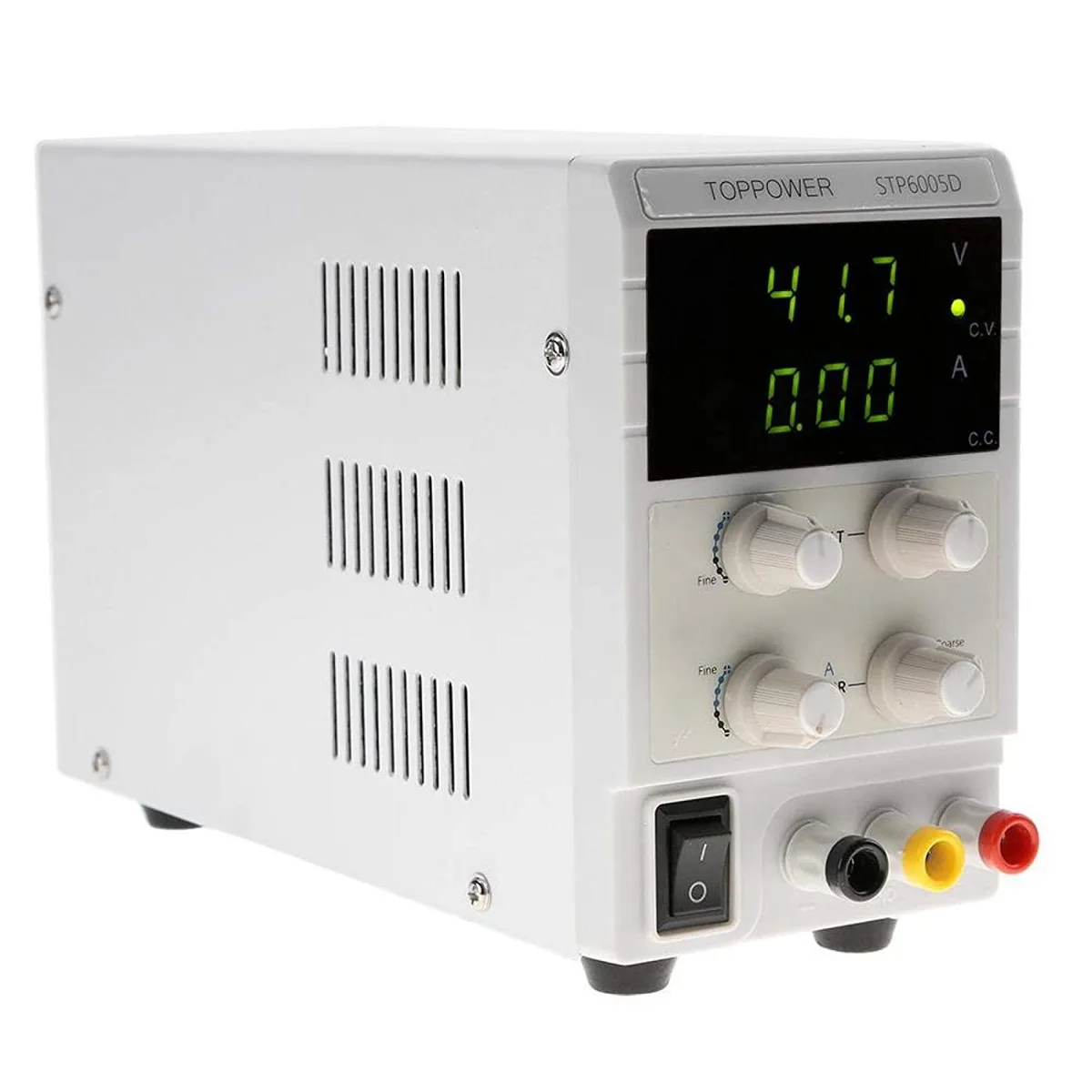

Rectangular bench power supply unit with dual LED displays, grey metal casing, front panel knobs and terminals

myVolts

myVolts STP6005D power supply 0-60V 0-5A 80% efficiency

SKU CH-XFGS-NEGM3 MPN STP6005D

An adjustable DC power supply delivering 0 to 60 volts and 0 to 5 amps with 80% efficiency, CV/CC automatic switching, dual independent displays and short-circuit.

  • TypeAT
  • Accurate DC output up to 60V 5A with 80% efficiency
  • Automatic CV/CC mode switches between constant voltage and constant current
  • Dual independent displays show voltage and current at a glance
  • Multiple protections include current limiting, short-circuit and over-temperature safeguards

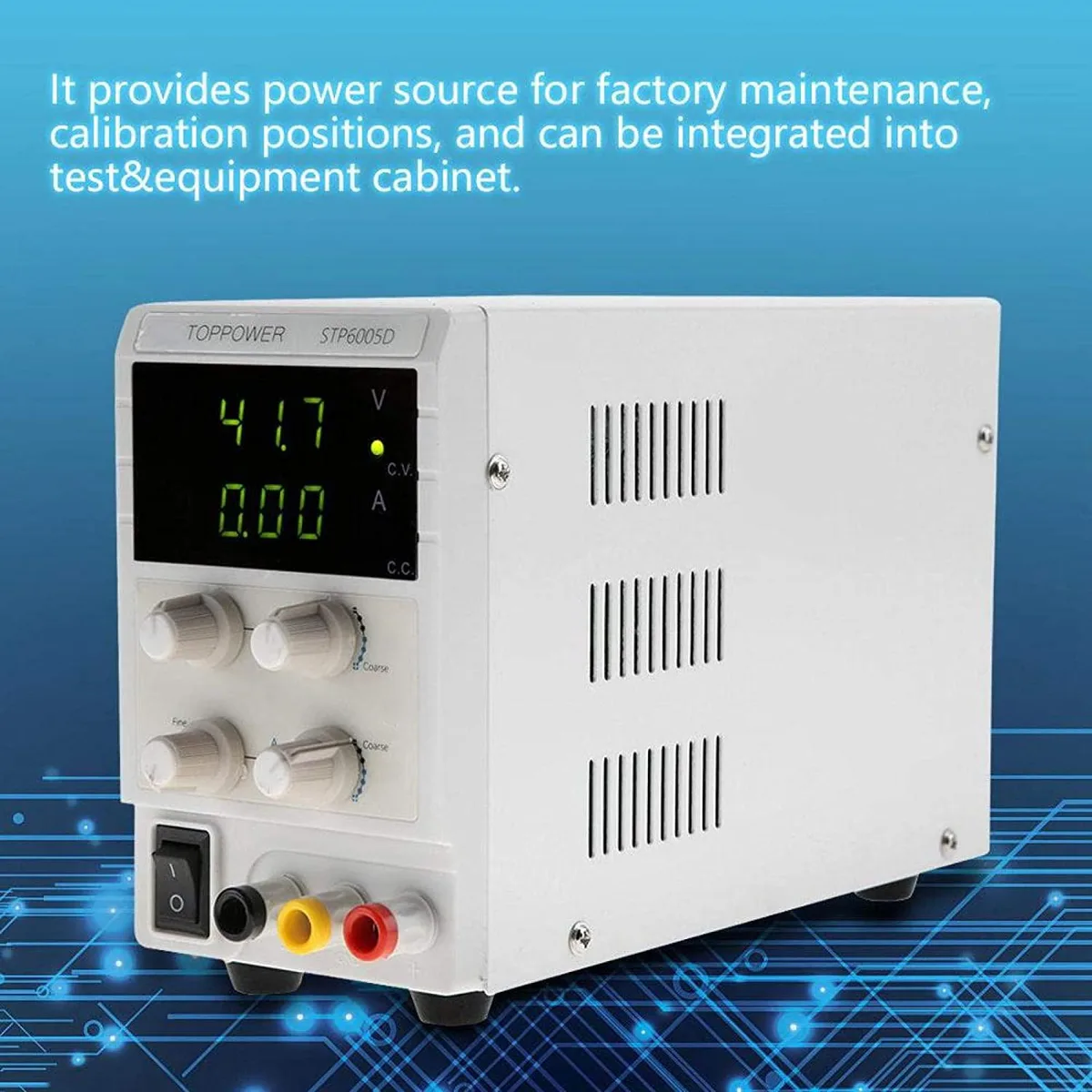

  • Suitable for factory maintenance, calibration and test-cabinet integration

Adjustable 0-60V DC Supply

The myVolts STP6005D is a bench-top adjustable DC power supply delivering 0-60V and 0-5A with 80% efficiency. It operates in constant-voltage or constant-current mode with automatic crossover. Dual displays show voltage and current simultaneously. Built-in protections include current limiting, short-circuit and over-temperature shutdown.

Suits bench test and calibration; not for PC builds

Technicians performing factory maintenance, calibration or equipment-cabinet integration will value the 0.5% line regulation and 50mV ripple. Hobbyists needing a compact lab source also benefit. Builders looking for an ATX unit to power a motherboard, GPU or drive array should choose a different form factor.

0-60V 0-5A adjustable range decides fit

The continuous 0-60V and 0-5A output window is the single specification that determines whether this supply matches your test voltage and current needs. If your device under test requires higher voltage, higher current or a fixed ATX rail set, this model will not meet the requirement.

Highlights

  • Accurate DC output up to 60V 5A with 80% efficiency
  • Automatic CV/CC mode switches between constant voltage and constant current
  • Dual independent displays show voltage and current at a glance
  • Multiple protections include current limiting, short-circuit and over-temperature safeguards
  • Suitable for factory maintenance, calibration and test-cabinet integration

Specifications

TypeAT

Questions about this item

What mains lead and fuse rating does the STP6005D need to operate?

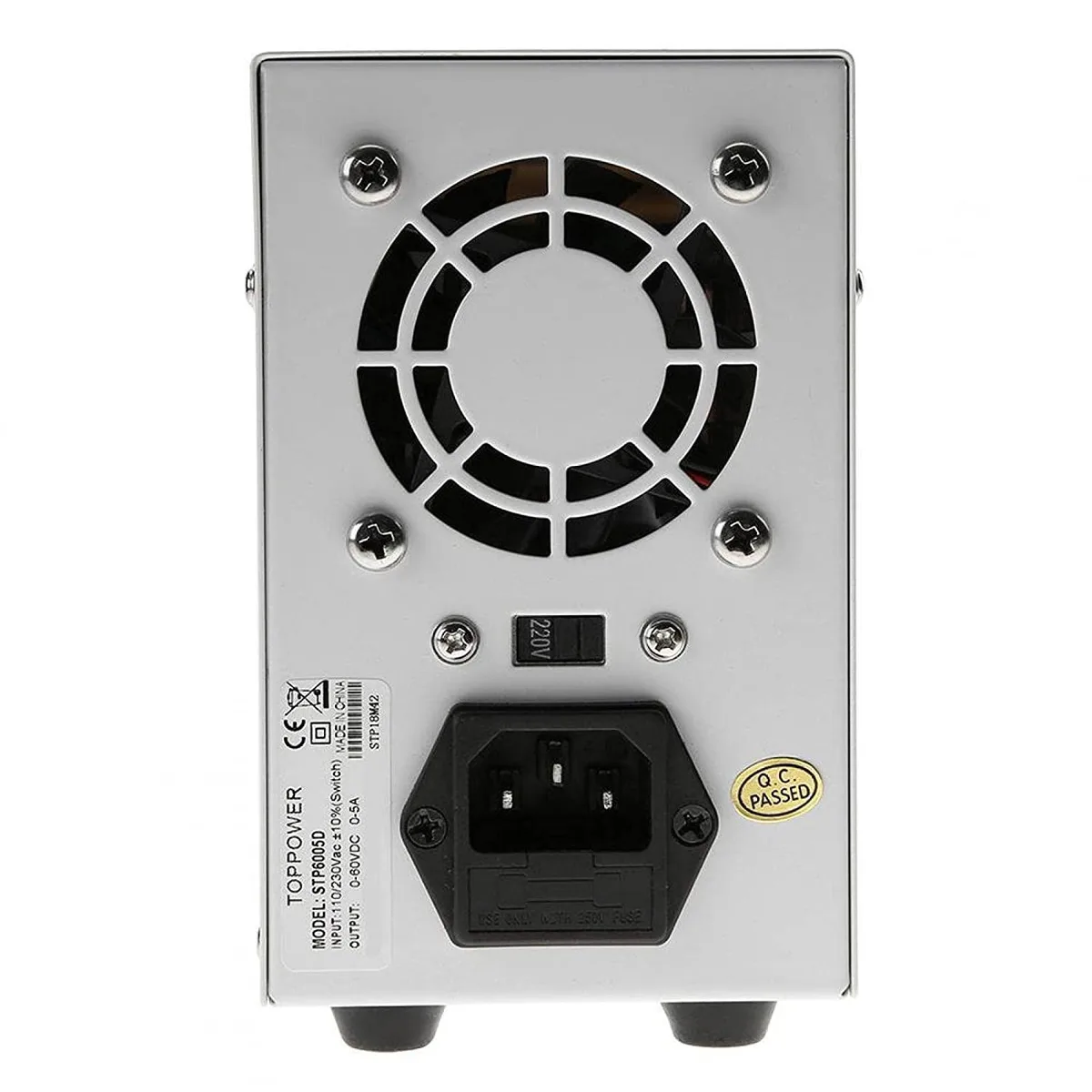

The unit uses a standard IEC mains lead and is fitted with an F5AL 250VAC fuse.

Will the STP6005D replace a legacy 30V bench supply without changing test leads?

Yes, the 0-60V 0-5A output covers the older range and uses the same banana terminals.

How can I confirm the STP6005D is regulating correctly after power-up?

The dual display shows live voltage and current; in CV mode voltage stays within 0.5% + 3mV of the set value.
