Green printed circuit board power module with corner mounting holes and exposed components

myVolts

myVolts WX-DC2425 power supply 220W AC110-245V

SKU CH-K053-ATRX6 MPN WX-DC2425

Delivers 220 W from an AC 110-245 V input with up to 90 % efficiency and overload, short-circuit and over-temperature protection

  • TypeAT
  • Delivers 220 W for demanding motor and industrial loads
  • Wide AC 110-245 V input suits global mains voltages
  • Up to 90 % efficiency reduces heat and energy waste
  • Built-in over-voltage, over-current and over-temperature protection
  • Four corner mounting holes secure the board against vibration

Power supply for AC mains input

The myVolts WX-DC2425 is a 220 W switching power module that accepts AC 110-245 V at 50-60 Hz. It delivers a regulated DC output rated at 9 A with a 12 A peak protection limit. The unit suits integrators who need a bare board supply for industrial or custom electronics projects.

Mounting and protection features

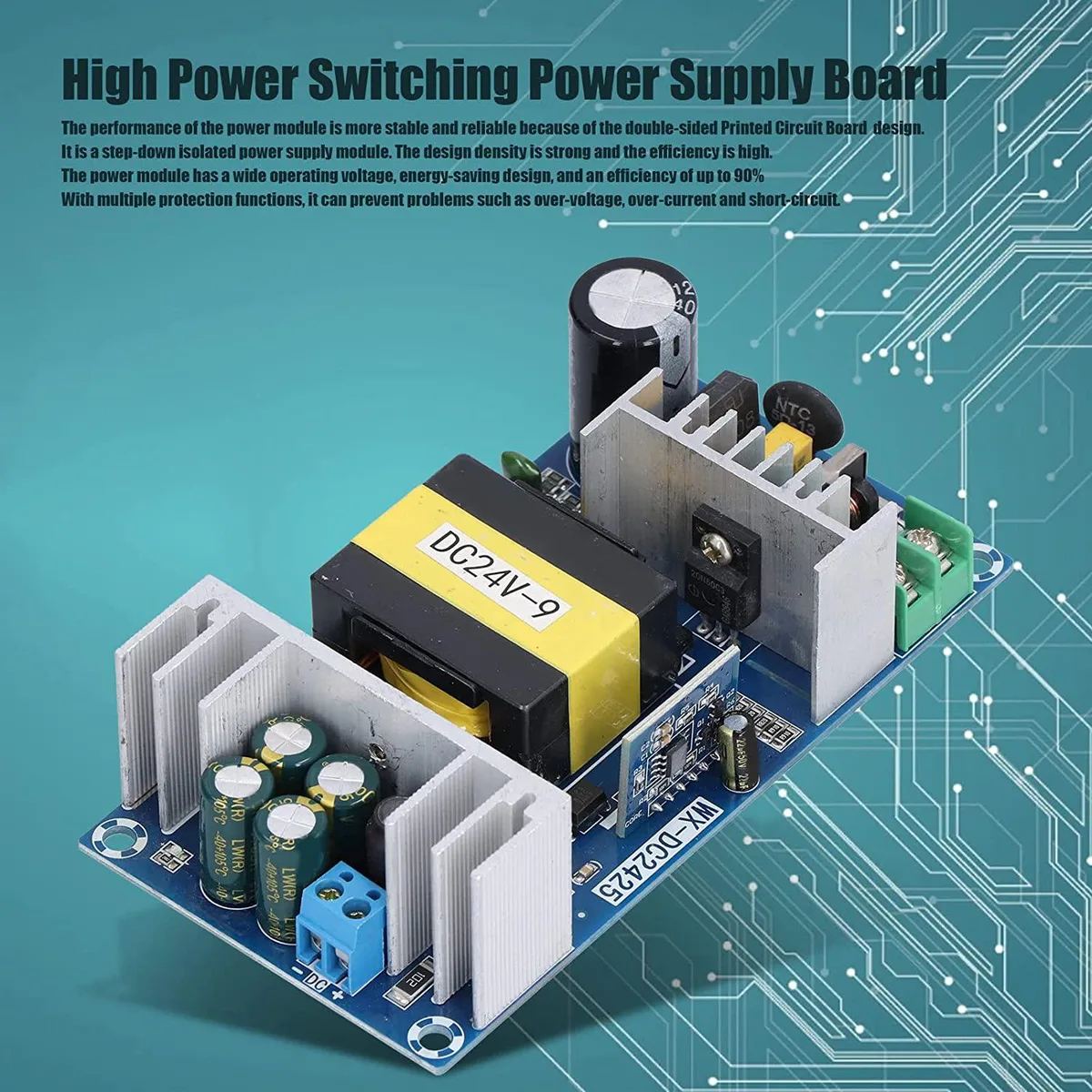

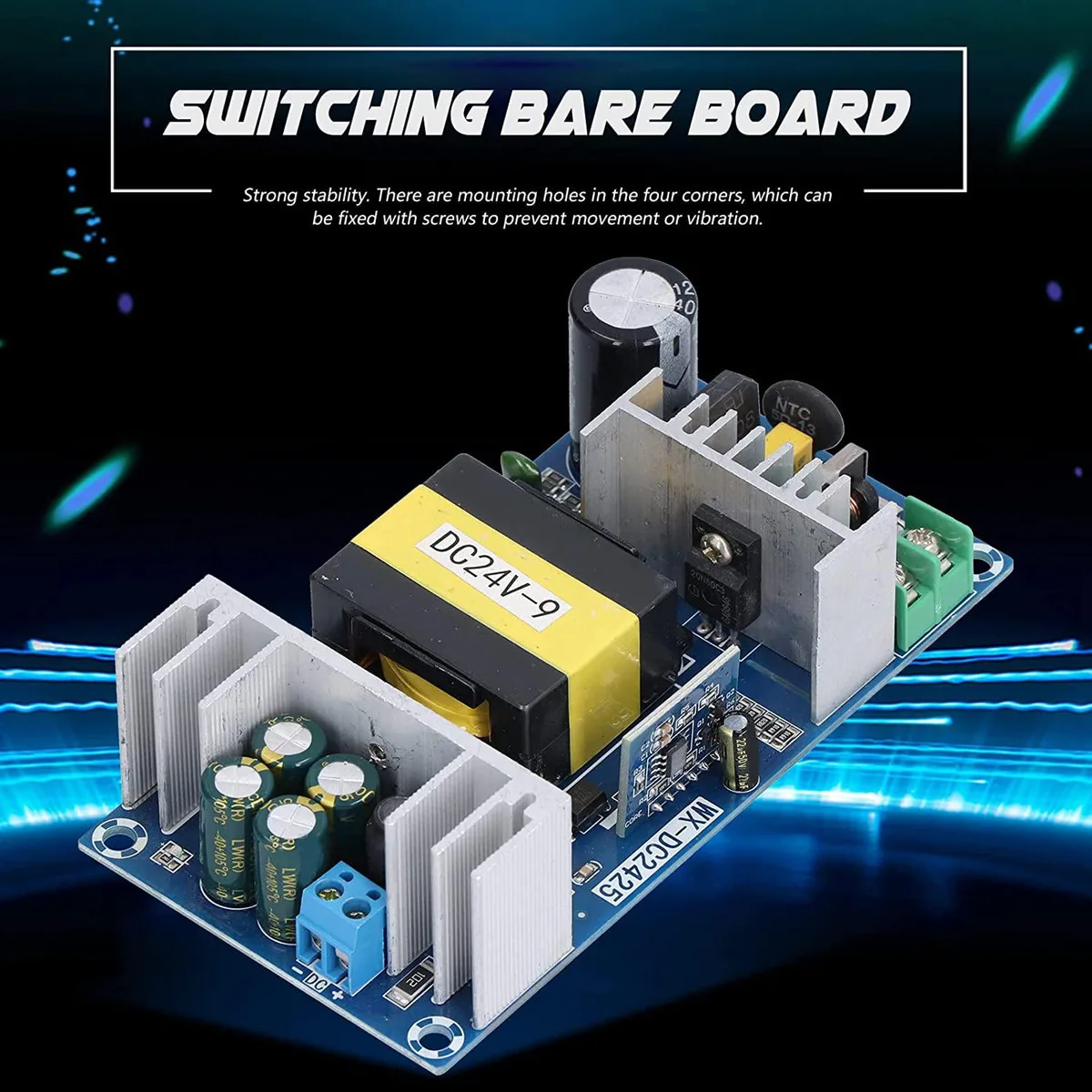

Four corner mounting holes allow secure screw fixing to a chassis, reducing vibration in motor or automation rigs. Built-in overload, short-circuit and over-temperature protection guard the load and the module itself. The double-sided PCB layout contributes to stable operation across the wide input range.

High-efficiency isolated step-down design

The isolated step-down topology achieves up to 90 % efficiency, lowering heat dissipation in enclosed builds. No accessories, cables or software are included in the package, so the builder must provide output wiring, enclosure and any required safety certifications for the final system.

Highlights

  • Delivers 220 W for demanding motor and industrial loads
  • Wide AC 110-245 V input suits global mains voltages
  • Up to 90 % efficiency reduces heat and energy waste
  • Built-in over-voltage, over-current and over-temperature protection
  • Four corner mounting holes secure the board against vibration

Specifications

TypeAT

Questions about this item

What is the peak output current the WX-DC2425 can deliver before its protection engages?

The module provides a rated 9 A output with a peak of 12 A before the built-in over-current protection activates.

How much heat should I expect from the board when it runs continuously at 220 W?

At up to 90 % efficiency roughly 22 W becomes heat; the bare PCB relies on convection so you must ensure adequate airflow around the mounting holes.

What input wiring must already be in place for this supply to operate?

You need an AC source between 110 V and 245 V at 50 Hz or 60 Hz connected to the board’s input terminals.
