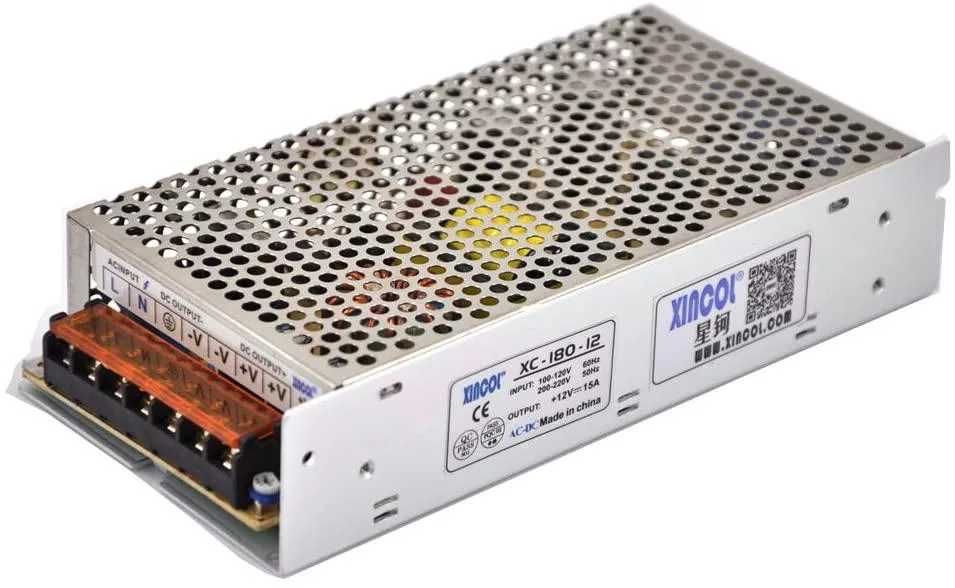

Rectangular silver metal enclosure with screw terminals and voltage selector switch

myVolts

myVolts XC-180-12 power supply 12V 15A 180W

SKU CH-1GSG-ZH2SF MPN XC-180-12

Converts AC 110V or 220V to DC 12V 15A with short-circuit, overload, over-voltage and over-temperature protection in a metal enclosure

  • TypeAT
  • Converts AC 110V or 220V to stable DC 12V
  • Delivers 15 A continuous current for demanding loads
  • Built-in short-circuit, overload, over-voltage and over-temperature protection
  • Compact 200 mm × 98 mm × 42 mm metal enclosure weighs 536 g
  • FCC, CE and RoHS certified for safety compliance

Industrial 12 V 180 W supply

The myVolts XC-180-12 converts AC 110 V or 220 V mains to a regulated DC 12 V output rated at 15 A and 180 W. It is built for engineers, installers and hobbyists who need a rugged switched-mode unit for LED strips, CCTV, automation rigs or test-bench loads.

Thermal and protection profile

A metal enclosure with aluminium base dissipates heat passively across a 0 °C to 40 °C operating range, while an internal EMI filter keeps conducted noise low. Short-circuit, overload, over-voltage and over-temperature circuits shut the rail down before damage occurs, and the unit has passed 100 % full-load burn-in at the factory.

Mounting and wiring practicalities

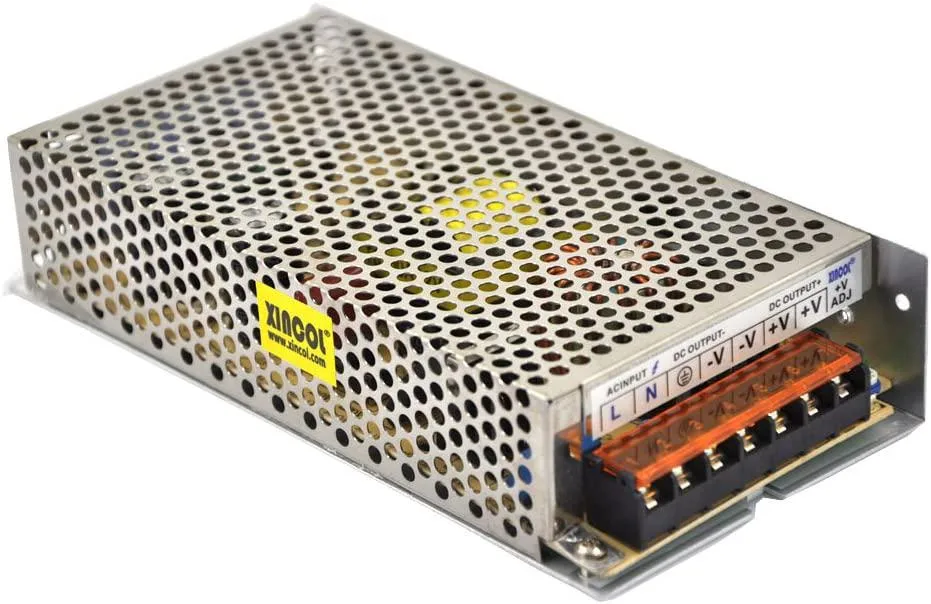

The 200 mm × 98 mm × 42 mm case offers four screw holes for panel or DIN-rail attachment, and the terminal block provides duplicated +V and COM poles plus an ADJ trimmer for ±5 % voltage adjustment. A side-mounted 110 V/220 V selector must be set to match local mains before power-up.

Highlights

  • Converts AC 110V or 220V to stable DC 12V
  • Delivers 15 A continuous current for demanding loads
  • Built-in short-circuit, overload, over-voltage and over-temperature protection
  • Compact 200 mm × 98 mm × 42 mm metal enclosure weighs 536 g
  • FCC, CE and RoHS certified for safety compliance

Specifications

TypeAT

Questions about this item

How do I install the XC-180-12 and which wiring step is most often missed?

Connect L and N to AC mains, set the side selector to 110V/115V or 220V/230V before powering on, then wire COM and +V for DC output; the step most often missed is verifying the selector position matches the local mains voltage.

What maintenance or replacement will the XC-180-12 need over time?

Keep the metal enclosure vents clear of dust and ensure the operating temperature stays within 0 to 40°C; the internal fan is not user-serviceable, so the entire unit is replaced if protection circuits trip repeatedly or output voltage drifts beyond the 5% adjustment range.

What limit appears first when the XC-180-12 runs continuously at full load?

The 120W continuous output power rating is reached before the 180W peak figure; sustained operation at 15A requires ambient temperatures below 40°C and unrestricted airflow around the 200×98×42mm aluminium base.
