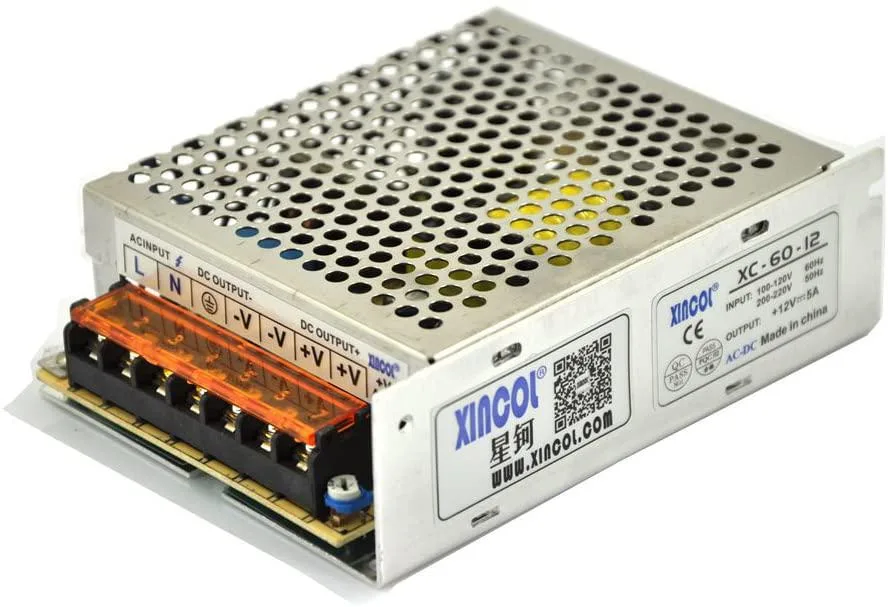

Silver aluminium box with screw terminals, 130 by 98 by 40 mm

myVolts

myVolts XC-60-12 12V 5A 60W power supply

SKU CH-XQBF-6C1JZ MPN XC-60-12

Converts AC 110V or 220V to DC 12V 5A 60W with short-circuit, overload, over-voltage and over-temperature protection

  • TypeAT
  • Dual 110V/220V input auto-adjusts for worldwide use
  • Four-layer protection guards against short circuit, overload, over voltage and over temperature
  • 12V 5A 60W output with 5% voltage adjustment via +V/ADJ terminal
  • Aluminium chassis runs 0–40°C at full load with built-in EMI filter
  • Compact 130×98×40mm footprint and 330g weight fit tight enclosures

60 W desktop power supply

The myVolts XC-60-12 converts AC 110 V or 220 V mains to a regulated DC 12 V output rated at 5 A. It is built for industrial automation, LED lighting, CCTV and general bench use where a compact enclosed unit is preferred.

Capacity and headroom

The supply delivers a continuous 60 W at 12 V 5 A with dual +V and –V terminals for parallel or redundant wiring. Operation is specified from 0 °C to 40 °C ambient; above that temperature the available current falls and the unit may trip its overload or over-temperature protection.

Build and connections

An aluminium chassis measuring 130 mm by 98 mm by 40 mm houses the SMPS circuitry and an integrated EMI filter for low ripple. Screw terminals accept L and N for AC input and COM, +V and ADJ for DC output, while a side-mounted selector sets 110 V or 220 V input before powering on.

Highlights

  • Dual 110V/220V input auto-adjusts for worldwide use
  • Four-layer protection guards against short circuit, overload, over voltage and over temperature
  • 12V 5A 60W output with 5% voltage adjustment via +V/ADJ terminal
  • Aluminium chassis runs 0–40°C at full load with built-in EMI filter
  • Compact 130×98×40mm footprint and 330g weight fit tight enclosures

Specifications

TypeAT

Questions about this item

Will the XC-60-12 run on the 110 V mains I have in my older workshop without rewiring?

The supply accepts AC 110 V or 220 V automatically; the internal selector is already set to 110 V/115 V for US use, so no rewiring is needed.

How can I verify the XC-60-12 is delivering a clean 12 V after installation?

Measure the +V and COM terminals with a multimeter; the output should read 12 V DC and the built‑in EMI filter keeps ripple and noise low.

What comes in the box and what must I source separately for the XC-60-12?

The package includes one XC-60-12 unit; you must supply an AC mains cord for the L and N terminals and your own DC load wiring for the +V and COM outputs.
