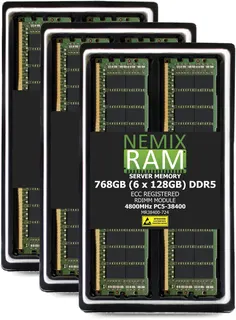

NEMIX RAM 768GB 6x128GB DDR5 4800 CL40 ECC RDIMM Supermicro H14SSL-N memory upgrade

768GB DDR5 4800 ECC RDIMM kit

This 768GB kit contains six 128GB DDR5 4800 Registered ECC RDIMMs built for the Supermicro H14SSL-N motherboard. It targets administrators who need maximum memory capacity in every slot for virtualisation, databases or high-performance computing workloads. Each module runs at 1.1V with CL40 timing and a 2Rx4 organisation. The registered design lets the board run fully populated at rated speed.

Upgrading from smaller RDIMM sets

Replacing a partial kit with this six-module set fills every supported slot so the memory controller operates at full bandwidth without mixing ranks or speeds. The jump is worth it when your workloads exceed the current capacity limit or when mixed-rank configurations force the board to down-clock. Systems that already run a full complement of matched 128GB RDIMMs at DDR5 4800 will not gain additional throughput.

Tool-free DIMM installation

Installation follows the board's documented population order: open the ejector tabs, align the 288-pin key notch, press straight down until both tabs click, then verify the POST memory count. The most common issue is seating a module slightly off-centre, which leaves the tabs unlatched and causes a boot failure or reduced capacity. Always power down, disconnect mains cables and observe anti-static precautions before handling the RDIMMs.
