Silver metal desktop switch with 16 RJ45 ports and one SFP slot, fanless and wall-mountable

Netgear Inc.

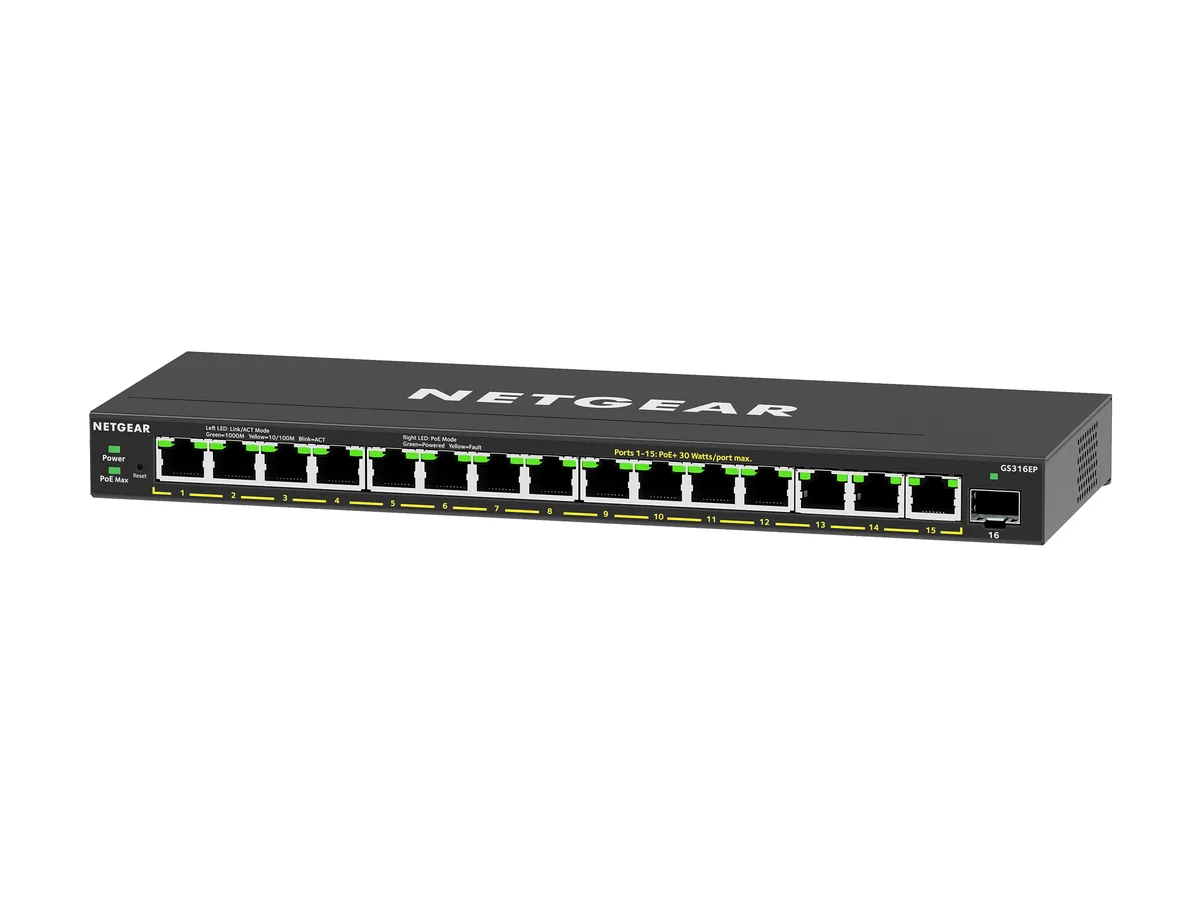

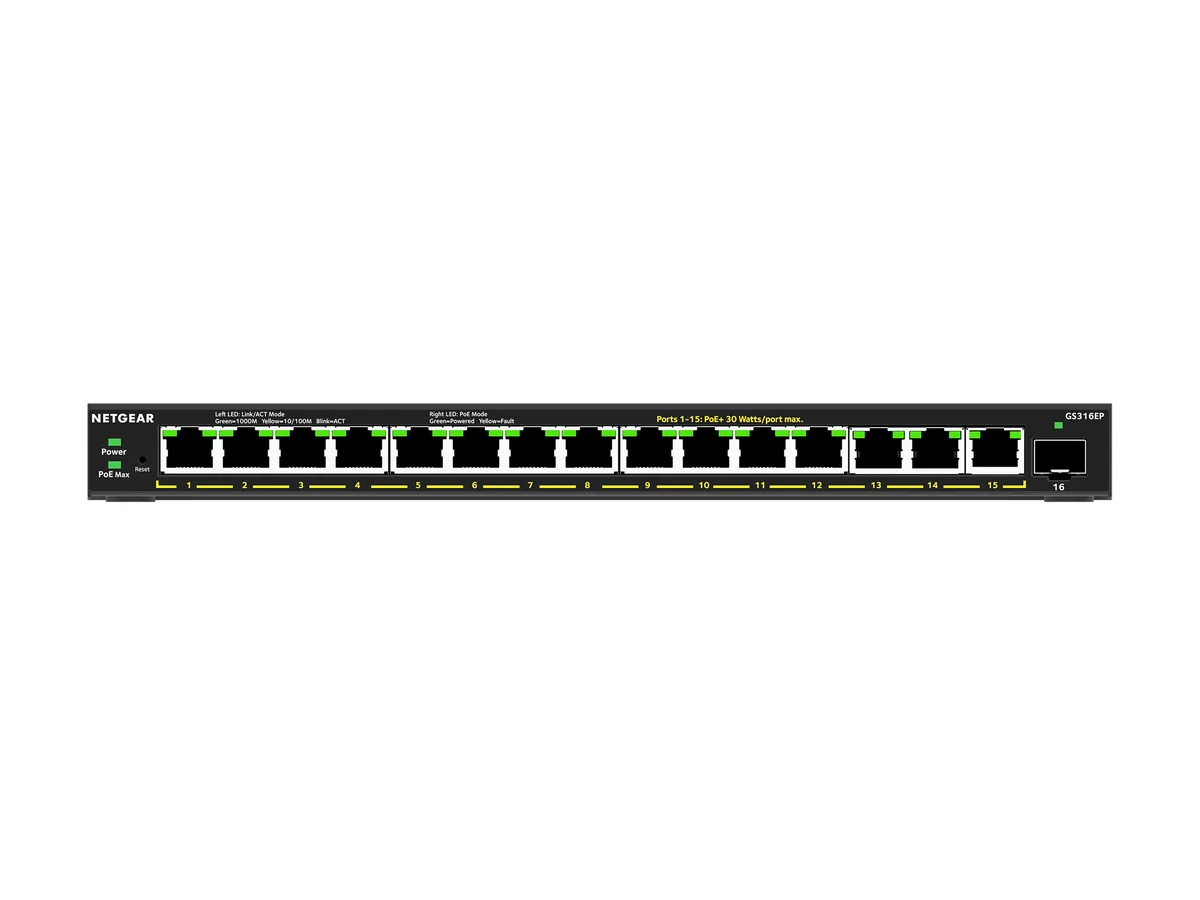

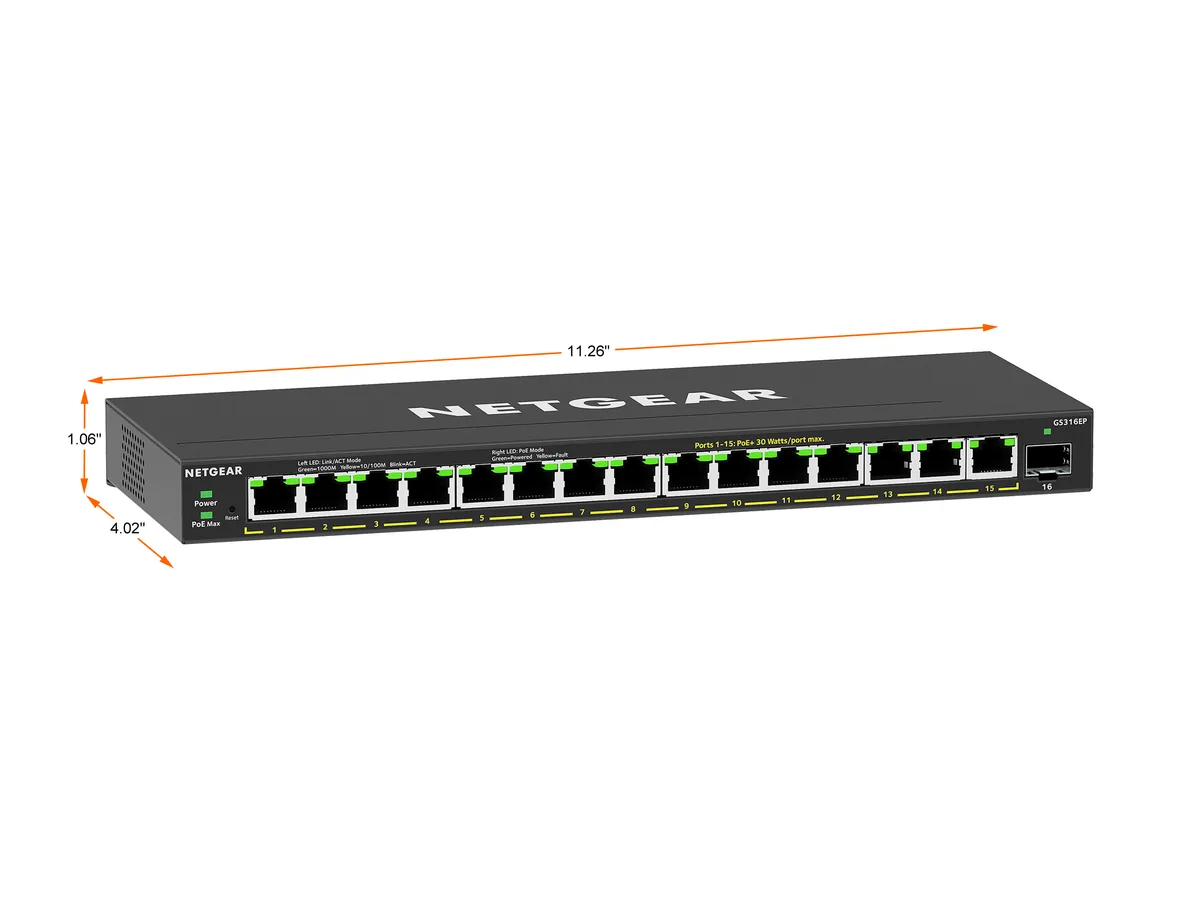

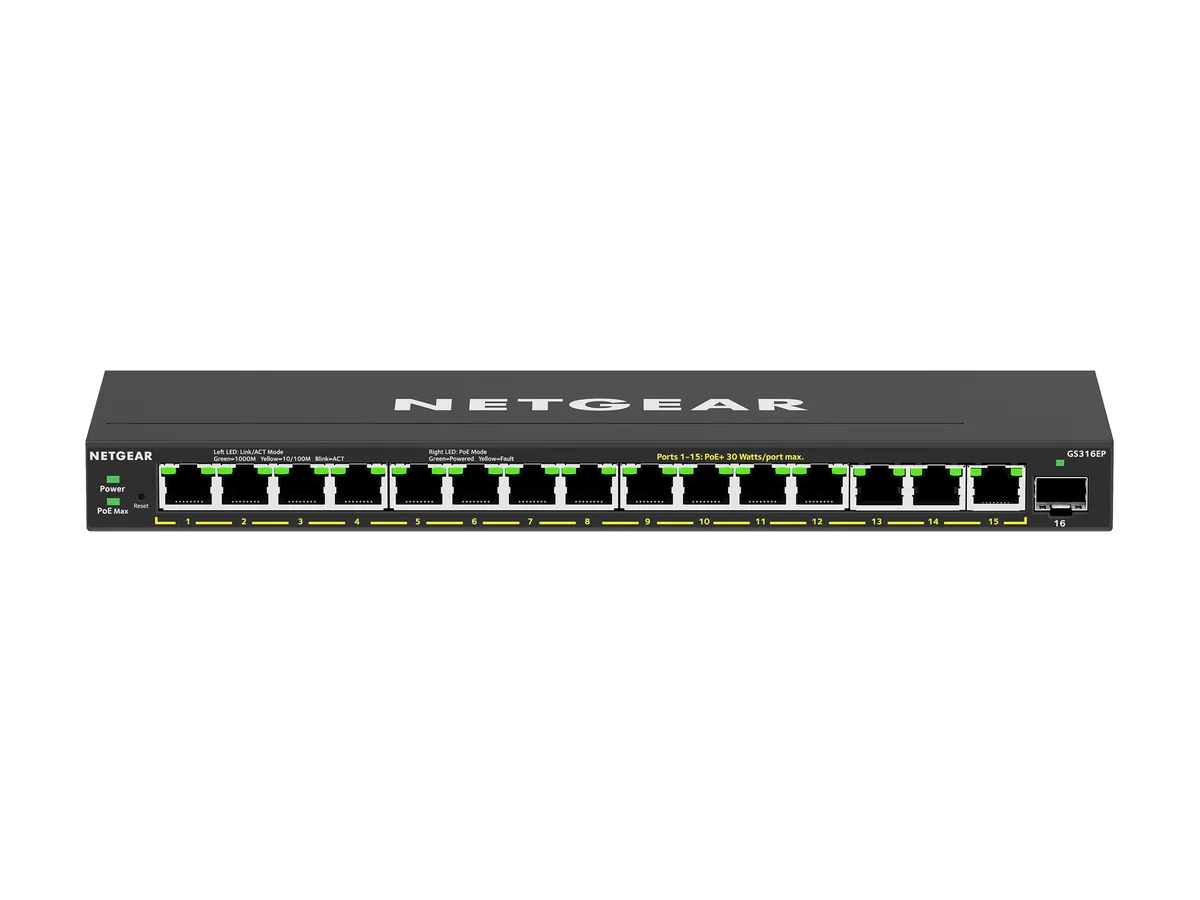

Netgear Inc. GS316EP-100NAS 16-Port PoE+ Gigabit network switch 180W 1 SFP

SKU CH-6DC9-7NYB7 MPN GS316EP-100NAS

A 16-port Gigabit PoE+ switch with 180 W budget, 15 powered ports and one SFP uplink for fibre links

  • FormatDesktop Wall Mountable
  • StandardsIEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3u 100B
  • Network MediaMedia Type Supported: Twisted Pair Optical Fiber Ethernet Te
  • Network Management TypeSmart
  • Uplink PortsTotal Number of Expansion Slots: 1.0 Expansion Slot Type: SF
  • Uplink InterfaceTotal Number of Network Ports: 15 Modular: Yes Port/Expansio

Model GS316EP

  • 15 PoE+ ports deliver 180 W total power for single-cable device deployment
  • 1 SFP uplink enables long-distance fibre connections alongside copper links
  • Fanless design ensures silent operation in noise-sensitive environments
  • VLAN and QoS support segment traffic and prioritise critical applications
  • Desktop or wall mounting with included hardware fits diverse installation needs

16-Port PoE+ Gigabit Switch

The Netgear GS316EP-100NAS is a 16-port Gigabit Ethernet switch with 15 PoE+ ports and a single SFP uplink slot. It delivers a total PoE budget of 180W for powering devices such as access points, cameras and VoIP phones. The fanless design ensures silent operation in noise-sensitive environments. Management is handled through a web-based GUI offering VLAN, QoS and per-port PoE controls.

Suits Small Offices Needing Managed PoE

This switch fits small businesses that require managed features like VLAN segmentation, QoS prioritisation and PoE scheduling without the cost of fully managed gear. It is not suited for deployments needing more than 15 powered ports or a PoE budget exceeding 180W. Builders requiring multiple fibre uplinks or Layer 3 routing should look at other models. The desktop and wall-mount format limits use in standard 19-inch rack installations.

Fits Desktop or Wall-Mount Builds

The compact, fanless chassis sits on a desk or attaches to a wall using included hardware, freeing rack space for other equipment. The single SFP slot accepts a fibre module for long-distance links to a core switch or router. Fifteen copper ports negotiate 10/100/1000 speeds automatically, reducing cable complexity. A 4K MAC address table and 192KB buffer handle typical SOHO traffic loads.

Highlights

  • 15 PoE+ ports deliver 180 W total power for single-cable device deployment
  • 1 SFP uplink enables long-distance fibre connections alongside copper links
  • Fanless design ensures silent operation in noise-sensitive environments
  • VLAN and QoS support segment traffic and prioritise critical applications
  • Desktop or wall mounting with included hardware fits diverse installation needs

Specifications

BrandNETGEAR
Part NumberGS316EP-100NAS
FormatDesktop
Wall Mountable
StandardsIEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-T
EEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af PoE
IEEE 802.3at PoE+
Network MediaMedia Type Supported:
Twisted Pair
Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-X
Network Management TypeSmart
Uplink PortsTotal Number of Expansion Slots:
1.0
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Uplink InterfaceTotal Number of Network Ports:
15
Modular:
Yes
Port/Expansion Slot Details:
15 x Gigabit Ethernet PoE+
1 x Gigabit Ethernet Expansion Slot
Primary Ports16 x RJ45
Primary Port Speed10/100/1000Mbps
Primary Port Type16 x 10/100/1000 RJ45 Copper Ports (Auto Uplink)
MAC Address Table4K
VLAN Support64 VLANs
Jumbo Frames10KB
Buffer Memory192KB
PoE180W Budget
QoSYes
LACPYes
Layer3
LEDsPer port: Speed, Link, Activity, PoE
Per device: Power, System, PoE Max
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
180 W
Power Source:
Power Adapter
CertificationEnvironmentally Friendly:
Yes
Energy Efficiency Compliance:
Energy-related Products Directive (ErP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TemperatureOperating temperature: 32° to 104°F (0° to 40°C)
Storage temperature: 4° to 158°F (-20° to 70°C)
HumidityOperating Humidity (relative): 90% maximum relative humidity (RH), non-condensing
Storage Humidity (relative): 95% maximum relative humidity (RH), non-condensing
Package ContentsGS316EP Ethernet Switch
Power Adapter
Wall Installation Kit
Rubber Feet
Installation Guide
Shipping weight2.22 kg
Package size340 × 170 × 124 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power budget and per-port limit does the GS316EP-100NAS provide for my PoE+ cameras and access points?

The switch delivers a 180 W total PoE+ budget with up to 30 W on each of the 15 PoE+ RJ45 ports, compliant with IEEE 802.3at.

Can I keep my existing 10/100 Mbps devices on this switch without losing the gigabit ports for newer gear?

Yes, all 16 RJ45 ports auto-negotiate at 10/100/1000 Mbps, so legacy 10/100 devices and gigabit devices operate simultaneously on the same switch.

Which LEDs confirm that a port is delivering PoE power and passing data at gigabit speed?

Each port shows Speed, Link, Activity and PoE LEDs; the device panel also has Power, System and PoE Max indicators for overall status.
