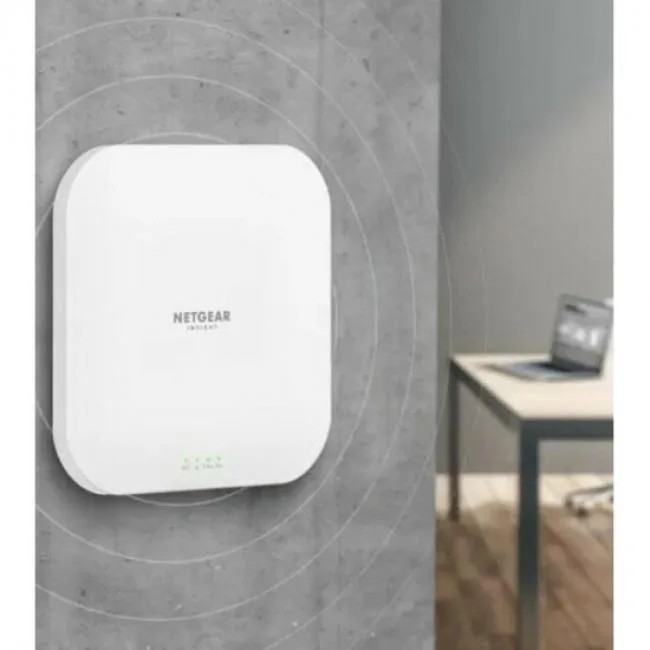

Square white indoor access point with rounded edges, four status LEDs on the front, single 2.5G Ethernet port on the underside

Netgear Inc.

Netgear Inc. WAX620-100NAS AX3600 Wi-Fi 6 access point

SKU CH-7570-A8X8R MPN WAX620-100NAS

Dual-band Wi-Fi 6 access point delivering AX3600 speeds for up to 256 clients across 3,000 sq ft, with 2.5G Ethernet and PoE+ power

  • # of Users400
  • StandardsIEEE 802.11ax
  • WiFi GenerationWi-Fi 6
  • Wireless Data RatesAX3600 / Up to 3.6Gbps
  • SecurityWiFi Protected Access (WPA/WPA2/WPA3),802.11i MAC address fi
  • Frequency Band2.4 GHz / 5 GHz

Class AX3600

  • AX1800
  • AX3000
  • AX3600
  • AX4200

Struck-through versions exist but are not stocked here.

Options WAX620

  • WAX220PA
  • WAX610
  • WAX610PA
  • WAX610Y
  • WAX615
  • WAX615PA
  • WAX620

Struck-through versions exist but are not stocked here.

  • AX3600 dual-band Wi-Fi 6 delivers 3.6 Gbit/s wireless throughput
  • 5 GBASE-T Ethernet port removes wired bottlenecks for high-speed uplinks
  • PoE+ or optional AC adapter simplifies ceiling or wall installation
  • WPA3, VLANs and rogue AP detection secure up to 256 connected clients
  • Insight cloud management included free for one year enables remote setup

Dual-band Wi-Fi 6 AX3600 access point

The Netgear WAX620-100NAS is a dual-band Wi-Fi 6 wireless access point delivering up to 3.6 Gbps aggregate throughput. It supports up to 400 users and 256 concurrent client devices with MU-MIMO technology. The unit mounts indoors on walls or suspended ceilings and covers up to 3,000 square feet.

Suited for managed networks needing 2.5 GbE uplink

This model fits businesses that want cloud-managed Wi-Fi 6 with a single 2.5 GbE port for high-speed backhaul and PoE+ power option. It includes a one-year Insight subscription for remote configuration and supports up to eight SSIDs with VLANs and captive portal. Buyers who need multiple 2.5 GbE ports or outdoor-rated hardware should look at other products.

Single 2.5 GbE RJ-45 uplink port

The access point provides one 100/1000/2.5GBASE-T Ethernet port with Auto MDI-X for wired connectivity and PoE+ power input. A separate PAV12V power adapter is required for non-PoE deployments. This single uplink determines the maximum wired backhaul speed and power delivery method for the device.

Highlights

  • AX3600 dual-band Wi-Fi 6 delivers 3.6 Gbit/s wireless throughput
  • 5 GBASE-T Ethernet port removes wired bottlenecks for high-speed uplinks
  • PoE+ or optional AC adapter simplifies ceiling or wall installation
  • WPA3, VLANs and rogue AP detection secure up to 256 connected clients
  • Insight cloud management included free for one year enables remote setup

Specifications

BrandNETGEAR
ModelWAX620-100NAS
# of Users400
StandardsIEEE 802.11ax
WiFi GenerationWi-Fi 6
Wireless Data RatesAX3600 / Up to 3.6Gbps
SecurityWiFi Protected Access (WPA/WPA2/WPA3),802.11i
MAC address filtering with access control
802.1x RADIUS support with EAP TLS, TTLS, PEAP
Neighbor AP detection
Block SSID Broadcast
VLAN Support
Guest Network/Captive Portal
Bandwidth management
Link Layer Discovery Protocol
Bandsteering
Frequency Band2.4 GHz / 5 GHz
AntennaInternal 3.1/4.3 dBi Antenna
Mounting LocationIndoor
Operating RangeUp to 3,000 sq ft
Interface1 x 100/1000/2.5GBASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X)
LEDsFour (4): Power and Cloud connection; LAN speed; 2.4GHz status; 5.0GHz status
Power SupplyPAV12V power adapter sold separately
Temperature0°C - 40°C (32°F - 104°F)
Dimensions1.35" x 8.09" x 8.09"
Weight1.72 lbs.
DisclaimerPAV12V power adapter sold separately
Shipping weight1.09 kg
Package size248 × 248 × 89 mm

Questions about this item

How do I mount the WAX620 on a suspended ceiling and which step is often missed?

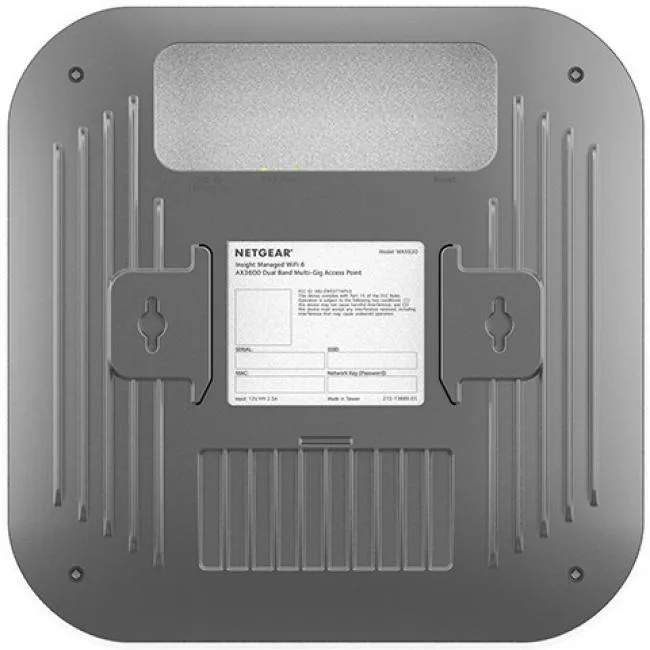

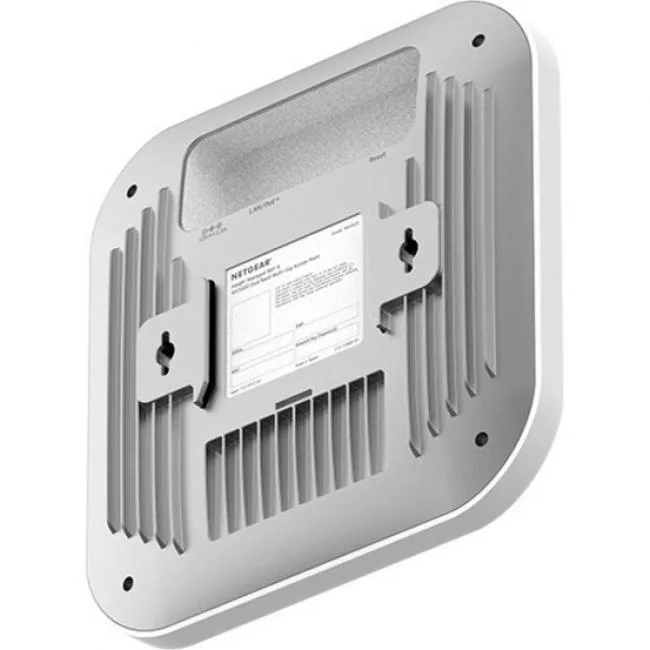

Use the included hardware to attach the mounting bracket to the ceiling grid, then snap the 1.35" x 8.09" x 8.09" unit onto the bracket; the step often missed is ordering the PAV12V power adapter separately if you are not using PoE+.

What component will need replacement first during the life of this access point?

The PAV12V power adapter is an external accessory sold separately; if it fails you replace only the adapter, not the AP itself.

What is the first throughput limit I will hit on the WAX620 under sustained heavy traffic?

The single 2.5GBASE-T Ethernet port caps wired backhaul at 2.5 Gbps, which becomes the bottleneck before the AX3600 wireless aggregate is reached.
