Brown 140mm square frame fan with black blades and 4-pin connector

Noctua

Noctua NF-A14 PWM 140mm case fan 4-pin 1500 RPM

SKU CH-EQ5E-XD0C7 MPN NF-A14 PWM

140mm PWM case fan with square frame for radiators and chassis, 300–1500 RPM, 24.6 dB(A), includes low-noise adaptor and vibration mounts

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Fan Thickness25mm

Model PWM

Struck-through versions exist but are not stocked here.

  • Premium quiet cooling at just 24.6 dB(A) with 82.52 CFM airflow
  • 4-pin PWM auto speed control across 300-1500 RPM range
  • Low-Noise Adaptor cuts max speed to 1200 RPM and 19.2 dB(A)
  • Square 140mm frame with 124.5mm spacing fits radiators and cases
  • SSO2 bearing rated beyond 150000 hours MTTF with anti-vibration mounts included

Premium 140mm quiet fan

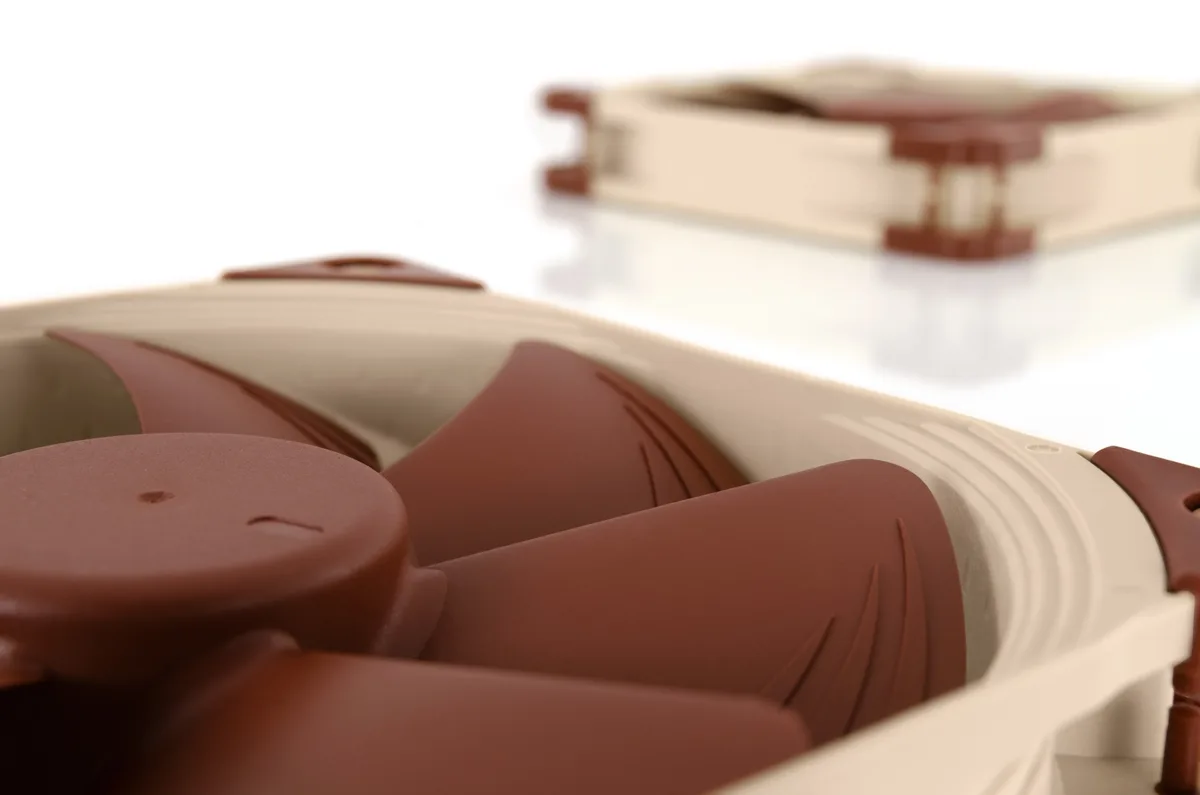

The NF-A14 PWM is a 140mm square-frame case fan designed for quiet cooling in PC cases and on water-cooling radiators. It uses a 4-pin PWM connector for automatic speed control and runs on 12V power. The SSO2 bearing and Flow Acceleration Channels support low-noise operation at high airflow.

Upgrade from standard case fans

This fan replaces typical 140mm case fans when lower noise and better radiator compatibility are needed. The square frame with 124.5mm mounting holes fits 140mm radiators and standard case mounts. The included Low-Noise Adaptor reduces the maximum speed from 1500 RPM to 1200 RPM for quieter builds. Builders who need higher static pressure at speeds above 1500 RPM should look elsewhere.

Airflow and headroom

At full speed the fan delivers 82.52 CFM at 24.6 dB(A). With the Low-Noise Adaptor it provides 67.98 CFM at 19.2 dB(A). The PWM range spans 300 to 1500 RPM, giving headroom for demanding thermal loads while staying quiet at idle. It handles case intake, exhaust and radiator duty, but is not suited for applications requiring airflow beyond 82.52 CFM.

Highlights

  • Premium quiet cooling at just 24.6 dB(A) with 82.52 CFM airflow
  • 4-pin PWM auto speed control across 300-1500 RPM range
  • Low-Noise Adaptor cuts max speed to 1200 RPM and 19.2 dB(A)
  • Square 140mm frame with 124.5mm spacing fits radiators and cases
  • SSO2 bearing rated beyond 150000 hours MTTF with anti-vibration mounts included

Specifications

BrandNoctua
SeriesNF-A14
ModelNF-A14 PWM
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size140mm
Fan Thickness25mm
Bearing TypeSSO2
RPM1500 RPM
1200 RPM ( with L.N.A adapter)
300 RPM (Mini Rotational Speed)
Air Flow82.52 CFM (standard)
67.98 CFM ( w/L.N.A. )
Noise Level24.6 dB(A) / standard
19.2 dB(A) (w/ L.N.A )
Power Connector4 Pin
ColorBrown
LEDNo
Dimensions140.00 x 140.00 x 25.00 mm

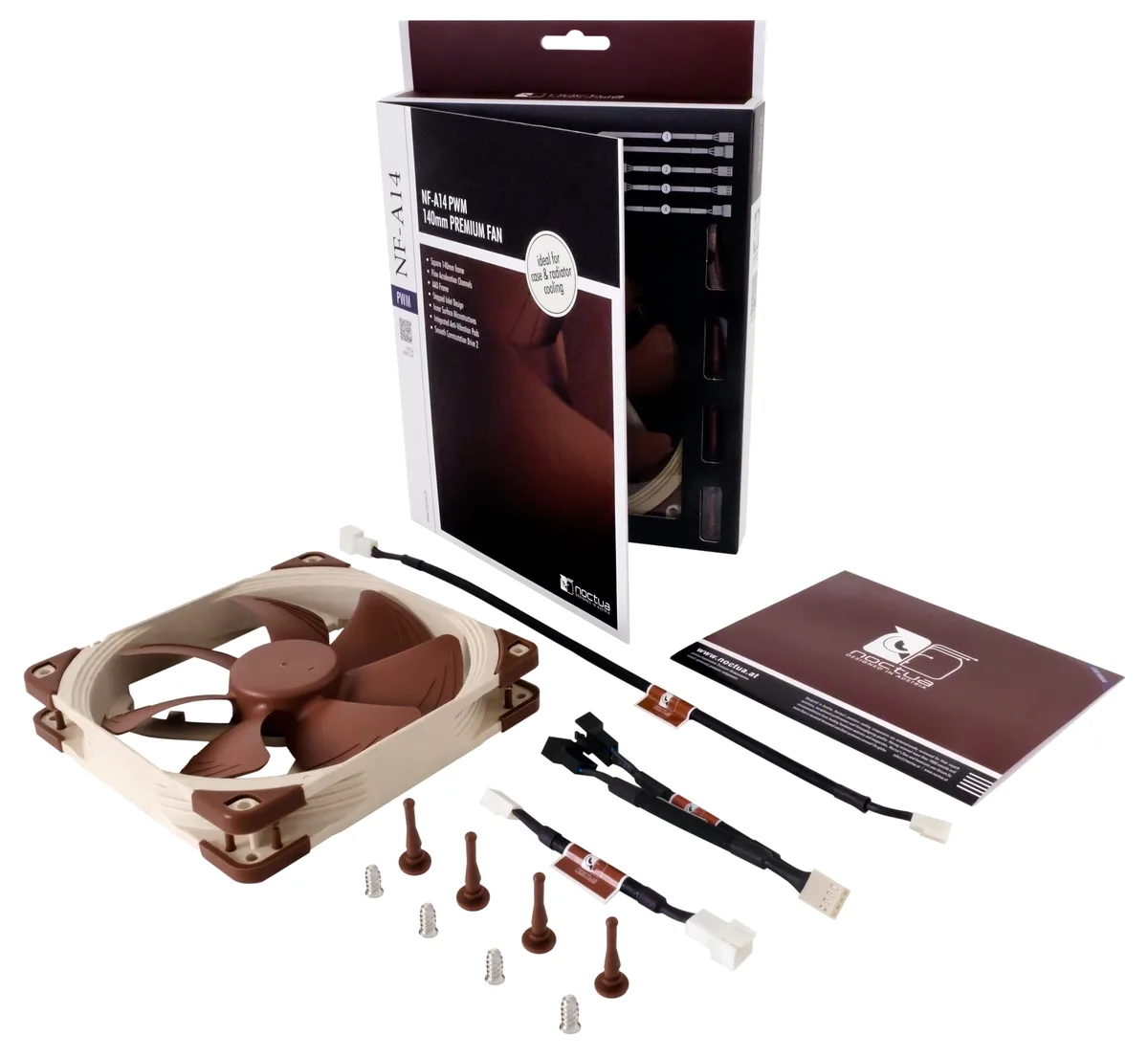

Package Contents1 x Low-Noise Adaptor (L.N.A.)
1 x 4-Pin Y-Cable
1 x 30cm Extension Cable
4 x Vibration-Compensators
4 x Fan Screws
Shipping weight0.37 kg
Package size248 × 173 × 34 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the mounting hole dimensions for this 140 mm fan?

The square frame uses 140 mm mounting holes with 124.5 mm centre-to-centre spacing, matching standard 140 mm case and radiator mounts.

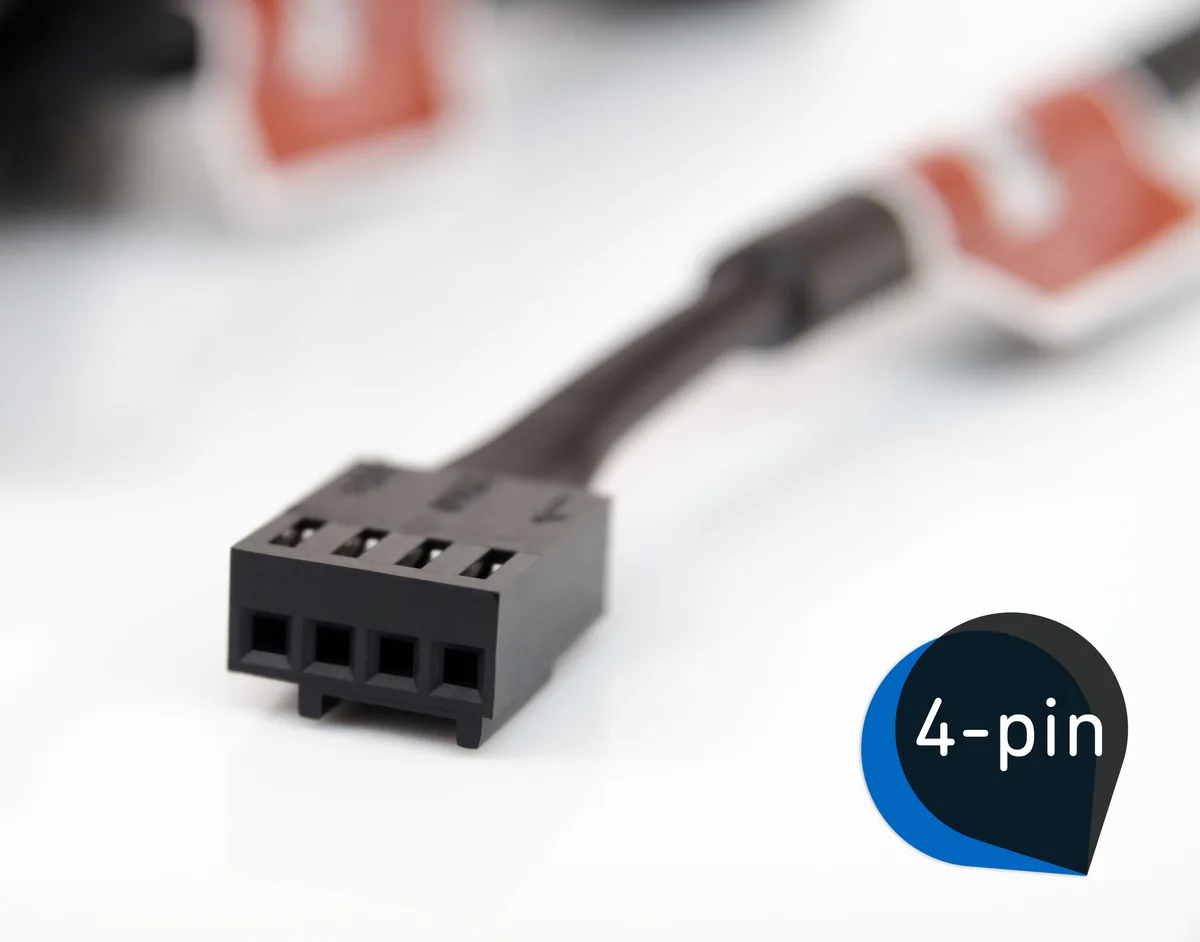

How do I connect the 4-pin PWM connector and what is the common mistake?

Plug the 4-pin PWM connector into a motherboard PWM header; the common mistake is leaving the Low-Noise Adaptor in-line when full 1500 RPM performance is needed.

What is the rated lifespan and does the bearing need lubrication?

The SSO2 bearing is rated for over 150000 hours MTTF and is self-lubricating, so no maintenance or re-lubrication is required.
