Brown 80mm square case fan with 25mm depth and nine blades visible from front

Noctua

Noctua NF-A8 PWM 80mm 25mm Case Fan 4-Pin 2200 RPM 17.7 dB Brown

SKU CH-N699-C7YM2 MPN NF-A8 PWM

Premium quiet 80mm case fan with 4-pin PWM control, 2200 RPM maximum, 17.7 dB(A) noise and included low-noise adaptor

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCPU Cooler, Water-Cooling Radiator and Case
  • Fan Size80mm
  • Fan Thickness25mm

Model PWM

  • PWM
  • ULN
  • 5V PWM
  • 5V

Struck-through versions exist but are not stocked here.

  • Premium quiet cooling at 17.7 dB(A) maximum noise
  • Broad 450–2200 RPM speed range with 4-pin PWM control
  • Low-Noise Adaptor reduces speed to 1750 RPM for 13.8 dB(A) operation
  • SSO2 bearing rated beyond 150000 hours MTTF for long life
  • Includes anti-vibration mounts, Y-cable and 30cm extension for flexible install

Compact 80mm PWM fan for small builds

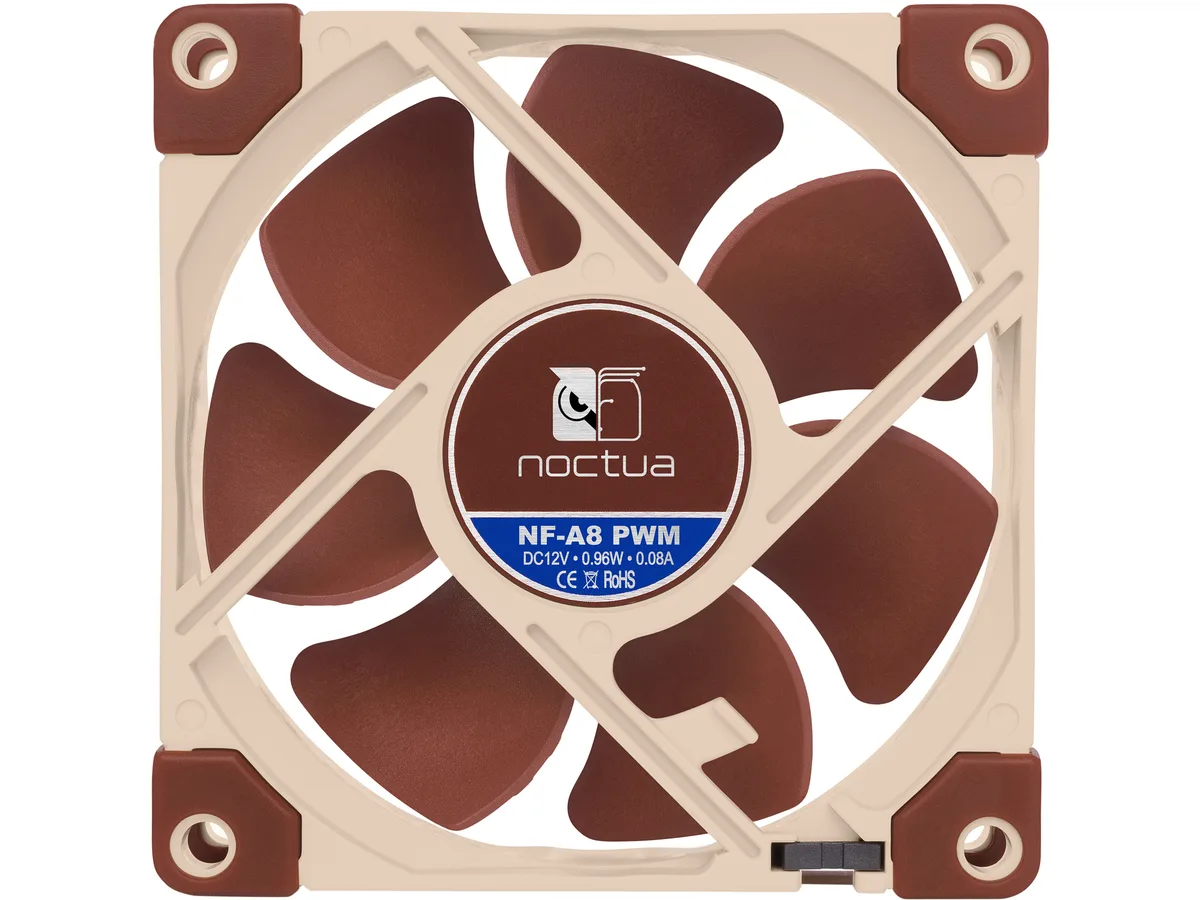

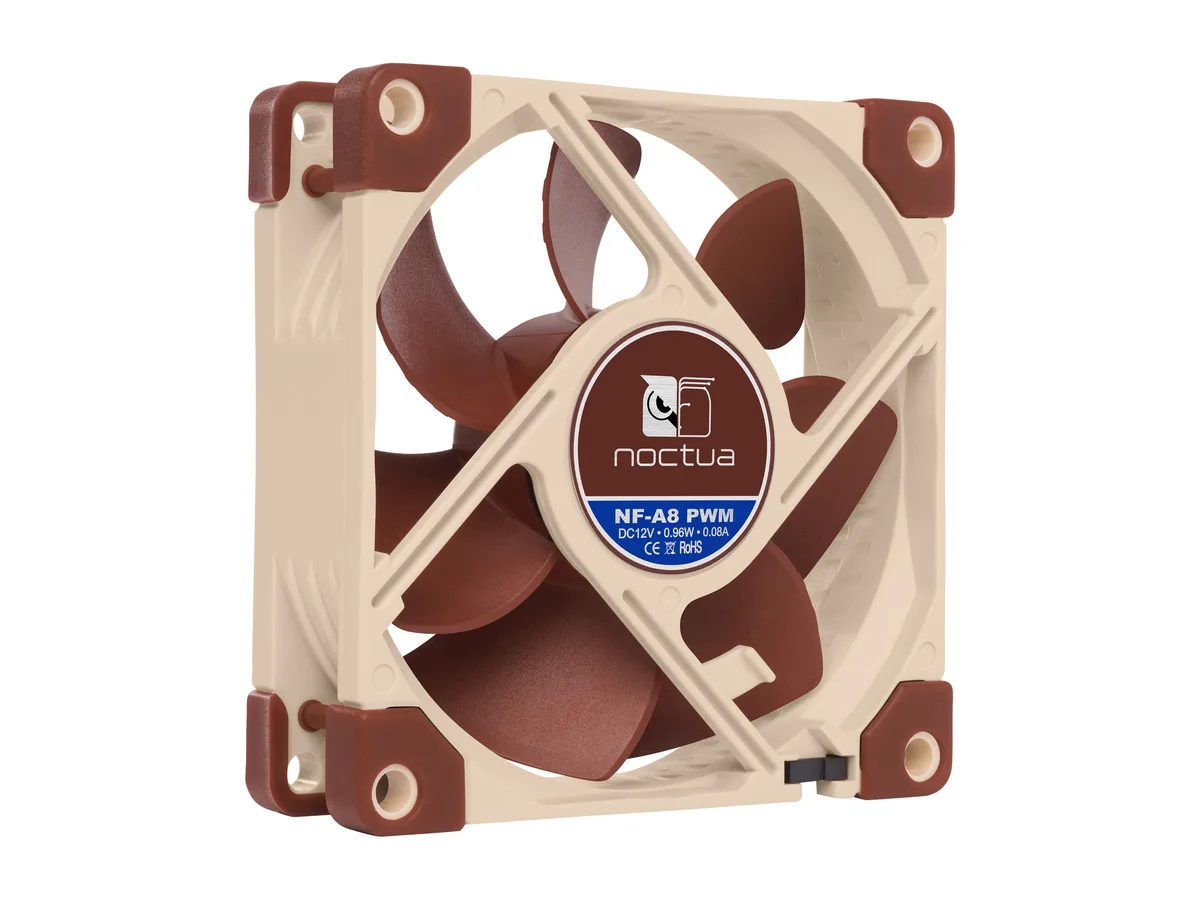

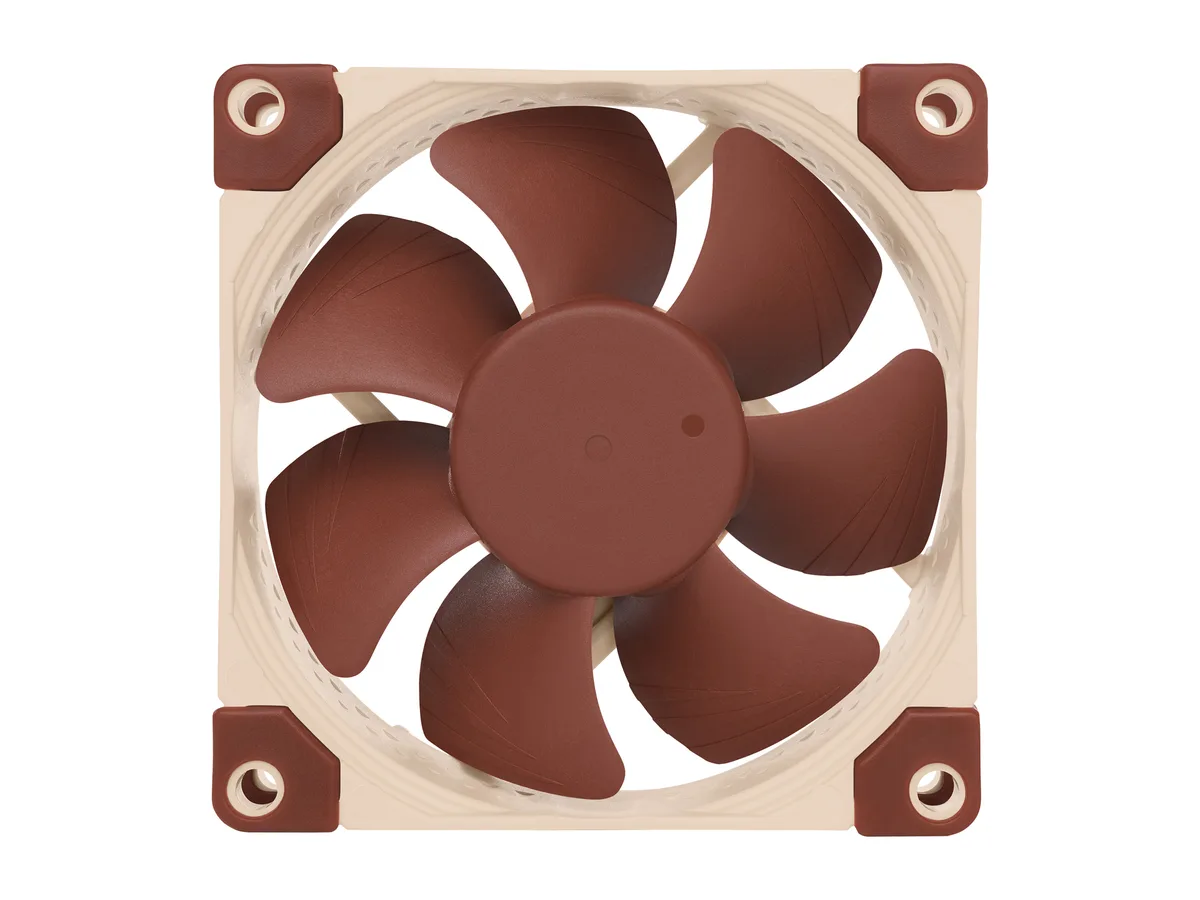

The Noctua NF-A8 PWM is a premium 80mm by 25mm case fan with a 4-pin PWM connector. It uses an SSO2 bearing and runs at up to 2200 RPM while producing 17.7 dB(A). The package includes a low-noise adaptor, Y-cable, extension cable, vibration compensators and screws for CPU coolers, radiators or chassis mounting.

Ideal for compact cases and noise-sensitive users

This 80mm format suits HTPC, ITX and small form factor builds where larger fans cannot fit. It also serves as a quiet replacement for NAS units or similar devices. Buyers who need higher airflow for larger enclosures or radiators requiring bigger fan frames should look elsewhere.

80mm frame with 25mm thickness decides fit

The physical dimensions of 80.00 by 80.00 by 25.00 mm determine whether this fan matches your mounting points. Verify the available clearance in your case, cooler or radiator before purchase.

Highlights

  • Premium quiet cooling at 17.7 dB(A) maximum noise
  • Broad 450–2200 RPM speed range with 4-pin PWM control
  • Low-Noise Adaptor reduces speed to 1750 RPM for 13.8 dB(A) operation
  • SSO2 bearing rated beyond 150000 hours MTTF for long life
  • Includes anti-vibration mounts, Y-cable and 30cm extension for flexible install

Specifications

BrandNoctua
ModelNF-A8 PWM
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCPU Cooler, Water-Cooling Radiator and Case
Fan Size80mm
Fan Thickness25mm
Bearing TypeSSO2 ( Self-stabilising oil-presure bearing )
RPM2200 RPM ( standard ), 1750 RPM ( w/ L.N.A ), 450RPM (Mini Rotation Speed)
Air Flow32.67 CFM (standard), 25.84 CFM (w/L.N.A.)
Noise Level17.7 dB(A)/standard, 13.8 dB(A)(w/ L.N.A )
Power Connector4 Pin
ColorBrown
LEDNo
FeaturesSucceeding the award-winning NF-R8
Noctua's NF-R8 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 80mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A8 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.
NF-A8 Flow Acceleration Channels

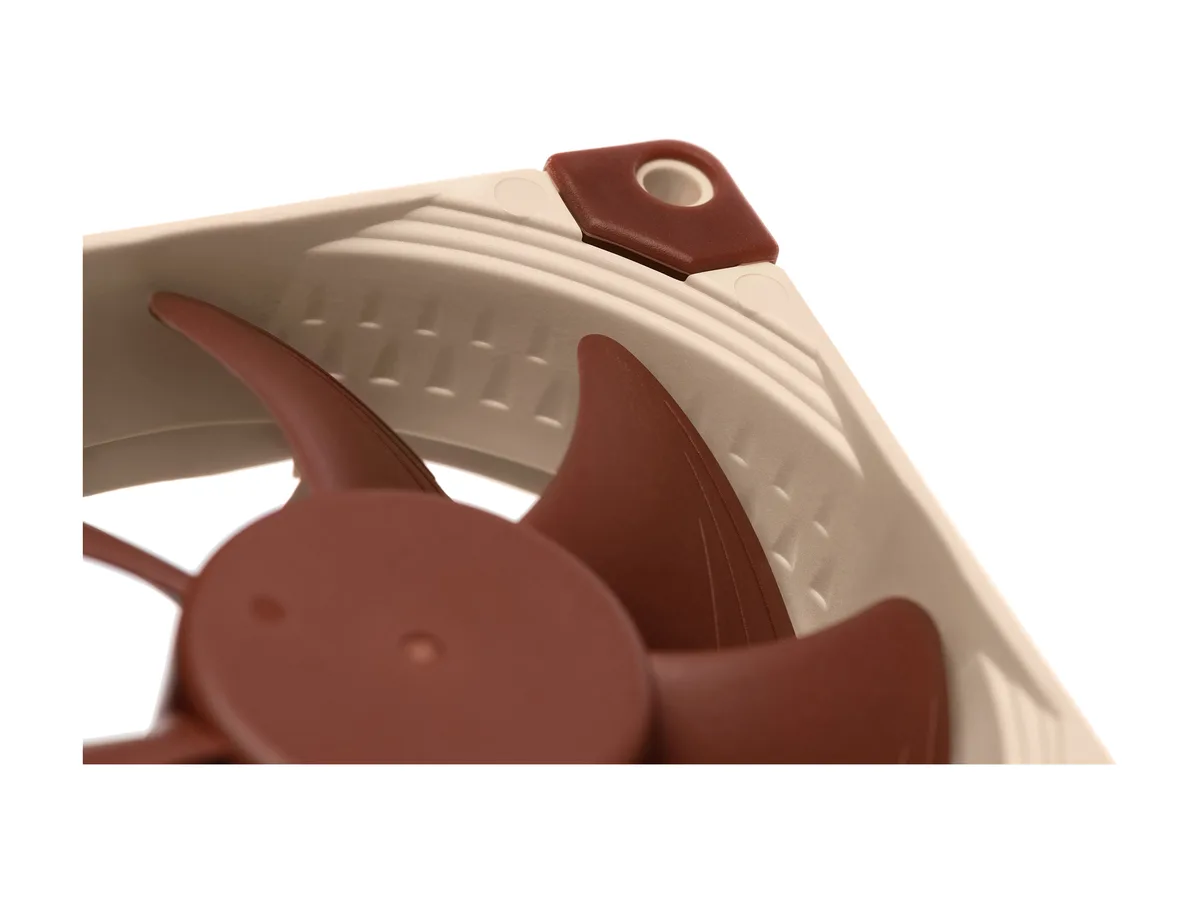

The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex
Dimensions80.00 x 80.00 x 25.00 mm

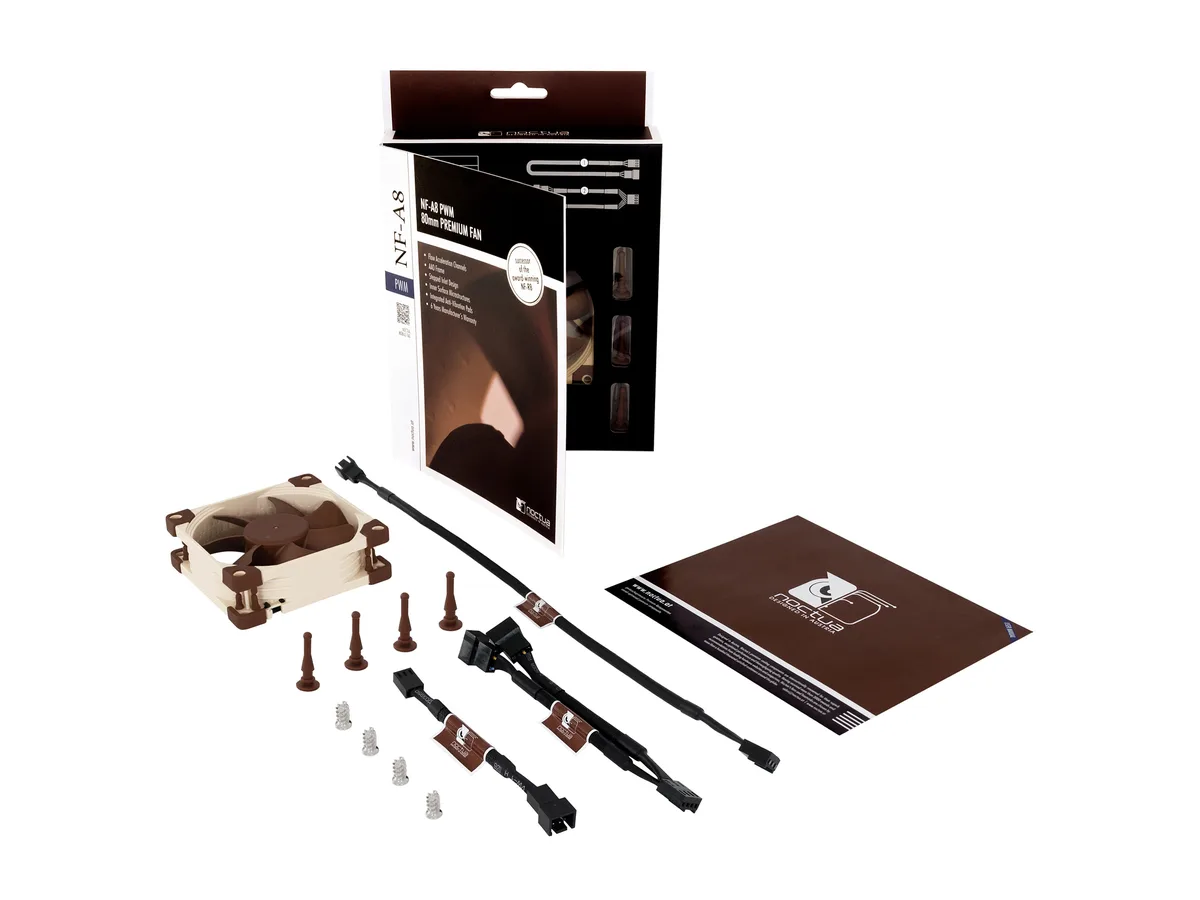

Package ContentsLow-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Shipping weight0.23 kg
Package size210 × 152 × 33 mm

Questions about this item

What motherboard header do I need to run the 4-pin PWM control on the NF-A8?

Connect the 4-pin plug to a standard 4-pin PWM fan header on the motherboard for automatic speed control between 450 and 2200 RPM.

Will the included Low-Noise Adaptor still let the fan spin if I keep my older 3-pin header?

The L.N.A. plugs into a 4-pin PWM header and caps the maximum at 1750 RPM; a 3-pin header will not provide PWM control for this fan.

How can I confirm the NF-A8 is running within its rated range after installation?

In BIOS or monitoring software the reported speed should sit between 450 and 2200 RPM (1750 RPM with the L.N.A. fitted) and noise should stay near 17.7 dB(A) at full speed.
