Grey 140 mm square frame case fan with black blades and 3-pin connector

Noctua

Noctua NF-P14s redux-900 140mm case fan 900 RPM

SKU CH-WRQW-RZYRR MPN NF-P14s redux-900

A 140 mm square-frame case fan running at 900 RPM delivers 83,7 m³/h airflow at 13,2 dB(A)

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeFan
  • Fan Size140x140x25 mm
  • Fan Thickness25mm
  • Bearing TypeSSO
  • Virtually inaudible operation at 13.2 dB(A) and 900 RPM
  • 140 mm square frame fits radiators and chassis vents
  • 150000 hours MTTF rating with SSO bearing
  • Streamlined redux edition delivers proven Noctua quality
  • Wide range of optional accessories for flexible installation

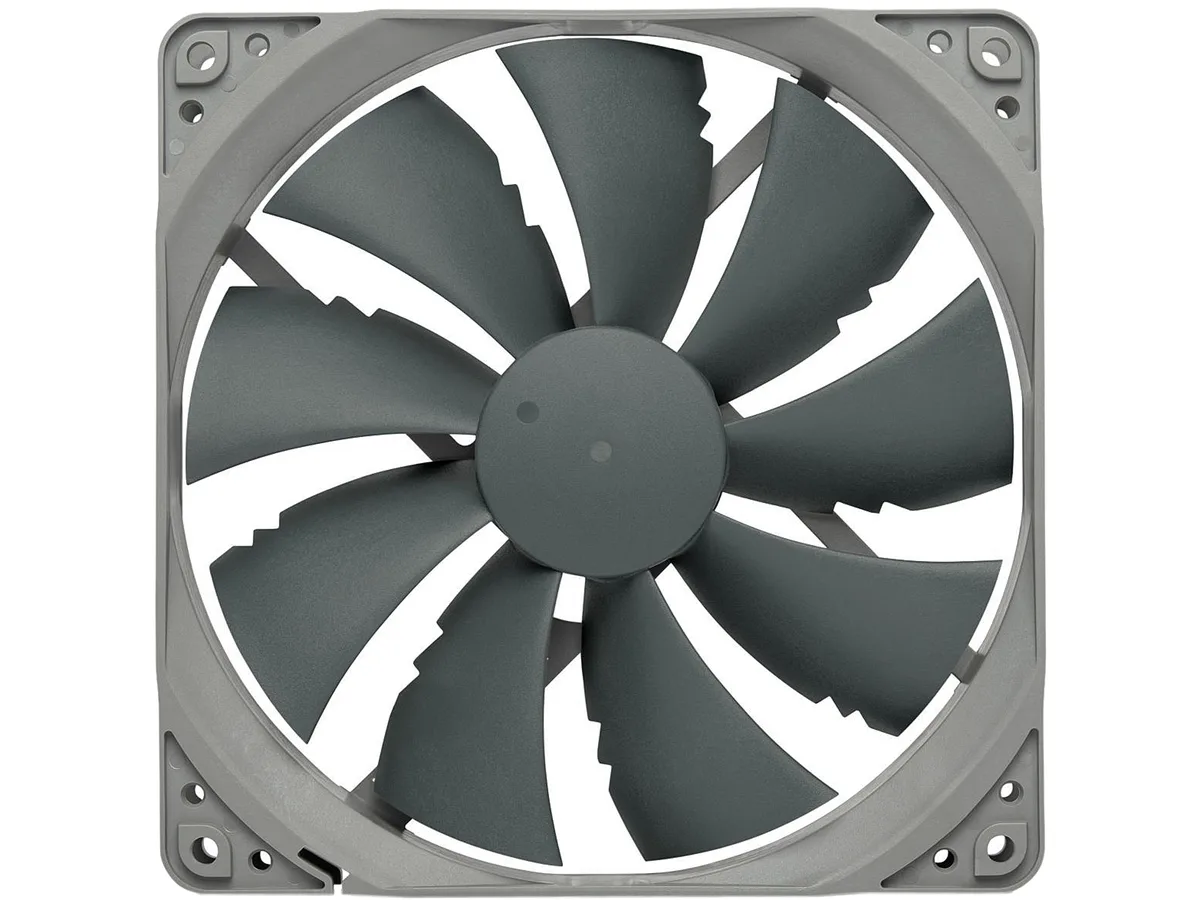

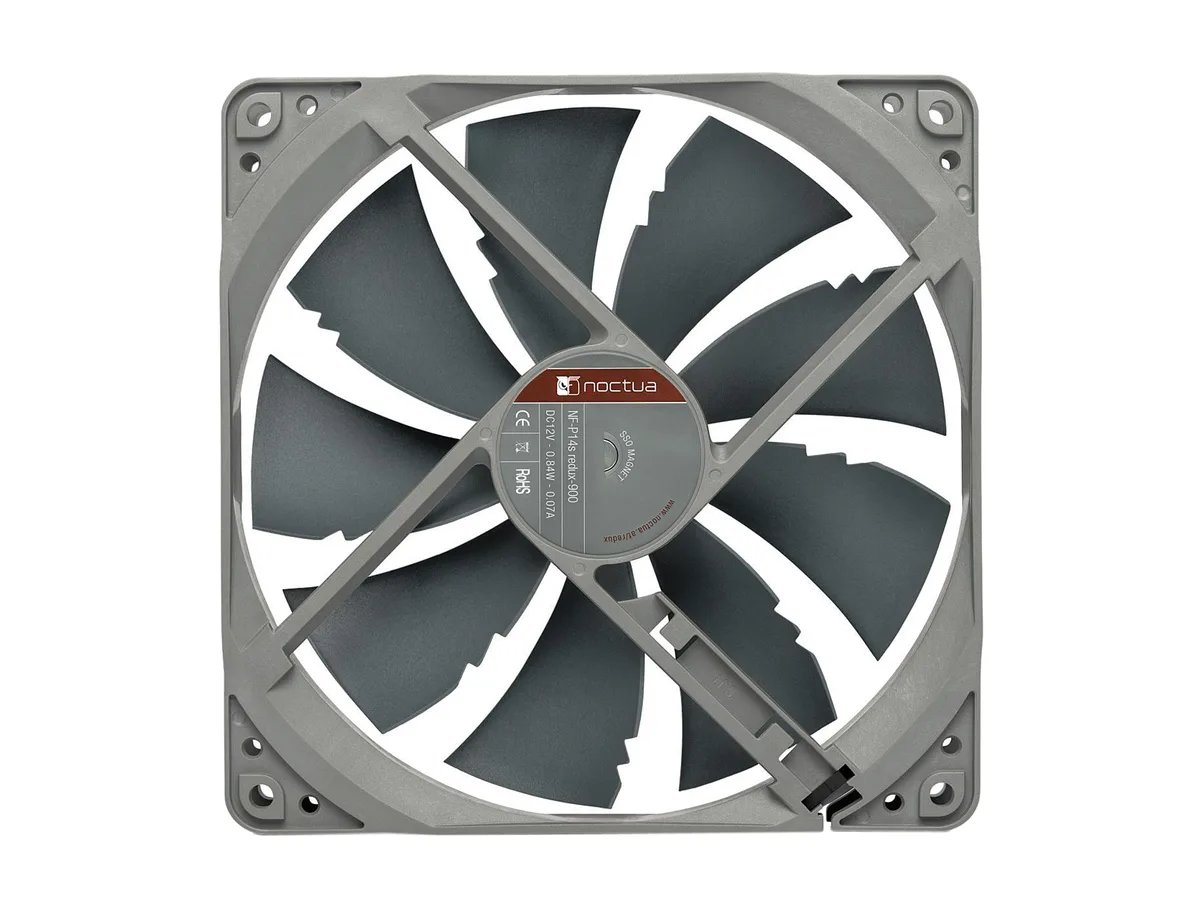

140 mm square-frame case fan

The Noctua NF-P14s redux-900 is a 140 mm square-frame case fan built for quiet system cooling. Its SSO bearing and 900 RPM top speed keep noise to 13.2 dB(A) while moving 83,7 m³/h of air. The 12 V 3-pin connector fits standard motherboard headers. Rated MTBF exceeds 150,000 hours.

Silent builds and radiator mounts

Suits builders who want near-silent chassis or radiator airflow with a square 140 mm frame. Not for systems that need higher static pressure at faster speeds or PWM speed control via a 4-pin header. Buyers who need variable fan curves from the motherboard should look at a PWM model.

900 RPM fixed maximum speed

The single specification that decides fit is the 900 RPM ceiling. It defines the airflow ceiling and the acoustic profile. If the thermal load demands more air than this speed delivers, a faster fan is required.

Highlights

  • Virtually inaudible operation at 13.2 dB(A) and 900 RPM
  • 140 mm square frame fits radiators and chassis vents
  • 150000 hours MTTF rating with SSO bearing
  • Streamlined redux edition delivers proven Noctua quality
  • Wide range of optional accessories for flexible installation

Specifications

BrandNoctua
ModelNF-P14s redux-900
Fan Counts1 Fan
Fan ControllerNo Controller
TypeFan
Fan Size140x140x25 mm
Fan Thickness25mm
Bearing TypeSSO
RPM900 RPM
Air Flow83,7 m³/h
Noise Level13,2 dB(A)
Power Connector3 Pin
FeaturesMax. Input Power: 0,85 W
Max. Input Current: 0,07 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
Fan
4 Fan Screws
Shipping weight0.30 kg
Package size199 × 192 × 36 mm

Questions about this item

Will the 140 mm square frame and 25 mm depth fit my older 140 mm mounting holes?

Yes, the 140x140x25 mm square frame matches standard 140 mm case and radiator mounts, so existing screw holes line up without adapters.

How can I confirm the fan is running at its rated 900 RPM and 13.2 dB(A) after installation?

Connect the 3-pin header to a motherboard fan connector, then check the RPM reading in BIOS or monitoring software; it should report close to 900 RPM at full voltage.

Does the box include only the fan and four screws, or are extras like anti-vibration mounts or a 4-pin adaptor provided?

The package contains the fan and four mounting screws only; anti-vibration mounts, S-ATA adaptors, Y-splitters and extension cables are sold separately.
