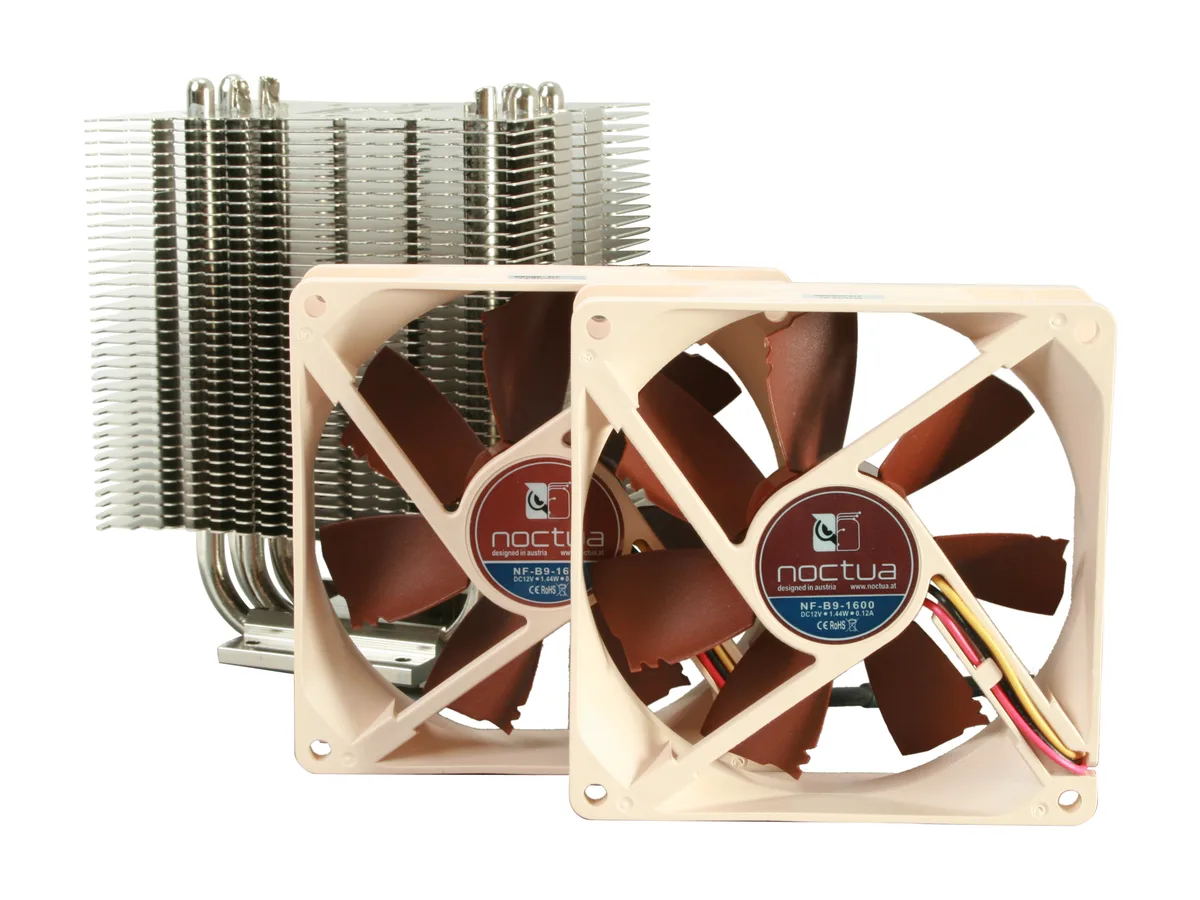

Compact tower cooler with nickel-plated copper base, aluminium fins, and two beige 92mm fans

Noctua

Noctua NH-U9B SE2 92mm CPU cooler

SKU CH-AGHK-VS2RQ MPN NH-U9B SE2

Compact 92 mm air cooler with copper base, heat-pipes and dual NF-B9 fans for quiet HTPC or small-case builds

  • TypeFan & Heatsinks
  • Fan Size92mm
  • Bearing TypeSSO
  • RPM1000 - 1600 RPM
  • Air Flow24.2 - 37.87 CFM
  • Noise Level7.9 dBA - 17.6 dBA
  • Quiet operation at just 7.9 dBA minimum noise
  • 92 mm SSO-bearing fan spins 1000–1600 RPM
  • Copper base with heat-pipes and aluminium fins
  • SecuFirm2 mounting supports LGA1156, LGA1155 and LGA1366
  • Includes two NF-B9 fans plus NT-H1 thermal compound

Compact 92mm cooler for small builds

The NH-U9B SE2 is a low-profile air cooler designed for compact cases and quiet HTPC systems. It uses a 92mm NF-B9 fan with SSO bearing and SecuFirm2 mounting for LGA1156, LGA1155 and LGA1366 sockets. The package includes NT-H1 thermal compound and a second fan for dual-fan operation.

Height clearance of 125mm with fan fitted

Total height reaches 125mm when the fan is installed, so the cooler fits only in cases that allow at least this much CPU cooler clearance. Width is 95mm and depth is 120mm, making it suitable for tight layouts where taller towers cannot be used.

Noise ranges from 7.9 to 17.6 dBA across 1000-1600

Airflow spans 24.2 to 37.87 CFM while the SSO-bearing fan stays very quiet at low speed. Copper base and heat-pipes with aluminium fins and nickel plating transfer heat efficiently. Weight is 550g with one fan or 640g with two. Not compatible with Xeon 5500 platform due to custom backplate.

Highlights

  • Quiet operation at just 7.9 dBA minimum noise
  • 92 mm SSO-bearing fan spins 1000–1600 RPM
  • Copper base with heat-pipes and aluminium fins
  • SecuFirm2 mounting supports LGA1156, LGA1155 and LGA1366
  • Includes two NF-B9 fans plus NT-H1 thermal compound

Specifications

BrandNoctua
ModelNH-U9B SE2
TypeFan & Heatsinks
Fan Size92mm
Bearing TypeSSO
RPM1000 - 1600 RPM
Air Flow24.2 - 37.87 CFM
Noise Level7.9 dBA - 17.6 dBA
Heatsink MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan Dimensions92 x 92 x 25mm
Heatsink Dimensions125 x 95 x 120 mm (with fan)
Weightwithout fan: 460 g
with 1 fan: 550 g
with 2 fan: 640 g
Shipping weight1.38 kg
Package size175 × 163 × 150 mm

Questions about this item

How does the 1600 RPM maximum speed translate to real-world airflow?

At full speed the NF-B9 fan moves up to 37.87 CFM, while at the 1000 RPM minimum it delivers 24.2 CFM.

What does the SSO bearing specification mean for fan longevity and noise?

The SSO bearing runs at 7.9 dBA at low speed and 17.6 dBA at maximum, providing quiet operation across the 1000–1600 RPM range.

Will the 125 mm tall heatsink with fan fit in my compact case?

The assembled cooler measures 125 mm high, 95 mm wide and 120 mm deep, and weighs 550 g with the single fan installed.
