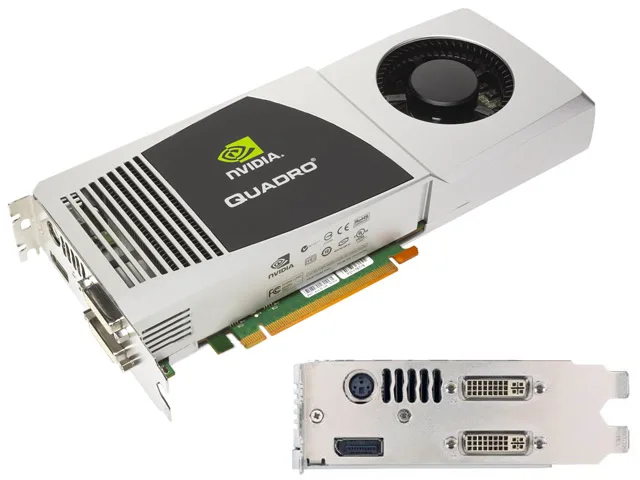

Full-length graphics card with silver shroud, dual-slot cooler, and rear bracket showing DisplayPort, two DVI ports

NVIDIA

NVIDIA Quadro FX5800 4GB GDDR3 graphics card

SKU CH-RSD0-6T1VG

Professional graphics card with 4GB GDDR3 memory on a 512-bit bus, PCI Express 2.0 x16 interface, dual 400MHz RAMDAC, and DisplayPort plus dual-link DVI outputs supporting 2560x1600 digital resolution

  • Memory TypeGDDR3
  • 4GB GDDR3 frame buffer supports large models and textures
  • 512-bit memory interface delivers high bandwidth for professional workloads
  • PCI Express 2.0 x16 provides fast host communication
  • Dual 400 MHz RAMDACs drive high-resolution analog displays up to 2048x1536 at 85 Hz
  • DisplayPort plus two Dual-Link DVI outputs enable multi-monitor digital setups up to 2560x1600

Professional 4GB GDDR3 workstation GPU

The NVIDIA Quadro FX5800 provides 4GB of GDDR3 memory on a 512-bit interface for professional visualisation workloads. It connects through a PCI Express 2.0 x16 slot and is aimed at engineers and designers who need certified driver stability. Dual 400MHz RAMDACs support both digital and analog displays. The card includes one DisplayPort, two Dual Link DVI ports and a stereo connector for specialised workflows.

Thermals noise and typical power draw

The supplier description notes that each unit is tested for key functions and sold as ready for resale in superb working condition. No thermal design power, fan specification or acoustic figure is provided in the source data. Buyers should verify case airflow and power supply capacity against the card’s original specifications before installation. The card occupies a standard dual-slot form factor compatible with typical workstation chassis.

Upgrade path from older Quadro cards

This model replaces earlier Quadro boards that used narrower memory buses or smaller frame buffers. The jump is worth it when a workflow demands 4GB of GDDR3 and 2560x1600 digital resolution or 2048x1536 analog at 85Hz. Stereo output also enables compatibility with professional 3D displays that consumer cards lack. Ensure the motherboard provides a PCI Express 2.0 x16 slot and adequate auxiliary power connectors.

Highlights

  • 4GB GDDR3 frame buffer supports large models and textures
  • 512-bit memory interface delivers high bandwidth for professional workloads
  • PCI Express 2.0 x16 provides fast host communication
  • Dual 400 MHz RAMDACs drive high-resolution analog displays up to 2048x1536 at 85 Hz
  • DisplayPort plus two Dual-Link DVI outputs enable multi-monitor digital setups up to 2560x1600

Specifications

Memory TypeGDDR3

Questions about this item

How do I install the Quadro FX5800 into a PCI Express 2.0 x16 slot, and what step is often missed?

Align the card with the full-length PCI Express 2.0 x16 slot, press firmly until the retention bracket clicks, then secure the bracket screw. The step often missed is connecting the card's auxiliary power connector from the PSU before closing the case.

What maintenance or replacement will the Quadro FX5800 need over time?

The main maintenance is cleaning dust from the heatsink and fan to maintain airflow. Replacement may eventually be needed for the thermal paste between the GPU and cooler, or the fan itself if bearing noise develops.

What limit appears first on the Quadro FX5800 during sustained heavy workloads?

Under sustained load the GPU temperature limit is typically reached first, causing the driver to throttle clock speeds. This is driven by the 4GB GDDR3 memory and 512-bit bus generating continuous heat.
