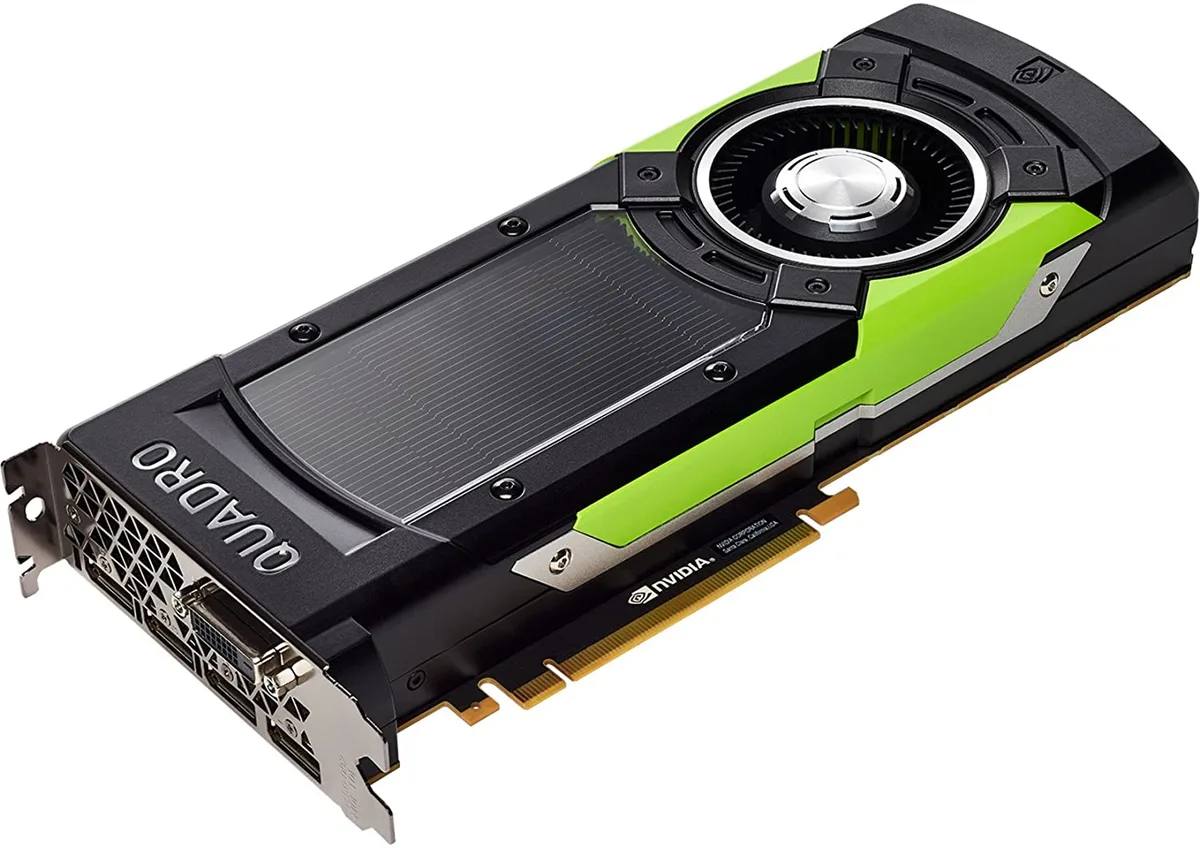

Full-height dual-slot graphics card with four DisplayPorts and one DVI port

NVIDIA

NVIDIA Quadro GP100 16 GB HBM2 graphics card

SKU CH-DB9S-MTE65 MPN GP100

Professional GPU with 3584 CUDA cores and 16 GB HBM2 on a 4096-bit bus for compute and visualisation

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGP100
  • CUDA Cores3584
  • Memory Size16GB
  • Memory Interface4096
  • 3584 CUDA cores accelerate complex simulations and rendering
  • 16 GB HBM2 memory with 4096-bit interface delivers ultra-high bandwidth for large datasets
  • Four DisplayPort and one DVI output drive up to four 7680 x 4320 displays
  • NVLink connector enables two-board scaling with combined HBM2 memory
  • Pascal architecture provides 3580 FP32 and 1792 FP64 performance for compute-intensive workflows

Professional visual computing

The NVIDIA Quadro GP100 delivers 3584 CUDA cores and 16 GB of HBM2 memory across a 4096-bit interface for demanding professional workloads. It targets engineers, researchers and content creators who need high double-precision throughput and large frame buffers for simulation, rendering and AI development. The PCI Express 3.0 x16 interface fits standard workstation platforms.

Full-height workstation build

A full-height bracket carries four DisplayPort outputs and one DVI connector supporting up to 7680 x 4320 resolution across four displays. On-board NVLink, Quadro Sync II and Frame Lock connectors enable multi-GPU scaling and synchronized multi-display installations for VR caves or broadcast walls. The card draws power through the slot and auxiliary connectors as required by the platform.

Platform compatibility check

Verify that the workstation chassis accommodates a full-height, dual-slot card and that the power supply provides the required auxiliary connectors. Confirm the motherboard exposes a PCI Express 3.0 x16 slot with sufficient clearance for the bracket and NVLink bridge if a second GP100 is planned. Ensure the OS and drivers support DirectX 12 and OpenGL 4.5 for full feature access.

Highlights

  • 3584 CUDA cores accelerate complex simulations and rendering
  • 16 GB HBM2 memory with 4096-bit interface delivers ultra-high bandwidth for large datasets
  • Four DisplayPort and one DVI output drive up to four 7680 x 4320 displays
  • NVLink connector enables two-board scaling with combined HBM2 memory
  • Pascal architecture provides 3580 FP32 and 1792 FP64 performance for compute-intensive workflows

Specifications

BrandNVIDIA
SeriesQUADRO
ModelGP100
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGP100
CUDA Cores3584
Memory Size16GB
Memory Interface4096
Memory TypeHBM2
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
DisplayPort4 x DisplayPort
DVI1 x DVI
Other PortsNVLink, NVIDIA Quadro Sync II, Frame Lock Connector
Max Resolution7680 x 4320
RoHS CompliantYes
3D VISION Game ReadyYes
SLI Support2-Way SLI
Virtual Reality ReadyYes
CoolerAir Cooler
Operating Systems SupportedMicrosoft Windows 10 (64-bit and 32-bit) Microsoft Windows 8.1 and 8 (64-bit and 32-bit) Microsoft Windows 7 (64-bit and 32-bit) Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit) ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power235
System RequirementsMaximum Power Consumption: 235W Minimum System Hardware Requirements: Intel Core i5, i7, Xeon or later AMD Phenom or Opteron-class or later PCIe x16 Gen 3 (preferred) expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) DisplayPort (preferred) or DVI compatible displays HDMI display(s) with purchase of optional DP to HDMI adapter(s)
Power Connector8-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
FeaturesFull-Scene Antialiasing (FSAA) 16K Texture and Render Processing Pascal Memory Compression NVIDIA Quadro MOSAIC Technology NVIDIA NVIEW Advanced Desktop Software NVIDIA Quadro Sync II Frame Lock Connector Latch OpenGL Quad Buffered Stereo Support Ultra High Resolution Desktop Support Professional 3D Stereo Synchronization NVIDIA CUDA Parallel Computing Platform Unified Memory NVIDIA GPUDirect for Video NVIDIA Enterprise-Management Tools NVIDIA NVLink High Speed Interface NVIDIA SLI HB Technology
Form FactorPlug-in CardFull-height
Max GPU Length10.5"
Slot Width2 Slots
Package ContentsCard Only

Questions about this item

Does the card fit a standard full-height PCIe 3.0 x16 slot?

Yes, it is a full-height card with a PCI Express 3.0 x16 interface.

Can I drive four 8K displays at 7680 x 4320 simultaneously?

It supports up to four monitors and a maximum resolution of 7680 x 4320 across the four DisplayPort and one DVI connectors.

Is an NVLink bridge required to use the 16 GB HBM2 memory across two cards?

Two GP100 boards can be connected with NVLink technology to scale performance and combine the HBM2 memory.
