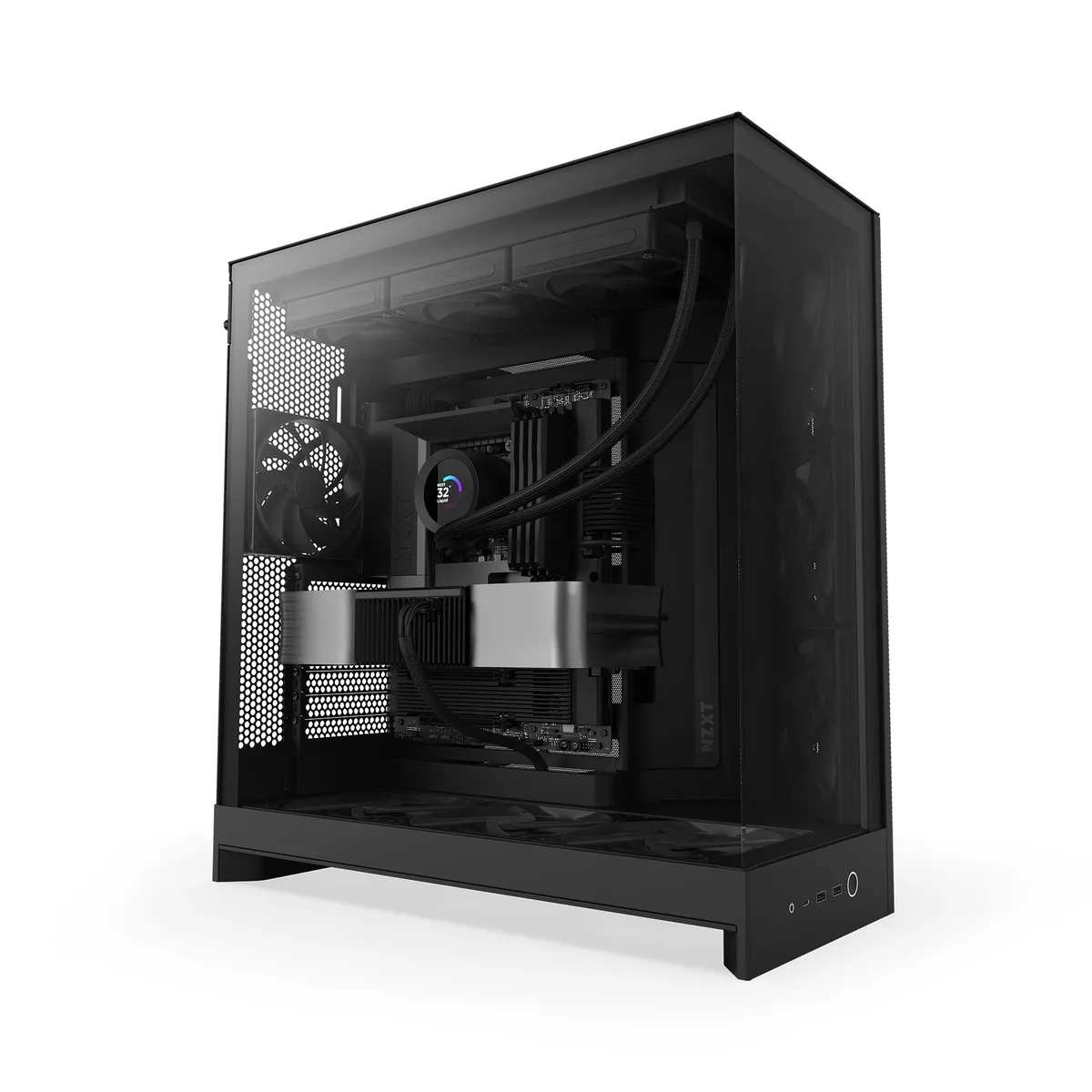

Black dual-chamber ATX mid-tower with wraparound tinted tempered glass panels and fine mesh vents

NZXT

NZXT CM-H92FB-01 H9 Flow PC case

SKU CH-QJGE-4HAGR MPN CM-H92FB-01

A dual-chamber ATX mid-tower with wraparound tinted tempered glass, ultra-fine mesh panels, three pre-installed 140 mm side fans and one 120 mm rear fan.

  • ColorBlack
  • Case Materialtinted tempered glass
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Side Panel2 x Sides Tempered Glass Panel
  • Internal 3.5" Drive Bays2
  • Internal 2.5" Drive Bays6

Model H9 Flow (2025)

  • Dual-chamber layout separates components for cleaner builds
  • Wraparound tinted tempered glass showcases the interior
  • High-airflow mesh on top, front-right and side panels filters dust
  • Four pre-installed fans include three 140 mm side units and one 120 mm rear fan
  • Supports graphics cards up to 459 mm and CPU coolers up to 165 mm

Dual-chamber ATX mid-tower

The NZXT H9 Flow CM-H92FB-01 is a black mid-tower case built around a dual-chamber layout that separates the motherboard tray from the power-supply and drive zone. Two wraparound tinted tempered-glass panels expose the interior while keeping cables hidden in the rear compartment. It accepts ATX, E-ATX, Micro-ATX and Mini-ITX boards and provides seven expansion slots for full-length add-in cards.

Sustained-load airflow behaviour

Ultra-fine mesh covers the top, front-right and side panels to feed the three pre-installed 140 mm side fans and single 120 mm rear fan without restrictive grilles. The mesh filters dust while allowing high-volume intake that keeps component temperatures stable during extended gaming or rendering sessions. Additional mounts support up to three 120 mm or 140 mm fans at the top and bottom for custom loop or air-cooling upgrades.

GPU and cooler clearance limits

Maximum graphics-card length reaches 459 mm when slim fans under 56 mm thick occupy the front-right, dropping to 410 mm if a 420 mm radiator with 56 mm fans is fitted there. CPU cooler height is capped at 165 mm, and the power-supply bay accommodates units up to 200 mm deep. Two 3.5-inch and six 2.5-inch drive bays handle storage without intruding on the main airflow path.

Highlights

  • Dual-chamber layout separates components for cleaner builds
  • Wraparound tinted tempered glass showcases the interior
  • High-airflow mesh on top, front-right and side panels filters dust
  • Four pre-installed fans include three 140 mm side units and one 120 mm rear fan
  • Supports graphics cards up to 459 mm and CPU coolers up to 165 mm

Specifications

BrandNZXT
ModelCM-H92FB-01
ColorBlack
Case Materialtinted tempered glass
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side Panel2 x Sides Tempered Glass Panel
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays6
Expansion Slots7
Fan OptionsBottom - 3 x 120mm / Bottom - 3 x 140mm / Rear - 1 x 120mm / Top - 3 x 120mm / Top - 3 x 140mm
Pre-installed FansRear - 1 x 120mm / Side - 3 x 140mm
Max GPU Length"Up to 459 mm (with <56 mm thickness fans installed at the front-right)
Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)"
Max CPU Cooler Height165 mm
Max PSU Length200 mm
Dimensions19.9" x 12.4" x 18.9"
Shipping weight15.42 kg
Package size584 × 584 × 406 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much noise and heat do the pre-installed F140Q and F120Q fans produce when the case runs all day?

The three 140 mm side fans and one 120 mm rear fan are factory-fitted and angled for steady airflow, keeping thermals low without aggressive speeds during extended use.

What motherboard and power supply must I already own to fit this dual-chamber ATX mid-tower?

Any ATX, E-ATX, Micro ATX or Mini ITX board fits, and the PSU can be up to 200 mm long in the separate lower chamber.

Will a 459 mm graphics card and a 165 mm CPU cooler both fit alongside my existing 3.5" drives?

Yes, the GPU clears up to 459 mm with slim front-right fans, the cooler height limit is 165 mm, and two 3.5" bays remain available.
