Black 240 mm AIO with square LCD pump head and two 120 mm RGB fans on aluminium radiator

NZXT

NZXT Kraken Elite RGB 240 RL-KR24E-B1 liquid cooler

SKU CH-8KF6-VXKJ9 MPN RL-KR24E-B1

A 240 mm liquid cooler with a 2.36" 640x640 LCD screen, two 120 mm fluid-dynamic-bearing fans reaching 1800 RPM, and a 2800 RPM pump compatible with LGA 1700 and AM5 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel Socket LGA 1700, 1200/115X AMD Socket AM5, AM4, sTRX4*
  • Block Compatibility - AMDAMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not
  • Block Compatibility - IntelIntel Socket LGA 1700, 1200/115X
  • Block Dim.Diameter: 81.9mm H: 59.5mm
  • Block MaterialCopper

Fan Size 2 Fan Slots (120mm)

Color Black

  • Custom 2.36" 640x640 LCD shows GIFs and stats
  • 2800 RPM Asetek pump keeps CPU temps low
  • Dual 120 mm fans push 78.86 CFM at 33.88 dBA
  • Copper cold plate fits LGA 1700 and AM5 sockets
  • Single breakout cable and CAM software simplify setup

240 mm AIO with 2.36" LCD

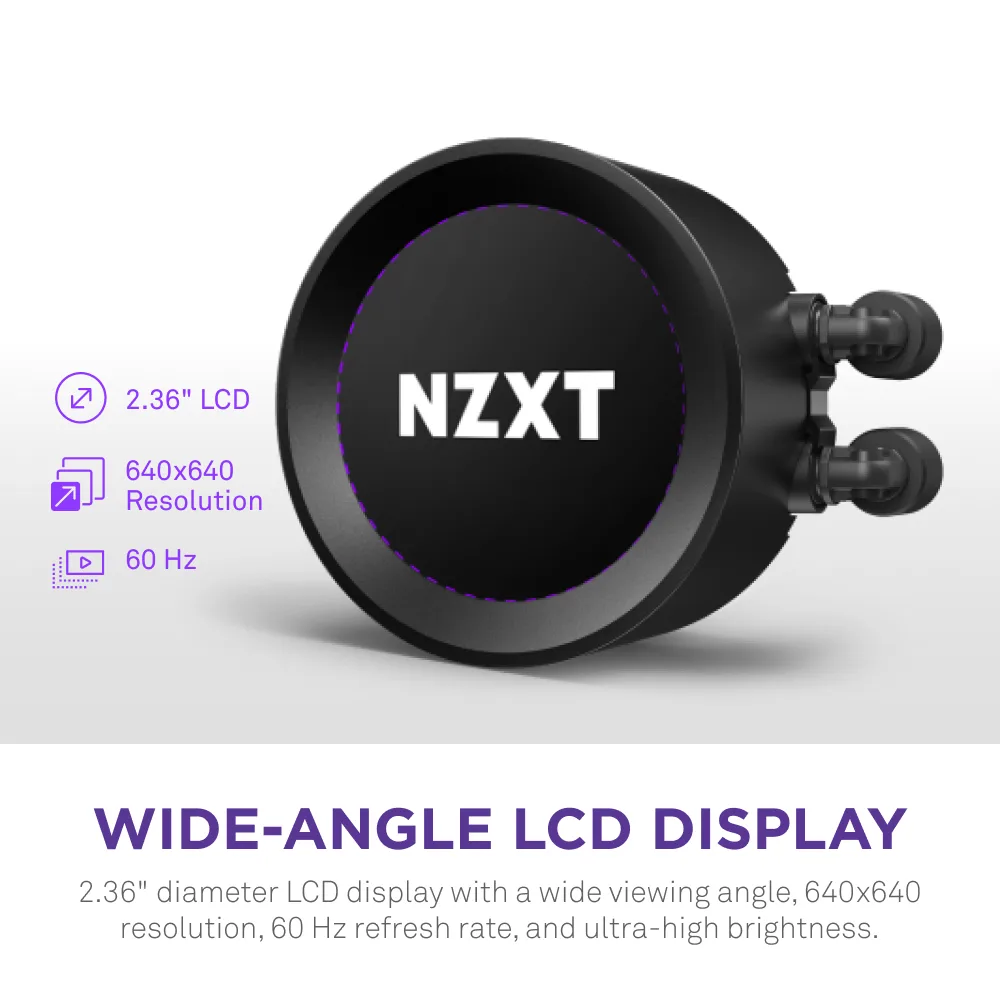

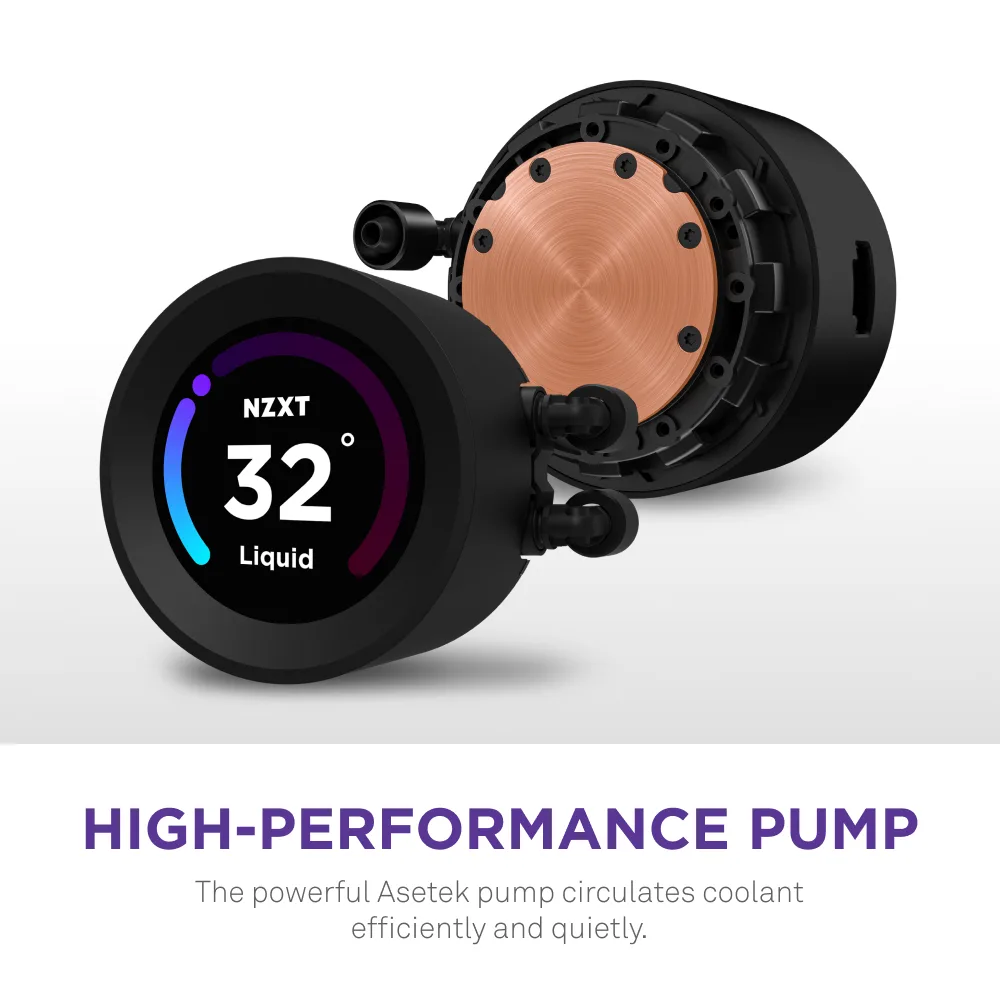

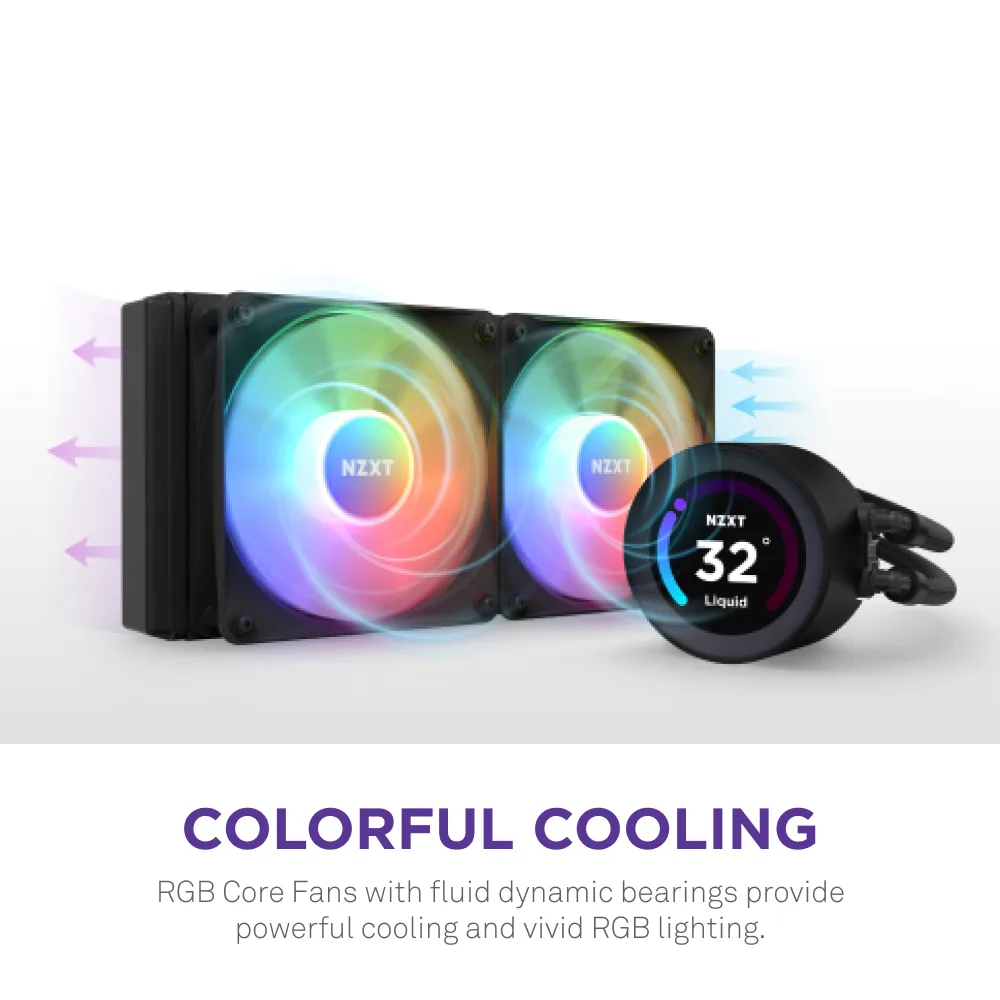

The NZXT Kraken Elite RGB 240 is an all-in-one liquid cooler built around a 240 mm aluminium radiator and two 120 mm F120RGB Core fans. A copper cold plate transfers heat to a seventh-generation Asetek pump rated for 2800 RPM. The 2.36-inch wide-angle LCD panel runs at 640x640 resolution and supports custom images, animated GIFs and audio visualisers through NZXT CAM software.

LGA 1700 and AM5 socket support

The cooler mounts on Intel LGA 1700, 1200 and 115X platforms as well as AMD AM5 and AM4 sockets. Threadripper sTRX4 and TR4 are listed but require a separate bracket that is not included. The radiator measures 123 by 275 by 30 mm and each fan is 120 by 120 by 26 mm, so verify that your case can accommodate those dimensions and the two 4-pin PWM fan headers.

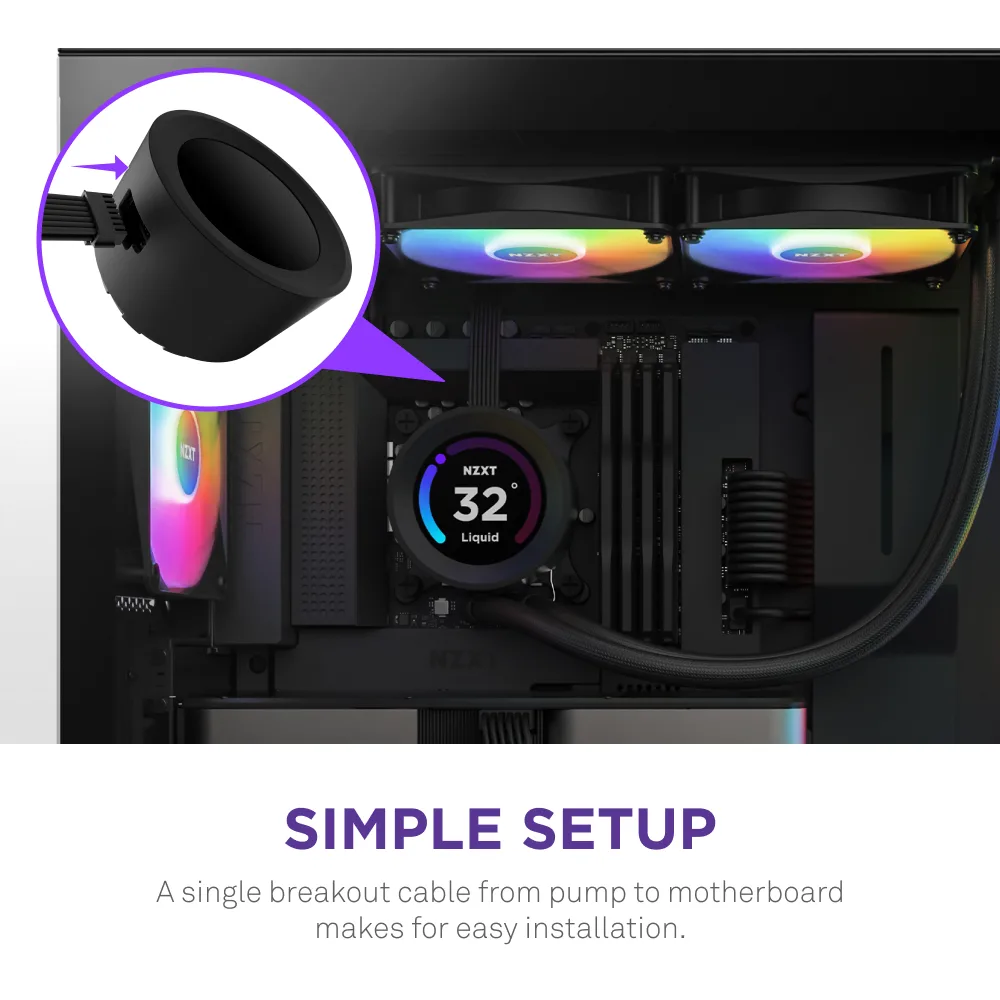

Single breakout cable simplifies wiring

Installation uses a single breakout cable that connects the pump, fans and LCD to the motherboard and a USB 2.0 header for software control. CAM software lets you set pump and fan curves, including a 0 RPM mode at low temperatures. Ensure your board has an available USB 2.0 header and enough clearance for the 81.9 mm diameter, 59.5 mm tall pump block before ordering.

Highlights

  • Custom 2.36" 640x640 LCD shows GIFs and stats
  • 2800 RPM Asetek pump keeps CPU temps low
  • Dual 120 mm fans push 78.86 CFM at 33.88 dBA
  • Copper cold plate fits LGA 1700 and AM5 sockets
  • Single breakout cable and CAM software simplify setup

Specifications

BrandNZXT
SeriesKraken Elite RGB
ModelKraken Elite RGB 240 Black
Part NumberRL-KR24E-B1
TypeLiquid Cooling System
Block CompatibilityIntel Socket LGA 1700, 1200/115X
AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)
Block Compatibility - AMDAMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)
Block Compatibility - IntelIntel Socket LGA 1700, 1200/115X
Block Dim.Diameter: 81.9mm H: 59.5mm
Block MaterialCopper
Radiator Size123 x 275 x 30mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 26mm
Bearing TypeFluid Dynamic Bearing
Fan RPM500-1,800 ± 180 RPM
Fan Air Flow78.86 CFM
Fan Noise33.88 dBA
Fan Connector4-pin PWM
ColorBlack
LED ColorRGB
FeaturesThe Kraken Elite delivers chillingly cool performance with a display that makes custom content truly pop. The 640x640 resolution wide-angle LCD display creates a picture that's detailed and vivid regardless of your viewing angle.
Shipping weight2.06 kg
Package size327 × 244 × 138 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 240 mm radiator or a larger size for my build?

This model is the 240 mm radiator variant with a 123 x 275 x 30 mm aluminium radiator and two 120 mm fans. It fits cases that support a 240 mm liquid cooler and provides 78.86 CFM airflow per fan at up to 1,800 RPM.

What does the 640x640 LCD resolution actually look like on the 2.36 inch pump screen?

The 2.36 inch wide-angle LCD runs at 640x640 pixels, giving a sharp, square image that stays clear from wide viewing angles. You can load custom images, animated GIFs or CAM performance data through NZXT CAM software.

Which CPU sockets does the pump block support and what does the Threadripper note mean?

The copper cold plate mounts on Intel LGA 1700, 1200 and 115X plus AMD AM5 and AM4. Threadripper sTRX4 and TR4 are listed but the required bracket is not included in the box.
