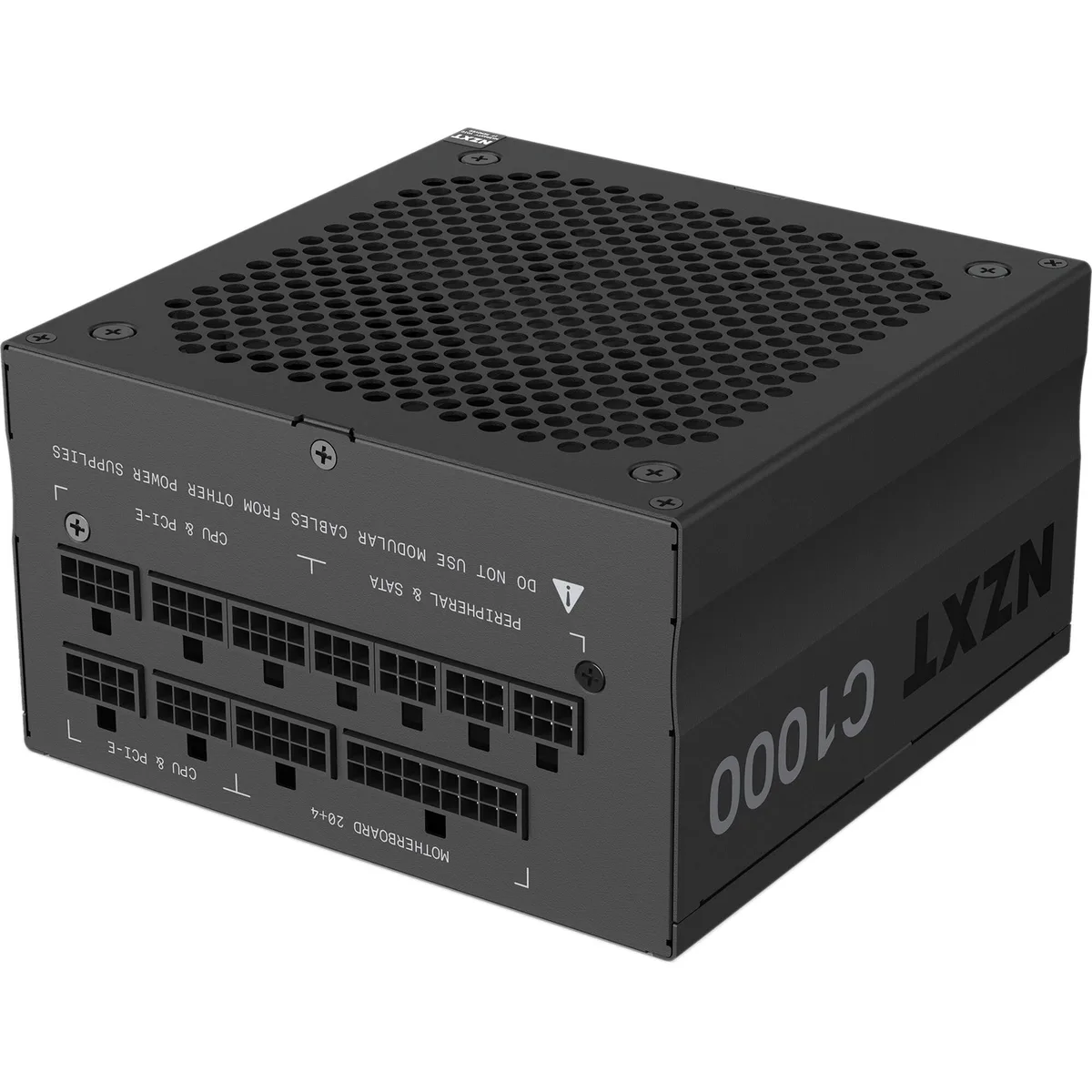

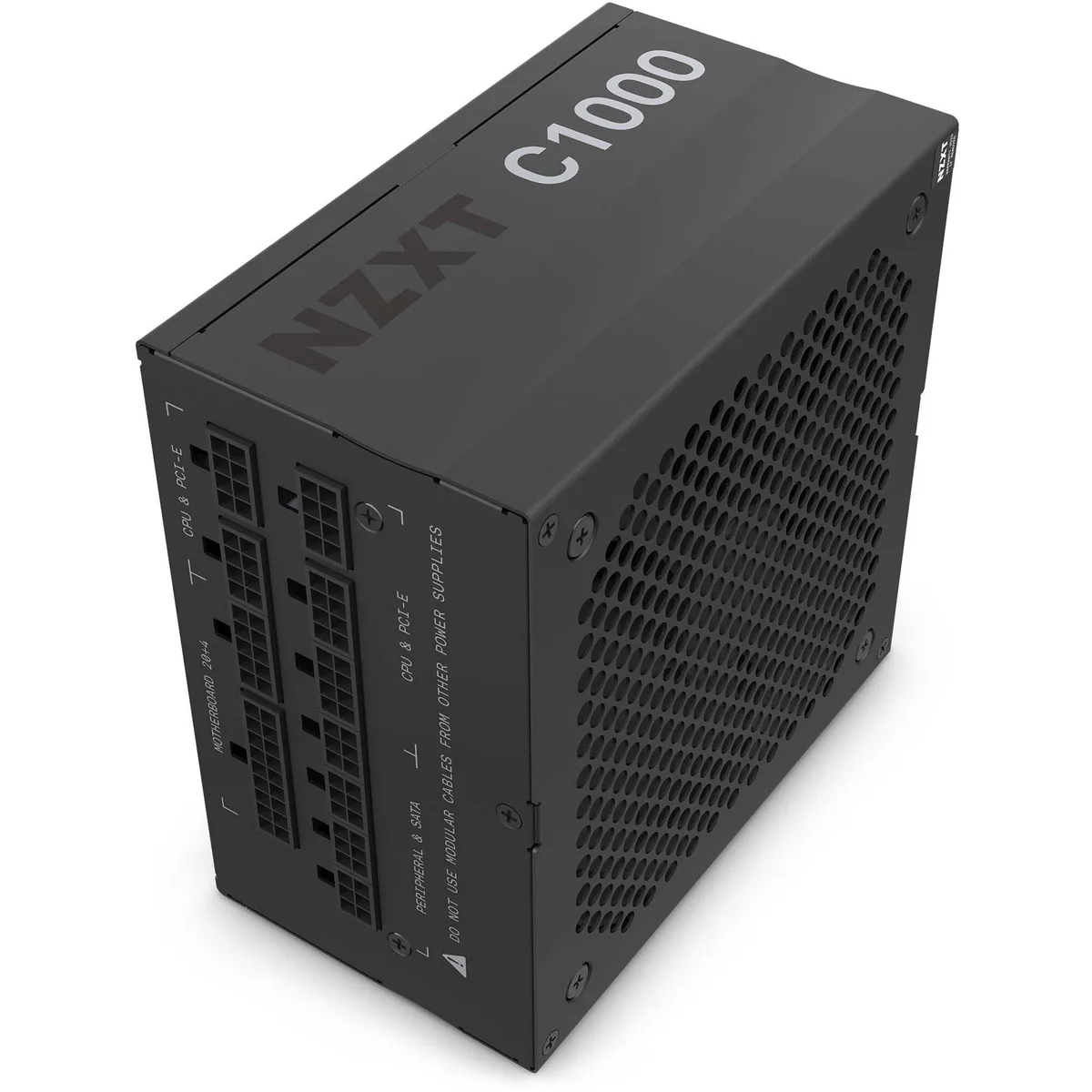

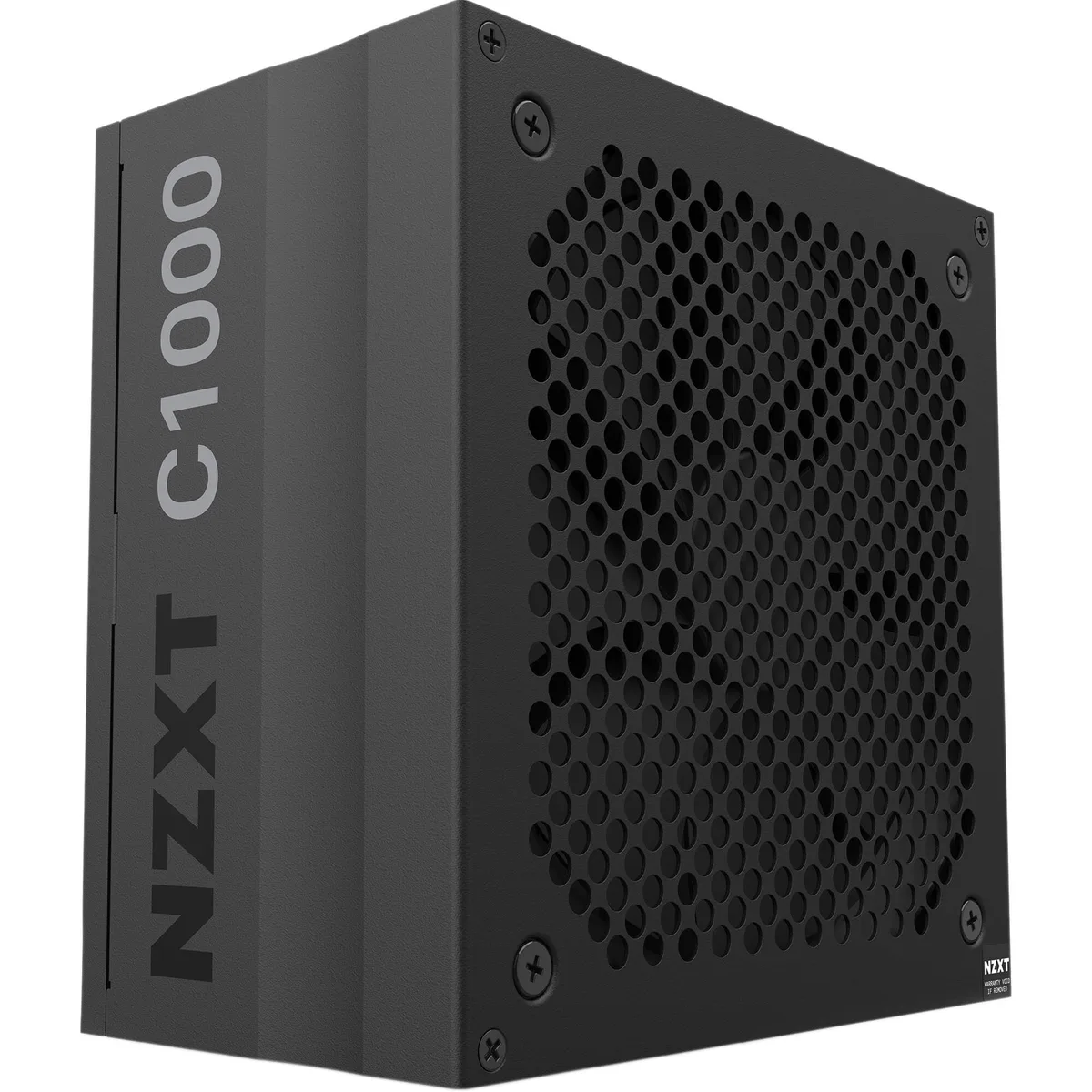

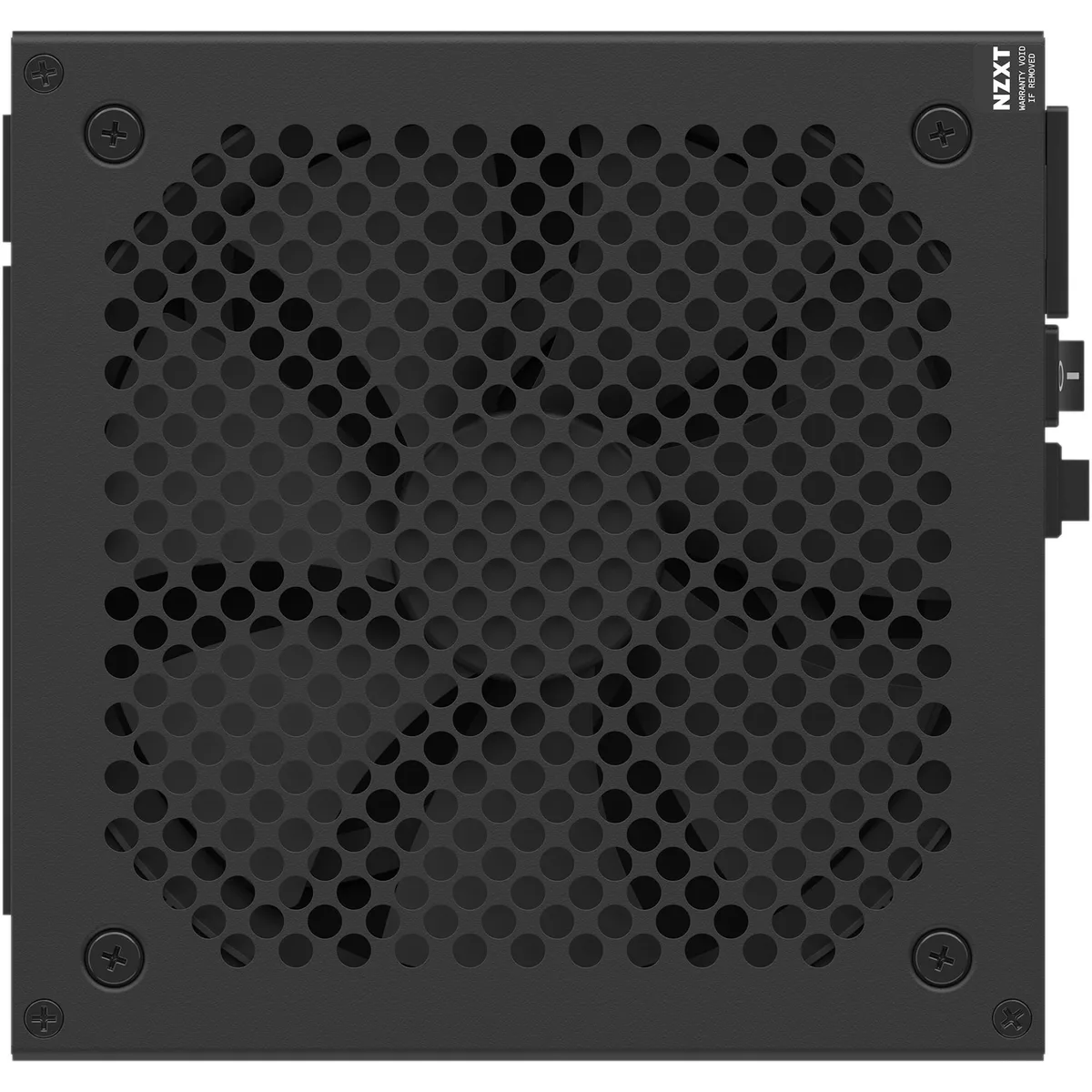

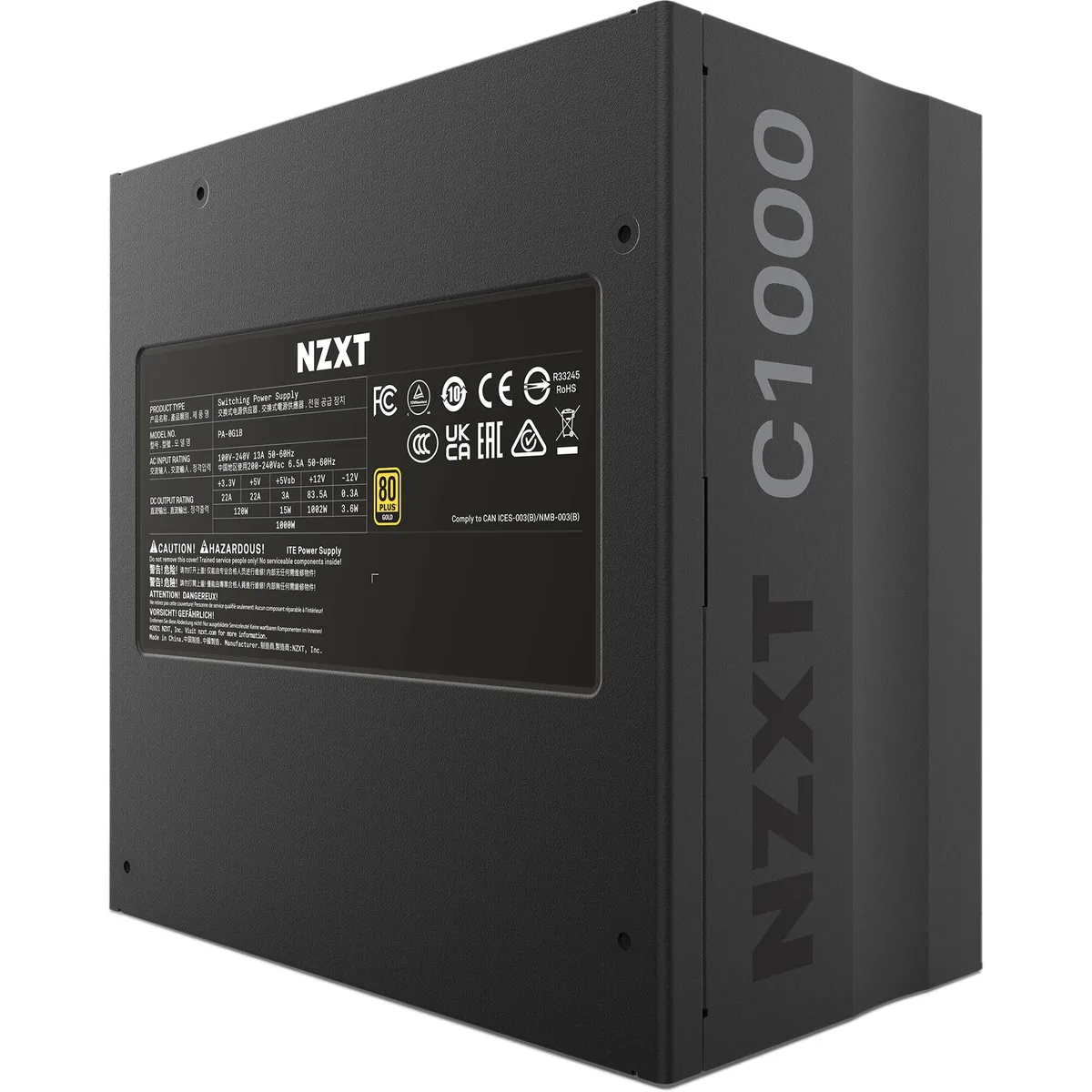

Black rectangular ATX power supply with a single 135 mm fan and full-modular cable sockets

NZXT

NZXT PA-0G1BB-US 1000 W ATX 80 Plus Gold Full-modular power supply

SKU CH-JQ08-7X1GD MPN PA-0G1BB-US

Delivers 1000 W through a full-modular ATX design with an 80 Plus Gold rating and a 135 mm FDB fan for quieter operation

  • TypeATX
  • Maximum Power1000 W
  • Fans1 x 135 mm
  • Main Connector24Pin
  • PCI-Express Connector6 x 6+2-Pin
  • SATA Power Connector6

Options ATX 80+ Gold (1000W)

  • 1000 W output powers high-end gaming and workstation builds
  • 80 Plus Gold certification delivers up to 1.5 % above standard efficiency at 50 % load
  • Full-modular cabling with 6 PCIe 6+2-pin and 6 SATA connectors simplifies routing
  • 135 mm FDB fan and DC-DC design reduce noise under heavy load
  • Compact 150 mm depth fits standard ATX cases

1000 W ATX Gold power supply

This unit delivers 1000 watts of continuous power through a fully modular cable set and carries 80 Plus Gold certification. It is intended for gaming and workstation PCs that run multiple graphics cards and high-performance processors.

Fits standard ATX cases at 150 mm length

The 150 mm depth fits any case that accepts an ATX power supply. Six 6+2-pin PCIe connectors and six SATA power connectors support several modern GPUs and storage drives while the full-modular design lets you attach only the cables your build requires.

DC-DC topology and FDB fan under sustained load

DC-DC conversion reduces internal heat so the 135 mm fluid-dynamic-bearing fan spins slower during extended high-load sessions. Capacitors, transformers and coils receive treatment that suppresses electromagnetically induced acoustic noise, keeping output stable and audible noise low when the system runs for long periods.

Highlights

  • 1000 W output powers high-end gaming and workstation builds
  • 80 Plus Gold certification delivers up to 1.5 % above standard efficiency at 50 % load
  • Full-modular cabling with 6 PCIe 6+2-pin and 6 SATA connectors simplifies routing
  • 135 mm FDB fan and DC-DC design reduce noise under heavy load
  • Compact 150 mm depth fits standard ATX cases

Specifications

BrandNZXT
Part NumberPA-0G1BB-US
TypeATX
Maximum Power1000 W
Fans1 x 135 mm
Main Connector24Pin
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector6
Max PSU Length150 mm
Energy-Efficient80 PLUS GOLD Certified
Shipping weight3.40 kg
Package size343 × 229 × 127 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

At what load does the 80 Plus Gold efficiency peak for this 1000 W unit?

The 80 Plus Gold rating certifies 90 % efficiency at 50 % load, and the C Series Gold reaches 1.5 % above that standard at 50 % load high line input voltage.

How loud is the 135 mm fan during all-day operation?

The FDB silent fan uses DC-DC technology to reduce heat and lower RPM, while treated capacitors, transformers and coils cut electromagnetic acoustic noise for quiet running at high load.

What case clearance is needed for the 150 mm deep ATX power supply?

The unit measures 150 mm in length, so any chassis that supports a standard ATX PSU with at least that depth will accommodate it.
