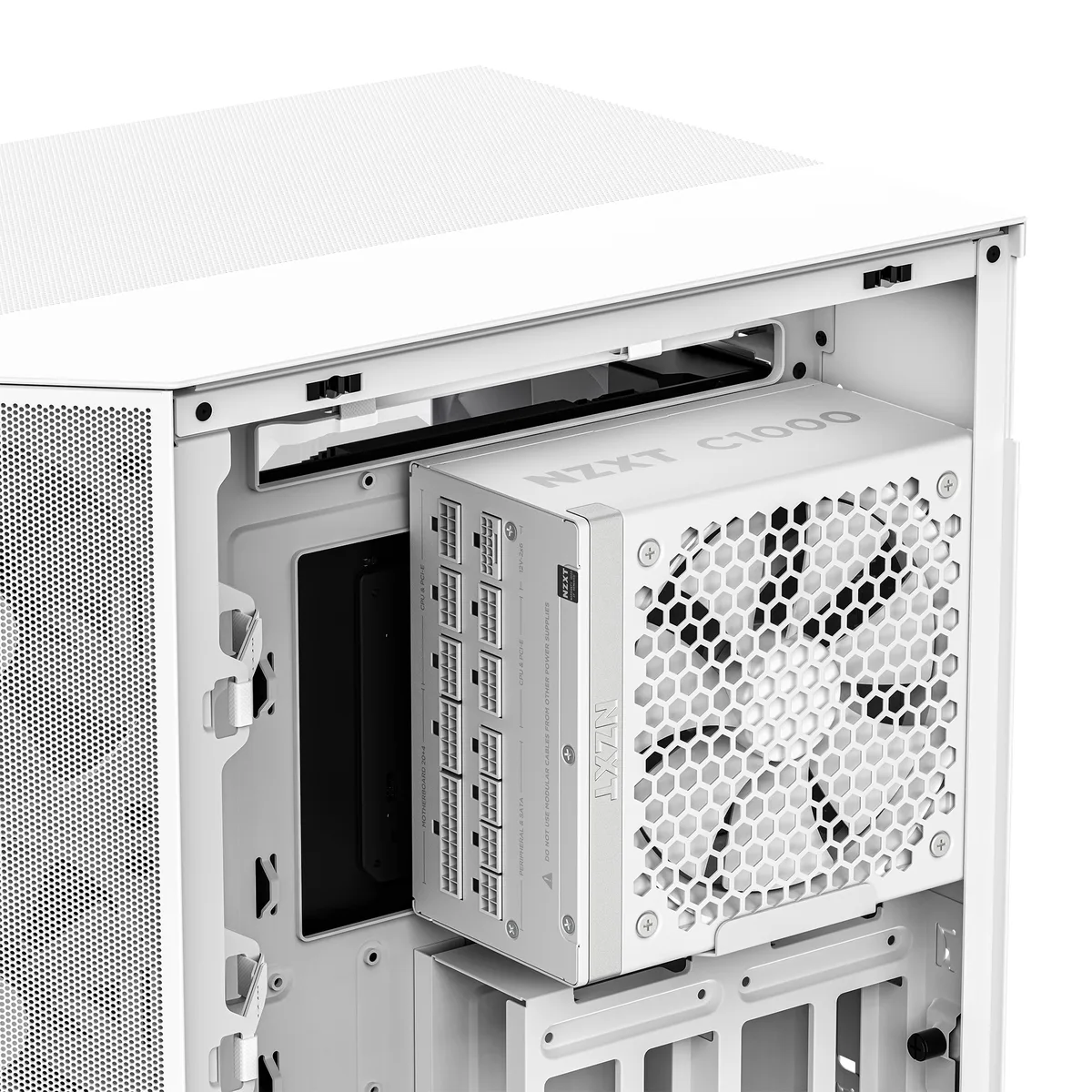

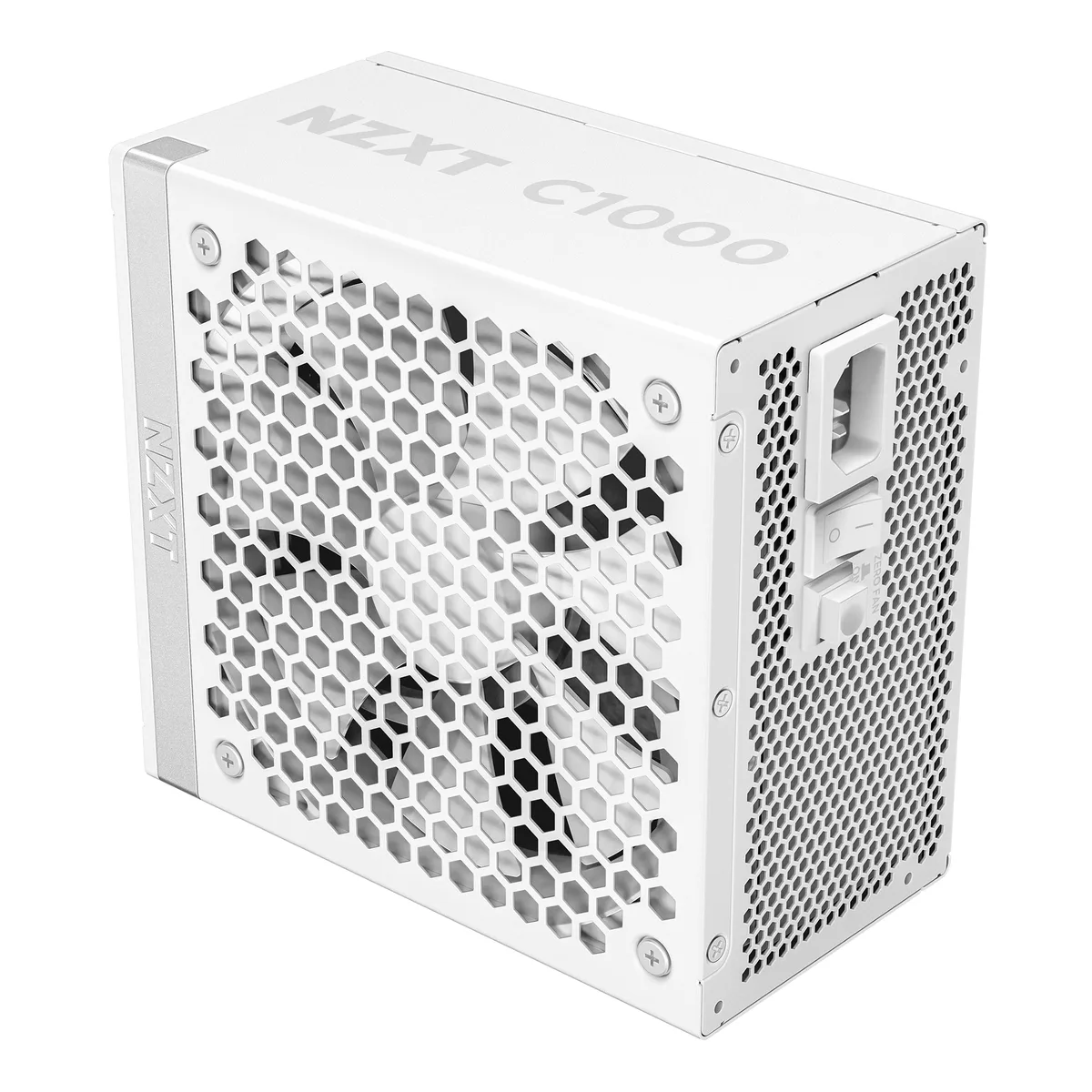

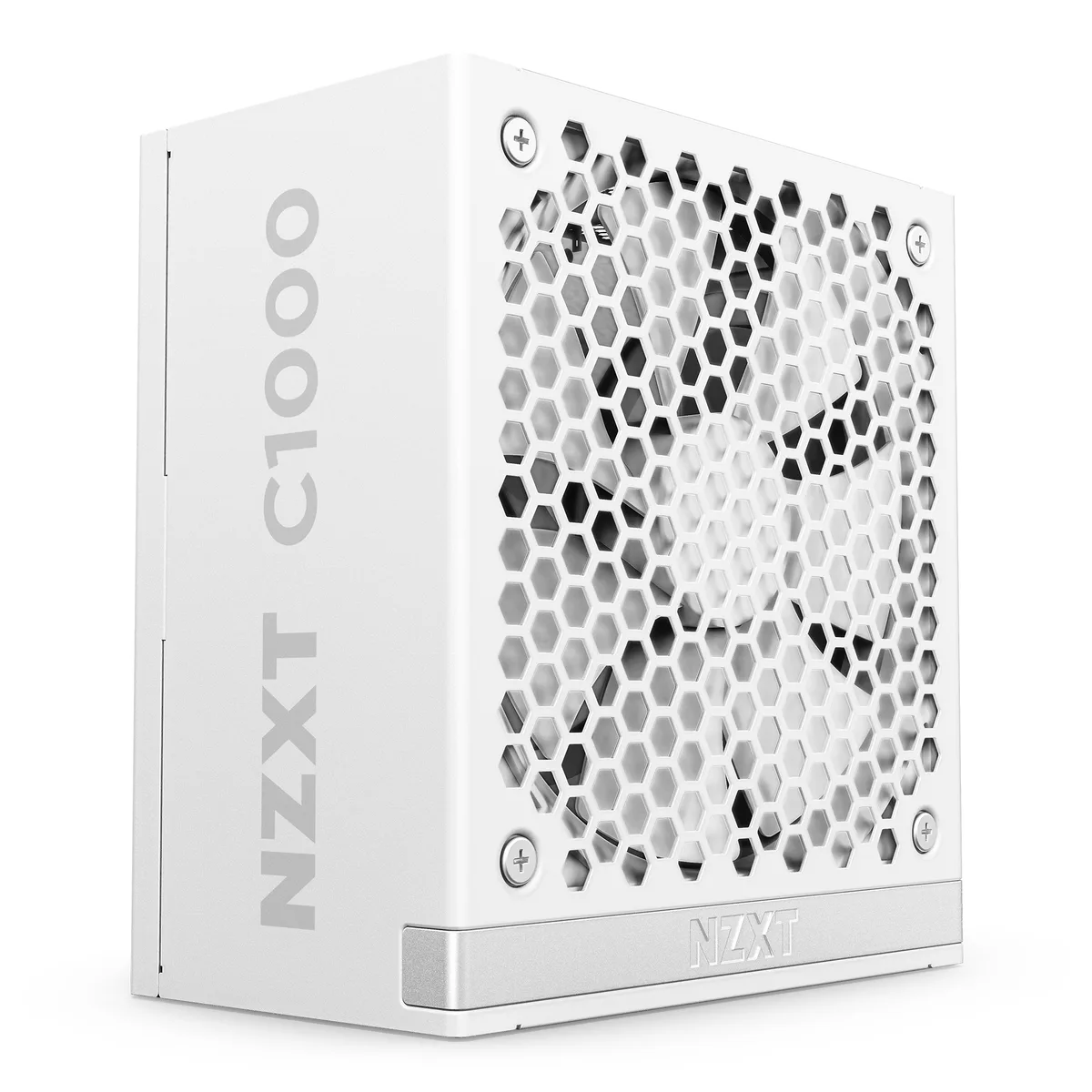

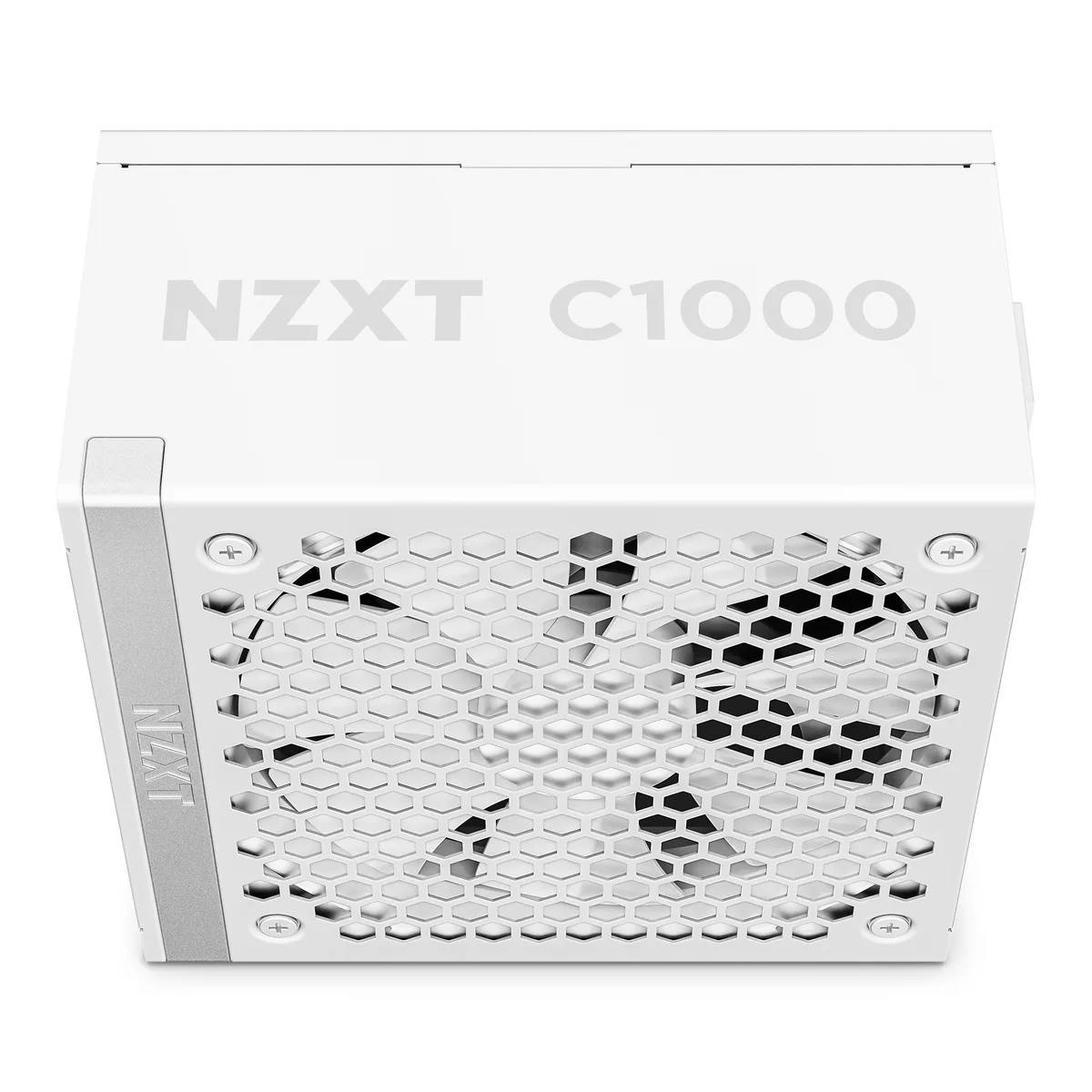

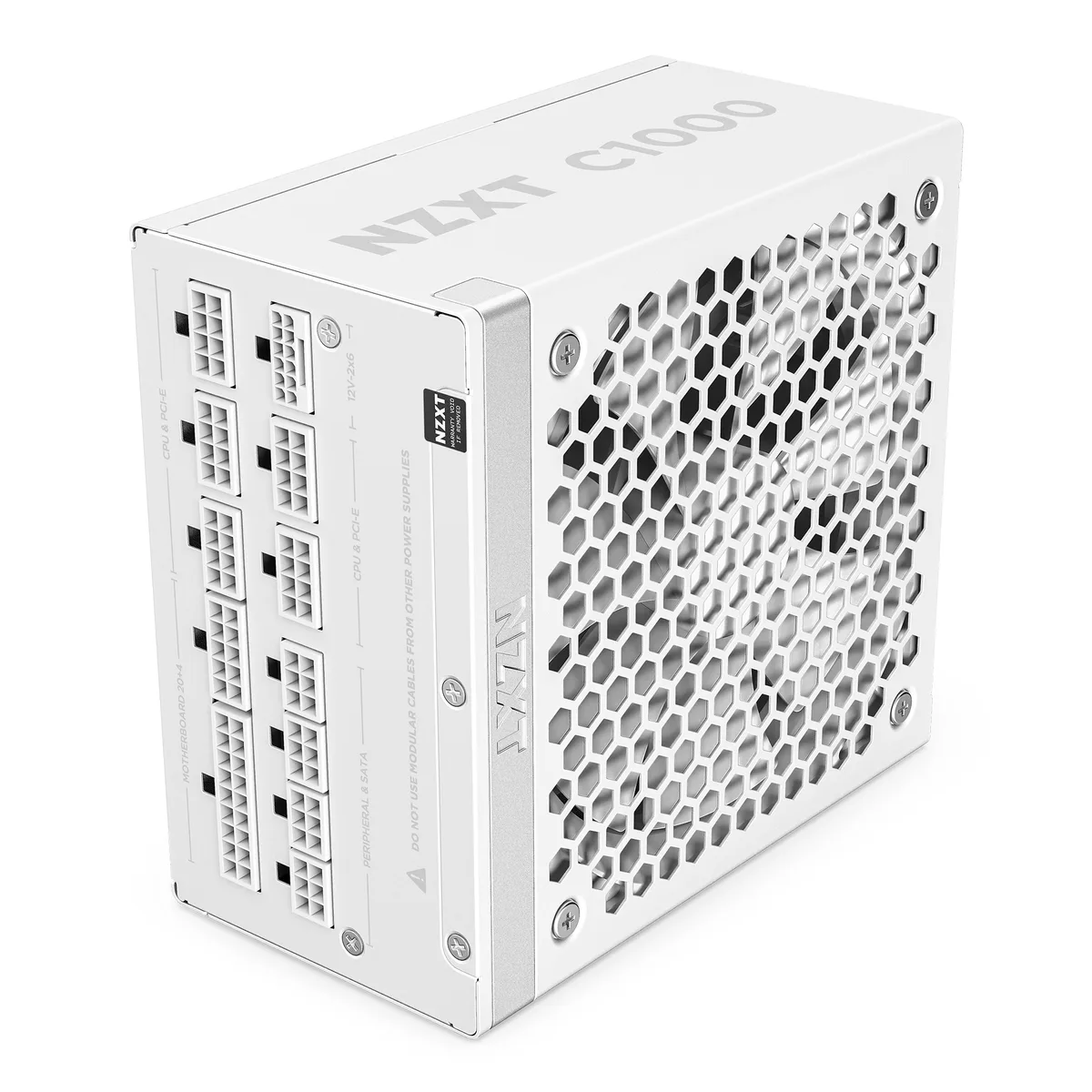

White ATX 3.1 power supply, 150 by 86 by 160 mm, fully modular cables with nylon sleeving, 135 mm fan

NZXT

NZXT PA-0G2BW-US 1000 W ATX 3.1 Gold power supply

SKU CH-6QBP-3CM43 MPN PA-0G2BW-US

A 1000 W ATX 3.1 fully modular power supply with 80 Plus Gold efficiency, a 135 mm FDB fan featuring Zero Fan Mode under 50 % load, Japanese capacitors and a white 160 mm chassis

  • TypeATX12V v3.1 / EPS12V v2.92
  • Maximum Power1000 W
  • ModularFull Modular
  • Fans1 x 135 mm FDB
  • PFCActive @0.99
  • Energy-Efficient80 PLUS GOLD Certified

Options 1000W (White)

  • ATX 3.1 compliance delivers stable power to modern GPUs
  • 80 PLUS Gold and Cybenetics Gold ratings ensure high efficiency
  • 135 mm FDB fan with Zero Fan Mode stops below 50 % load for silent operation
  • Fully modular design with nylon-sleeved cables keeps builds tidy
  • Compact 160 mm depth frees space for airflow and cable routing

ATX 3.1 power for high-end builds

This 1000 W unit meets the ATX12V v3.1 and EPS12V v2.92 specifications, delivering stable energy to modern CPUs and graphics cards. It is built for enthusiasts who need reliable output without excess acoustic footprint. The white finish suits light-themed chassis. Fully modular cabling keeps the interior tidy.

160 mm depth frees case space

At 150 x 86 x 160 mm the supply fits standard ATX bays while leaving room behind the motherboard tray for routing. A single 135 mm FDB fan spins only after the load passes 50 %, so idle and light workloads run in silence. Active PFC at .99 corrects the input current across 100 to 240 V. All cables use nylon sleeving for durability.

Gold efficiency with 600 W GPU headroom

80 PLUS Gold and Cybenetics Gold ratings confirm high conversion efficiency, while Cybenetics A certifies low noise. The 12V rail can supply 1000 W, and the included 12V-2x6 cable delivers up to 600 W to RTX 50 Series cards. Japanese capacitors extend hold-up time and reduce ripple. Protections cover OVP, UVP, SCP, OTP, OPP and OCP. MTBF exceeds 100000 hours.

Highlights

  • ATX 3.1 compliance delivers stable power to modern GPUs
  • 80 PLUS Gold and Cybenetics Gold ratings ensure high efficiency
  • 135 mm FDB fan with Zero Fan Mode stops below 50 % load for silent operation
  • Fully modular design with nylon-sleeved cables keeps builds tidy
  • Compact 160 mm depth frees space for airflow and cable routing

Specifications

BrandNZXT
ModelPA-0G2BW-US
Part NumberPA-0G2BW-US
TypeATX12V v3.1 / EPS12V v2.92
Maximum Power1000 W
ModularFull Modular
Fans1 x 135 mm FDB
PFCActive @0.99
Energy-Efficient80 PLUS GOLD Certified
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Output+3.3V@22A, +5V@22A, [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsFCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Connectors24-pin ATX Power Cable: 600mm with nylon sleeving, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm with nylon sleeving, Output Connectors: 1
8-pin CPU Power Cable: 700mm with nylon sleeving, Output Connectors: 1
6+2-pin PCIe Power Cable: 650mm with nylon sleeving, Output Connectors: 3
16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving, Output Connectors: 1
SATA Cable: 500+150mm, Output Connectors: 12
Peripherals Cable: 500+150mm, Output Connectors: 4
ColorWhite
Max PSU Length160 mm
ProtectionOVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temp), OPP (Over Power), OCP (Over Current)
Dimensions150 x 86 x 160 mm
Shipping weight3.79 kg
Package size318 × 216 × 121 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 12V-2x6 cable support an RTX 50-series GPU without an adapter?

Yes, the unit includes a native 12V-2x6 cable rated for 600 W delivery to RTX 50-series cards.

Does the 160 mm depth leave room for cable routing in a compact case?

At 160 mm long it fits most mid-tower cases and leaves space behind the PSU shroud for tidy routing.

What protections guard the system during a power fault?

OVP, UVP, SCP, OTP, OPP and OCP circuits shut the unit down before components can be damaged.
