Black rectangular ATX power supply with 135 mm fan and modular cable sockets

NZXT

NZXT PA-0G3BB-US C1000 Gold Core 1000W power supply

SKU CH-C0KN-QYYV1 MPN PA-0G3BB-US

Fully modular ATX 3.1 power supply delivers 1000 W with 80 PLUS Gold efficiency, Cybenetics Platinum rating, 135 mm FDB fan with Zero RPM mode, 12V-2x6 PCIe 5.1 connector and 150 mm length

  • ColorBlack
  • TypeATX 3.1 Compatible / EPS12V
  • Maximum Power1000 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector24Pin

Option ATX 80+ Gold (1000W)

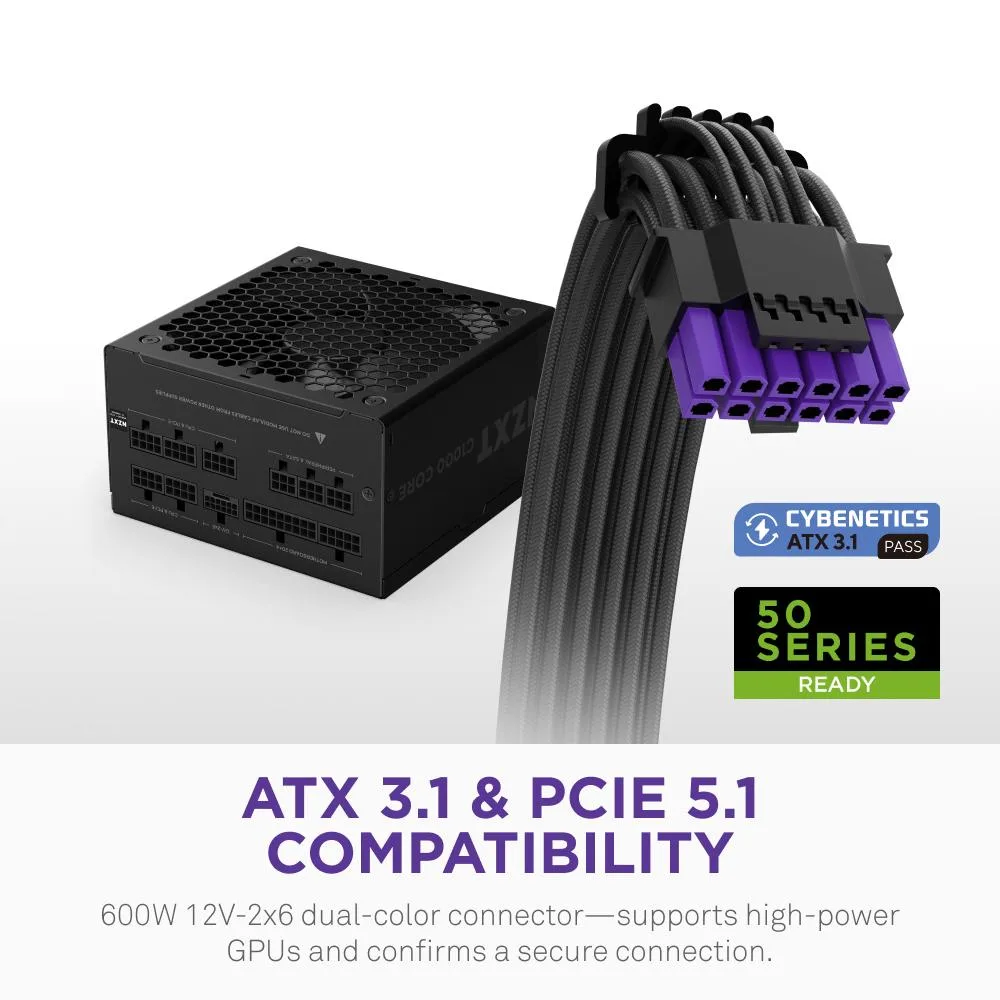

  • ATX 3.1 and PCIe 5.1 ready with 600 W 12V-2x6 connector for modern GPUs
  • 80 PLUS Gold and Cybenetics Platinum efficiency at 89.53 % reduces heat and power draw
  • Cybenetics A+ noise rating at 15 to 20 dBA ensures quiet operation under load
  • Fully modular design with embossed SATA cables simplifies routing and keeps the build clean

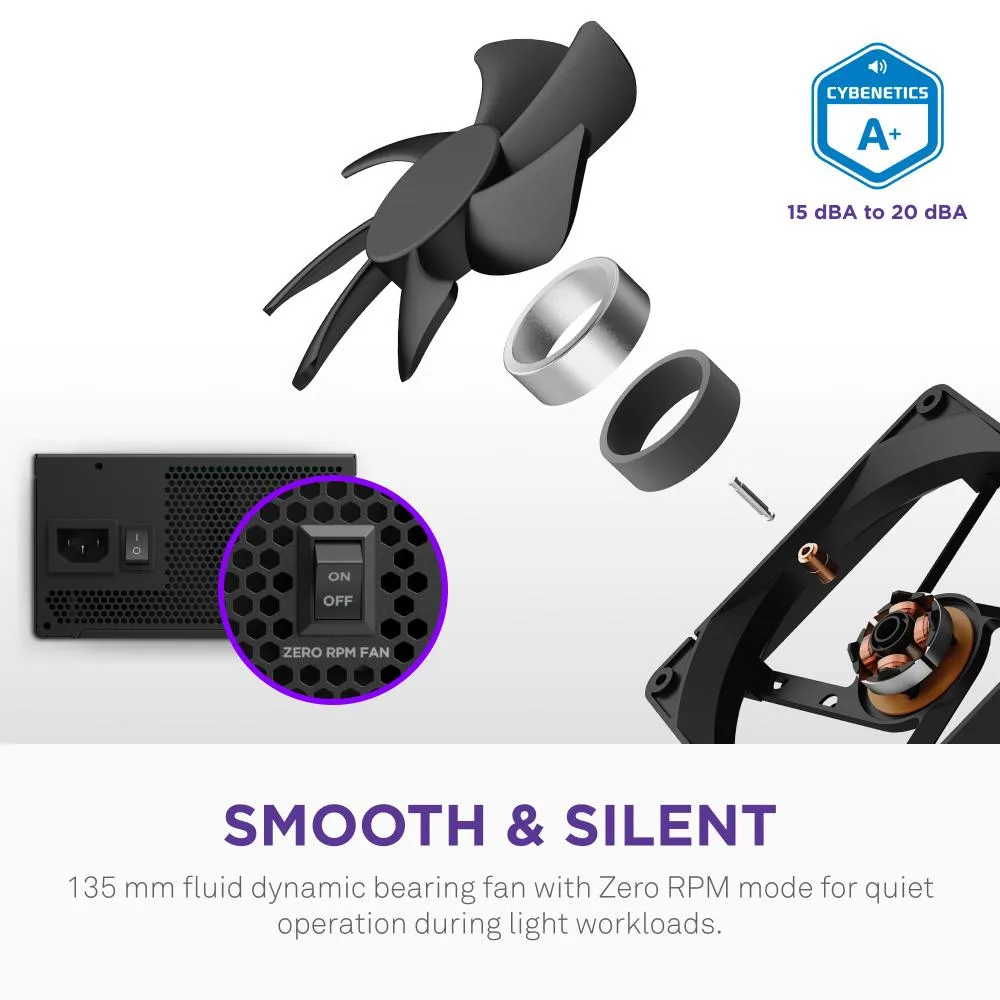

  • 135 mm fluid dynamic bearing fan with Zero RPM mode stops completely during light workloads

ATX 3.1 1000 W fully modular PSU

This 1000 W unit meets the ATX 3.1 standard and carries 80 PLUS Gold certification. It is built for modern high-performance PCs that need stable, efficient power delivery. The fully modular design lets you connect only the cables your build requires. ||

Sustained load efficiency and noise

At 115 V and full load the supply reaches 89.53 % efficiency, keeping heat and power draw low during long sessions. Cybenetics rates the C1000 at A+ for noise, meaning 15–20 dBA under load. The 135 mm fluid dynamic bearing fan stops completely in Zero RPM mode when cooling demand is light. ||

Premium caps, 12V-2x6 connector, modular cables

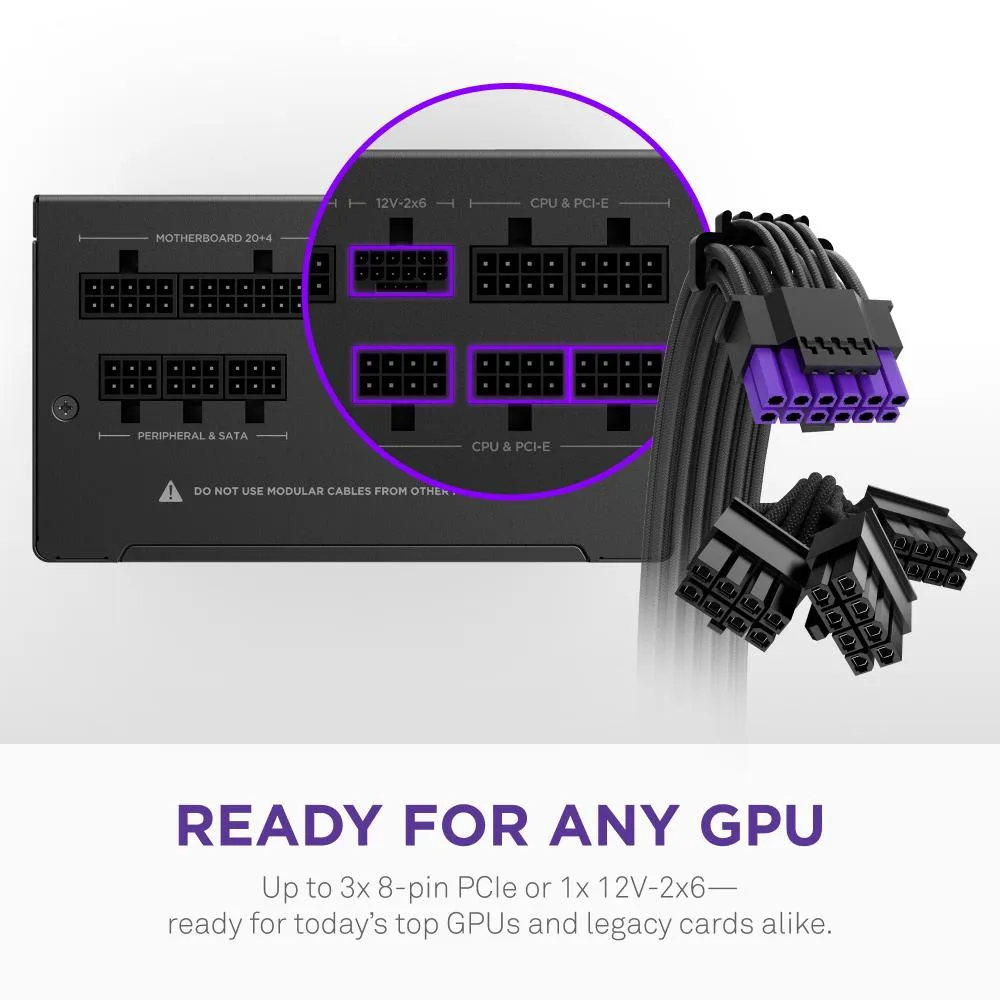

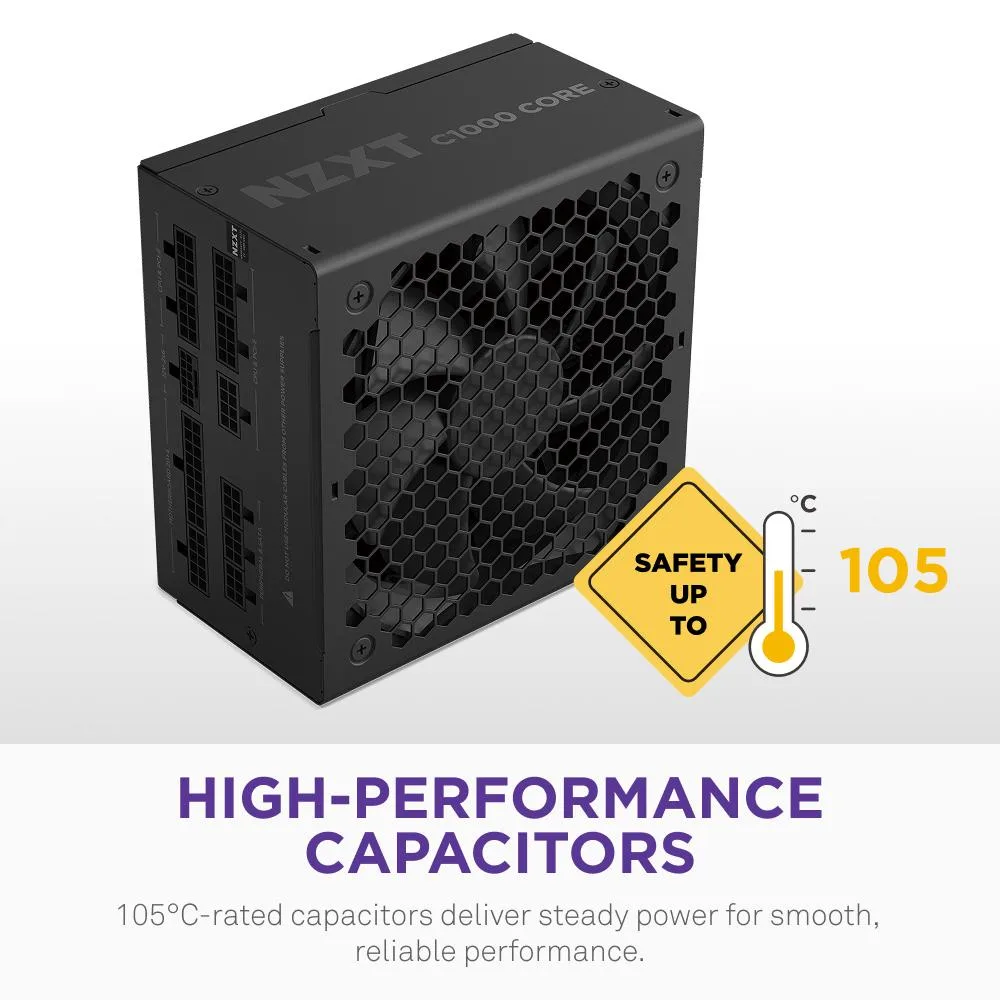

All capacitors are rated for 105 °C, supporting reliable operation across varied loads. A dual-colour 12V-2x6 connector rated for 600 W shows when the link is secure and is ready for PCIe 5.1 graphics cards. Eight SATA connectors and two 6+2-pin PCIe cables cover legacy GPUs and storage. The 150 mm depth fits most ATX cases.

Highlights

  • ATX 3.1 and PCIe 5.1 ready with 600 W 12V-2x6 connector for modern GPUs
  • 80 PLUS Gold and Cybenetics Platinum efficiency at 89.53 % reduces heat and power draw
  • Cybenetics A+ noise rating at 15 to 20 dBA ensures quiet operation under load
  • Fully modular design with embossed SATA cables simplifies routing and keeps the build clean
  • 135 mm fluid dynamic bearing fan with Zero RPM mode stops completely during light workloads

Specifications

BrandNZXT
SeriesC Series Gold Core
ModelC1000 GOLD CORE
Part NumberPA-0G3BB-US
ColorBlack
TypeATX 3.1 Compatible / EPS12V
Maximum Power1000 W
Fans1 x 135 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector8
Max PSU Length150 mm
ModularFull Modular
Efficiency89.53% @ 115 V @ 100% Load
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics A+
ProtectionOVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Over Power Protection), OCP (Over Current Protection)
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current12 - 6 A
Output+3.3V@20A, +5V@20A, [email protected] , 5VSB@3A
MTBF>100,000 Hours
ApprovalsCE, UKCA, FCC, IC, BSMI, CB (IEC 62368-1 Ed. 3), RCM, KC

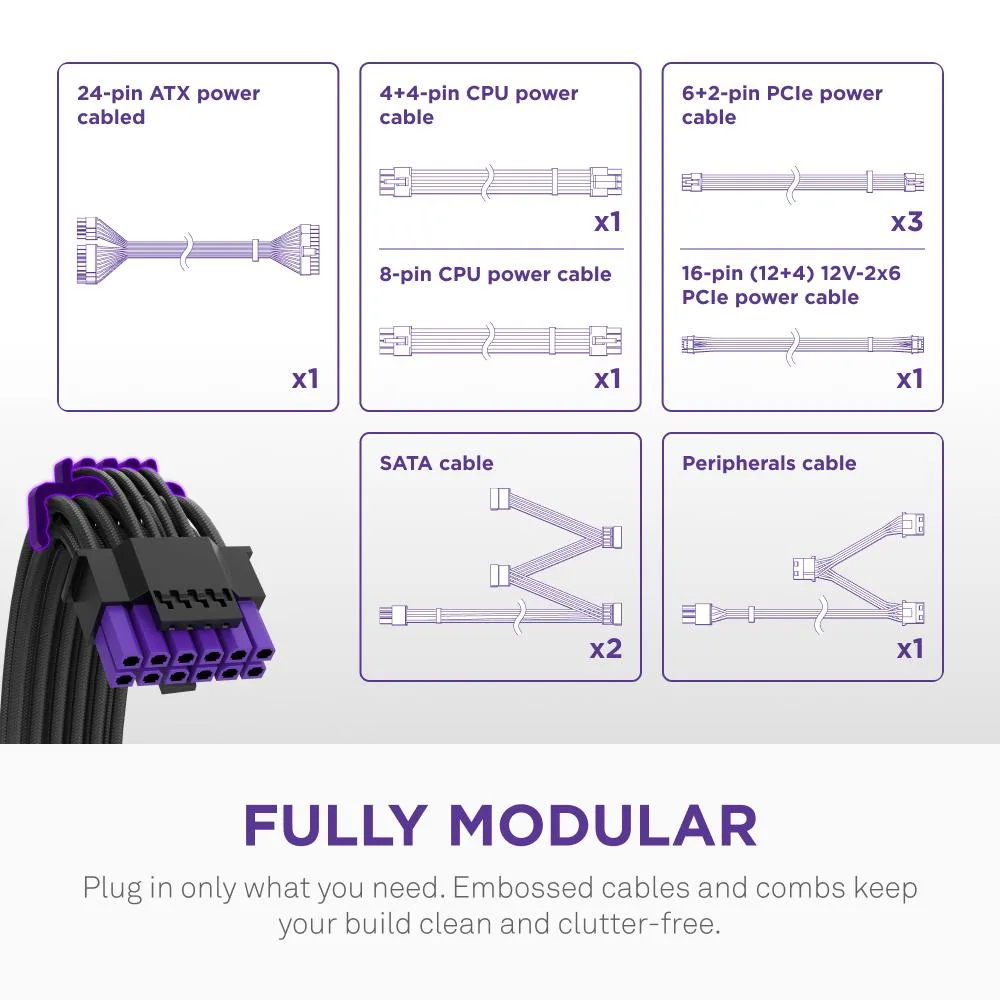

Cable Spec24-pin ATX Power Cable: 600 mm (1)
4+4-pin CPU Power Cable: 700 mm (1)
8-pin CPU Power Cable: 700 mm (1)
6+2-pin PCIe Power Cable: 650 mm (3)
16-pin (12+4) 12V-2x6 PCIe power Cable: 650 mm (1) (600W)
SATA Cables: 500 + 100 mm (8)
Peripherals Cable: 500 + 100 mm (3)
Dimensions150 x 86 x 150mm
Weight1.6kg
Shipping weight3.36 kg
Package size310 × 216 × 137 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the 135 mm fan when the PSU runs at full load all day?

Cybenetics rates the C1000 at A+ for noise, meaning 15 to 20 dBA under load, and the fluid dynamic bearing fan stops completely in Zero RPM mode during light workloads.

Which cables must I already have to use the 12V-2x6 connector on a modern GPU?

The unit ships with a dual-colour 12V-2x6 cable rated for 600 W, so no extra cable is required for PCIe 5.1 graphics cards.

Will the 24-pin ATX and 8-pin EPS connectors work with a motherboard built to the older ATX 2.x spec?

Yes, the PSU follows ATX 3.1 and EPS12V standards, which remain backward compatible with earlier ATX 2.x motherboards.
