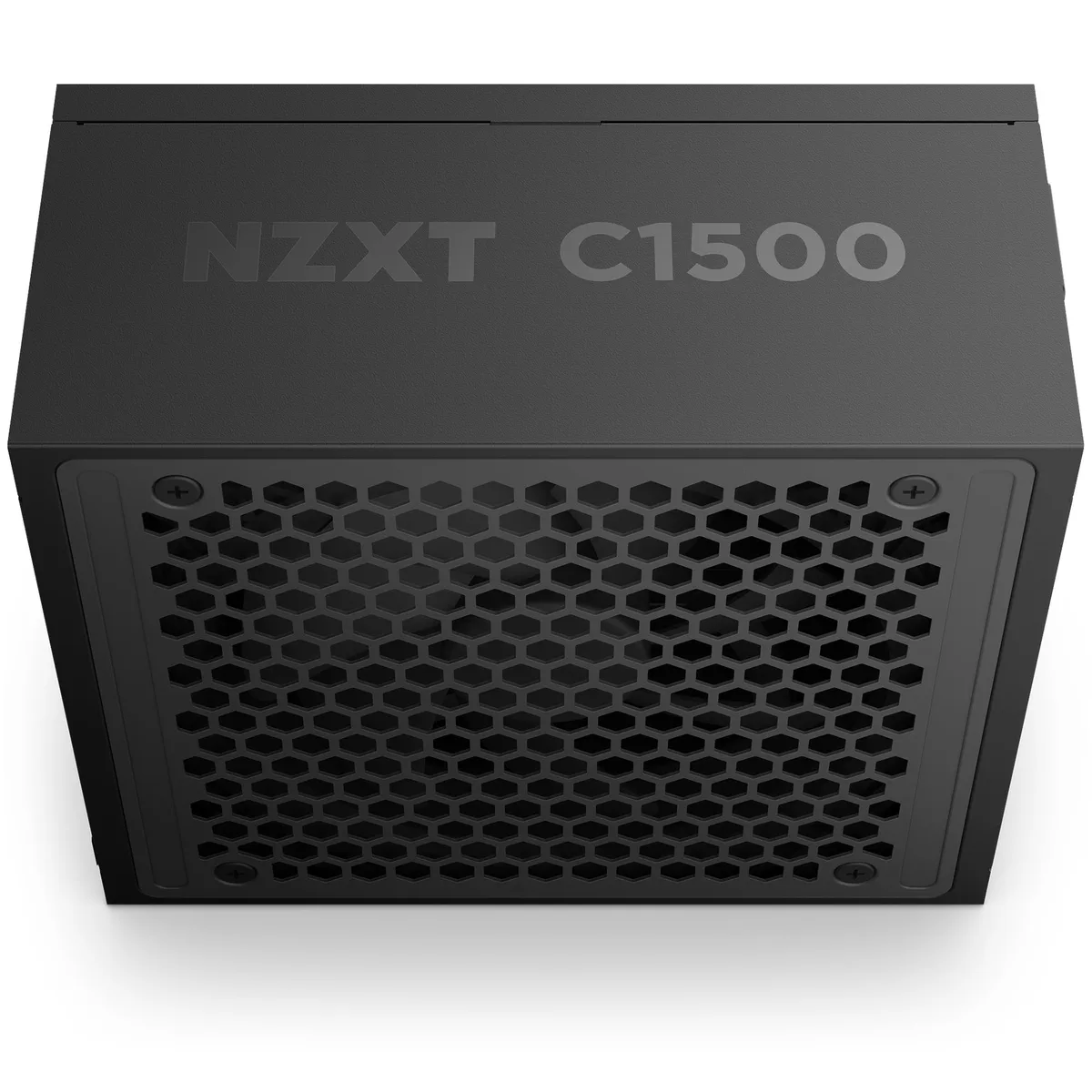

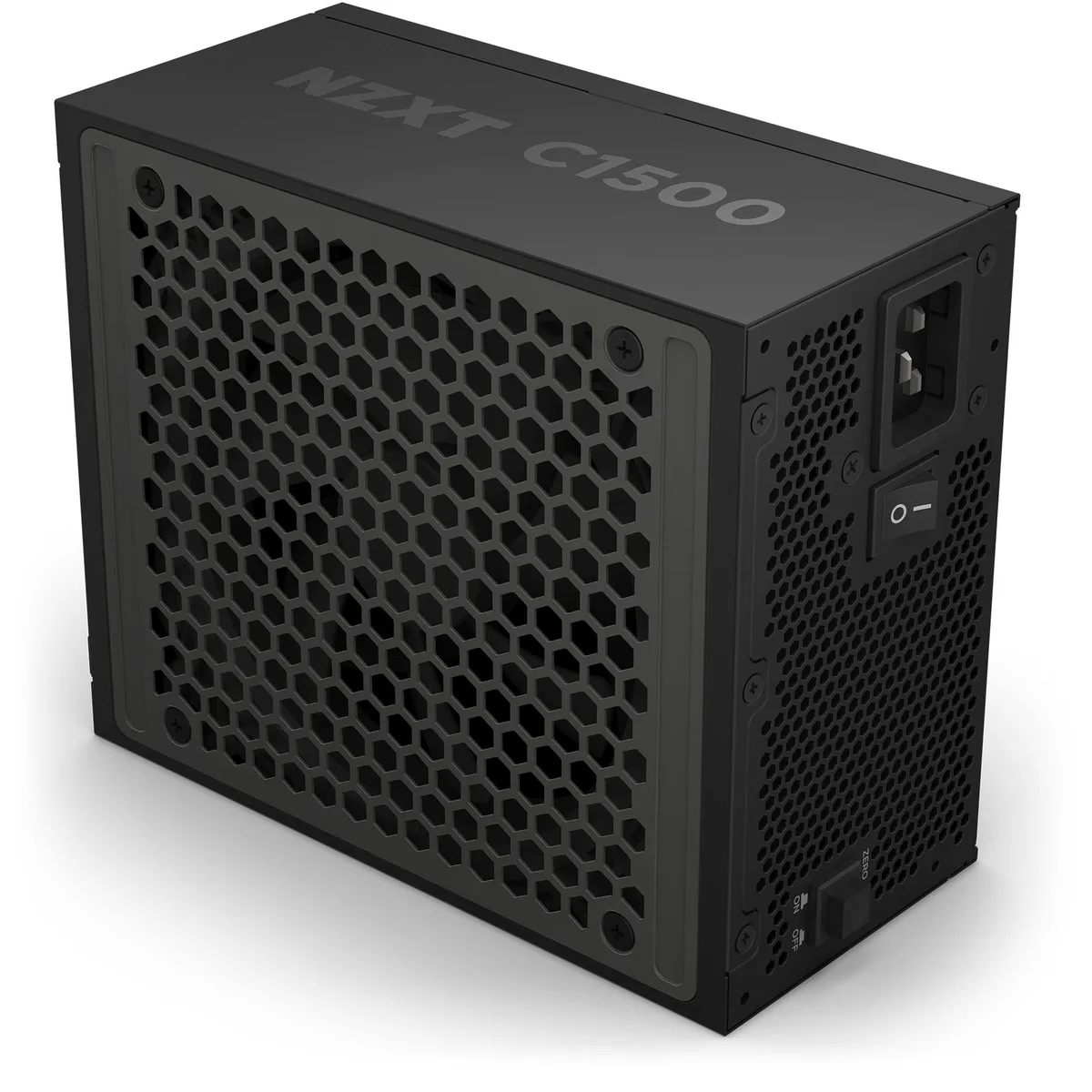

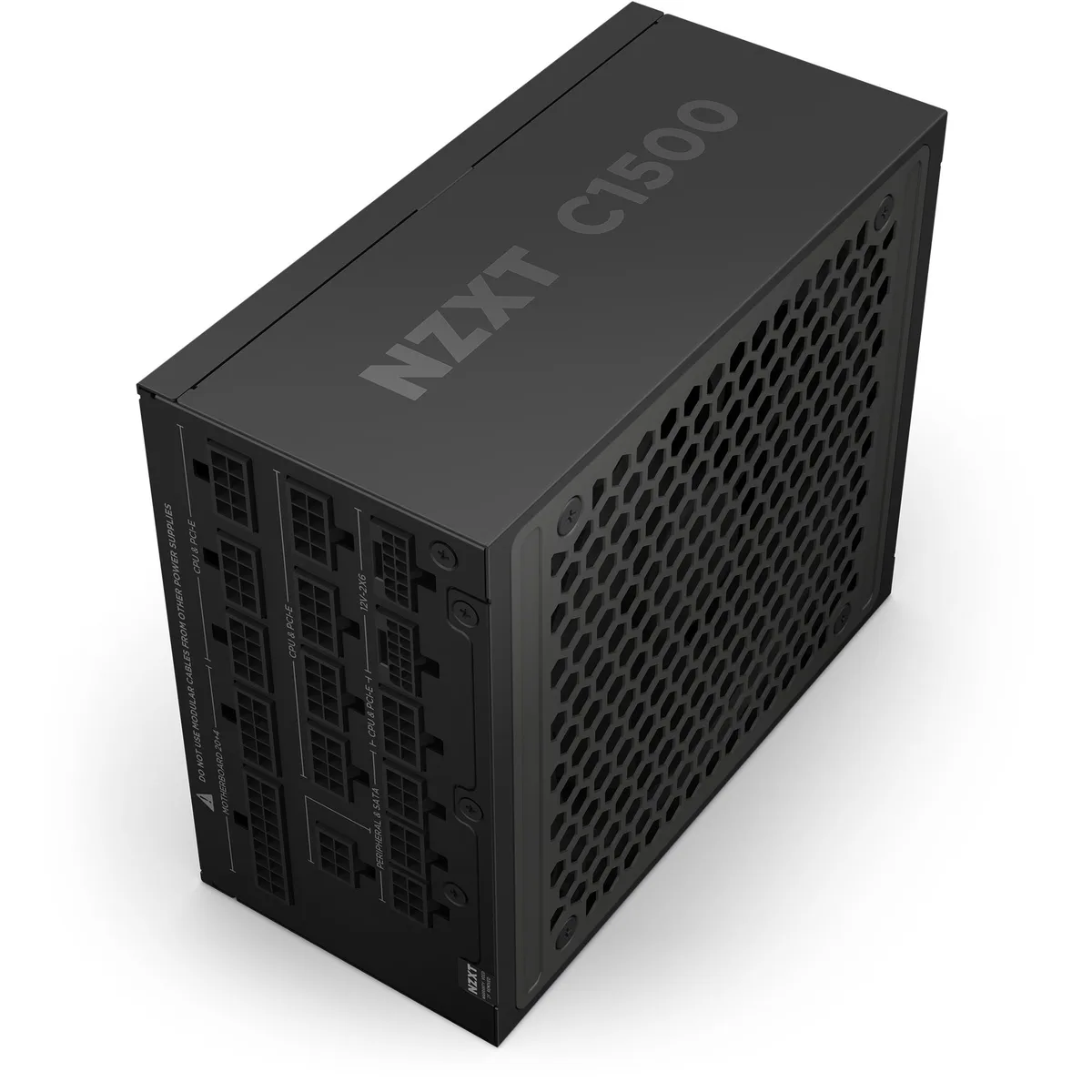

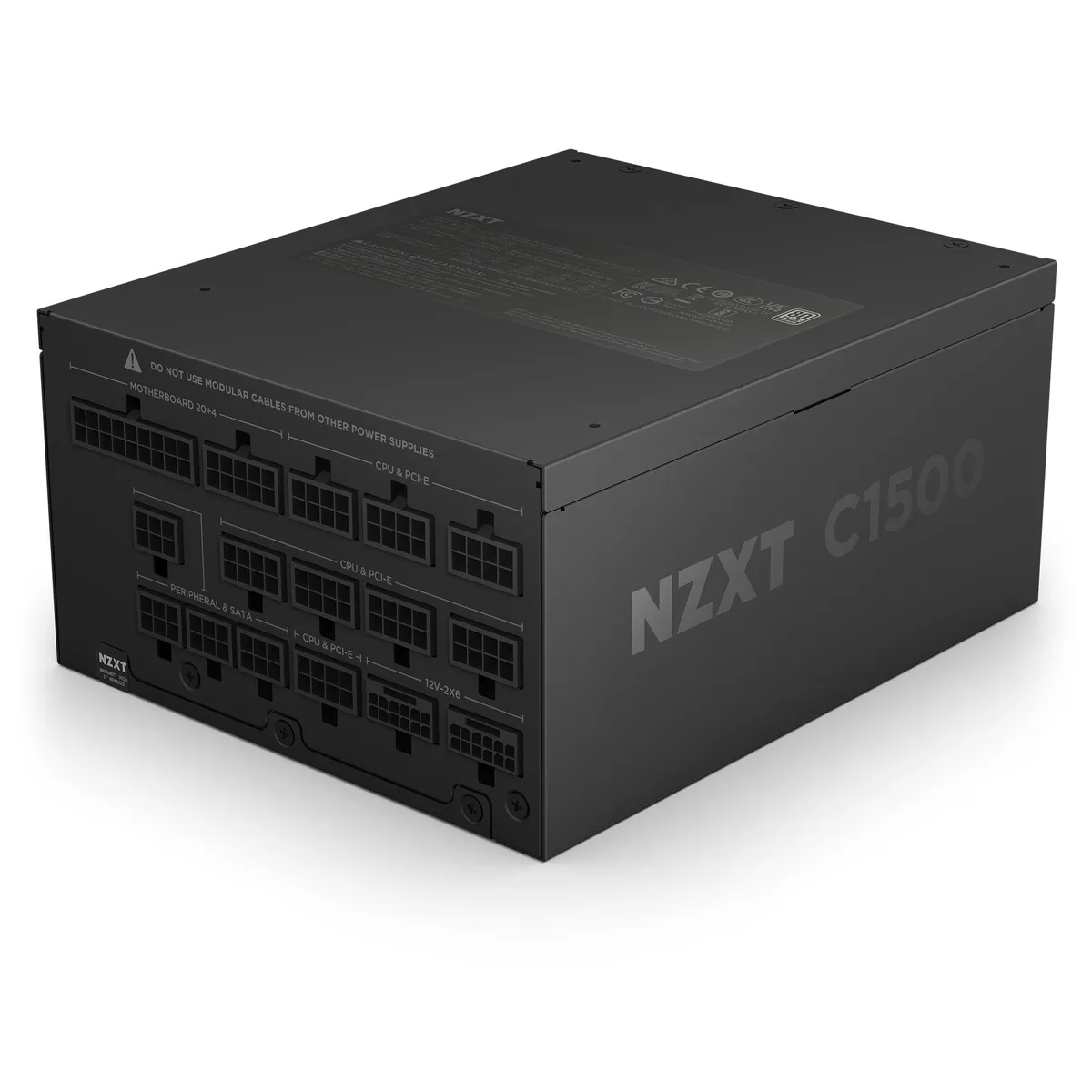

Black rectangular ATX power supply unit with fully modular cables and a 140 mm magnetic levitation fan

NZXT

NZXT PA-5P1BB-US C1500 Platinum 1500W power supply

SKU CH-5B4H-KS4NS MPN PA-5P1BB-US

Fully modular ATX 3.1 unit delivers 1500 W through dual 12V-2x6 connectors and six PCIe cables, with a 140 mm magnetic-levitation fan, 80 PLUS Platinum efficiency and Japanese capacitors

  • ColorBlack
  • TypeATX12V v3.1 / EPS12V v2.92
  • Maximum Power1500 W
  • Fans1 x 140 mm Magnetic Levitation fan
  • PFCActive @0.99
  • Max PSU Length180 mm
  • 80 PLUS Platinum efficiency keeps running costs low
  • ATX 3.1 standard supports modern GPU power demands
  • Dual 12V-2x6 cables ready for PCIe 5.1 graphics cards
  • 140 mm magnetic levitation fan runs quietly at load
  • Fully modular design simplifies cable routing inside the case

Fully modular ATX 3.1 1500W unit

This NZXT power supply delivers 1500 W of 80 PLUS Platinum certified power in a fully modular ATX 3.1 form factor. A 140 mm magnetic levitation fan enables a zero fan mode for silent operation at low loads. Japanese capacitors and a full suite of OVP, UVP, SCP, OTP, OPP and OCP protections are included.

Two 12V-2x6 cables and six PCIe cables

The bundle provides two 16-pin 12V-2x6 connectors and six 6+2-pin PCIe cables for modern graphics cards. One 24-pin ATX, one 4+4-pin and one 8-pin CPU cable, plus twelve SATA and four peripheral cables cover storage and accessories. Full modularity means only the required cables are installed.

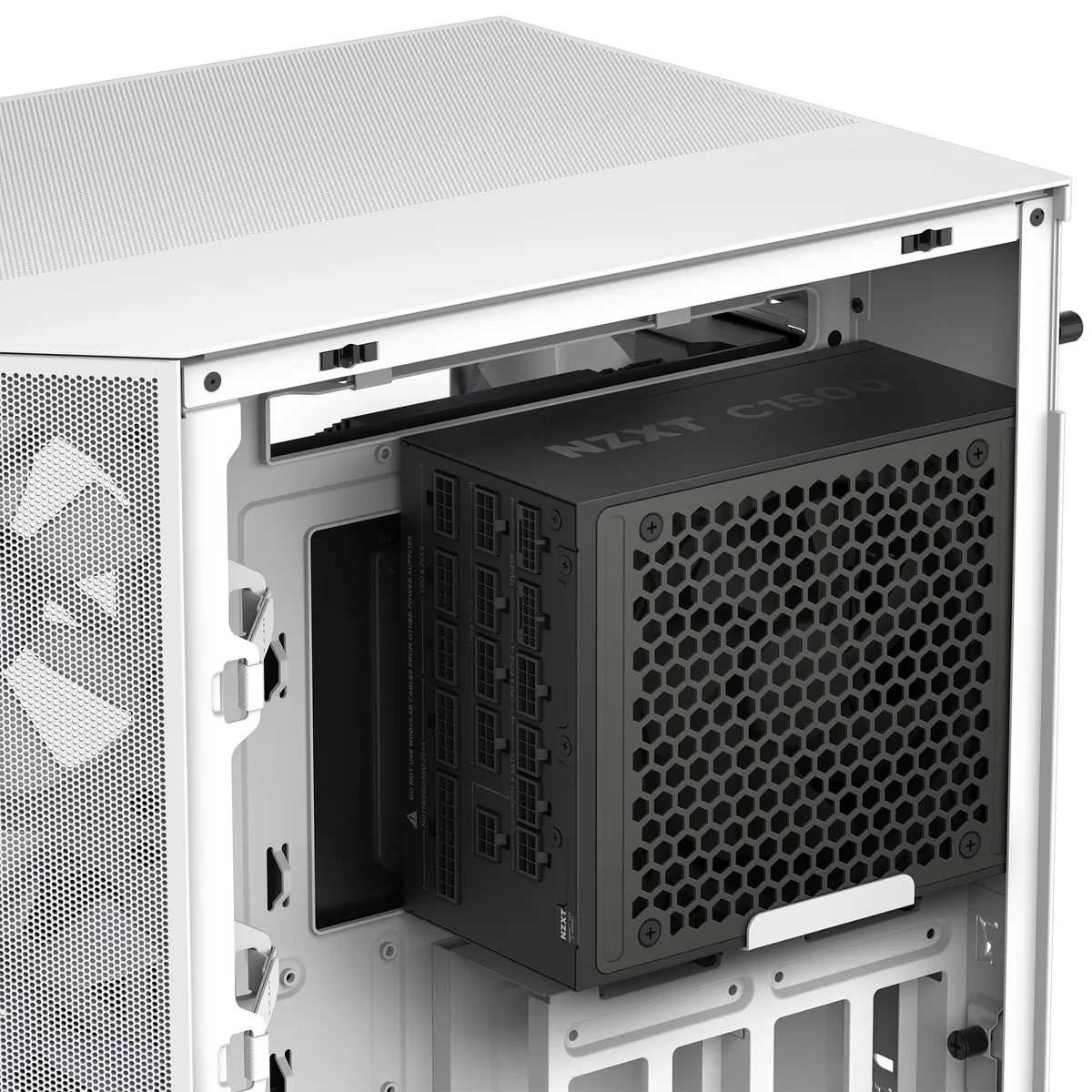

Check 180 mm depth clearance and 15 A input

The unit measures 150 x 86 x 180 mm, so verify the case allows 180 mm PSU length before ordering. Input current is rated at 15 A at 100 V and 9 A at 240 V, so confirm the circuit can supply that draw. MTBF exceeds 100,000 hours for long-term reliability.

Highlights

  • 80 PLUS Platinum efficiency keeps running costs low
  • ATX 3.1 standard supports modern GPU power demands
  • Dual 12V-2x6 cables ready for PCIe 5.1 graphics cards
  • 140 mm magnetic levitation fan runs quietly at load
  • Fully modular design simplifies cable routing inside the case

Specifications

BrandNZXT
ModelPA-5P1BB-US
Part NumberPA-5P1BB-US
ColorBlack
TypeATX12V v3.1 / EPS12V v2.92
Maximum Power1500 W
Fans1 x 140 mm Magnetic Levitation fan
PFCActive @0.99
Max PSU Length180 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
ProtectionOVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
OPP (Over Power Protection)
OCP (Over Current Protection)
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A-9A
Output+3.3V@22A, +5V@22A, +12V@125A, +5VSB@3A
MTBF>100,000 Hours
ApprovalsFCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus

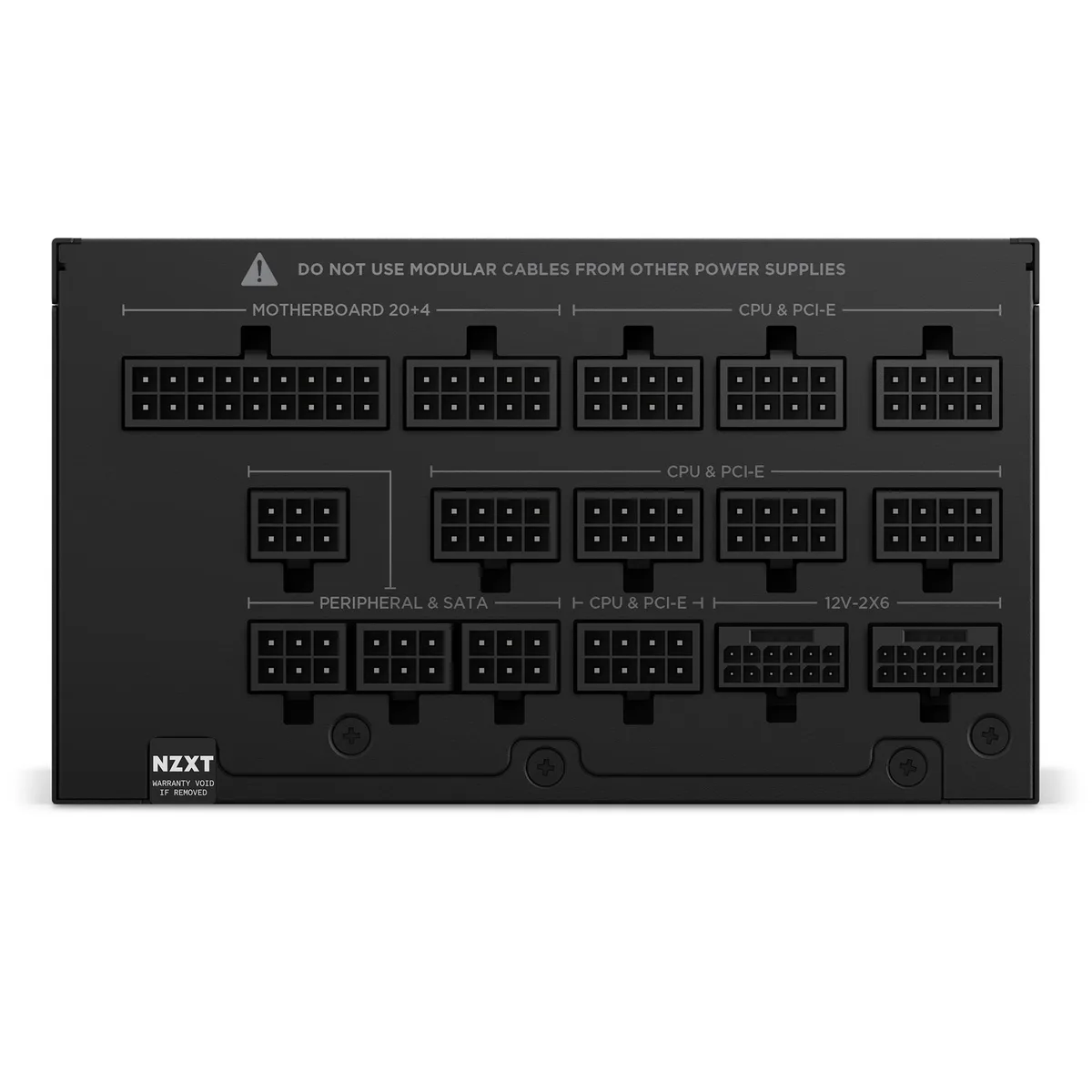

Connectors24-pin ATX Power Cable: 1
4+4-pin CPU Power Cable: 1
8-pin CPU Power Cable: 1
6+2-pin PCIe Power Cable: 6
16-pin (12+4) 12V-2x6 Cable: 2
SATA Cable: 12
Peripherals Cable: 4
Dimensions150 x 86 x 180mm
Weight2.42 kg
Package ContentC1500 Platinum: 1
24-pin ATX Power Cable: 1 (600 mm with nylon sleeving)
4+4-pin CPU Power Cable: 1 (700 mm with nylon sleeving)
8-pin CPU Power Cable: 1 (700 mm with nylon sleeving)
6+2-pin PCIe Power Cable: 6 (650 mm with nylon sleeving)
16-pin (12+4) 12V-2x6 PCIe Cable: 2 (650 mm with nylon sleeving)
SATA Cable: 3 (500 + 150 mm with nylon sleeving)
Peripherals Cable: 1 (500 + 150 mm with nylon sleeving)
6-32 Screws: 4
AC Power Cord: 1
Shipping weight4.90 kg
Package size330 × 216 × 142 mm

Questions about this item

How long is the magnetic levitation fan rated to run before it needs replacement?

The fan is covered by the unit's mean time between failures rating of over 100,000 hours.

Which protection circuit activates first when the +12V rail sustains loads near its 125 A maximum?

Over current protection on the +12V rail will trip before the overall over power protection engages.

Does the 140 mm magnetic levitation fan stay off under continuous load or only at idle?

Zero fan mode operates only at low loads; the fan spins once power draw exceeds the internal temperature threshold.
