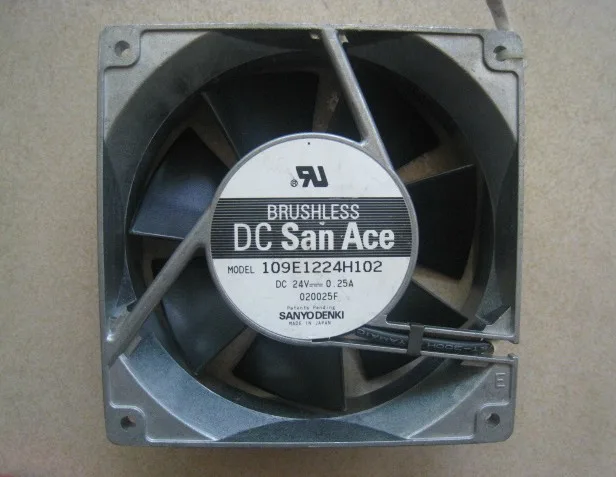

Gray square 120mm cooling fan 38mm thick no LED

OEM Industries

OEM Industries 109E1224H102 120x38mm 24V 0.25A CPU cooler

SKU CH-9YXA-H06T6

A 120 mm by 38 mm square cooling fan operating at 24 V and 0.25 A for inverter or converter applications

  • ColorGray
  • TypeFan only
  • Fan Size120mm
  • LEDNo
  • 120 mm square frame fits standard 120 mm mounts
  • 38 mm thickness provides high static pressure for dense heatsinks
  • 24 V 0.25 A motor runs directly from industrial power rails
  • SANYO 109E1224H102 design built for inverter and converter cooling
  • Gray fan-only unit with no LED keeps build clean

Square 120 mm fan for inverter cooling

This 120 mm square cooling fan from SANYO carries the model number 109E1224H102 and is supplied new in a grey finish. It is a fan-only unit without LED lighting, intended for integrators who need a replacement airflow component for industrial inverter or converter equipment. The 38 mm frame depth matches the standard 12038 footprint used in many legacy chassis.

24 V DC power requirement limits direct PC use

The motor is rated for 24 V at 0.25 A, so it cannot be powered from a typical 12 V motherboard header or standard PC fan controller without a separate voltage source. Wiring must accommodate the 24 V supply and the 0.25 A current draw, and the two-wire lead provides no PWM speed signal or tachometer feedback to the host system. Builders expecting 12 V operation or motherboard monitoring will find the electrical interface incompatible.

Verify voltage source

Confirm that your inverter or converter enclosure delivers a stable 24 V DC rail capable of at least 0.25 A and that the 120 mm by 38 mm square frame fits the existing cut-out and screw pattern. The lack of a PWM or sense wire means speed cannot be regulated or monitored by a PC motherboard, so the fan will run at full speed whenever power is applied. Ensure the mechanical depth and electrical connector suit the target equipment.

Highlights

  • 120 mm square frame fits standard 120 mm mounts
  • 38 mm thickness provides high static pressure for dense heatsinks
  • 24 V 0.25 A motor runs directly from industrial power rails
  • SANYO 109E1224H102 design built for inverter and converter cooling
  • Gray fan-only unit with no LED keeps build clean

Specifications

Model109E1224H102
ColorGray
TypeFan only
Fan Size120mm
LEDNo

Questions about this item

What does the 120x38 mm size mean for fitting this fan in my case?

The fan measures 120 mm square and 38 mm thick, so it needs a 120 mm mounting pattern with at least 38 mm clearance from the panel or nearby components.

How does the 24 V 0.25 A rating affect everyday cooling performance?

At 24 V and 0.25 A the motor draws about 6 W, giving a steady airflow suited for inverter or converter cooling rather than high-output CPU loads.

What power connector standard does the 24 V 0.25 A fan use?

The unit is supplied as a bare fan only; the 24 V supply wires must be matched to your system's 24 V header or an external 24 V source with the correct polarity.
