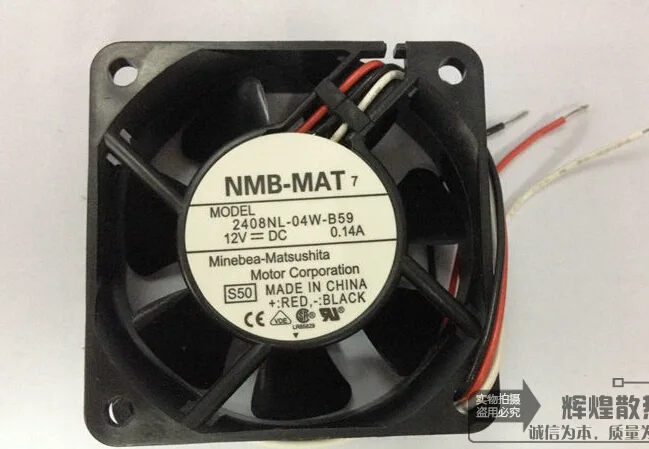

Black 60mm ball-bearing fan with three wires

OEM Industries

OEM Industries 2408NL-04W-B59 60mm Ball Bearing Fan

SKU CH-N9VC-28AHD

60 mm ball-bearing fan delivers 12 V airflow for projectors and cases with a 180,000-hour MTTF

  • ColorBlack
  • TypeFan only
  • Fan Size60mm
  • Bearing TypeBall
  • Power Connector3 Wires
  • LEDNo
  • 60 mm frame fits tight chassis spaces
  • Ball bearing rated for 180000 hours MTTF
  • 12 V 0.14 A keeps power draw low
  • Three-wire connector enables speed monitoring
  • Black finish suits discreet builds

Compact 60 mm ball-bearing fan

The OEM Industries 2408NL-04W-B59 is a 60 mm frame fan built with a dual ball-bearing assembly for continuous operation. It draws 12 V at 0.14 A through a three-wire lead that supplies power and a tachometer signal. The black housing contains no illumination and is intended as a direct replacement in projector enclosures or tight chassis.

Three-wire 12 V control limits

The three-wire interface provides speed feedback but lacks PWM input, so voltage regulation is the only way to modulate rpm. At 0.14 A the current draw is low, yet the header must still supply a stable 12 V rail; boards that only offer 5 V or current-limited headers will not start the motor reliably. No onboard controller or temperature curve is included.

Upgrades sleeve-bearing 60 mm units

This unit replaces sleeve-bearing fans of the same 60 mm footprint where longer service life is required. The 180000 h MTTF rating marks the jump as worthwhile for equipment that runs continuously, such as projectors or always-on servers. It is not suited for builds needing PWM speed curves, larger frame sizes, or RGB lighting.

Highlights

  • 60 mm frame fits tight chassis spaces
  • Ball bearing rated for 180000 hours MTTF
  • 12 V 0.14 A keeps power draw low
  • Three-wire connector enables speed monitoring
  • Black finish suits discreet builds

Specifications

Model2408NL-04W-B59
ColorBlack
TypeFan only
Fan Size60mm
Bearing TypeBall
Power Connector3 Wires
LEDNo

Questions about this item

How do I know the 60 mm 3-wire ball-bearing version is the right one for my build?

Match the 60 mm frame, 12 V 0.14 A rating and three-wire connector to your header; the 2408NL-04W-B59 model code confirms the exact variant.

What does the 180 000 hour MTTF figure mean once the fan is running in my case?

It indicates a design target of roughly 20 years of continuous operation before half the units would be expected to fail.

What does the three-wire connection actually control on this fan?

The third wire carries a tachometer signal so the motherboard can monitor speed; voltage on the first two wires still sets the fan speed.
