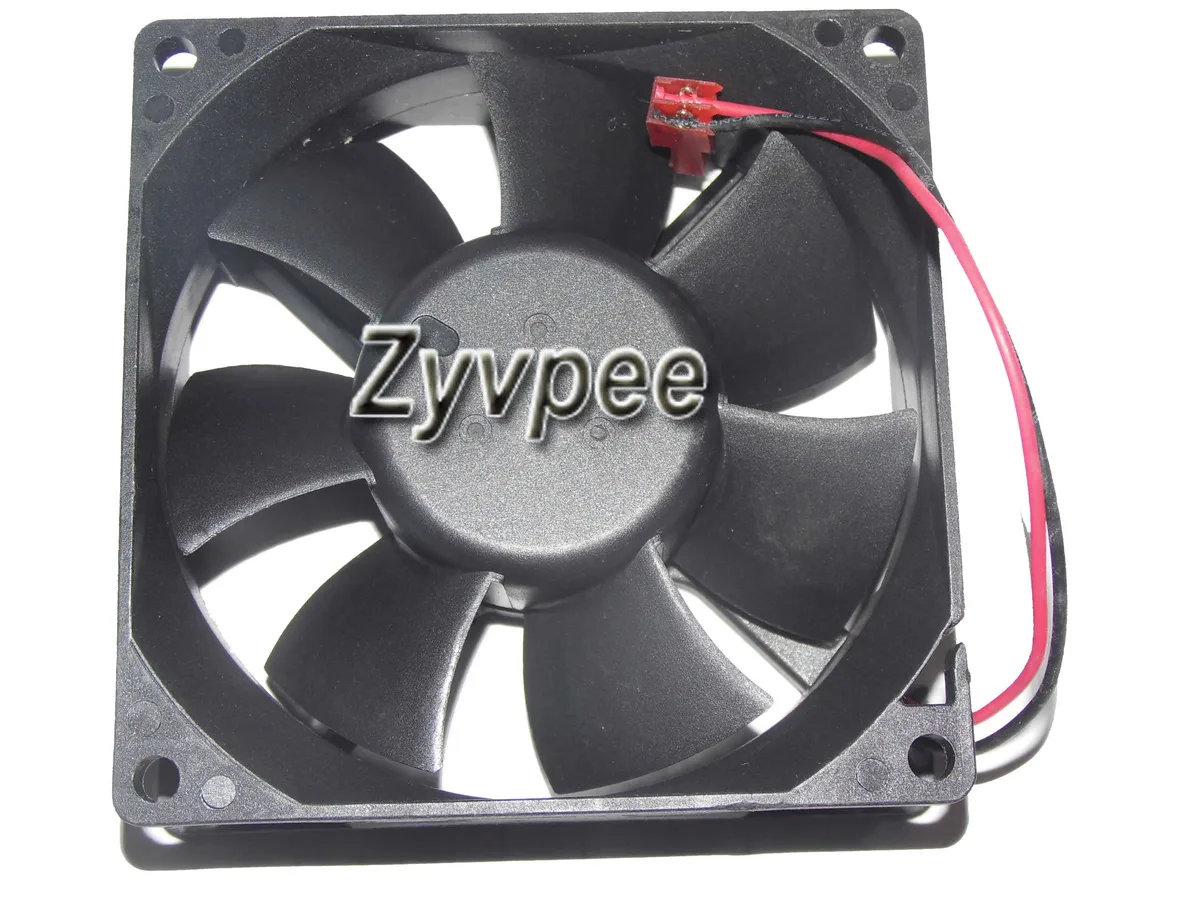

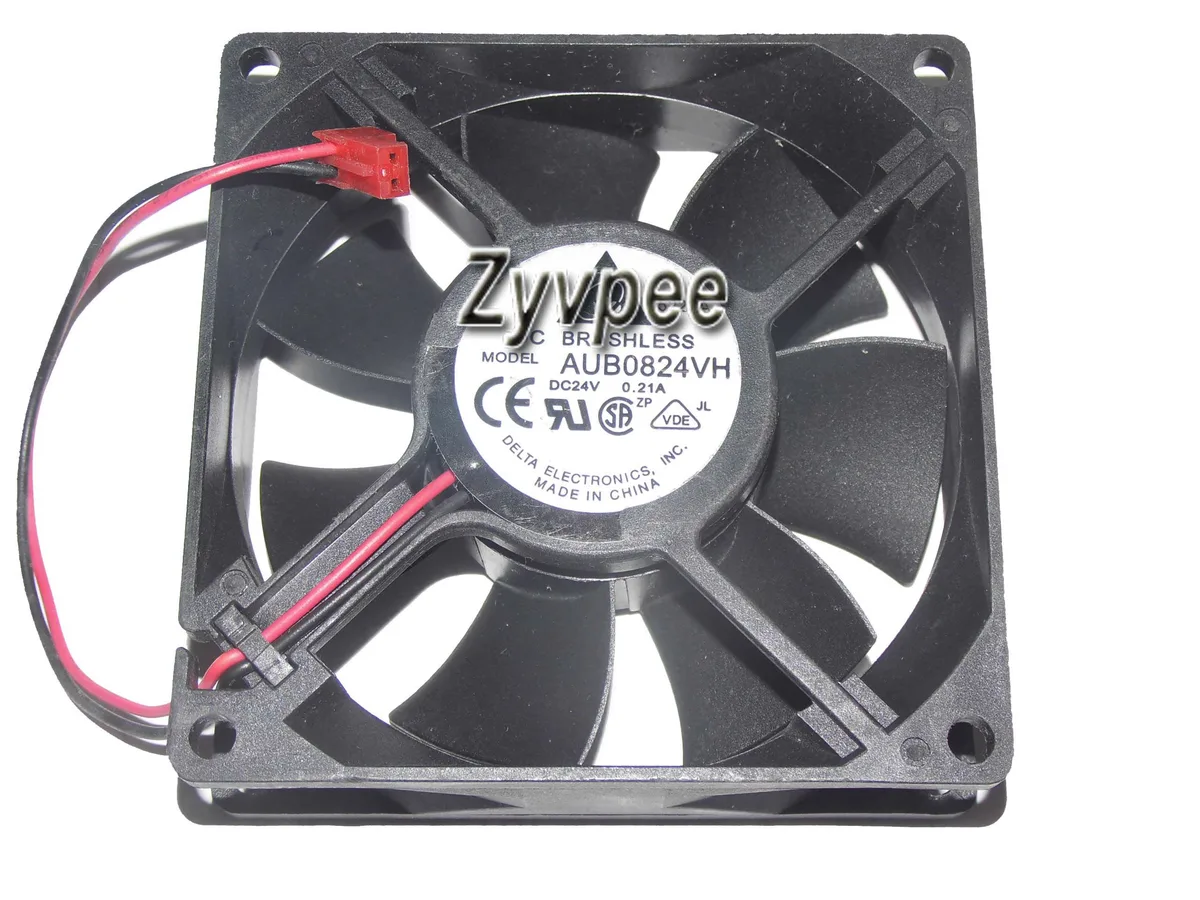

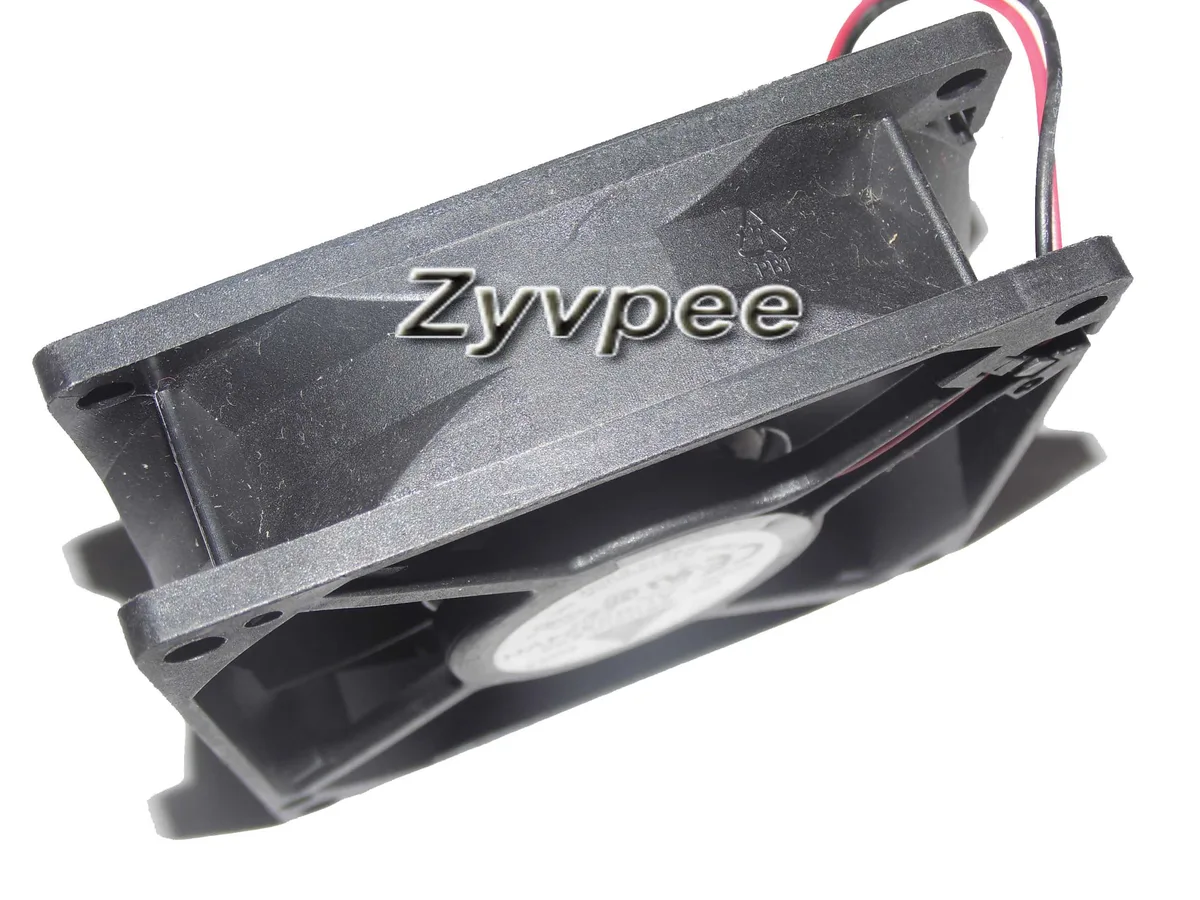

Black 80mm square fan with ball bearing and two wires

OEM Industries

OEM Industries AUB0824VH 80mm 24V .21A Ball Bearing Fan

SKU CH-Q839-BZN1Q

An 80 mm square DC fan with ball bearing, 24 V .21 A rating and two-wire power for inverter converter cooling

  • ColorBlack
  • TypeFan only
  • Fan Size80mm
  • Bearing TypeBall
  • Power Connector2 Wires
  • LEDNo
  • Ball-bearing reliability for long service life
  • 24 V .21 A operation for stable power draw
  • 80 mm square frame fits standard mounts
  • Two-wire 2-pin connector simplifies wiring
  • Delta 8025 design built for inverter converter use

80mm 24V Ball Bearing Fan

The OEM Industries AUB0824VH is an 80mm square fan designed for 24V DC operation with a 0.21A current draw. It uses a ball bearing for reliable rotation and terminates in a two-wire, two-pin power connector. The unit is sold as a fan only without integrated lighting.

Fits 80mm Mounts with 24V Supply

This cooler fits standard 80mm by 80mm mounting holes with a 25mm thickness profile. It requires a 24V DC power source capable of delivering at least 0.21A and a compatible two-pin header or wiring adapter. The two-wire design provides power without speed reporting or PWM control, freeing the builder from needing a four-pin motherboard header.

No Accessories or Software Included

The package contains the fan unit alone; no mounting screws, cables, adapters or software utilities are bundled. Installation depends entirely on existing case or heatsink hardware and the availability of a suitable 24V two-pin power connection. Builders needing speed monitoring, variable control or LED illumination must source those features separately.

Highlights

  • Ball-bearing reliability for long service life
  • 24 V .21 A operation for stable power draw
  • 80 mm square frame fits standard mounts
  • Two-wire 2-pin connector simplifies wiring
  • Delta 8025 design built for inverter converter use

Specifications

ModelAUB0824VH
ColorBlack
TypeFan only
Fan Size80mm
Bearing TypeBall
Power Connector2 Wires
LEDNo

Questions about this item

How much current does the 24V motor draw under continuous load?

The motor is rated at 0.21 A at 24 V, so sustained operation will draw that current.

What is the acoustic and thermal profile when the Delta 8025 runs 24/7?

Ball-bearing construction keeps friction low, and the 80 mm frame moves air steadily without excessive noise or heat buildup.

Which power header must my system provide for the two-wire connector?

A 24 V DC source with a two-pin header is required to power the fan.
