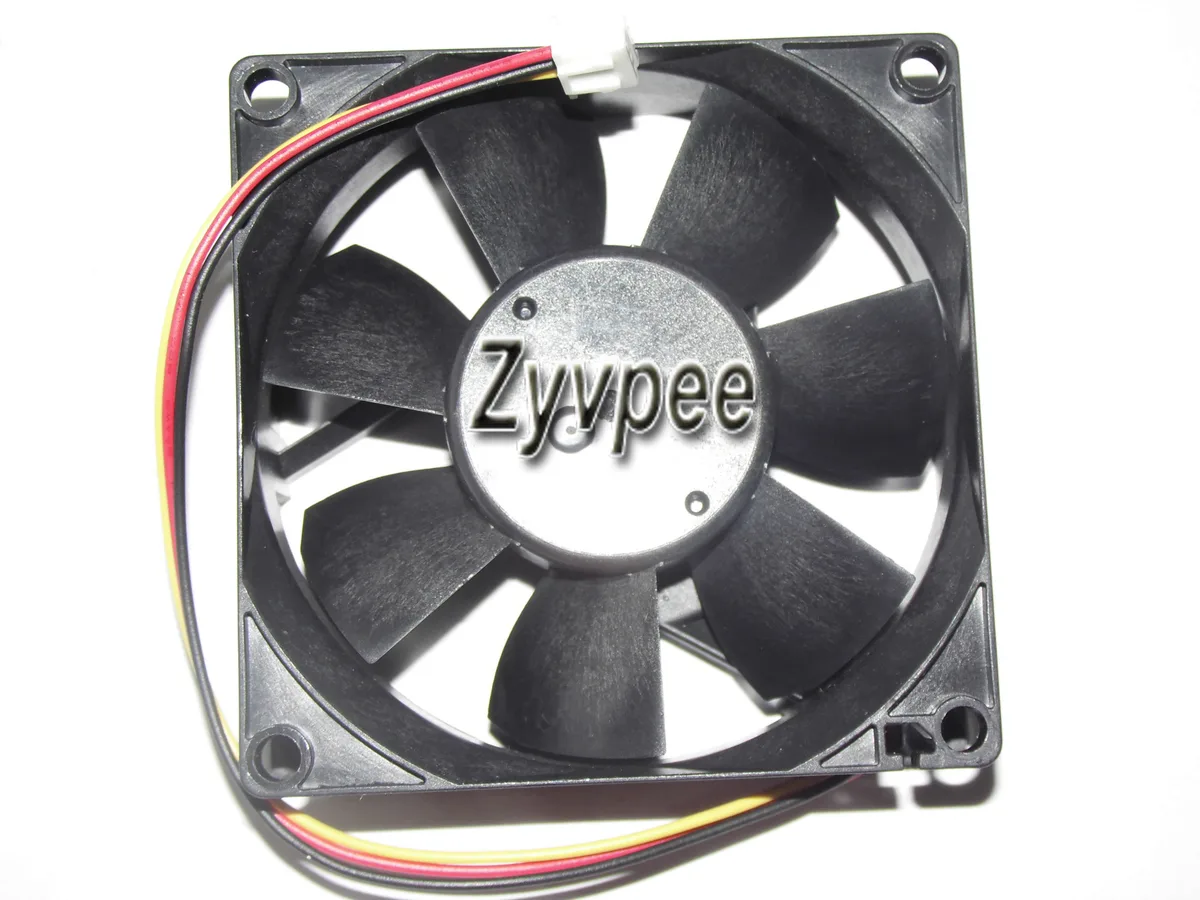

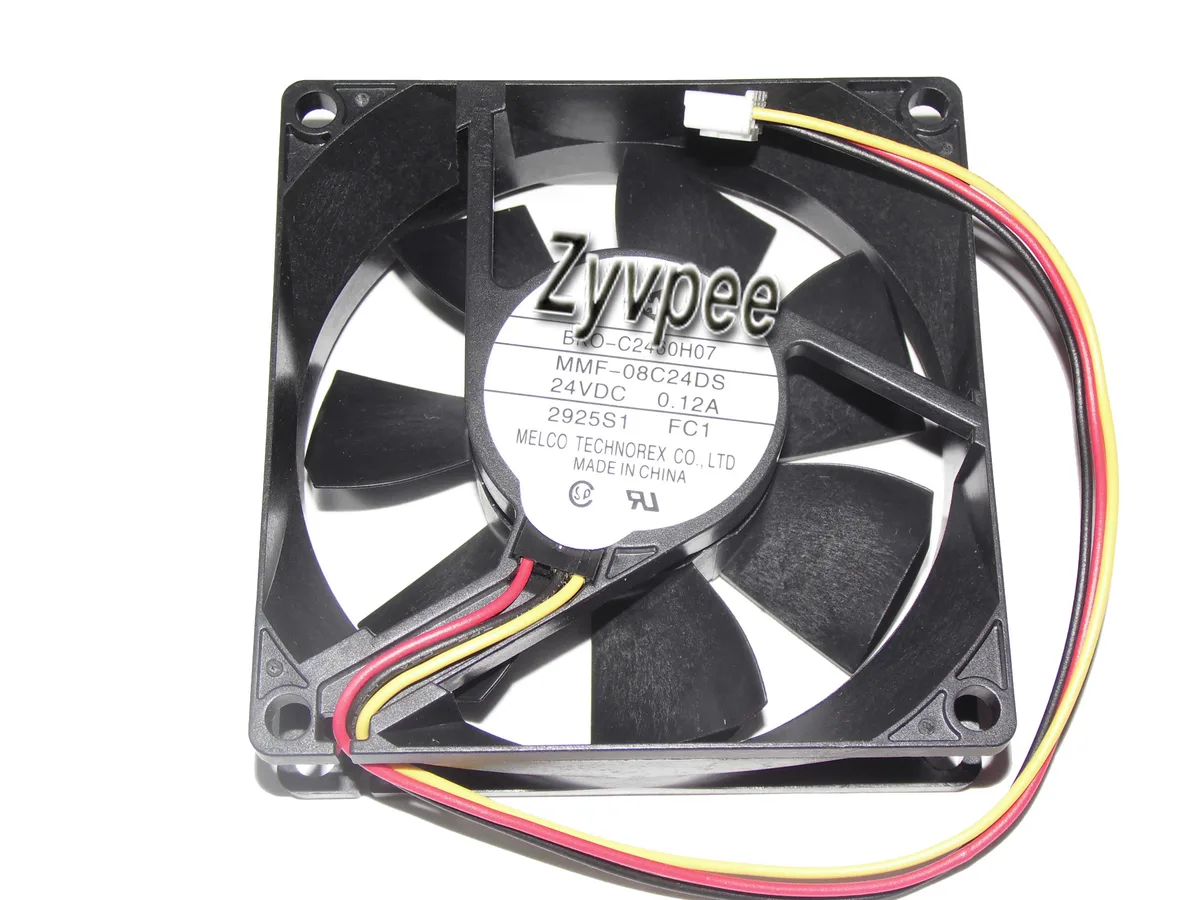

Black 80mm square fan with 3-pin connector

OEM Industries

OEM Industries MMF-08C24DS FC1 80mm 24V 0.12A 3-Pin Fan

SKU CH-QKYW-YYSSG

80 mm dual-ball-bearing fan runs on 24 V at 0.12 A with a 3-pin connector for YASKAWA and ABB inverter cooling

  • ColorBlack
  • TypeFan only
  • Fan Size80mm
  • Bearing Type2 Ball
  • Power Connector3 Pin
  • LEDNo
  • Original Melco design ensures industrial-grade reliability
  • 24 V 0.12 A rating delivers efficient low-power cooling
  • 80 mm x 25 mm frame fits standard 80 mm mounts
  • Dual-ball bearing extends operating life under continuous duty
  • Three-pin connector provides tachometer feedback for monitoring

Industrial 80 mm 24 V cooling fan

This 80 mm square fan operates on 24 V DC at 0.12 A and uses a three-pin connector. It is built for inverter cabinets and PLC enclosures such as YASKAWA and ABB systems where reliable airflow is required in a compact frame. The two-ball bearing design supports continuous duty in industrial environments.

Verify voltage and connector before ordering

Confirm that your equipment supplies 24 V DC and accepts a three-pin fan header with the same pin-out. The fan draws 0.12 A, so the power source must deliver at least that current. Check the mounting hole spacing on your chassis to match the 80 mm frame.

Fits standard 80 mm fan cut-outs

The 80 by 25 mm footprint slots into common industrial fan apertures without modification. The three-wire lead connects directly to compatible controller boards, freeing internal space otherwise needed for larger cooling assemblies. No LED lighting or PWM signalling is present, keeping the wiring simple for inverter applications.

Highlights

  • Original Melco design ensures industrial-grade reliability
  • 24 V 0.12 A rating delivers efficient low-power cooling
  • 80 mm x 25 mm frame fits standard 80 mm mounts
  • Dual-ball bearing extends operating life under continuous duty
  • Three-pin connector provides tachometer feedback for monitoring

Specifications

ModelMMF-08C24DS FC1
ColorBlack
TypeFan only
Fan Size80mm
Bearing Type2 Ball
Power Connector3 Pin
LEDNo

Questions about this item

What comes in the box and do I need to buy a power adapter separately?

The package contains the 80 mm MMF-08C24DS FC1 fan with its 3-pin lead; a 24 V power source is not included and must be supplied by the host equipment.

How do I choose between the listed model codes such as BKO-C2460H07?

BKO-C2460H07 is the manufacturer part reference for the same 24 V 0.12 A unit; select the code that matches your YASKAWA or ABB inverter service manual.

What does the 0.12 A rating mean once the fan is installed in an inverter cabinet?

At 24 V the fan draws 0.12 A, so the inverter's fan header must provide at least that current for reliable start-up and continuous operation.
