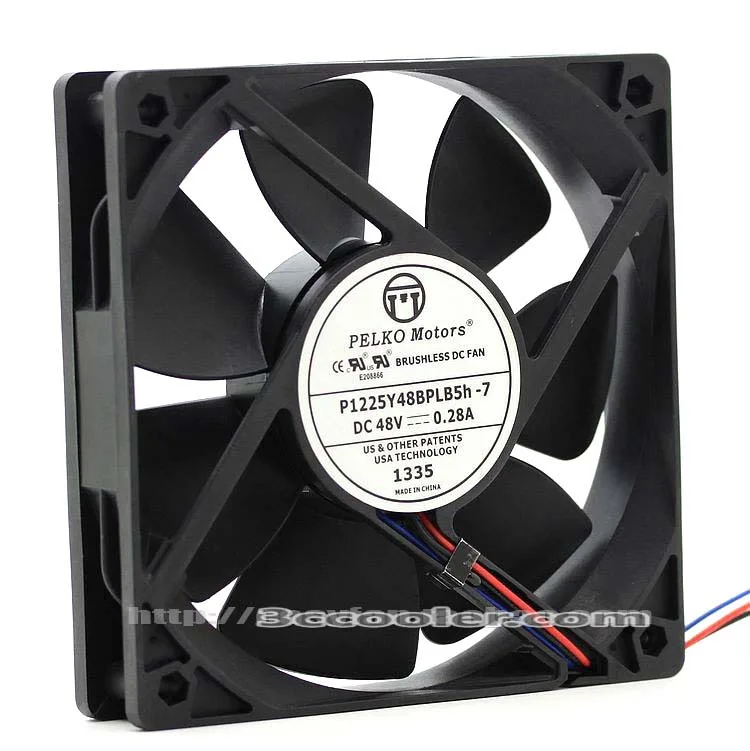

Black 120mm square DC brushless fan with ball bearing and 3-pin connector

OEM Industries

OEM Industries P1225Y48BPLB5h-7 120mm 48V 0.28A Ball Bearing Fan

SKU CH-GMDR-6HSR7

A 120 mm square 48 V ball-bearing fan delivering 13.44 W with a 3-pin connector

  • ColorBlack
  • TypeFan only
  • Fan Size120mm
  • Bearing TypeBall
  • Power Connector3 Pin
  • LEDNo
  • 48 V operation suits industrial and server chassis
  • 28 A draw keeps power use to 13.44 W
  • Dual ball bearings extend operating life
  • 120 mm square frame fits standard 12025 mounts
  • Three-pin connector enables speed monitoring

Industrial 48V Cooling Fan

The OEM Industries P1225Y48BPLB5h-7 is a 120mm square fan designed for 48V DC systems such as inverters and industrial enclosures. It draws 0.28A for a rated 13.44W of power. The three-pin connector supplies tachometer feedback for speed monitoring. This unit suits engineers integrating forced-air cooling into 48V infrastructure.

Ball Bearing Build and 3-Pin Mount

Dual ball bearings support continuous operation in vibration-prone cabinets. The black 120mm by 120mm by 25mm frame fits standard 120mm mounting holes with four corner screws. Three wires carry power, ground and RPM signal without PWM control. No LEDs are present, keeping the assembly suitable for sterile or light-sensitive environments.

13.44W Thermal Profile

At 48V the motor runs at a steady 13.44W, delivering consistent airflow for component-level heat removal. Ball bearings produce a predictable acoustic signature that remains stable over long duty cycles. The fixed-voltage design means speed and noise do not vary with a PWM curve. Installers should verify that the 48V rail can sustain 0.28A per fan.

Highlights

  • 48 V operation suits industrial and server chassis
  • 28 A draw keeps power use to 13.44 W
  • Dual ball bearings extend operating life
  • 120 mm square frame fits standard 12025 mounts
  • Three-pin connector enables speed monitoring

Specifications

ModelP1225Y48BPLB5h-7
ColorBlack
TypeFan only
Fan Size120mm
Bearing TypeBall
Power Connector3 Pin
LEDNo

Questions about this item

What voltage does the 3-pin connector on the P1225Y48BPLB5h-7 fan require?

The 3-pin connector is rated for 48 V DC and draws 0.28 A, giving a 13.44 W power draw.

What are the exact mounting dimensions for the P1225Y48BPLB5h-7?

The frame measures 120 mm × 120 mm × 25 mm, matching the standard 12025 square footprint.

How is the P1225Y48BPLB5h-7 wired, and which lead is often misidentified?

It uses a 3-wire, 3-pin plug; the third wire is the tachometer signal, not a PWM control line, so connect it to a monitoring header, not a 4-pin PWM header.
