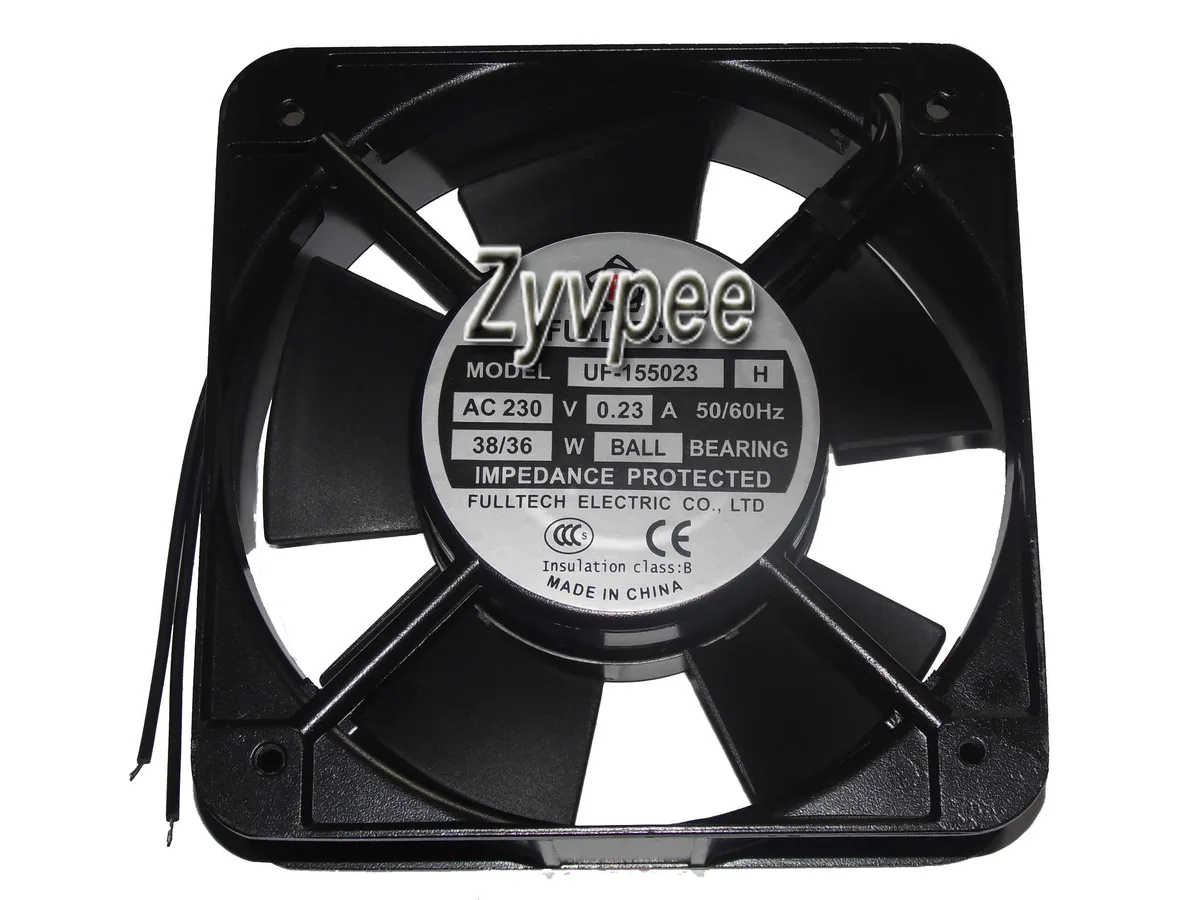

Black 150mm axial fan with two-wire power connector

OEM Industries

OEM Industries UF-155023 150mm 2 Ball Bearing Fan

SKU CH-1MYT-Y18D8

150 mm axial fan with 2-ball bearings runs on 230 V AC at 0.23 A, 50–60 Hz and draws 36–38 W for case or box cooling

  • ColorBlack
  • TypeFan only
  • Fan Size150mm
  • Bearing Type2 Ball
  • Power Connector2 Wires
  • LEDNo
  • 150 mm axial fan moves high air volume for case cooling
  • Two-wire AC 230 V connection simplifies mains-powered installs
  • 36–38 W draw keeps running costs predictable
  • 2 ball bearing design extends service life under continuous use
  • 50–60 Hz rated for stable operation on standard power grids

150 mm AC axial fan for case cooling

This 150 mm axial fan runs directly from 230 V AC mains power at 50 to 60 Hz. It draws 0.23 A and consumes between 36 and 38 W. The unit uses a two-ball bearing and a simple two-wire connection without LED lighting.

Continuous mains operation with two-ball bearing

The fan is designed for sustained use on AC power rather than short bursts. Its two-ball bearing supports longer running life under constant load compared with sleeve alternatives. Power draw remains steady within the 36 to 38 W range during extended operation.

Verify mains voltage and mounting space before

Confirm your installation can supply 230 V AC at the required frequency and that the chassis has a 150 mm mounting aperture. The two-wire lead requires a suitable mains-rated connector or terminal block. This fan is not suited for low-voltage DC headers or PWM control.

Highlights

  • 150 mm axial fan moves high air volume for case cooling
  • Two-wire AC 230 V connection simplifies mains-powered installs
  • 36–38 W draw keeps running costs predictable
  • 2 ball bearing design extends service life under continuous use
  • 50–60 Hz rated for stable operation on standard power grids

Specifications

ModelUF-155023
ColorBlack
TypeFan only
Fan Size150mm
Bearing Type2 Ball
Power Connector2 Wires
LEDNo

Questions about this item

How much noise and heat does the UF-155023 150mm 2 Ball Bearing Fan produce when running continuously on AC 230V?

The fan draws 0.23A at 36–38W on 50–60Hz mains. Ball bearings typically run quieter than sleeve types at speed, but no dBA or temperature-rise figures are published for this model.

What power source and connector does the UF-155023 need to operate?

It requires a mains AC 230V supply (50–60Hz) and connects via two bare wires; no PWM, Molex or motherboard header is included.

Will the 150mm frame and two-wire feed fit the cut-out and wiring of my older 15050 case fan?

The 150mm square frame matches the 15050 footprint, and the two-wire lead can be spliced to existing AC wiring, but verify hole spacing and voltage before installing.
