A bare M.2 2280 circuit board with black components and gold edge connector

ONEBOOM

ONEBOOM X500 4TB PCIe 5.0 internal SSD

SKU CH-32YC-7T63H

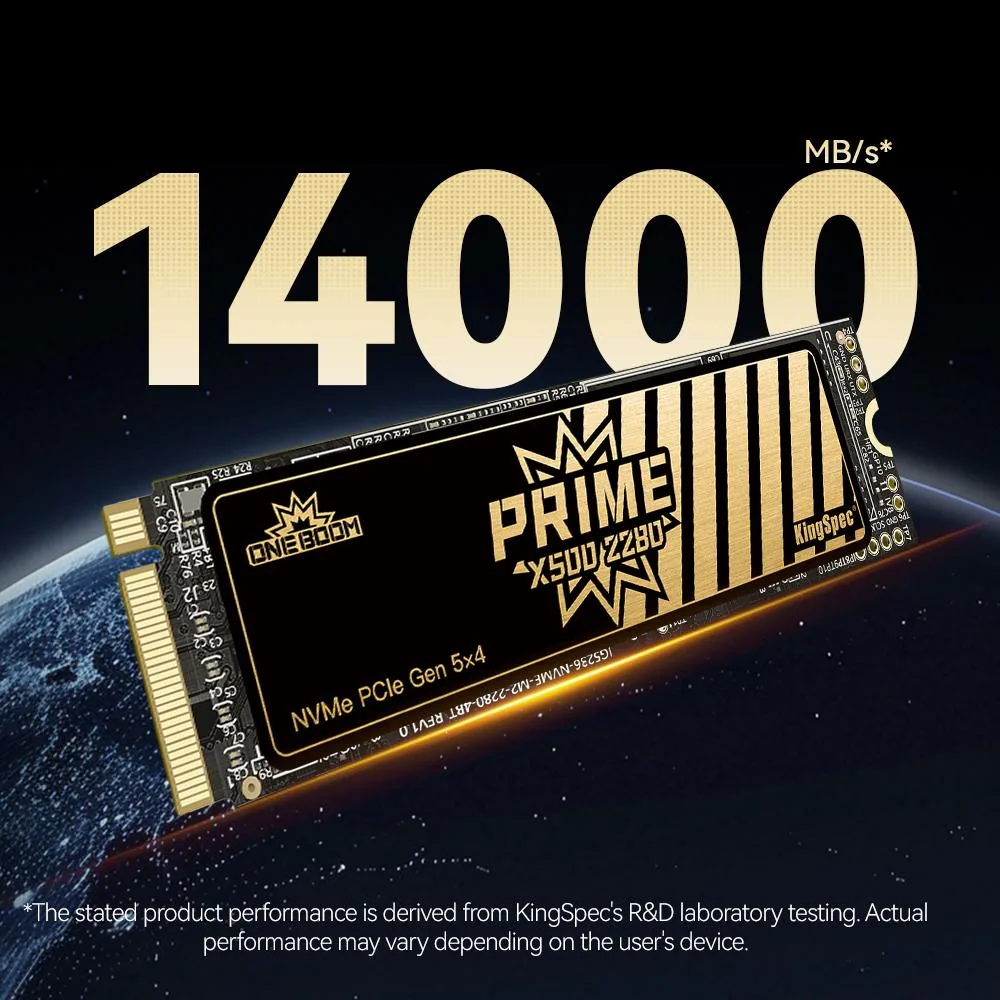

4TB PCIe 5.0 x4 NVMe SSD with 14000 MB/s sequential read, 13000 MB/s write and 2400 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity4TB
  • Memory Components3D TLC
  • InterfacePCI-Express 5.0 x4
  • Sequential reads up to 14000 MB/s slash load times
  • Sequential writes up to 13000 MB/s accelerate heavy file saves
  • 4TB capacity stores large projects and game libraries
  • 2400 TBW endurance rating supports intensive daily workloads
  • 6 W idle draw keeps system power low

4TB PCIe 5.0 NVMe SSD

The ONEBOOM X500 4TB is an M.2 2280 internal solid-state drive that uses a PCIe 5.0 x4 interface and the NVMe 2.0 protocol. It delivers sequential reads up to 14000 MBps and writes up to 13000 MBps with a 4GB DRAM cache.

Ideal for AI, gaming and heavy workstations

This drive suits professionals and enthusiasts who need high bandwidth for large datasets, real-time rendering or fast game loading. Users with older motherboards limited to PCIe 4.0 or 3.0 will not reach the advertised speeds and should consider a Gen4 alternative.

No heatsink included, plan your cooling

The X500 ships without a heatsink, so sustained peak throughput depends on motherboard-integrated cooling or an aftermarket solution. The 2400 TBW endurance rating and 1.6 W idle power reflect the 3D TLC NAND and DRAM cache configuration.

Highlights

  • Sequential reads up to 14000 MB/s slash load times
  • Sequential writes up to 13000 MB/s accelerate heavy file saves
  • 4TB capacity stores large projects and game libraries
  • 2400 TBW endurance rating supports intensive daily workloads
  • 6 W idle draw keeps system power low

Specifications

BrandONEBOOM
SeriesX500 Series
ModelX500 2280
Part NumberX500-4TB 2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity4TB
Memory Components3D TLC
InterfacePCI-Express 5.0 x4
ProtocolNVMe 2.0
Cache4GB DRAM
Max Sequential ReadUp to 14000 MBps
Max Sequential WriteUp to 13000 MBps
4KB Random ReadUp to 2043,000 IOPS
4KB Random WriteUp to 1963,000 IOPS
Terabytes Written (TBW)2400TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)1.6W
Power Consumption (Active)11.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
Height80.0mm
Width22.0mm
Depth3.58mm
Weight50g

Questions about this item

Does this drive include a heatsink or will I need to add one?

The X500 4TB ships without a heatsink; your motherboard’s M.2 shield or an aftermarket sink is recommended for sustained Gen5 speeds.

What motherboard slot and firmware do I need for full performance?

A PCIe 5.0 x4 M.2 2280 slot and NVMe 2.0 support are required to reach the rated 14000 MB/s read and 13000 MB/s write.

How much power does the drive draw at idle and what endurance rating does it carry?

Idle power is 1.6 W and the drive is rated for 2400 TBW with a 1000000-hour MTBF.
