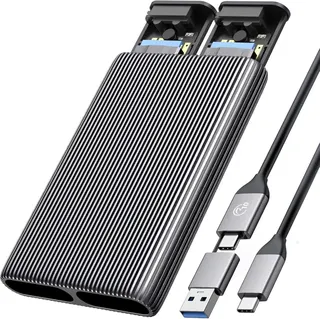

Gray aluminum dual-slot M.2 enclosure with USB-C cable

Orico

Orico M.2 Dual-Slot NVMe SATA Drive Enclosure USB 3.1 Type-C 2230-2280

SKU CH-ZCMG-KVR2W MPN M.2

Holds one NVMe and one SATA M.2 SSD up to 4 TB each, connects via USB 3.1 Type-C with tool-free aluminium cooling

  • ColorGray
  • TypeEnclosure
  • MaterialAluminum
  • External InterfaceUSB 3.1 Type-C
  • HDD Count SupportedDual SSD
  • Number of Bay2 Bay

HDD Count Supported Dual SSD

Number of Bay 2 Bay

Size M.2 NVMe / NGFF SSD

  • M.2 NGFF SSD
  • M.2 NVMe / NGFF SSD
  • M.2 NVMe 40Gbps
  • M.2 NVME SSD

Model 2 Bay

  • 1 Bay
  • 2 Bay
  • With Cover

Struck-through versions exist but are not stocked here.

  • Dual independent slots for NVMe and SATA drives
  • 10 Gbps USB 3.1 Type-C for NVMe, 6 Gbps for SATA
  • Tool-free install with rubber cap fixation
  • Aluminium finned case with heatsinks and thermal pads
  • Auto sleep after 10 minutes extends drive life

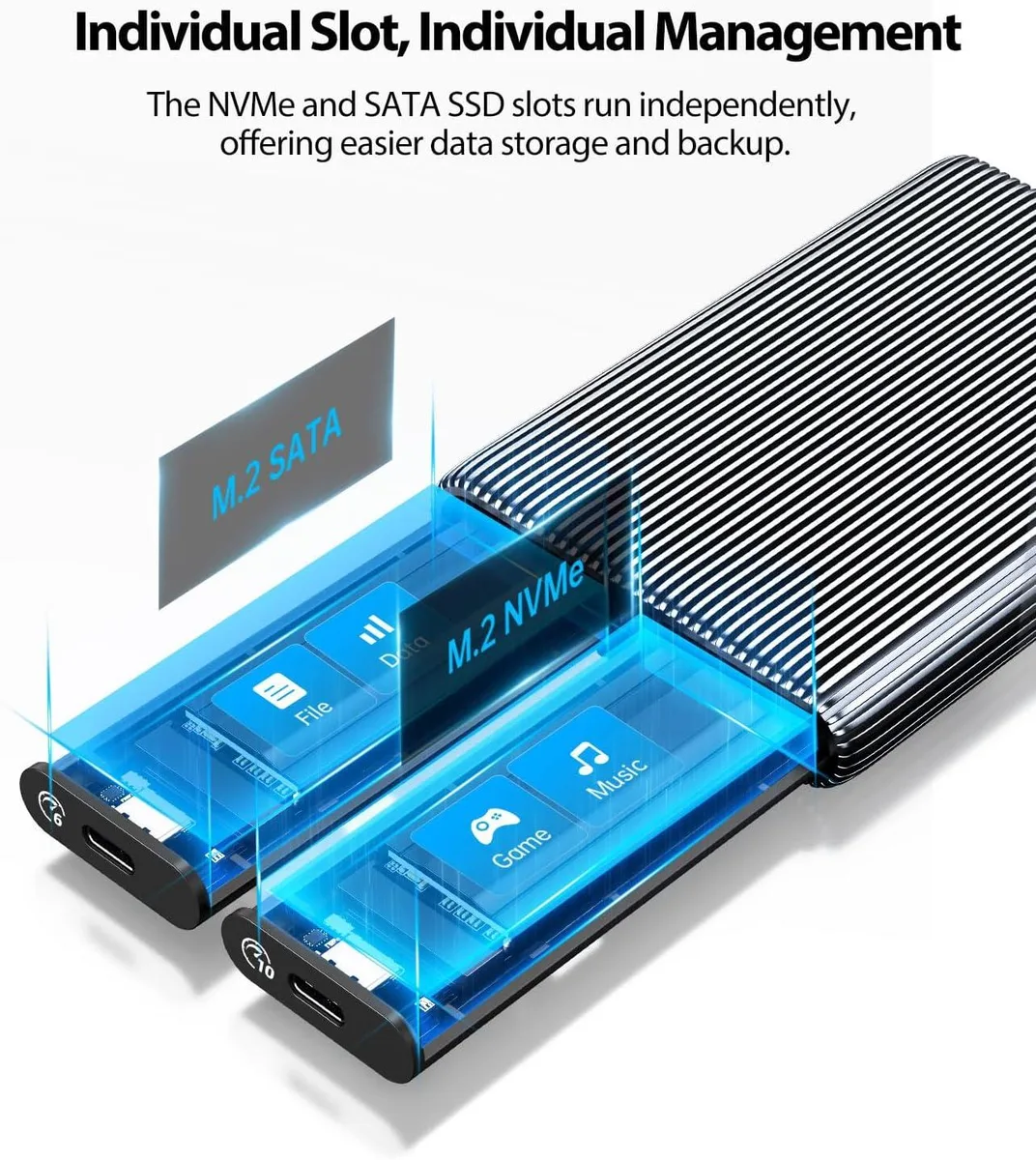

Dual NVMe and SATA support

The enclosure holds one M.2 NVMe PCIe SSD and one M.2 SATA SSD simultaneously. Each slot operates independently with its own bandwidth allocation. The NVMe bay runs at up to 10 Gbps while the SATA bay runs at 6 Gbps. Combined capacity can reach 8 TB across both drives.

Tool-free aluminium design

A striped fin aluminium shell acts as a heatsink for both drives. Two thermal pads and two metal heat-dissipation vests are included to transfer heat away from high-speed SSDs. No screws are required; the SSDs are secured with rubber caps. The unit draws power directly from the USB 3.1 Type-C host connection.

Broad OS and console compatibility

Works with Windows 10, 8.1, 8, 7, XP, Vista, macOS, Linux and Chrome OS. Also recognised by PS3, PS4, PS4 Pro, Xbox 360, Xbox One and Raspberry Pi. An auto-sleep function stops drive activity after ten minutes of inactivity. Mac-formatted SSDs are not supported.

Highlights

  • Dual independent slots for NVMe and SATA drives
  • 10 Gbps USB 3.1 Type-C for NVMe, 6 Gbps for SATA
  • Tool-free install with rubber cap fixation
  • Aluminium finned case with heatsinks and thermal pads
  • Auto sleep after 10 minutes extends drive life

Specifications

BrandORICO
ColorGray
TypeEnclosure
MaterialAluminum
External InterfaceUSB 3.1 Type-C
HDD Count SupportedDual SSD
Number of Bay2 Bay
Maximum Capacity (per Bay)Up to 4TB

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

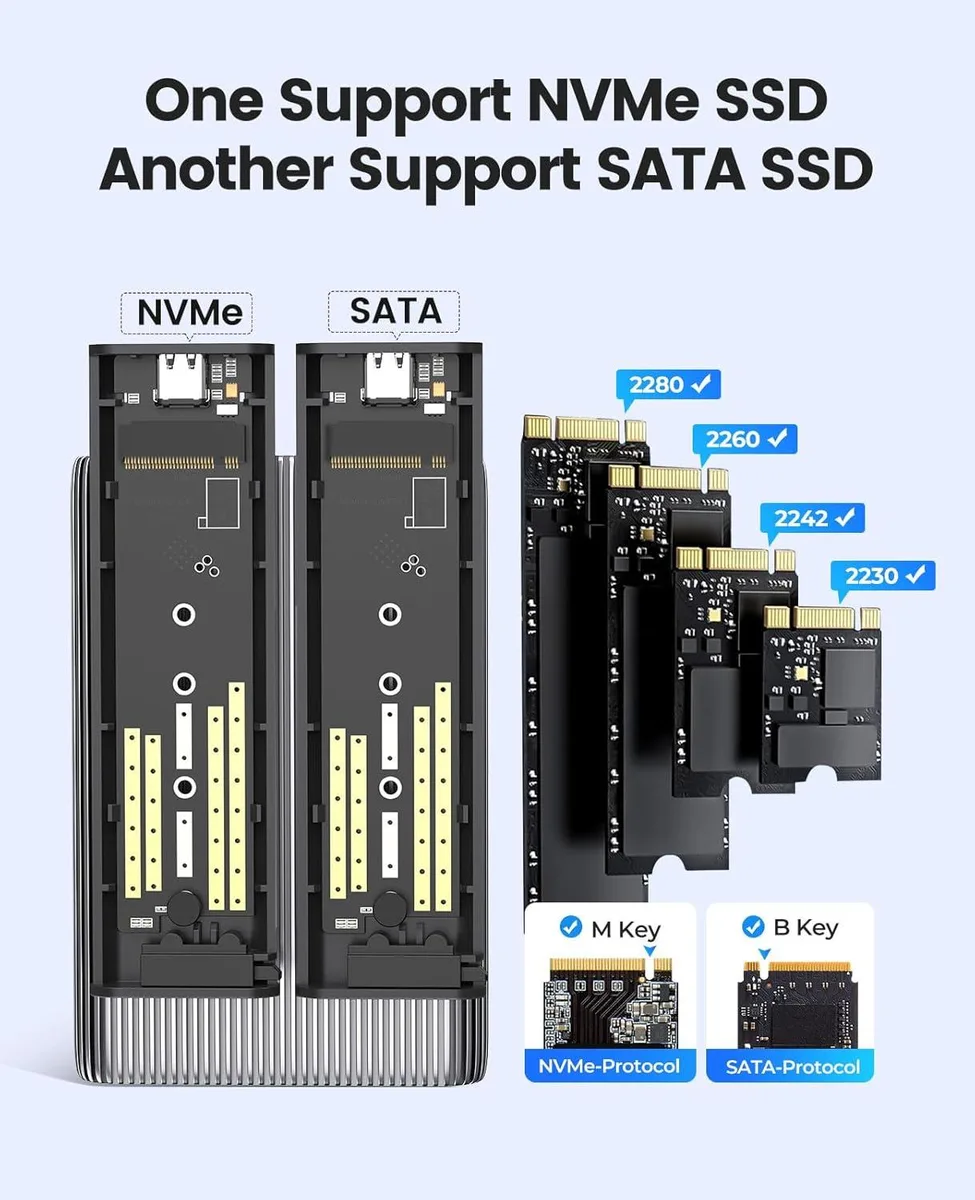

Which M.2 lengths does the 2230-2280 enclosure accept?

The dual-slot case accepts 2230, 2242, 2260 and 2280 drives in either bay.

How is the SSD secured without tools?

Insert the drive, then press the rubber cap over it to lock it in place.

What thermal parts may need replacing after heavy use?

The two silicone heat pads and the two aluminium heat sinks can be swapped if they degrade.
