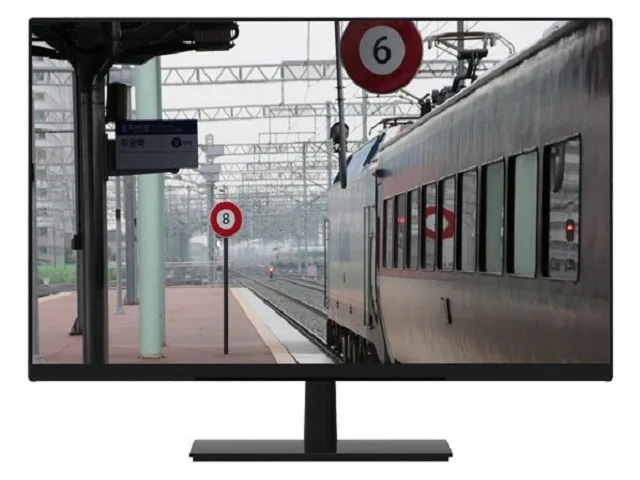

Black 23.8 inch LED monitor with plastic chassis and metal housing, 16:9 widescreen display

Orion Images

Orion Images 24RDHY Hybrid 23.8" Monitor

SKU CH-4PM7-8P8AV

A 23.8 inch Full HD LED monitor with TVI, CVI, AHD and CVBS auto-recognition for 24/7 surveillance use

  • Cabinet ColorBlack
  • Screen Size23.8"
  • LED BacklightYes
  • WidescreenYes
  • Maximum Resolution1920 x 1080
  • Refresh Rate60Hz
  • 8 inch Full HD screen shows sharp 1920 x 1080 detail
  • 250 cd/m2 brightness keeps images clear in bright rooms
  • 178 degree wide viewing angle maintains colour from the side
  • TVI CVI AHD CVBS auto recognition simplifies multi-camera setups
  • Built for 24 hour 365 day continuous surveillance operation

Surveillance Display Purpose

The Orion Images 24RDHY is a 23.8 inch Full HD monitor built for continuous security surveillance. It accepts analogue TVI, CVI, AHD and CVBS cameras plus a single HDMI source. The panel runs 24 hours a day, 365 days a year without consumer-grade duty-cycle limits.

Hybrid Input Compatibility

The decisive specification is the multi-format analogue input that auto-recognises TVI, CVI and AHD signals up to 5 megapixels alongside standard HDMI. Without that hybrid front-end the monitor cannot display footage from most existing coaxial camera installations.

Installation Notes

Mount the unit on a standard VESA bracket and connect each camera to the labelled BNC inputs; the on-screen menu detects the signal format automatically. The plastic chassis is lighter than all-metal models, so ensure the mount is rated for the weight. No built-in speakers or webcam are present, so plan separate audio if required.

Highlights

  • 8 inch Full HD screen shows sharp 1920 x 1080 detail
  • 250 cd/m2 brightness keeps images clear in bright rooms
  • 178 degree wide viewing angle maintains colour from the side
  • TVI CVI AHD CVBS auto recognition simplifies multi-camera setups
  • Built for 24 hour 365 day continuous surveillance operation

Specifications

Cabinet ColorBlack
Screen Size23.8"
LED BacklightYes
WidescreenYes
Maximum Resolution1920 x 1080
Refresh Rate60Hz
Viewing Angle178° (H) / 178° (V)
Display Colors16.7 Million
Brightness250 cd/m2
Contrast Ratio1,000:1
Aspect Ratio16:9
Response Time5 ms
Display TypeFHD
Input Video CompatibilityAnalog RGB, Digital
HDMI1
Thunderbolt 2No
3D Glasses IncludedNo
Built-in TV TunerNo
Built-in SpeakersNo
Built-in WebcamNo
VESA Compatibility - Mountable100 x 100mm

Questions about this item

What does the 250 cd/m² brightness mean for a surveillance setup?

The panel delivers 250 cd/m² typical brightness, adequate for indoor monitoring stations and control rooms where ambient light is controlled.

Which video interfaces are provided and what resolutions do they support?

Two analogue BNC inputs handle TVI up to 5 MP, CVI up to 4 MP and AHD up to 5 MP, while the single HDMI port accepts 1920 × 1080 digital sources.

What mounting options suit the 23.8-inch chassis?

The unit uses a standard VESA pattern on its metal-and-plastic housing, allowing wall or arm mounting in rack or desktop installations.
