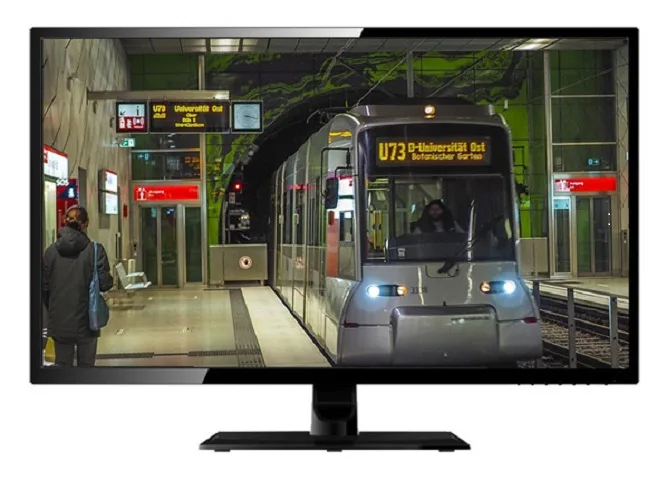

Black 27 inch LED monitor with BNC and HDMI ports

Orion Images

Orion Images 27RDHY Hybrid Surveillance 27" Monitor

SKU CH-73ZE-RPEAC

A 27-inch Full HD surveillance monitor with 250 cd/m² brightness, 178° viewing angles, and BNC plus HDMI inputs for TVI, CVI, AHD and CVBS signals

  • Cabinet ColorBlack
  • Screen Size27"
  • LED BacklightYes
  • WidescreenYes
  • Maximum Resolution1920 x 1080
  • Refresh Rate60Hz
  • 27-inch Full HD display with 1920 x 1080 resolution
  • 250 cd/m² brightness for clear surveillance viewing
  • 178° wide viewing angles ensure visibility from multiple positions
  • 60 Hz refresh rate and 5 ms response for smooth motion
  • Hybrid BNC and HDMI inputs support TVI, CVI, AHD and CVBS signals

27-Inch Hybrid Surveillance Monitor

The Orion Images 27RDHY is a 27-inch LED display built for continuous security monitoring. It delivers Full HD 1920 x 1080 resolution at a 60Hz refresh rate. Wide 178-degree viewing angles and 16.7 million colours ensure clear visibility from multiple positions. The unit carries FCC Class A certification for 24/7/365 commercial operation.

BNC and HDMI Connectivity for Mixed Systems

Two BNC inputs accept TVI, CVI, AHD and CVBS signals with automatic format recognition up to 5MP TVI, 4MP CVI and 5MP AHD. A single HDMI port adds a digital connection for PC or recorder output. Two BNC loop-through outputs allow the video signal to continue to a recorder or another monitor. A D-Sub port provides legacy analogue RGB or component input.

Upgrade from Basic CCTV Displays

This monitor replaces entry-level screens that lack hybrid analogue support or loop-through outputs. The jump is worthwhile when a site mixes analogue HD cameras and needs local viewing plus signal distribution. It is not suited for buyers who require higher pixel density, faster response times for gaming, or digital-only multi-monitor workstations.

Highlights

  • 27-inch Full HD display with 1920 x 1080 resolution
  • 250 cd/m² brightness for clear surveillance viewing
  • 178° wide viewing angles ensure visibility from multiple positions
  • 60 Hz refresh rate and 5 ms response for smooth motion
  • Hybrid BNC and HDMI inputs support TVI, CVI, AHD and CVBS signals

Specifications

BrandORION IMAGES
SeriesHYBRID
Cabinet ColorBlack
Screen Size27"
LED BacklightYes
WidescreenYes
Maximum Resolution1920 x 1080
Refresh Rate60Hz
Viewing Angle178° (H) / 178° (V)
Display Colors16.7 Million
Brightness250 cd/m2
Contrast Ratio1,000:1
Aspect Ratio16:9
Response Time5 ms
Input Video CompatibilityAnalog RGB, Digital, Component
ConnectorsD-Sub, BNC, HDMI
VideoBNC connector
HDMI1
Thunderbolt 2No
Thunderbolt 3No
DisplayPortNo
Power Consumption21 W
Built-in SpeakersNo

Questions about this item

How many continuous operating days is the 27RDHY rated for?

The monitor is built to run 24 hours a day, seven days a week, 365 days a year without interruption.

What are the typical heat and noise levels when the display runs all day?

With a 250 cd/m² LED backlight and plastic chassis, it produces low heat and operates silently since no fan is fitted.

Which video sources can connect directly to the BNC inputs?

The two BNC ports auto-recognise TVI, CVI, AHD and CVBS signals up to 5 MP TVI, 4 MP CVI or 5 MP AHD.
