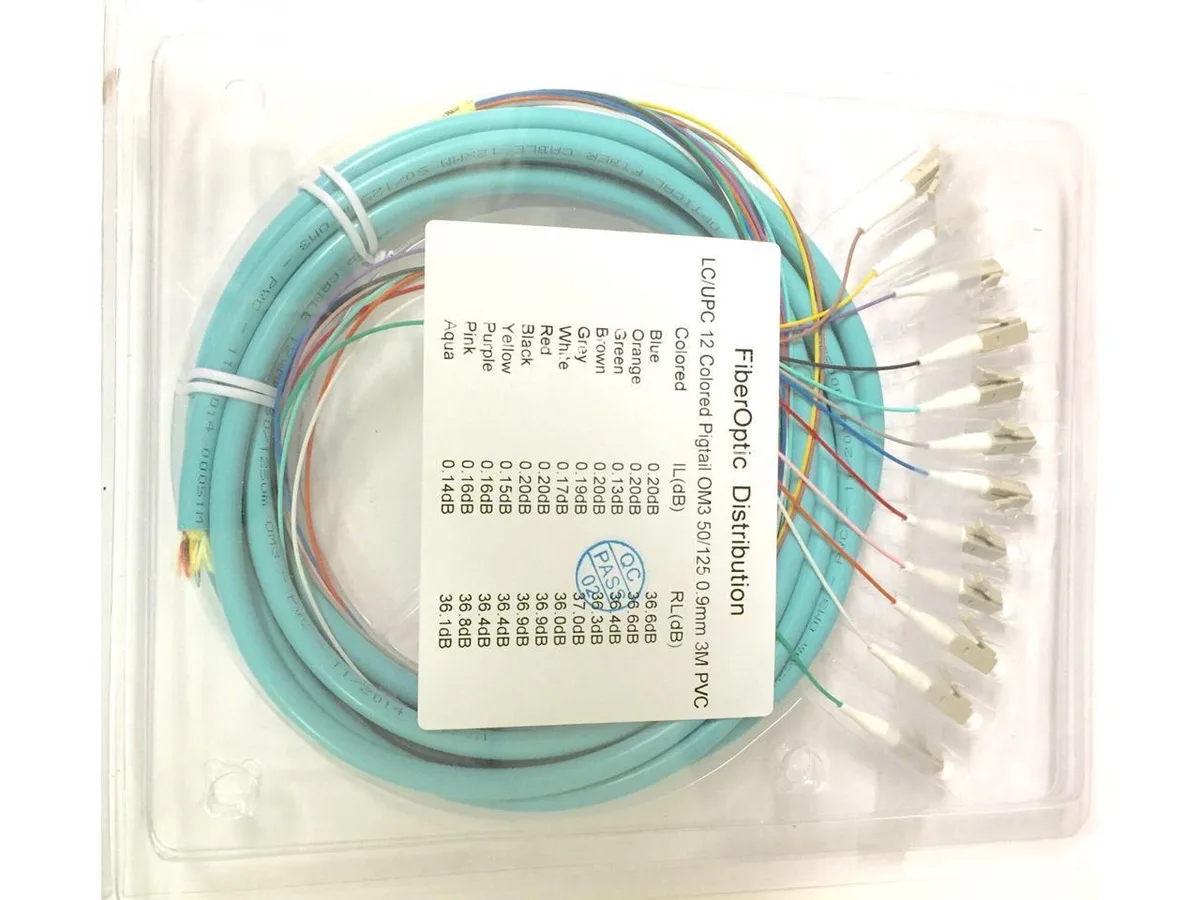

12-strand OM3 fiber pigtail with LC UPC connectors, orange or aqua jacket

Other Electricities

Other Electricities 12 Strand 50/125 OM3 3m LC UPC Fanout Fiber Pigtail

SKU CH-YKAV-BXEGJ

A 12-strand 50/125 OM3 multimode fan-out pigtail with LC UPC connectors on one end and unterminated fibres on the other, rated for 850 nm and 1310 nm with .3 dB insertion loss and >1000 mating cycles

  • TypeRack
  • 12-fiber bundle simplifies high-density patching
  • OM3 50/125 µm multimode supports 850 nm and 1310 nm links
  • LC UPC connectors deliver 0.3 dB typical insertion loss
  • Fan-out design eases fusion splicing inside enclosures
  • Rated for more than 1000 mating cycles

12-Strand OM3 Multimode Pigtail

This 12-strand 50/125 OM3 fiber pigtail is built for fusion splicing inside rack-mount enclosures. It serves installers who need pre-terminated LC UPC connectors on one end and bare fibers on the other for direct splicing to backbone cables.

LC UPC Connectors and Fanout Kit

The bundle ships with LC UPC connectors factory-polished to a 0.3 dB insertion loss spec at 850 nm and 1310 nm. A partial outer jacket protects the tight-buffer fibers during handling and can be stripped off to reduce bend radius when enclosure space is tight.

Fusion-Splice Installation Notes

Technicians fuse the unterminated ends to the building cable, then seat the LC plugs into adapter panels. The pigtails are rated for more than 1000 mating cycles, but dirty or damaged end-faces during splicing remain the most common cause of excess loss.

Highlights

  • 12-fiber bundle simplifies high-density patching
  • OM3 50/125 µm multimode supports 850 nm and 1310 nm links
  • LC UPC connectors deliver 0.3 dB typical insertion loss
  • Fan-out design eases fusion splicing inside enclosures
  • Rated for more than 1000 mating cycles

Specifications

TypeRack

Questions about this item

How many fusion splices can the 12-fibre OM3 pigtail set handle before the connectors need replacing?

The LC/UPC connectors are rated for more than 1000 mating cycles, so the fan-out assembly should survive repeated patch-panel changes without connector replacement.

What insertion-loss budget should I plan for when the 3-metre OM3 fan-out runs at 850 nm?

Each fibre shows a maximum insertion loss of 0.3 dB at 850 nm, giving a predictable loss figure for link-loss calculations.

How much heat does the 12-strand OM3 pigtail generate when light at 850 nm and 1310 nm passes through it continuously?

Passive fibre pigtails produce no measurable heat; all optical power stays in the glass core and the assembly runs at ambient temperature.
