Two green circuit boards with black memory chips and gold edge connectors

OWC

OWC 32GB DDR5 5600 CL46 SODIMM Kit for Lenovo LOQ 15APH8 16APH8

SKU CH-6JX7-0FMEQ

A 32GB DDR5 5600 CL46 SODIMM kit built for Lenovo LOQ 15APH8 and 16APH8 laptops

  • Capacity32GB (2 x 16GB)
  • Type262-Pin DDR5 Non-ECC SODIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Voltage1.1V
  • ECCNo

Capacity 32GB (2 x 16GB)

  • 32GB kit doubles memory capacity for Lenovo LOQ 15APH8 and 16APH8
  • DDR5 5600 speed with CL46 latency boosts system responsiveness
  • 1V operation reduces power draw versus higher-voltage modules
  • JEDEC and RoHS compliant for warranty-safe upgrade
  • Two 16GB 1Rx8 SODIMMs install easily in 262-pin slots

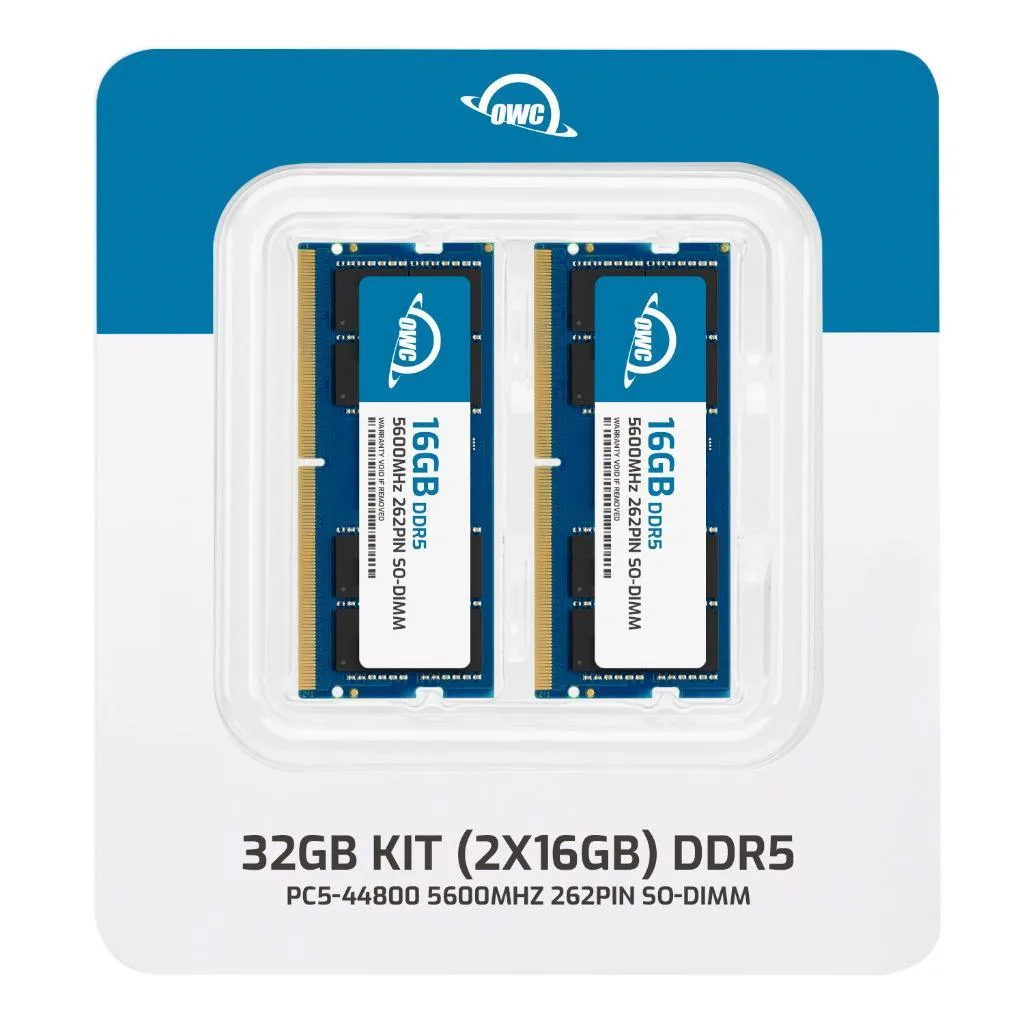

OWC 32GB DDR5 5600 CL46 Kit

This 32GB kit contains two 16GB DDR5 5600 SODIMM modules built for Lenovo LOQ 15APH8 and 16APH8 laptops. It runs at CL46 latency and 1.1V using standard JEDEC timings. The unbuffered non-ECC design matches the factory specification for these systems.

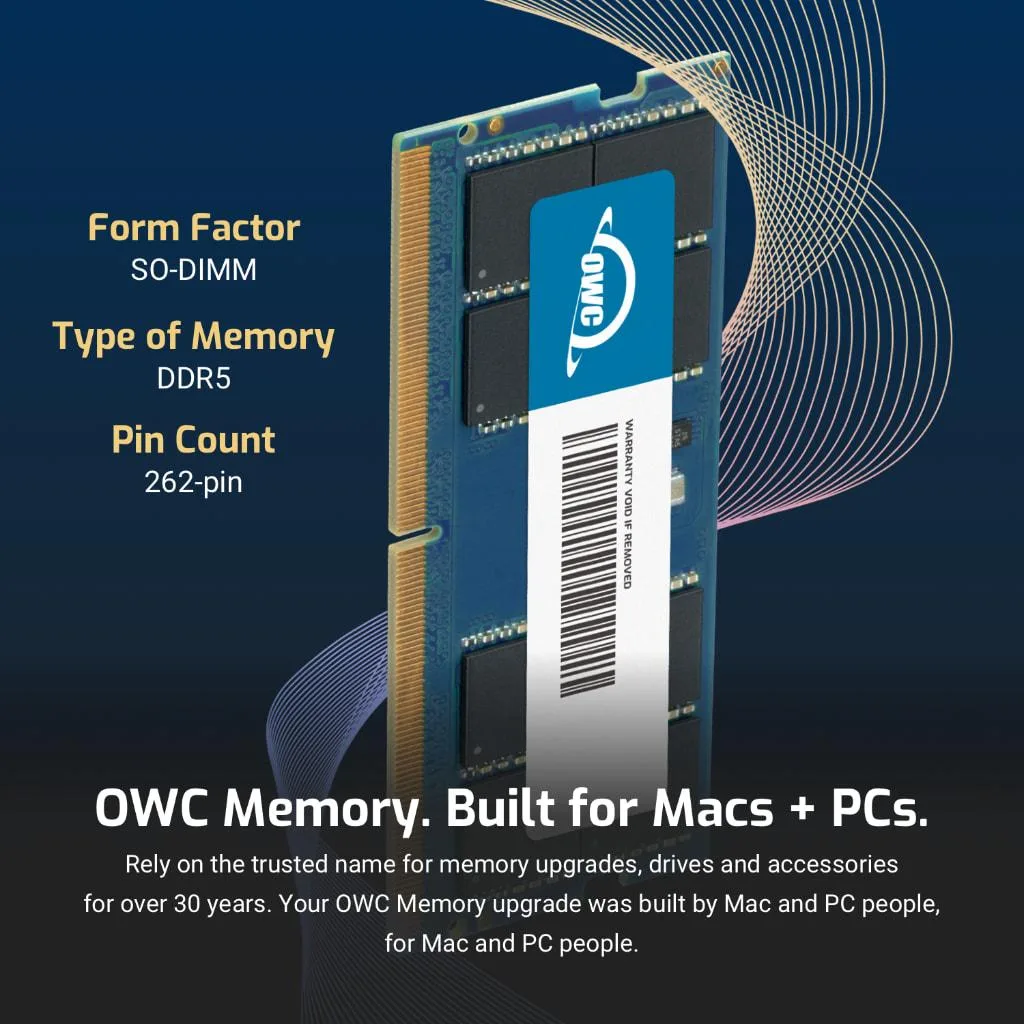

262-pin SODIMM form factor

Each module uses the 262-pin DDR5 SODIMM layout with a 1Rx8 rank configuration and no heat spreader. The low-profile design fits the slim memory slots in the LOQ chassis without clearance issues. Installation follows the standard SODIMM process accessible through the service panel.

Replaces factory memory in LOQ 15APH8 16APH8

The kit replaces the original Lenovo part number 4X71M23187 and doubles the typical 16GB configuration to 32GB. The upgrade is worthwhile when multitasking with large projects or running memory-heavy applications that exceed the base capacity. Buyers who need more than 32GB or require ECC support should look elsewhere.

Highlights

  • 32GB kit doubles memory capacity for Lenovo LOQ 15APH8 and 16APH8
  • DDR5 5600 speed with CL46 latency boosts system responsiveness
  • 1V operation reduces power draw versus higher-voltage modules
  • JEDEC and RoHS compliant for warranty-safe upgrade
  • Two 16GB 1Rx8 SODIMMs install easily in 262-pin slots

Specifications

BrandOWC
Part Number5S6D51R8032P
Capacity32GB (2 x 16GB)
Type262-Pin DDR5 Non-ECC SODIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Voltage1.1V
ECCNo
Buffered/RegisteredUnbuffered
Rank1Rx8
Heat SpreaderNo
Compatible SystemLenovo LOQ 15APH8
Lenovo LOQ 16APH8

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the DDR5 5600 PC5-44800 CL46 spec limit the speed to 5600 MT/s in the Lenovo LOQ 15APH8?

The modules are rated at DDR5 5600 PC5-44800 CL46; the laptop will run them at that speed if its memory controller supports it.

What physical slot and form factor do the two 16 GB modules require in the LOQ 16APH8?

Each module is a 262-pin DDR5 SODIMM without a heat spreader, designed for the laptop's internal SO-DIMM slots.

How do I install the kit in the LOQ 15APH8 and what step is often missed?

Power off, unplug, open the bottom cover, insert both SODIMMs at an angle until they click, then reassemble; the step often missed is pressing firmly until the side latches lock.
