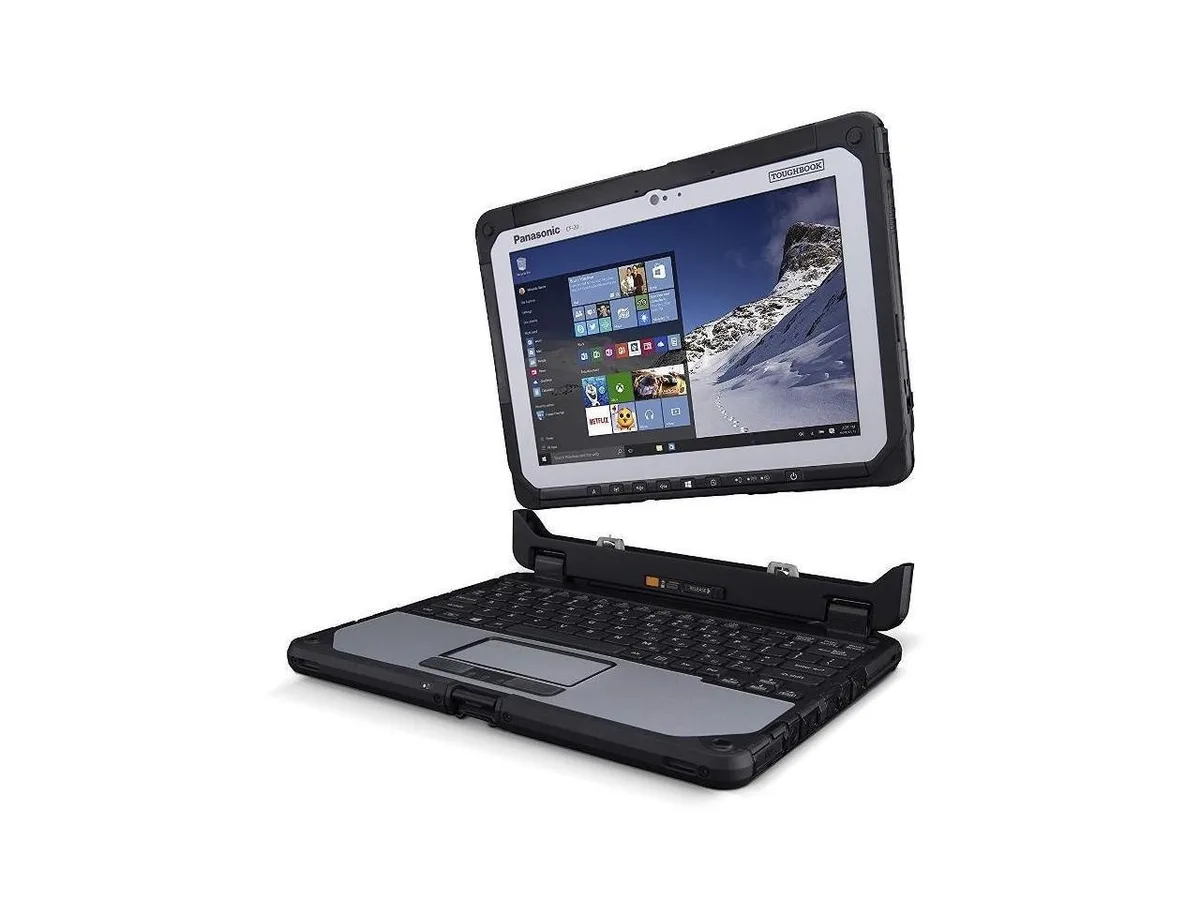

Rugged detachable laptop tablet in black silver finish with handle kickstand and backlit keyboard

Panasonic

Panasonic Toughbook CF-20 MK1 laptop 10.1" 1920x1200 Core m5-6Y57 8GB 256GB

SKU CH-PS16-D5F2W

A fully rugged 10.1″ detachable laptop with a 1920 x 1200 sunlight-viewable touchscreen, Core m5-6Y57 vPro processor, 8 GB DDR3L, 256 GB SSD, Bluetooth 4.1 and a built-in barcode reader

  • ColorBlack / Silver
  • Other FeaturesBarcode Reader
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core M5
  • Processor Name1.10GHz
  • Screen Size10.1"

Options 8GB/256GB

  • Detachable rugged design switches between laptop and tablet
  • 1" sunlight-viewable WUXGA display works with gloves or stylus
  • Intel Core m5-6Y57 vPro processor reaches 2.80 GHz turbo
  • 8GB DDR3L memory with 256GB SSD storage
  • 1080p webcam plus 8MP rear camera for field documentation

Fully rugged detachable laptop

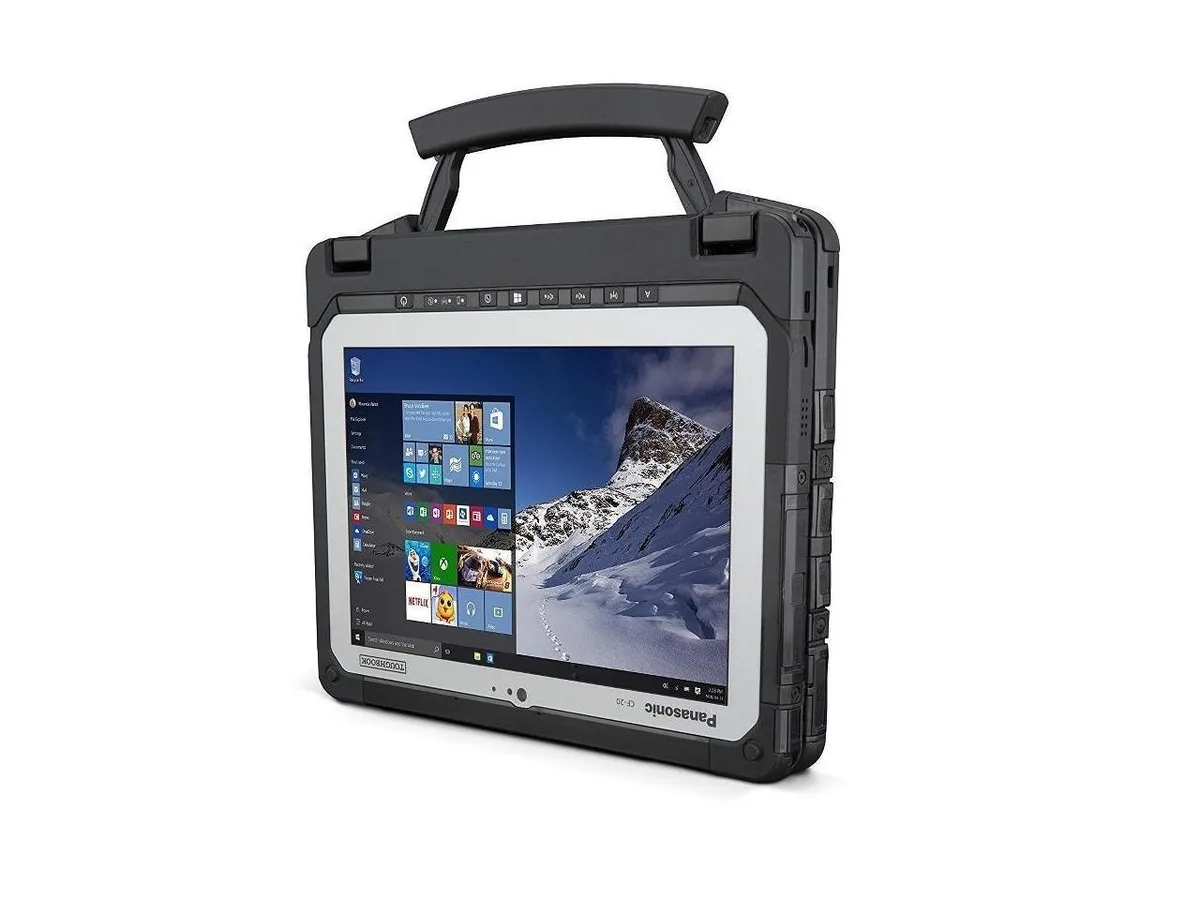

The Panasonic Toughbook CF-20 MK1 is a fully rugged detachable laptop that operates as both a laptop and a tablet. It targets field workers who need a 10.1 inch WUXGA multi-touch display readable in sunlight and usable with gloves or a stylus. The Intel Core m5-6Y57 vPro processor provides a base frequency of 1.10 GHz with Turbo Boost up to 2.80 GHz. Windows 10 Pro 64-bit is pre-installed on the 256GB SSD with 8GB DDR3L memory.

Passive cooling and low power draw

The Core m5-6Y57 processor runs at low thermal design power so the tablet section uses passive cooling without audible fans during normal workloads. The detachable keyboard base adds no active cooling components either. Battery life benefits from the efficient 1.10 GHz base clock and Intel HD Graphics 515 which handles 1080p webcam video and 8MP rear camera tasks without a discrete GPU. The bridge battery design allows hot-swap replacement on supported configurations for continuous operation.

Detachable keyboard expands ports

The premium detachable keyboard adds a docking connector plus two USB 3.0 ports one USB 2.0 port an SDXC slot HDMI VGA Ethernet and a serial USB interface. The tablet portion alone provides one USB 3.0 port MicroSDXC HDMI Ethernet and a Micro-SIM slot. The emissive backlit keyboard and integrated 2D barcode laser scanner model N6603 extend data-capture capability in low-light environments. Wireless connectivity covers 802.11ac Wi-Fi and Bluetooth 4.1.

Highlights

  • Detachable rugged design switches between laptop and tablet
  • 1" sunlight-viewable WUXGA display works with gloves or stylus
  • Intel Core m5-6Y57 vPro processor reaches 2.80 GHz turbo
  • 8GB DDR3L memory with 256GB SSD storage
  • 1080p webcam plus 8MP rear camera for field documentation

Specifications

BrandPanasonic
SeriesToughbook
ModelCF-20 MK1
ColorBlack / Silver
Other FeaturesBarcode Reader
Operating SystemWindows 10 Pro
CPU TypeIntel Core M5
Processor Name1.10GHz
Screen Size10.1"
TouchscreenTouch Screen
Display TypeWUXGA
Resolution1920 x 1200
GPU/VPUIntel HD Graphics 515
SSD256GB
HDDNo
Memory8GB
Optical Drive TypeNo
LANYes
WLAN802.11ac Wireless LAN
BluetoothBluetooth 4.1
Audio Ports1 x Headphone/Microphone Combo Jack
Backlit KeyboardBacklit
WebcamYes
TypeWork / Business

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I attach the detachable keyboard and what step is often missed?

Align the tablet with the docking connector on the keyboard base and press down firmly until it clicks; the step people miss is verifying the bridge battery is seated so the hot-swap works without power loss.

Which user-replaceable part will need swapping first during field use?

The standard Li-Ion battery is the only user-replaceable component; the bridge battery lets you hot-swap it while the tablet stays on.

What thermal limit appears first when the Core m5-6Y57 runs sustained workloads?

The processor hits its 2.80 GHz turbo ceiling and then throttles back to the 1.10 GHz base clock to stay within its fanless thermal envelope.
