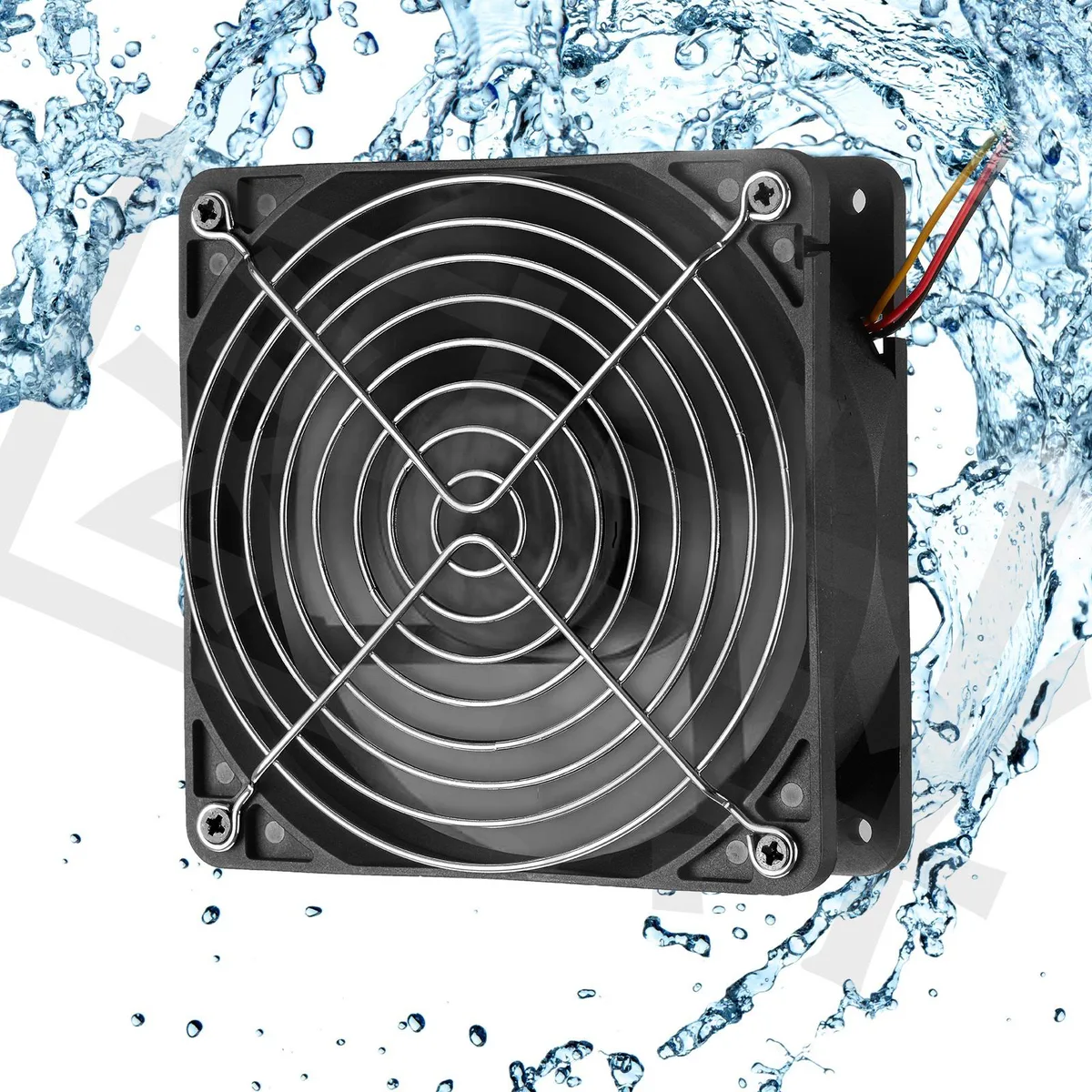

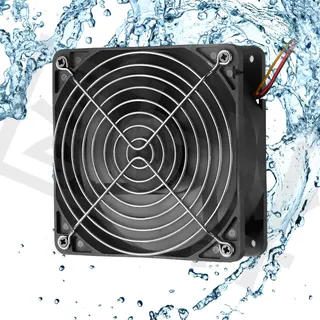

Black 120mm square case fan 38mm thick with three-pin connector

PANO-MOUNTS

PANO-MOUNTS 12038IP2510 120mm IP65 3500RPM 38mm 3-pin case fan

SKU CH-P05P-TJYRQ

IP65-rated 120 mm case fan with 3500 RPM hydraulic bearing, 125 CFM airflow and 3-pin connector for wet or dusty environments

  • Fan Size120mm
  • LEDNon-LED
  • TypeCase Fan
  • Bearing TypeHydraulic
  • RPM3500-3999 RPM
  • Air Flow>80 CFM

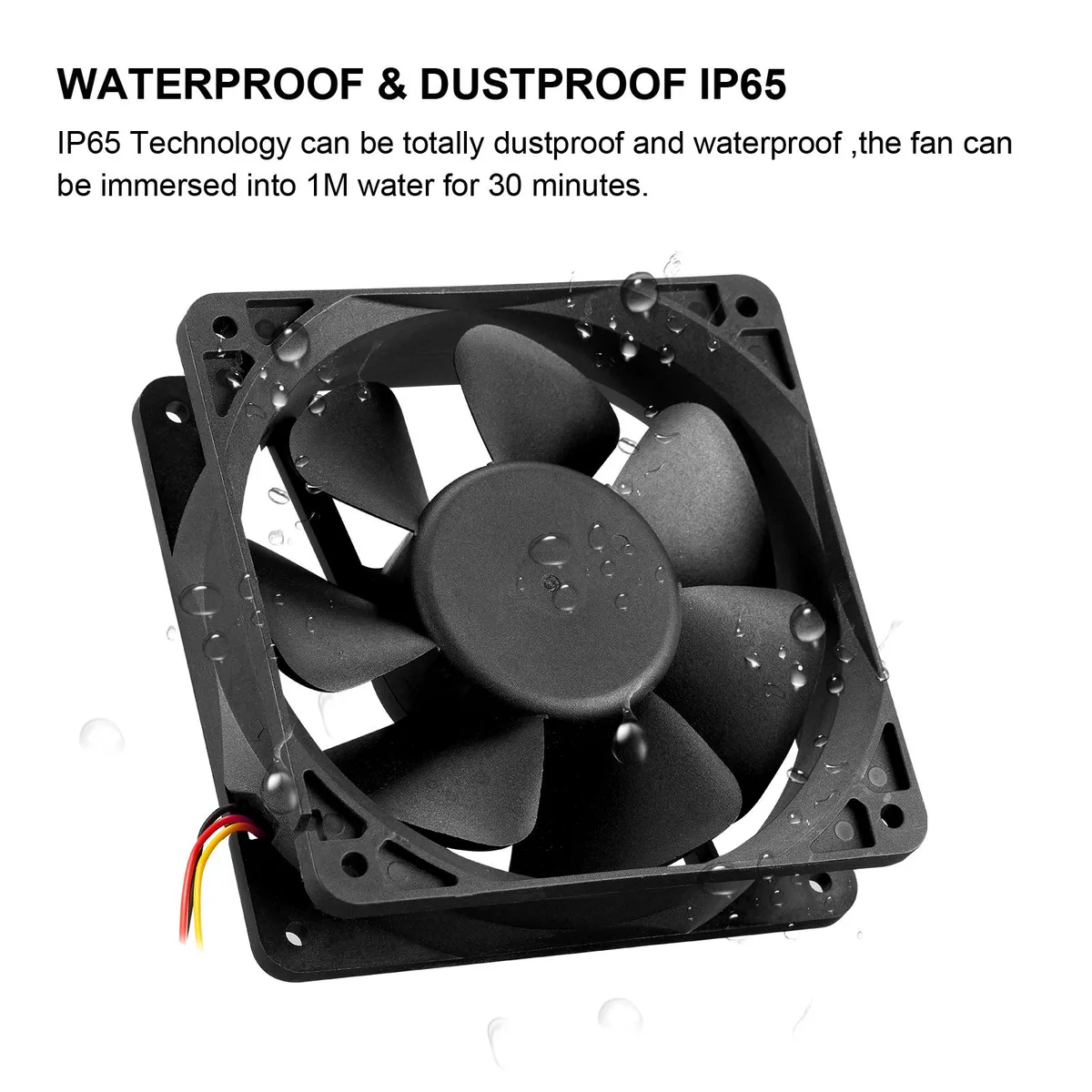

  • IP65 rating blocks dust and water ingress for reliable operation in wet or humid environments

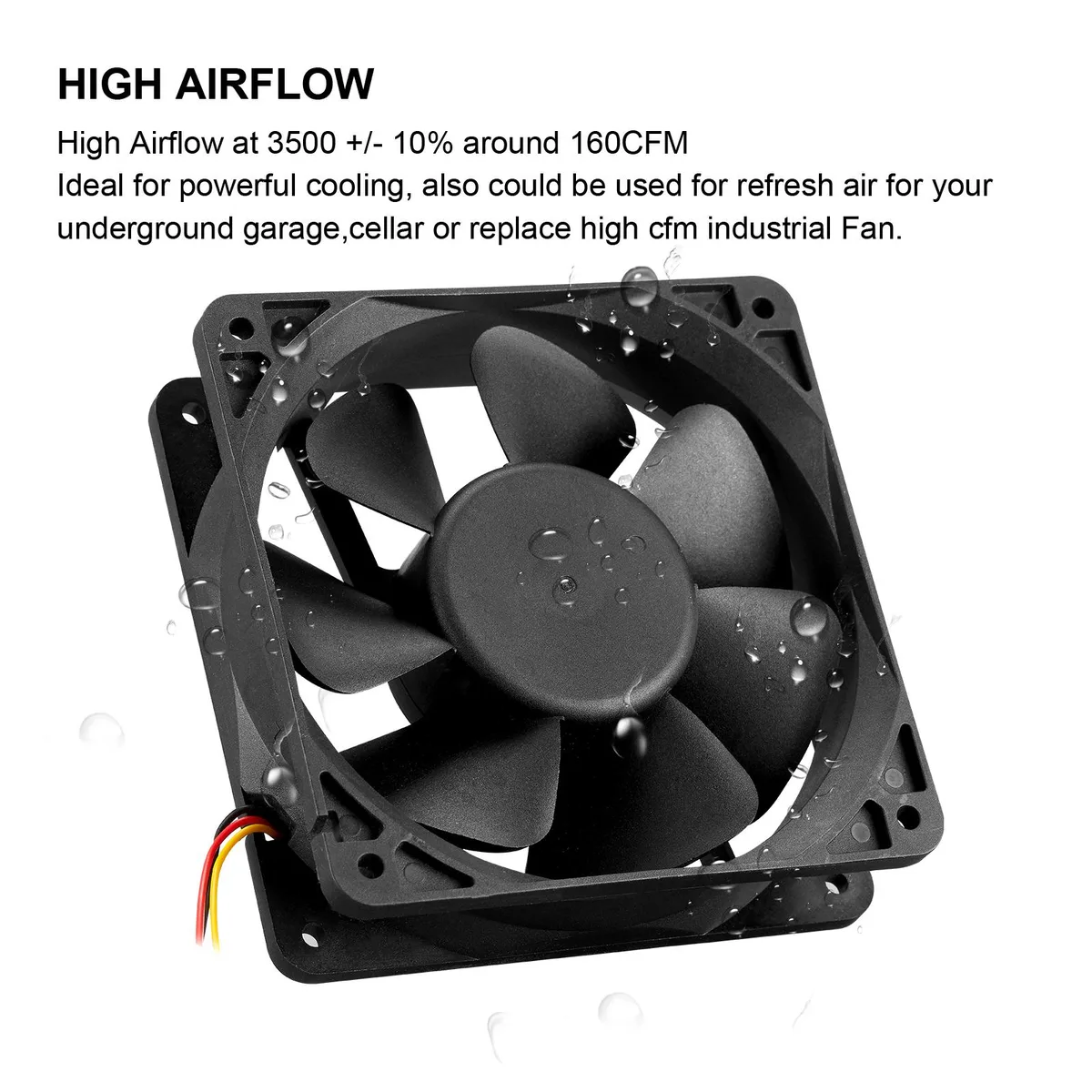

  • 3500 RPM delivers 125.2 CFM airflow to meet strong cooling demands
  • Hydraulic bearing with self-protection stops the fan safely if obstructed to extend service life
  • 3-pin 12 V connector with tach output enables straightforward installation across multiple equipment types
  • 38 mm thick 120 mm frame fits standard case mounts while providing high static pressure

120mm IP65 Waterproof Case Fan

The PANO-MOUNTS 12038IP2510 is a 120mm case fan with a 38mm thick frame and an IP65 waterproof rating. It runs on 12V DC power through a standard 3-pin connector and uses a hydraulic bearing. The black, non-LED unit delivers airflow above 80 CFM at speeds between 3500 and 3999 RPM.

Suited for wet or dusty environments

This fan suits builders who need cooling in high-humidity or wet locations such as greenhouses, chicken houses, or industrial cabinets. The IP65 seal blocks dust and water ingress. Buyers who want a quiet fan for a silent desktop should look elsewhere, as noise exceeds 50 dBA. Those needing PWM speed control or RGB lighting will not find those features here.

Check 38mm clearance and 3-pin header

Before ordering, verify that your chassis or mounting location can accommodate a 38mm thick fan, as it is thicker than standard 25mm models. Confirm your motherboard or controller provides a 3-pin header for the red, black, and yellow wiring. The fan draws 0.8A at 12V for 9.6W, so ensure the header can supply that current.

Highlights

  • IP65 rating blocks dust and water ingress for reliable operation in wet or humid environments
  • 3500 RPM delivers 125.2 CFM airflow to meet strong cooling demands
  • Hydraulic bearing with self-protection stops the fan safely if obstructed to extend service life
  • 3-pin 12 V connector with tach output enables straightforward installation across multiple equipment types
  • 38 mm thick 120 mm frame fits standard case mounts while providing high static pressure

Specifications

BrandPANO-MOUNTS
Series12038 Series
Model12038IP2510
Fan Size120mm
LEDNon-LED
TypeCase Fan
Bearing TypeHydraulic
RPM3500-3999 RPM
Air Flow>80 CFM
Noise Level> 50 dBA
Power Connector3 Pin
ColorBlack
CompatibilityCase
Fan Counts1 Fan
Fan ControllerNo Controller
Fan Thickness38mm
FeaturesIP65 WATERPROOF
Dimensions120×120×38mm 4.72*4.72*1.5in
Package ContentsFAN

Questions about this item

Does my case need a 120 mm mounting grid and a 12 V three-pin header to run this 38 mm thick fan?

Yes — the unit measures 120×120×38 mm, draws 0.8 A at 12 V through a three-pin connector (red +, black –, yellow tach), so the chassis must provide those mounting holes and a matching header.

Can I keep using an older 25 mm fan on the same 12 V header while adding this 38 mm IP65 model?

Both fans run on 12 V three-pin power, so they can share a header with a splitter; the thicker 38 mm frame simply requires the extra clearance behind the mounting plane.

How do I confirm the self-protection feature is active after installation?

If an object contacts the blades the fan stops without burning out; restarting it after clearing the obstruction shows the protection cycle is working.
