Three black 120mm square case fans with silver metal grilles and 3-pin connectors

PANO-MOUNTS

PANO-MOUNTS 3-Pack 120mm 24V 3000RPM Case Fan 3-Pin Dual Ball Bearing 101CFM

SKU CH-M5DT-R09YJ

Three 120 mm 24 V dual-ball-bearing fans deliver up to 101 CFM at 3000 RPM with 3-pin 2510 connectors and included metal guards

  • Fan Size120mm
  • LEDNon-LED
  • TypeCase Fan
  • Bearing Type2 Ball
  • RPM3000-3499 RPM
  • Air Flow>80 CFM
  • Powerful cooling with 101.7 CFM at 3000 RPM
  • Adjustable speed from 1800 to 3000 RPM via 12–24 V input
  • Daisy-chain up to three fans using 3-pin 2510 connectors
  • Dual ball bearings rated for 60 000–100 000 hours of operation
  • Metal guards included to protect fingers and blades

Three-pack 120 mm high-airflow fans

This three-pack delivers three 120 mm case fans rated for 101 CFM at 24 V. Each unit uses a 3-pin 2510 connector and dual ball bearings for extended service life. The fans suit mining rigs, server racks, industrial enclosures or any DIY project that demands strong, directed airflow.

Sustained-load behaviour

At the rated 24 V the fans spin at 3000 RPM, move 101.7 CFM and produce 44.4 dBA while drawing 0.2 A. Dual ball bearings maintain consistent speed and airflow over long operating periods, with a quoted lifespan of 6000 to 100000 hours. Metal guards protect blades and fingers during continuous duty.

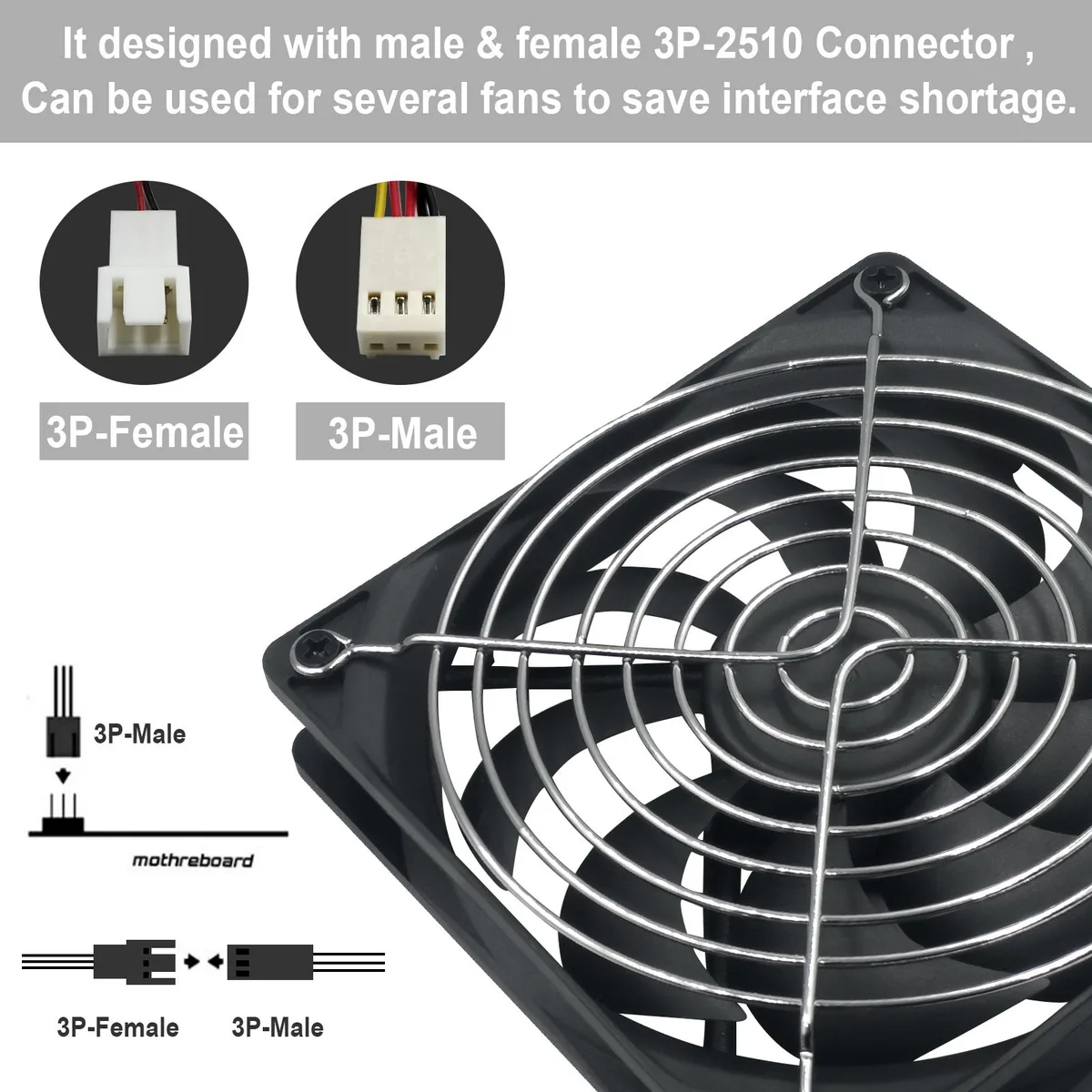

Voltage-adjustable 3-pin interface

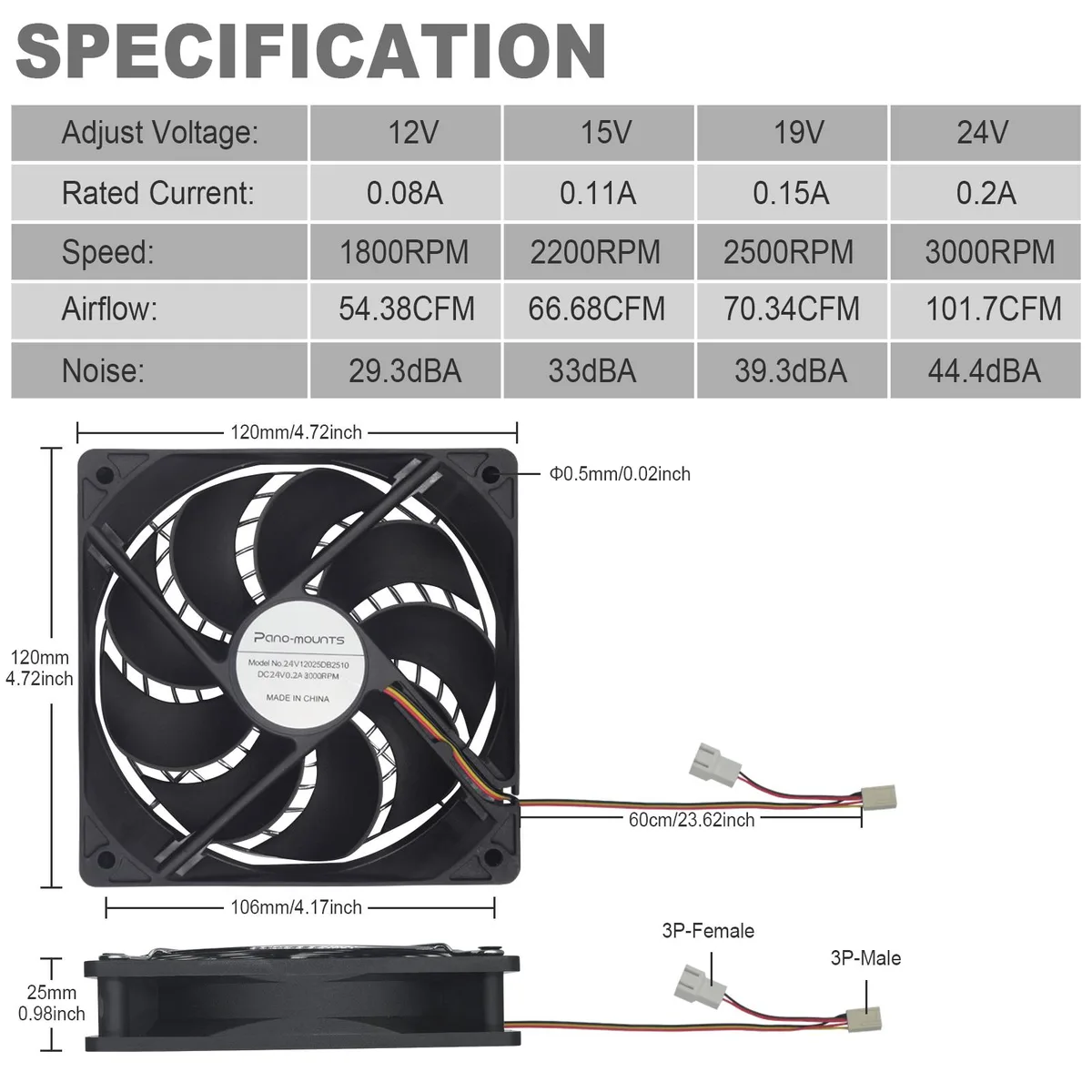

The 3-pin 2510 connector allows series wiring to reduce cable clutter, but it does not support PWM control. Speed and airflow scale with applied voltage: 12 V yields 1800 RPM and 54.38 CFM at 29.3 dBA, 15 V gives 2200 RPM and 66.68 CFM at 33 dBA, 19 V provides 2500 RPM and 70.34 CFM at 39.3 dBA, and 24 V reaches the peak figures above.

Highlights

  • Powerful cooling with 101.7 CFM at 3000 RPM
  • Adjustable speed from 1800 to 3000 RPM via 12–24 V input
  • Daisy-chain up to three fans using 3-pin 2510 connectors
  • Dual ball bearings rated for 60 000–100 000 hours of operation
  • Metal guards included to protect fingers and blades

Specifications

Fan Size120mm
LEDNon-LED
TypeCase Fan
Bearing Type2 Ball
RPM3000-3499 RPM
Air Flow>80 CFM
Noise Level40 - 45 dBA
Power Connector3 Pin
ColorBlack
CompatibilityCase
Fan Counts3 Fans
Fan ControllerNo Controller
Fan Thickness25mm
FeaturesHIGH AIRFLOW 101CFM
Dimensions120×120×25mm 4.72*4.72*0.98in

Questions about this item

How loud are the three 120mm fans at their maximum 3000 RPM speed?

At 3000 RPM each fan produces 44.4 dBA, so the triple pack runs at that level when all three spin at full 24 V speed.

What voltage source and connector do I need to run these fans?

They require a 24 V DC supply and use a 3-pin 2510 connector; the pack includes male and female ends for daisy-chaining.

Will the 3-pin 2510 plugs work on my older motherboard’s 4-pin PWM headers?

The 3-pin 2510 connector fits a standard 3-pin header; on a 4-pin PWM header it will run at full speed without PWM control.
