Black 120mm square case fan 38mm thick with metal finger guard grill and 3-pin connector

PANO-MOUNTS

PANO-MOUNTS FANDEL24038-3PG 120mm 38mm 24V 3700RPM 152CFM 53dBA 3-pin case fan

SKU CH-XJV1-5CCN2

A 120mm × 38mm case fan spins at 3700 RPM to move 152 CFM at 53 dBA on 24 V power

  • Fan Size120mm x 120mm x 38mm
  • LEDNon-LED
  • TypeCase Fan
  • Bearing TypeBall
  • RPM3500-3999 RPM
  • Air Flow>80 CFM
  • Powerful airflow for demanding cooling with 152 CFM at 3700 RPM
  • Adjustable speed range from 7 V to 27.6 V for quieter operation
  • Dual ball bearing rated for 70000 hours of continuous use

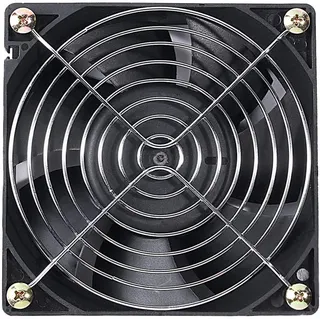

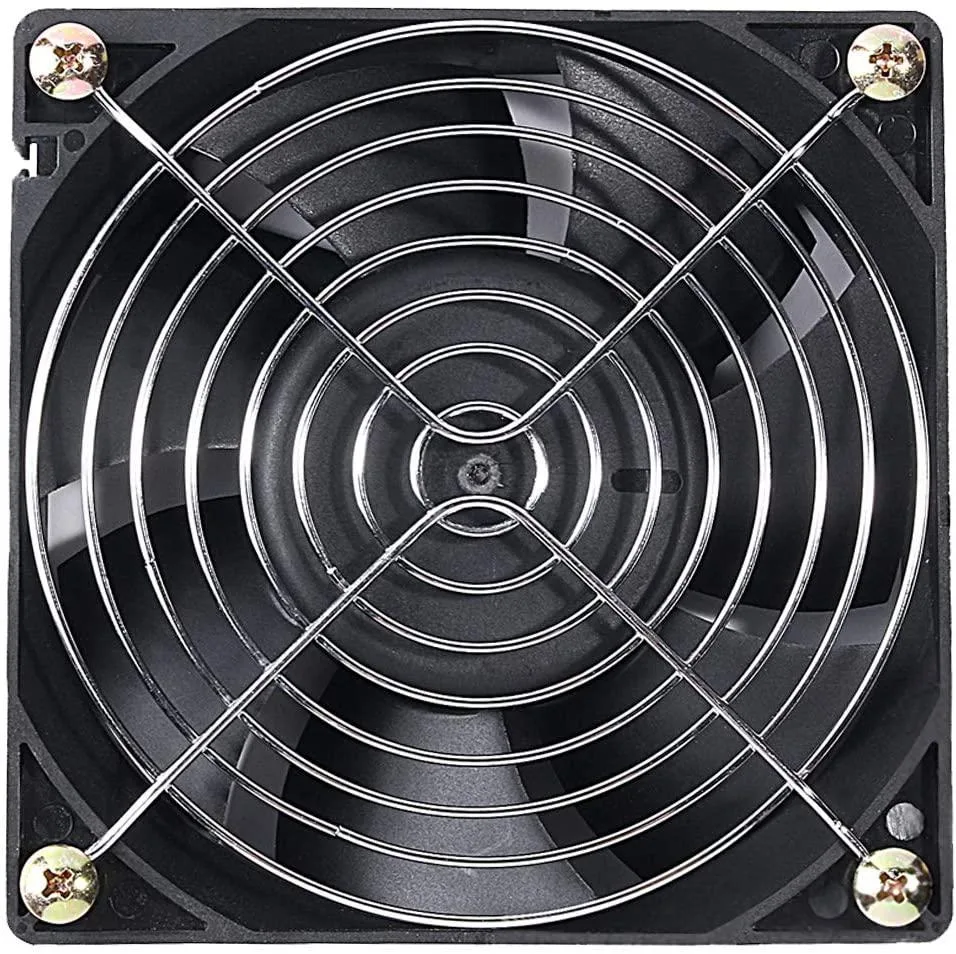

  • 38 mm thick frame with included metal finger guard and mounting hardware
  • 3-pin 2-wire connector with 230 mm cable for straightforward installation

High-airflow 120 mm case fan

The PANO-MOUNTS FANDEL24038-3PG is a 120 mm square frame fan with a 38 mm thickness designed for high-volume airflow. It delivers 152 CFM at 3700 RPM using a dual ball bearing rated for 70000 hours. The unit targets builders who need strong cooling for CPU heatsinks or industrial ventilation.

Check 24 V DC power and 3-pin header

The fan requires a 24 V DC supply drawing up to 0.75 A and connects via a 3-pin 2-wire plug with a 230 mm cable. Verify that your motherboard or controller provides a 24 V header; standard 12 V headers will not drive it correctly. The metal finger guard and mounting hardware are included in the package.

Sustained high-speed operation

At full voltage the fan runs at 3700 RPM with a noise level of 53 dBA, maintaining the rated airflow continuously thanks to the ball bearing design. Speed can be reduced by lowering the input voltage toward 7 V for quieter running, but the published 152 CFM and 53 dBA figures apply only at the nominal 24 V operating point.

Highlights

  • Powerful airflow for demanding cooling with 152 CFM at 3700 RPM
  • Adjustable speed range from 7 V to 27.6 V for quieter operation
  • Dual ball bearing rated for 70000 hours of continuous use
  • 38 mm thick frame with included metal finger guard and mounting hardware
  • 3-pin 2-wire connector with 230 mm cable for straightforward installation

Specifications

BrandPANO-MOUNTS
Series12038 Series
ModelFANDEL24038-3PG
Part NumberFANDEL24038-3PG

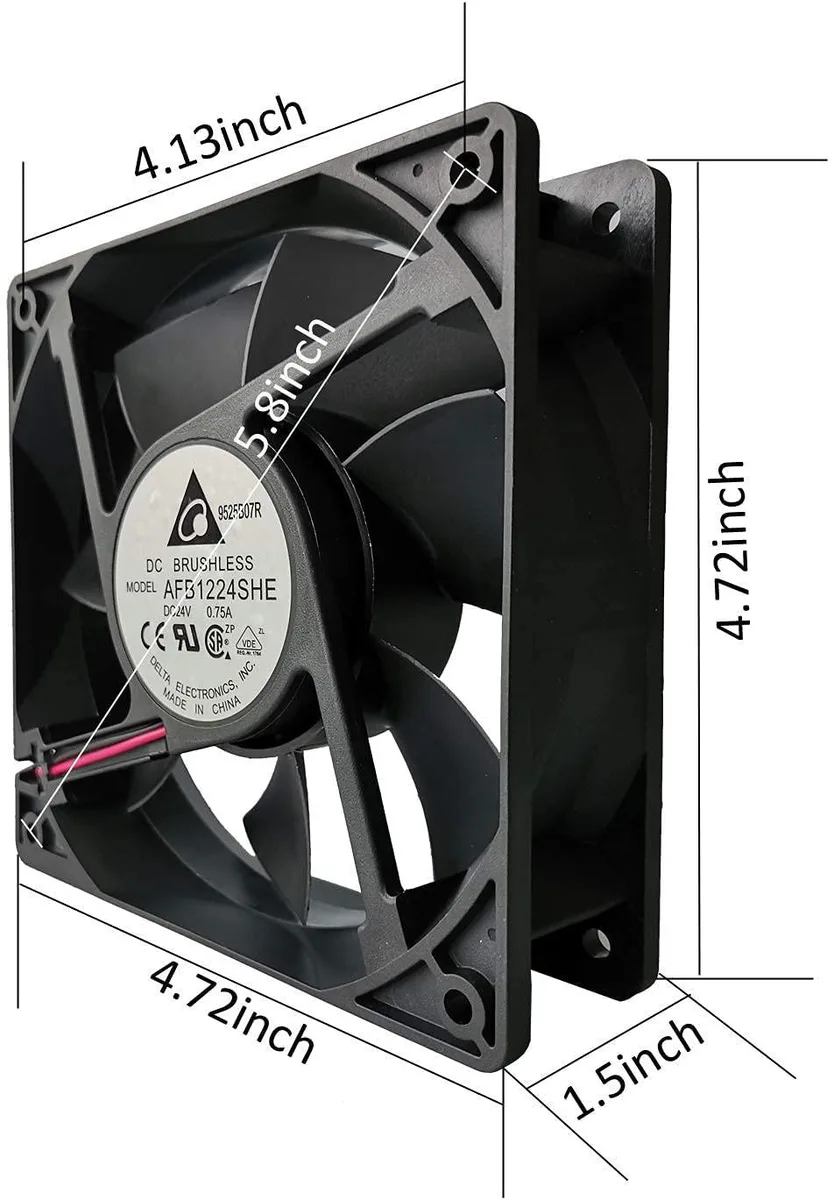

Fan Size120mm x 120mm x 38mm
LEDNon-LED
TypeCase Fan
Bearing TypeBall
RPM3500-3999 RPM
Air Flow>80 CFM
Noise Level> 50 dBA
Power Connector3 Pin
ColorBlack
CompatibilityCPU Cooler
Fan Counts1 Fan
Fan ControllerNo Controller
Fan Thickness38mm
FeaturesHIGH SPEED
Dimensions120mm x 120mm x 38mm
Package Contentsfan

Questions about this item

What comes in the box with the FANDEL24038-3PG and is a mounting guard included?

The package includes one fan, one metal finger guard grill, four screws and four nuts. No separate mounting hardware is required.

The specs show 3500-3999 RPM and >80 CFM but the Delta AFB1224SHE is rated 3700 RPM and 152 CFM — which figures should I expect?

The fan runs at 3700 RPM ±10 % with 152 CFM airflow and 53 dBA noise; the wider ranges are generic category limits, not this model's tested output.

How does the 53 dBA noise level translate when the fan is running at full 24 V inside a typical case?

At 24 V the fan produces 53 dBA, which is clearly audible; lowering the supply voltage toward 7 V reduces speed and noise for quieter operation.
