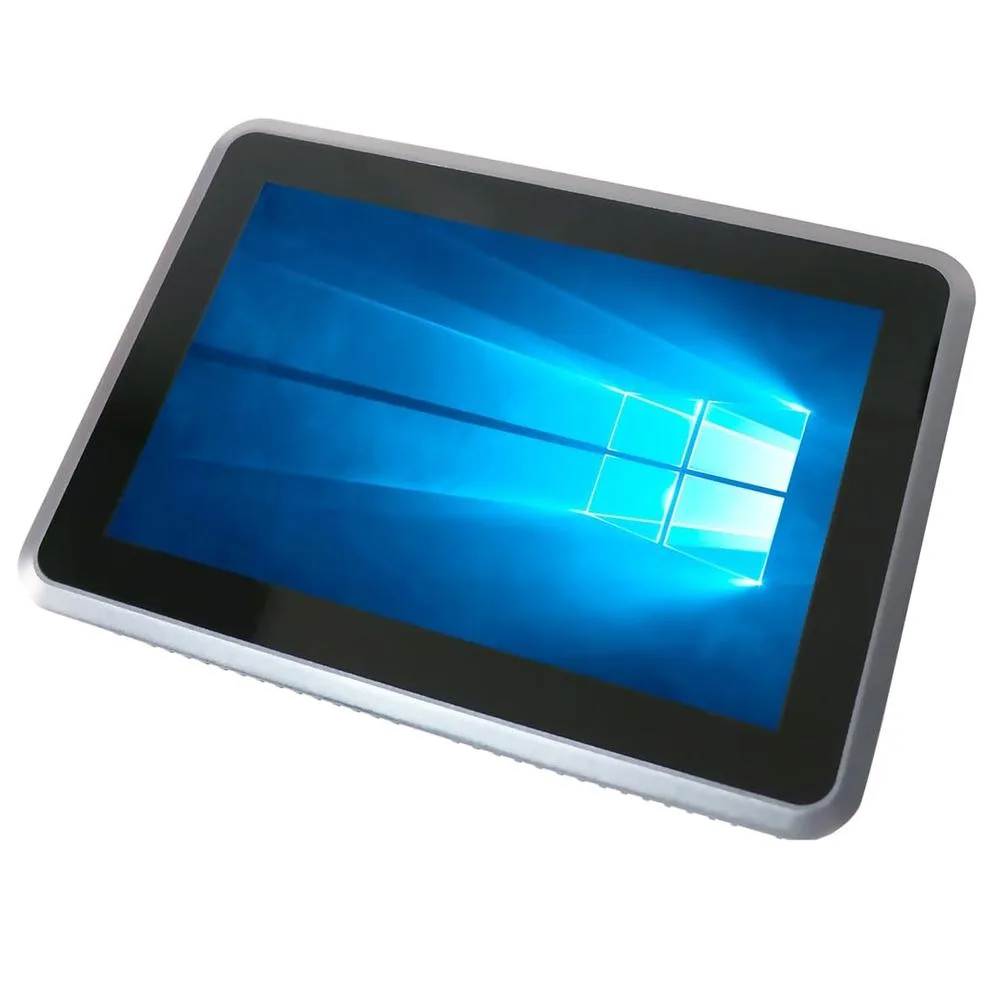

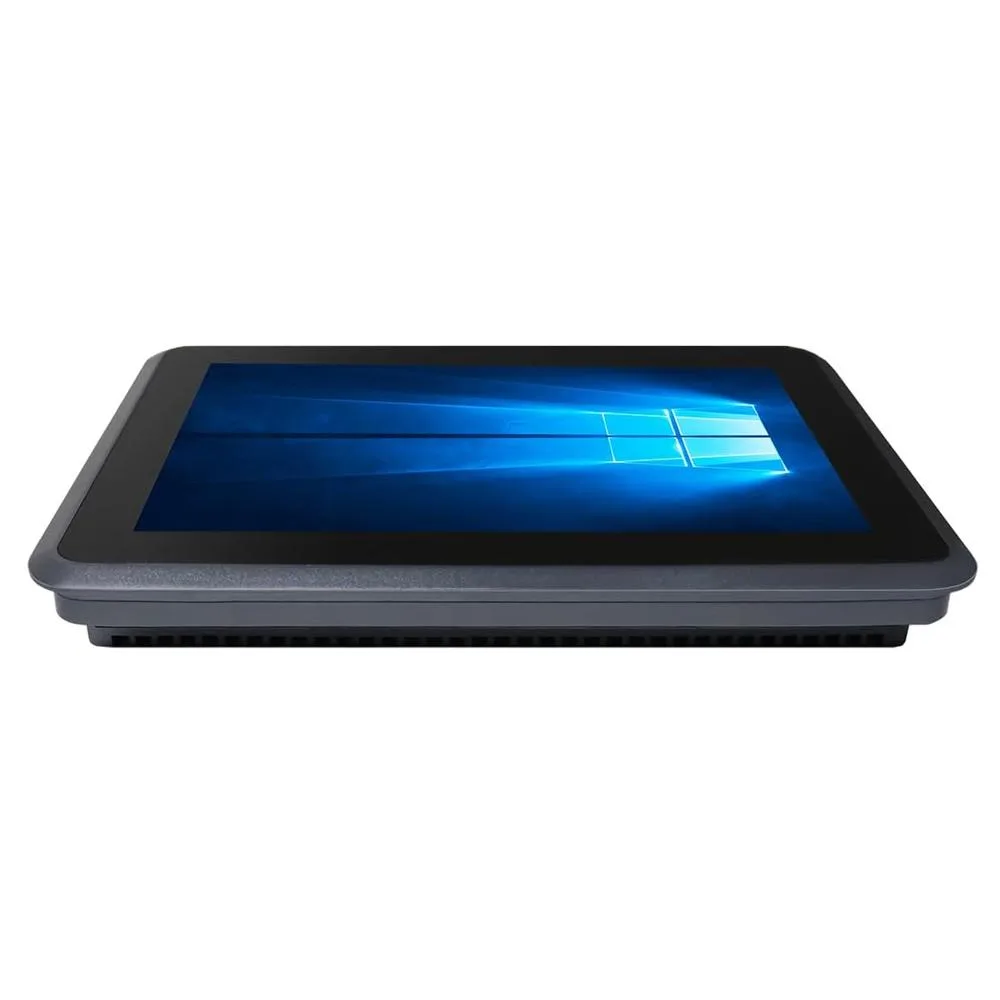

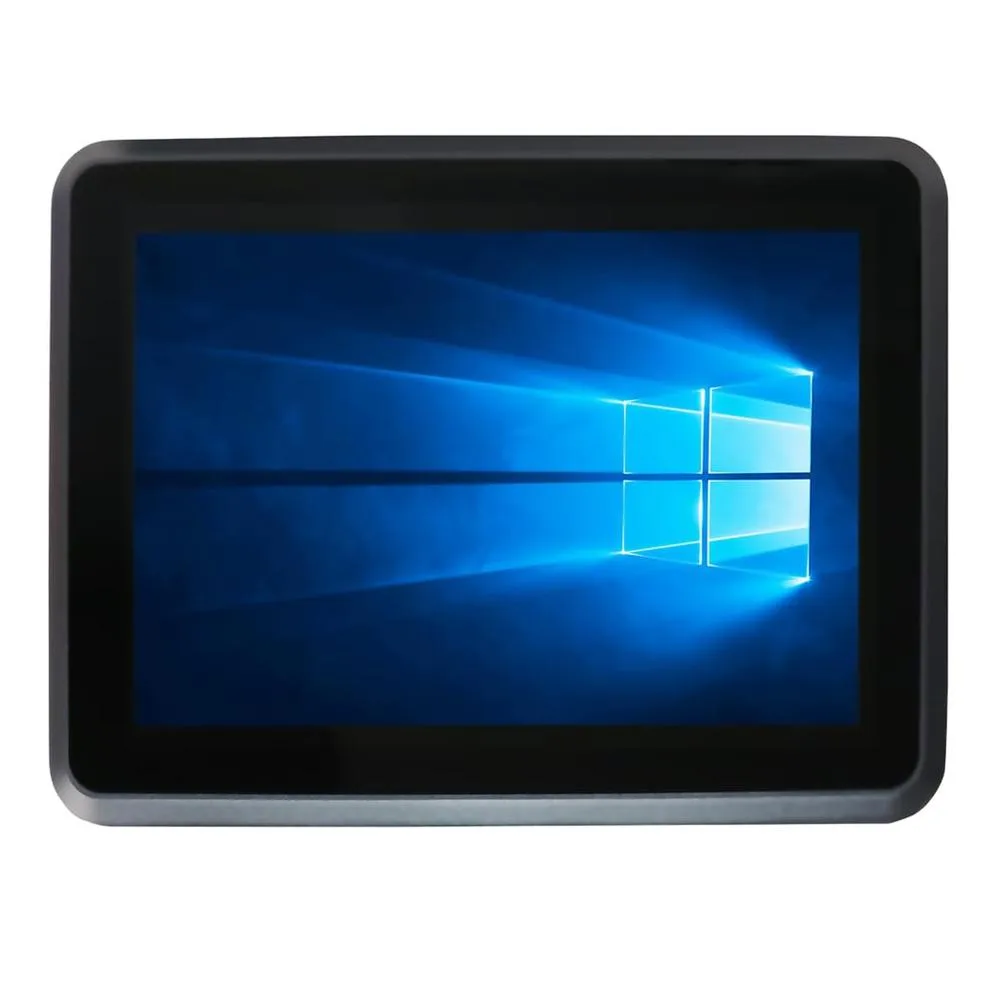

10.1 inch flat front panel PC, aluminium alloy fanless chassis, IP65 rated, capacitive multi-touch screen

partaker

Partaker A18 10.1" IP65 AI edge system i5-8260U 16G 256G

SKU CH-QZNM-GXSP7

A 10.1 inch IP65 front panel PC with multi-touch capacitive screen, Intel Core i5-8260U processor, 16GB DDR4 RAM, 256GB SATA SSD, dual LAN, HDMI, two COM ports.

Memory Capacity 16GB DDR4

Struck-through versions exist but are not stocked here.

SSD 256GB

  • 1TB
  • 512GB
  • 256GB
  • 128GB

Struck-through versions exist but are not stocked here.

  • IP65 front panel resists dust and water in harsh environments
  • Intel Core i5-8260U up to 3.90 GHz handles 24/7 industrial workloads
  • Fanless aluminium alloy cooling runs silent and energy-efficient
  • 16 GB DDR4-2666 and 256 GB SATA SSD ready for immediate deployment
  • 9-36 V wide-range DC input with Phoenix connector suits unstable power lines

Compact 10.1 inch industrial panel PC

The Partaker A18 is a 10.1 inch industrial panel PC built around an Intel Core i5-8260U processor with 16 GB of DDR4 memory and a 256 GB SATA SSD. Its IP65-rated front panel and fanless aluminium chassis suit factory automation, kiosk or edge-AI deployments that need a sealed, silent unit. Windows 11 Pro is pre-installed for immediate operation. The multi-touch capacitive screen supports 1280 x 800 resolution for clear visualisation.

Fanless cooling and wide-voltage input

An aluminium alloy heatsink dissipates heat without moving parts, so the system runs silently and draws minimal power in normal use. The DC 9 V to 36 V Phoenix connector accepts unstable industrial supplies, while the included 12 V 5 A adapter covers standard mains. Two Intel 1000M LAN ports, HDMI, four USB 3.0 ports and dual COM ports handle data and legacy equipment without extra adapters. Operating range spans 0 °C to 50 °C for commercial SSD or -20 °C to 60 °C with an industrial SSD.

Expansion slot and mounting flexibility

A Mini PCIe slot with a SIM holder lets you add Wi-Fi or 4G connectivity for remote monitoring. The chassis supports embedded, wall, desktop or cantilever mounting using the 262 x 180 mm cut-out. Dual 2-watt speakers provide local audio alerts. RAID 0 or 1 can be configured across the M.2 2280 and 2.5 inch SATA bays for redundancy or speed. TPM 2.0 secures boot and encryption keys in unattended environments.

Highlights

  • IP65 front panel resists dust and water in harsh environments
  • Intel Core i5-8260U up to 3.90 GHz handles 24/7 industrial workloads
  • Fanless aluminium alloy cooling runs silent and energy-efficient
  • 16 GB DDR4-2666 and 256 GB SATA SSD ready for immediate deployment
  • 9-36 V wide-range DC input with Phoenix connector suits unstable power lines

Specifications

No published specifications for this item yet.

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the unit embedded and what step do installers often miss?

Cut a 262 x 180 mm opening, seat the 271.5 x 190 mm bezel, and secure the clamps; the step often missed is applying the gasket evenly so the IP65 front seal holds.

What storage or memory upgrades will this system need later?

One SODIMM DDR4-2666 slot supports up to 32 GB; storage uses one M.2 2280 SATA SSD and one 2.5" SATA drive with RAID 0/1, so plan capacity before sealing the enclosure.

What thermal limit appears first during continuous heavy workloads?

Fanless aluminium cooling relies on surface airflow; sustained loads at the 3.90 GHz turbo will hit the 50 °C commercial or 60 °C industrial ambient ceiling before CPU throttling engages.
