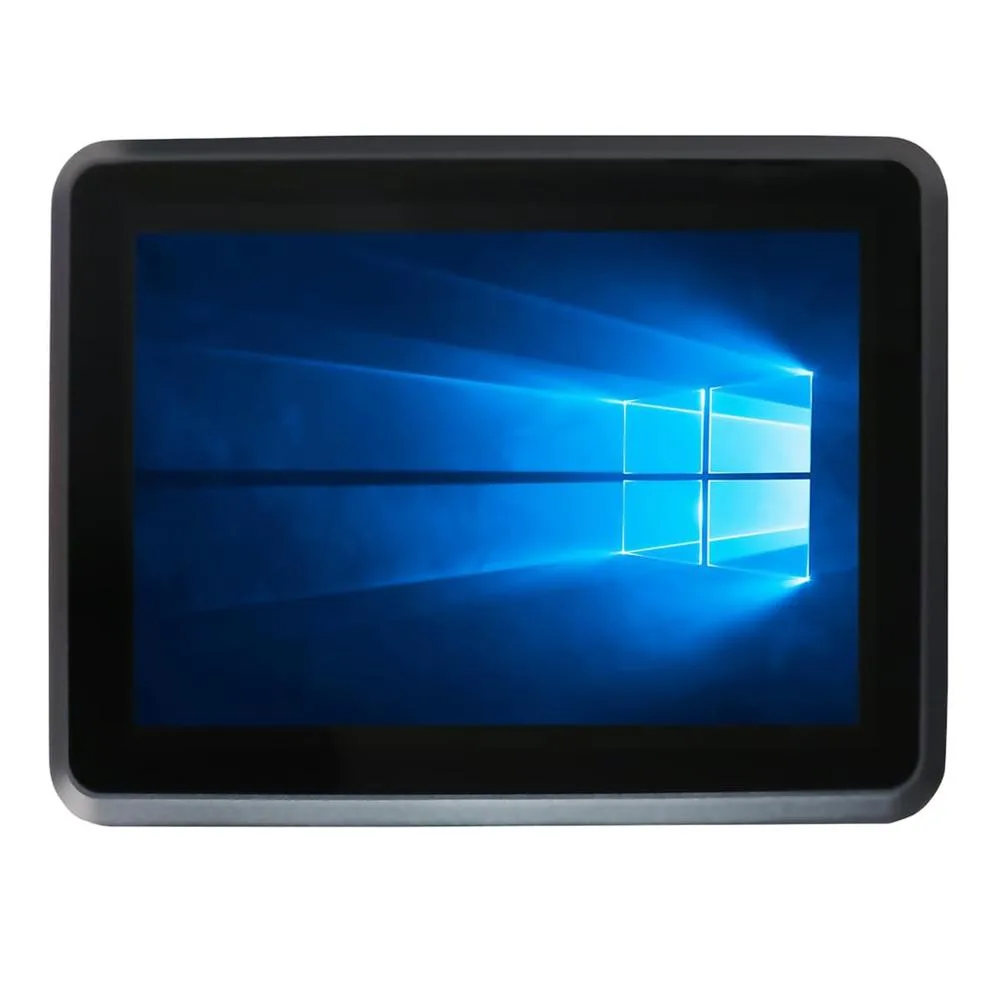

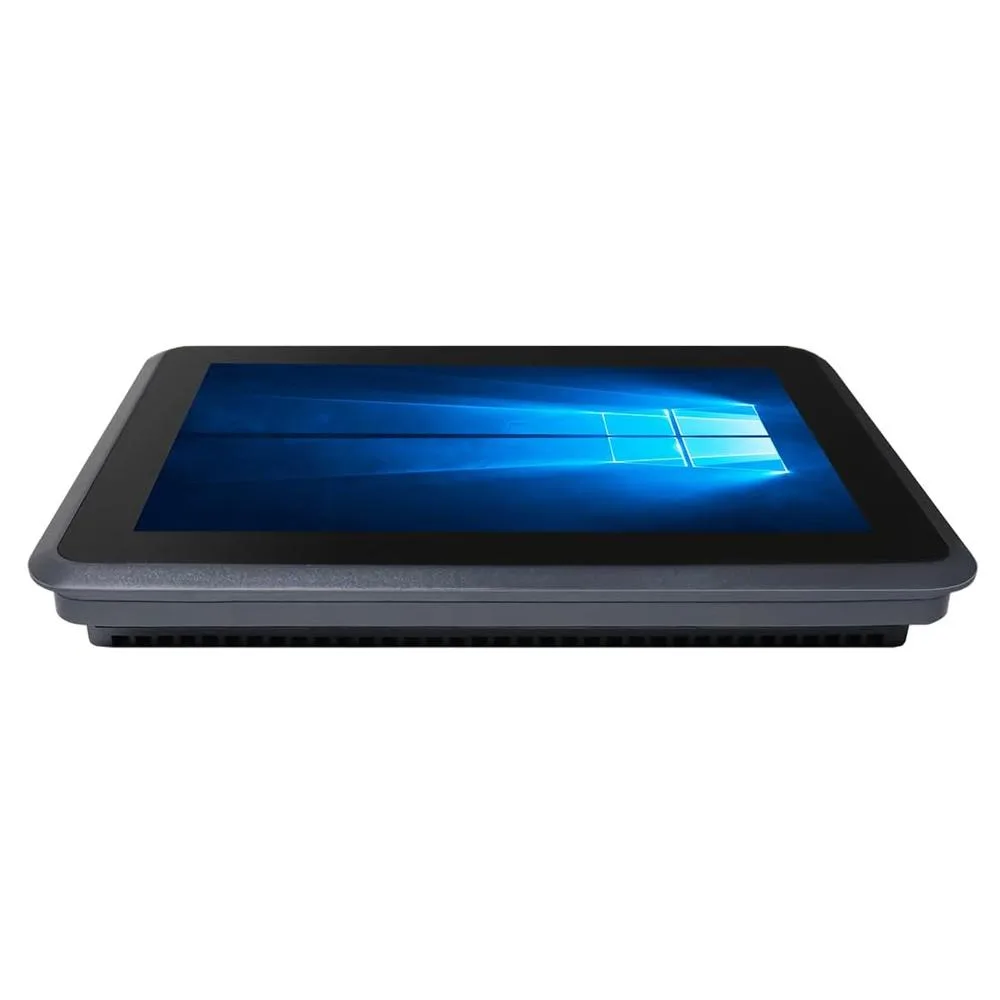

Compact 10.1 inch industrial all-in-one panel PC with flat IP65 front, aluminium fanless chassis, capacitive multi-touch screen

partaker

partaker A18 10.1" IP65 all-in-one PC i7-10510U 32GB DDR4 1TB SATA

SKU CH-ZMX5-SD42Y

A 10.1" IP65-rated all-in-one panel PC with an Intel Core i7-10510U processor, 32GB DDR4 memory, and a 1TB SATA SSD, designed for continuous industrial operation in a fanless aluminium chassis

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB
  • IP65 front protection shields against dust and water jets
  • Intel Core i7-10510U delivers up to 4.90 GHz for demanding industrial workloads
  • 32 GB DDR4 memory and 1 TB SATA SSD provide high-capacity responsive storage
  • Fanless aluminium cooling ensures silent 24/7 operation from -20 °C to 60 °C
  • 9-36 V wide-range Phoenix input with auto power-on keeps systems running after power loss

Compact industrial panel PC

The Partaker A18 is a 10.1 inch all-in-one computer with an IP65-rated front panel and multi-touch capacitive screen. It runs on an Intel Core i7-10510U processor with 32GB DDR4 memory and a 1TB SATA SSD. Windows 11 Pro comes pre-installed for immediate deployment in industrial environments.

Fanless upgrade for legacy panels

This unit replaces older panel PCs that rely on active cooling or lack wide-voltage DC input. The fanless aluminium chassis and 9-36V Phoenix connector suit 24/7 operations in dusty or vibration-prone settings. The jump is worth it when silent reliability and front-panel water resistance become critical requirements.

Embedded mount with wide-voltage input

Installation uses a 262 x 180mm cut-out for embedded fitting, with wall, desktop or cantilever options also supported. The 2-pin Phoenix connector accepts 9-36V DC directly, so wiring errors are the main risk; verify polarity before powering on. Two COM ports and dual LAN simplify legacy device integration.

Highlights

  • IP65 front protection shields against dust and water jets
  • Intel Core i7-10510U delivers up to 4.90 GHz for demanding industrial workloads
  • 32 GB DDR4 memory and 1 TB SATA SSD provide high-capacity responsive storage
  • Fanless aluminium cooling ensures silent 24/7 operation from -20 °C to 60 °C
  • 9-36 V wide-range Phoenix input with auto power-on keeps systems running after power loss

Specifications

ModelA18-New-I7 10810U-32G1TBSSD
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
HDDNo
Screen Size10.1"
TouchscreenYes

Questions about this item

What panel cut-out does the 10.1" IP65 front need for embedded mounting?

The embedded installation cut-out is 262 x 180 mm, matching the IP65 flat front panel dimensions.

How do I connect power to the 9-36 V 2-pin Phoenix connector without reversing polarity?

Wire the Phoenix plug with positive to the marked terminal and negative to the other; the wide 9-36 V DC input tolerates industrial supplies, but reversed polarity will prevent start-up.

When should the 2.5" SATA drive bay be checked or the SSD replaced under 24/7 industrial use?

The 2.5" SATA bay supports RAID 0/1; monitor SMART health annually and replace drives after five years continuous operation or when reallocated sectors appear.
